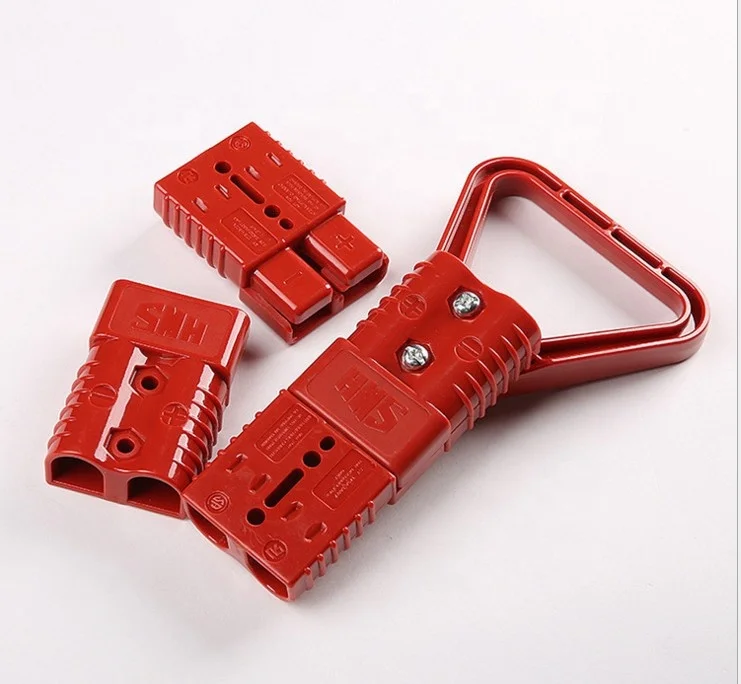

Asynchronous motor charing 2-pin 175A forklift battery connector



Product description

Specifications:

• DC power connector kit rated at 175A, 600 VDC
• Impact resistant polycarbonate housing offers high physical strength and superior dielectric properties
• Silver-plated solid copper contacts offer low resistance for superior conductivity
• Self cleaning contact design resists arcing by keeping conductive surfaces clean and free of corrosion
• Contacts have flared and heat treated barrels which readily accept fine stranded wire
• Integral stainless steel springs maintain constant pressure on the contact to insure a consistent, low-resistance connection





KEY FEATURES

• Brand: APP (Anderson Power Products)
• Model: SB175, each connector assemblage includes one housing and two tips (contacts)
• Housing color: gray
• Net weight: 0.12 kg (0.25 lbs.)
• Current rating (ampers): 175A on 6 AWG wire produces 30° C rise
• Voltage limit (volts): 600
• Insulation with standing test voltage (volts): 2200V DC
• Operating temperature range: -20° to 105° C
• Maximum wire insulation diameter: 19.01 mm (0.75")
• Contact barrel wire size: (AWG) #4 to 1/0; (mm²) 21.1 to 53.5
• Average contact retention force: approximately 300 lbs (136 kg)
• Average contact resistance: 100 µΩ with 1-1/4" (32 mm)
• Vibration resistance: excellent
• Mating cycles: 10,000 times, for disconnect use only
• Environmental restrictions: protected - no hydrocarbon fluids
• Flammability rating: UL94 V-0
• Average mating and unmating force: 25 lbs (11.34 kg)

Dimensions:
