3X-16X ENT стоматологический и офтальмологический операционный
- Категория: Microscopes >>>
- Поставщик: Ningbo,Haishu,Honyu,Opto-Electro,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.12 $* | 0.18 $* |
| Aug-18-2025 | 0.61 $* | 0.27 $* |
| Jul-18-2025 | 0.83 $* | 0.76 $* |
| Jun-18-2025 | 0.75 $* | 0.37 $* |
| May-18-2025 | 0.48 $* | 0.50 $* |
| Apr-18-2025 | 0.33 $* | 0.79 $* |
| Mar-18-2025 | 0.1 $* | 0.62 $* |
| Feb-18-2025 | 0.5 $* | 0.81 $* |
| Jan-18-2025 | 0.62 $* | 0.34 $* |
Характеристики
Product Description
3X-16X ENT, Dental and Ophthalmic Operating Microscope OPR.33.A180
Specification

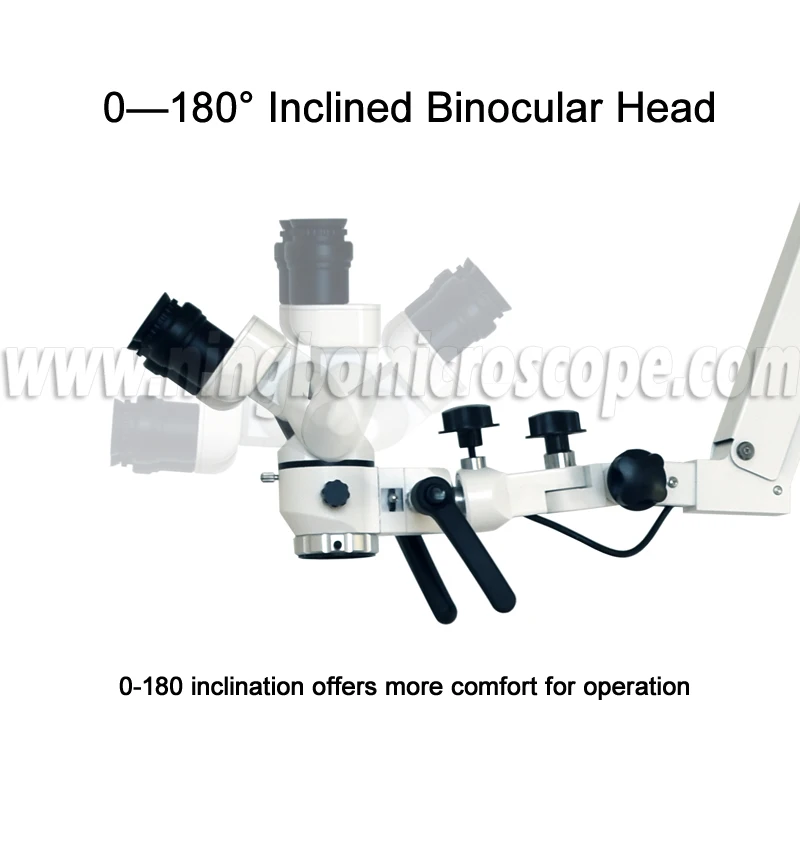

OPR.33.A180 is a comprehensive operation microscope. It is equipped with a 0-180 degree inclined binocular head, one pair of WF12.5X eyepiece, two long working distance objectives, coaxial LED illumination system and movable base. The 0-180 inclined binocular head can offers more comfort for operation. The standard magnification is 4.8x-16x( but with Optional objectives, the magnification can reach 3x-16x). The 10W LED illuminator can offer brightness over 40000 lux. This microscope is an idea instrument for ENT(otorhinolaryngologic), dental and ophthalmic inspection and operation.
Key Features
•3-step magnification adjustment: 0.6x, 1.0x, 1.6x
•Two objectives with different focusing distance
•High brightness 10W LED illumination
•Total Magnification: 3x-16x (with Optional objective)
Specification
Magnification of binocular | 8X |
Binocular | 0-180° inclinable |
Magnification of eyepiece | 12.5X |
Interpupillary distance | 50mm-80mm |
Diopter adjustable | ±7D |
Focal length of objective | F=200mm and F=250mm two objectives |
Magnification changer | 3-step, 0.6X, 1X, 1.6X |
Total magnification | 4.8X, 8X, 12.8X, 6X, 10X, 16X |
Linear field | 50mm, 30mm, 19mm, 40mm, 24mm, 15mm |
Fine focusing distance | 10mm |
Illumination | Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>40000lx |
Filter | Build-in green and yellow filters |
Balancing arm | 2-part arm with universal joints, counterweight adjustable and can be locked |
Floor stand | 2-part column fitted on the five-star base with casters |
Power supply | AC100V-AC240V |
Optic parameter
Magnification of eyepiece | 12.5X/20mm | |||||||||||
Focal length of objective | F=200mm | F=250mm | F=300mm(optional) | F=400mm(optional) | ||||||||
Magnification on handwheel | 1.6X | 1X | 0.6X | 1.6X | 1X | 0.6X | 1.6X | 1X | 0.6X | 1.6X | 1X | 0.6X |
Total magnification | 16X | 10X | 6X | 12.8X | 8X | 4.8X | 10.7X | 6.7X | 4X | 8X | 5X | 3X |
Linear field (mm) | 15 | 24 | 40 | 19 | 30 | 50 | 23 | 37 | 60 | 30 | 48 | 80 |
Diameter of spot (mm) | 57 | 71 | 86 | 113 | ||||||||
Exit pupil distance (mm) | 20 | |||||||||||
Optional accessories
Objectives | F=200mm, F=300mm, F=200-300mm zooming objective |

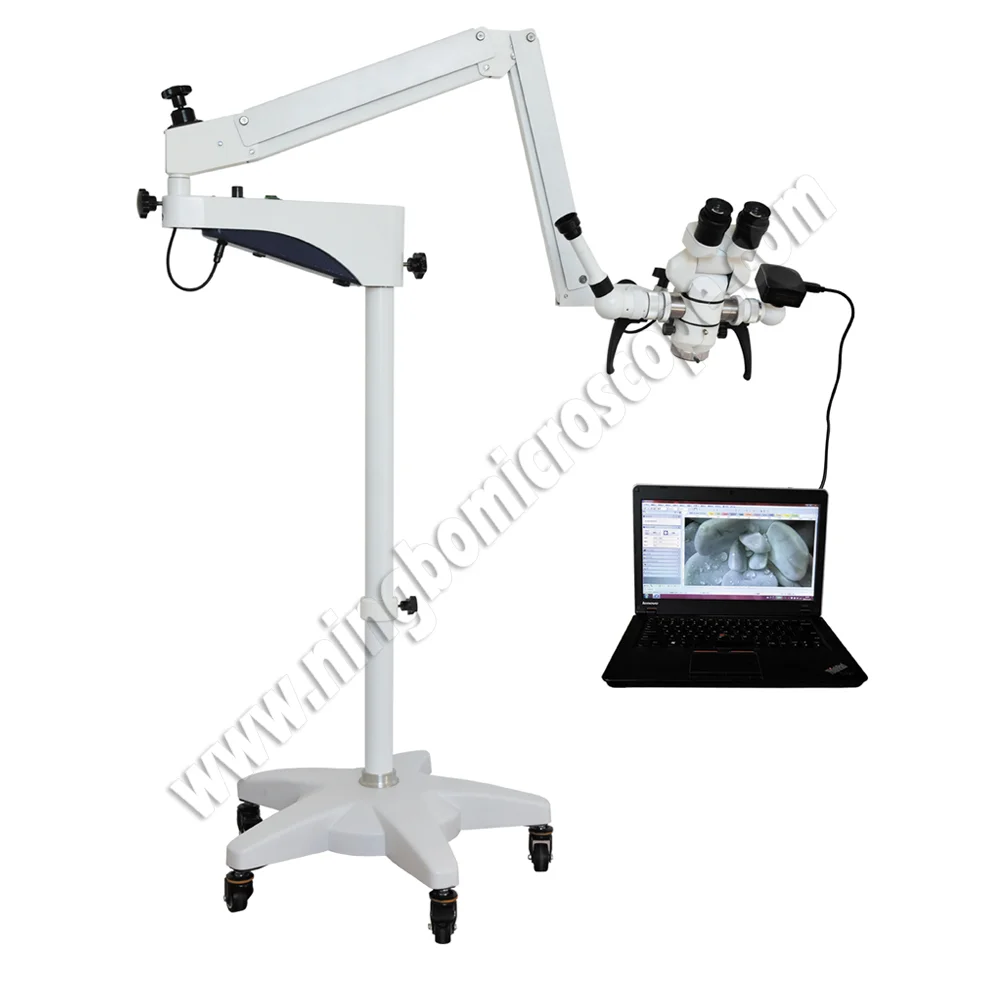

Other accessory | Beamsplitter, CCD adapter, DLSR camera adapter, wall-mount, table clamp |

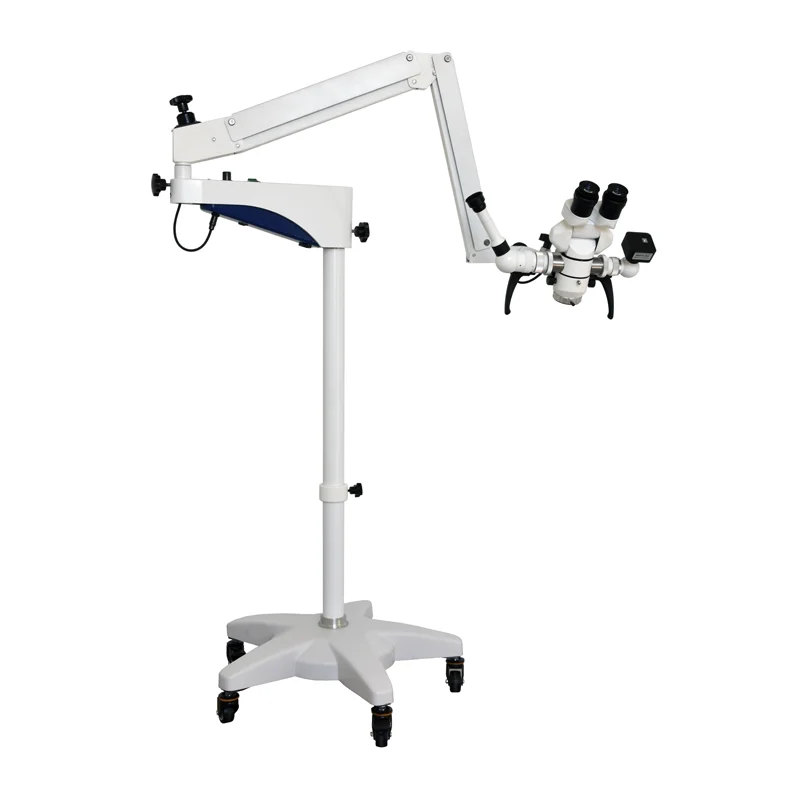

Product Show
Packaging & Shipping
1. Goods is packed in strong foam and carton outside;
2. There are many ways available for shipping, express shipping like DHL, UPS, FedEx, EMS, air shipping, sea shipping, railway shipping.
Our Services
We offer 2 years’ warranty for the optics of the microscopes and 1 year's warranty for the electrical parts (bulbs excluded), all warranty agains factory defect.
FAQ
1. What is your MOQ?
>>>For most of our products, MOQ is one piece.
2. How to purchase it?
>>>First, please finalize the items, payment methods and shipping ways, share us with your company name(if there is), address and telephone, then we will prepare the invoice for you to make payment. After we get the payment, we will prepare the goods and ship them to you.
3. How to make payment?
>>>You can make payment through bank wire transfer, Alibaba trade assurance, Western Union, or Paypal.
4. What is the lead time?
>>>The lead time differs based on the goods, order quantity.
5. Can you do OEM?
>>>Yes, OEM is available. Logo, user manual and packing can be all OEM.
View more microscopes, please visit our website
http://www.ningbomicroscope.com/
