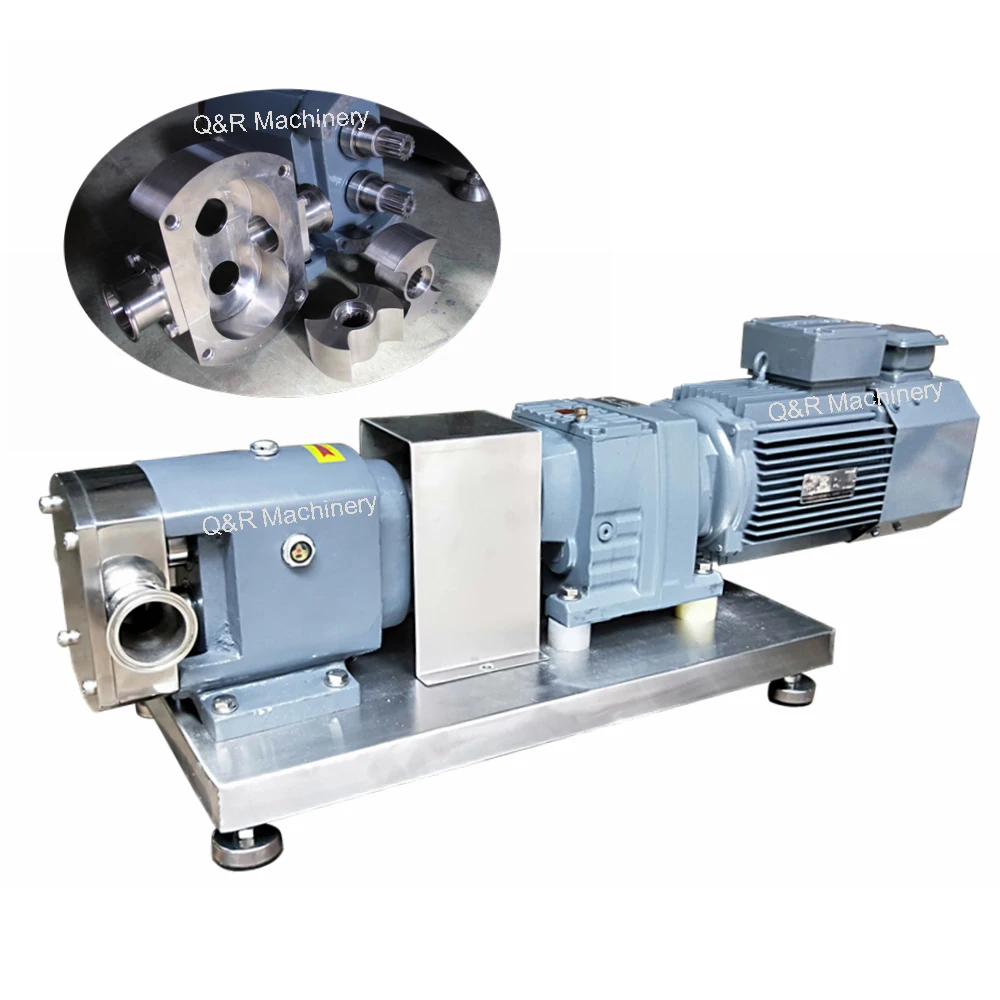

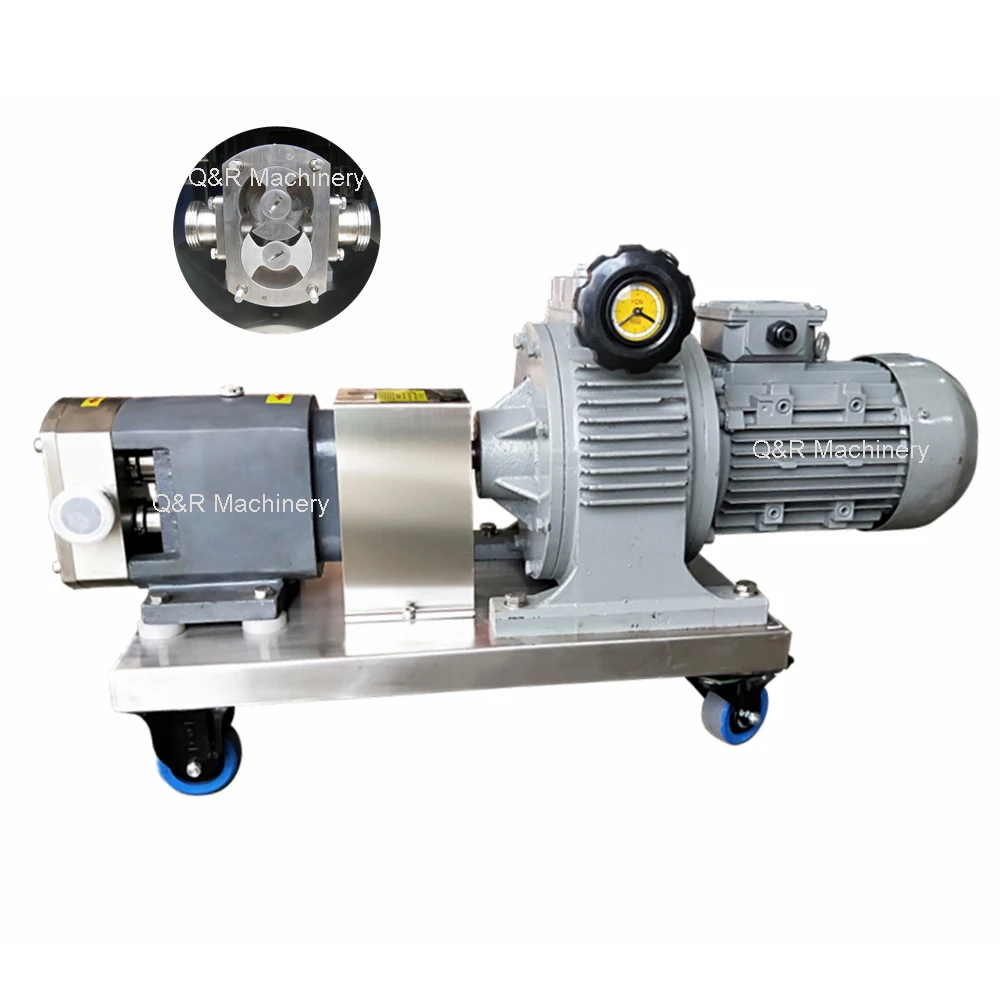

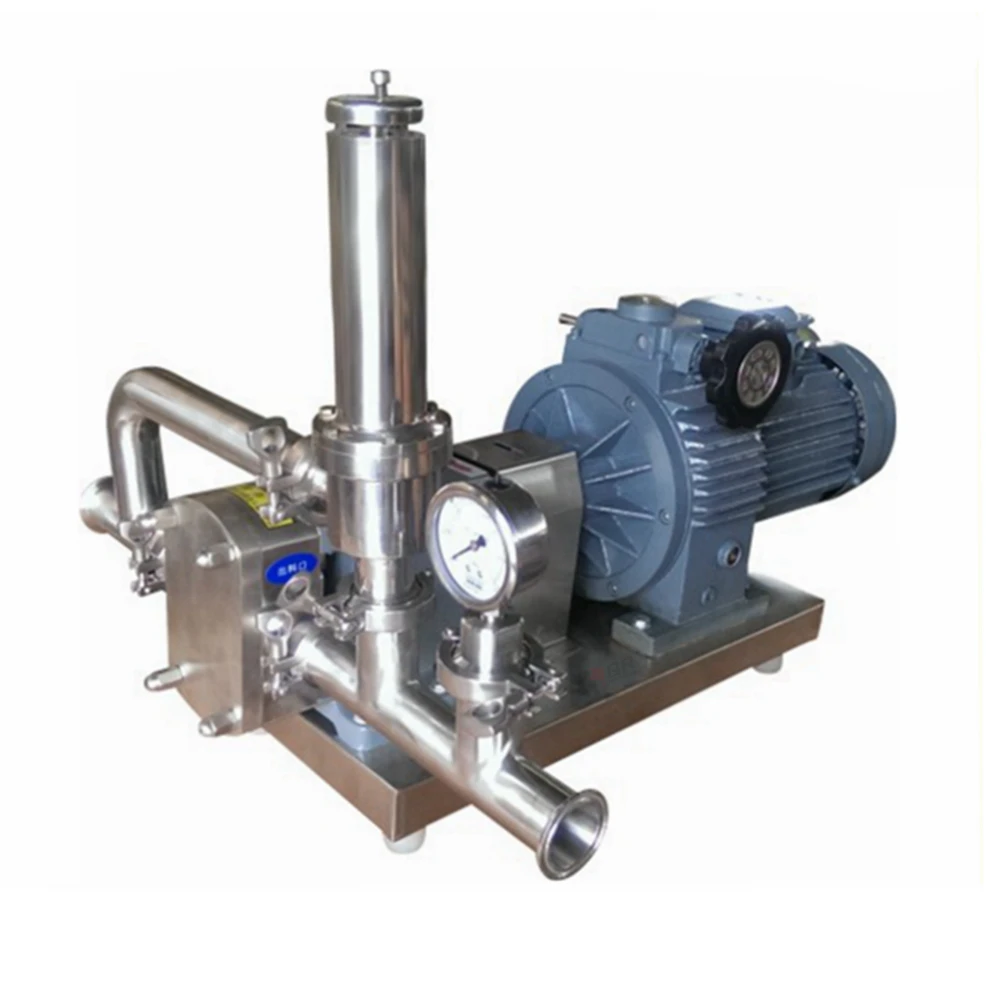

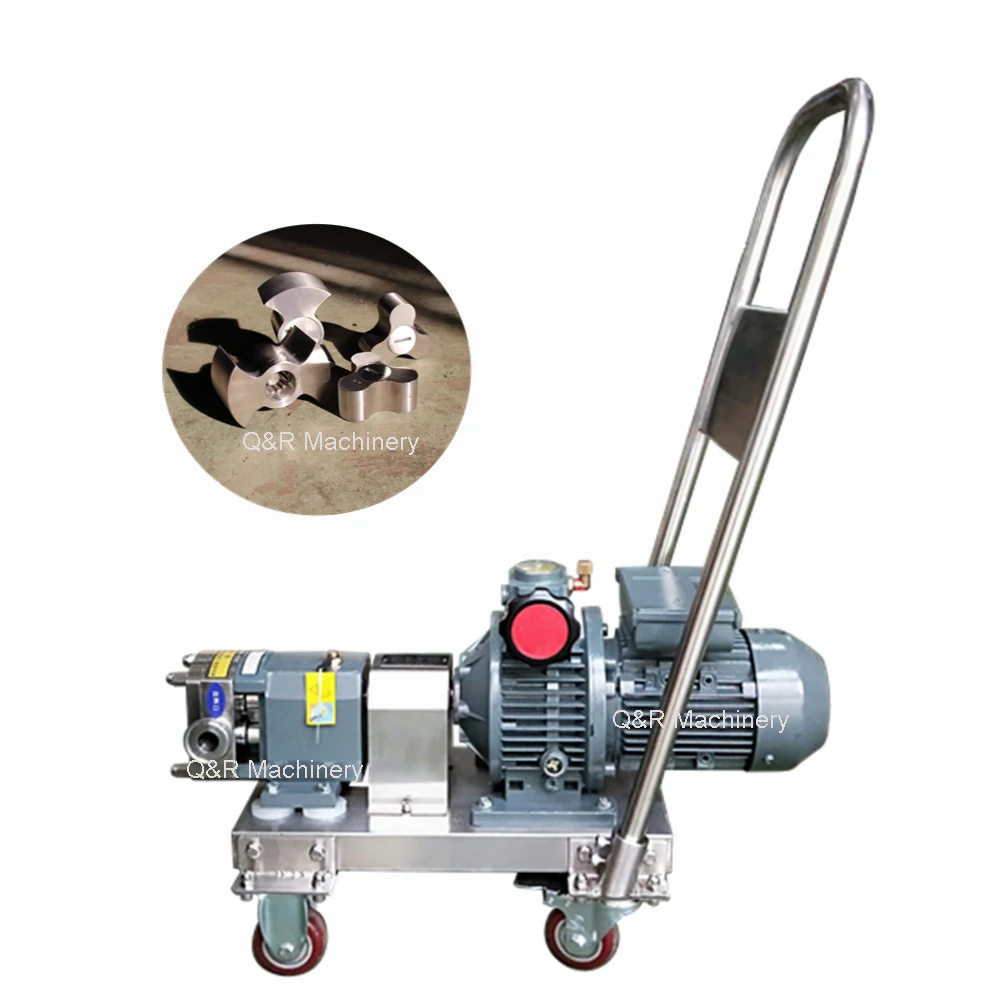

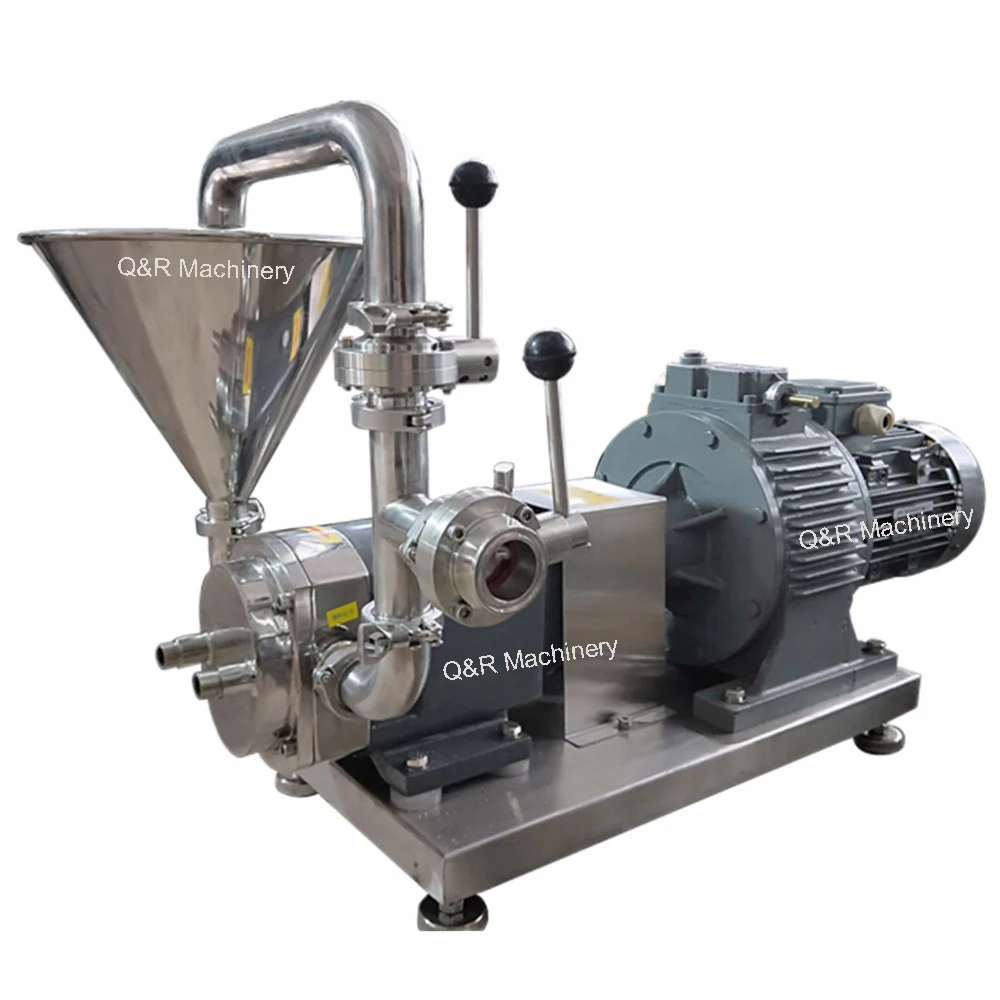

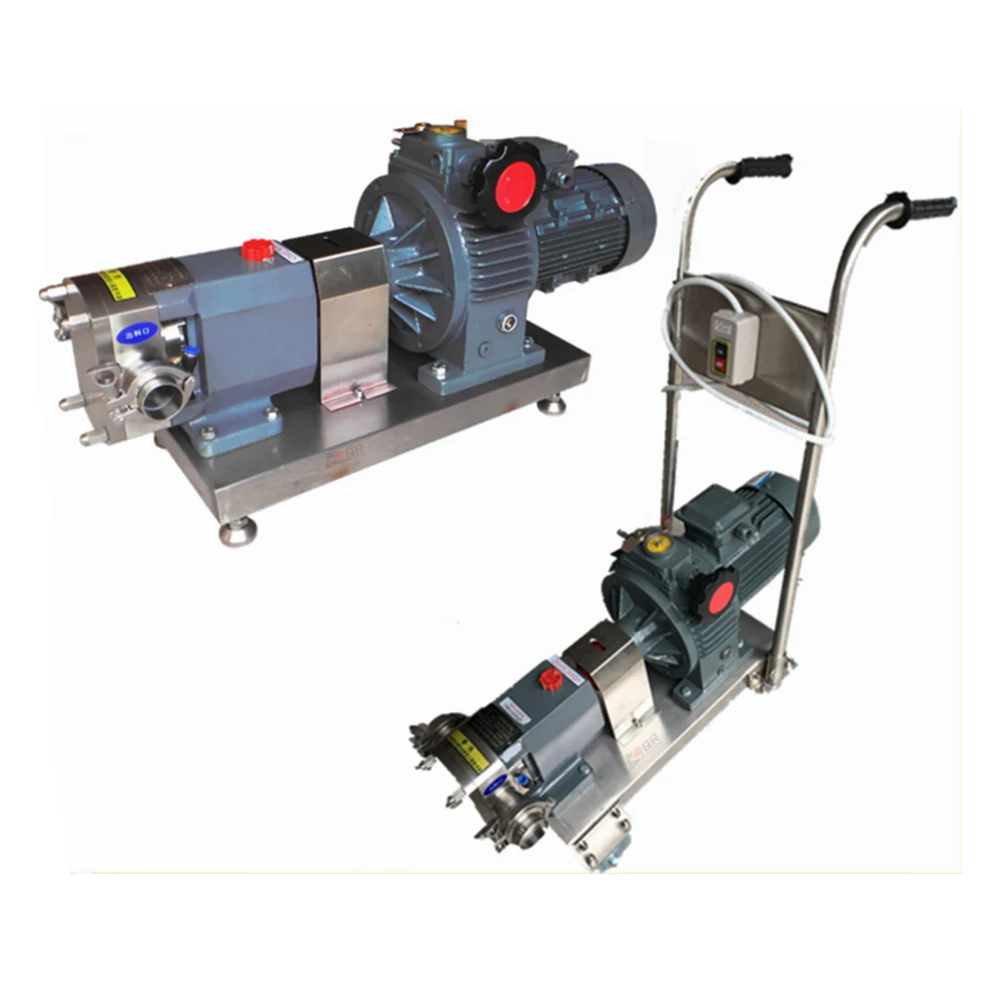

stainless steel lobe pumps, also called rotary lobe pump, three lobe pump, sole pump are widely applied in the beverage, food, dairy, pharmaceutical,chemical and process industries, to transport thick liquid material .
Product Features:
1) Material:SUS304/ SUS 316L
2) Flow rate: 3L/100R -200L/100R
3) Capacity: 300-43000L/H
4) Speed: 200-500rpm
5) Power: 0.55-37kw
6) Voltage: 220V/380V/415V/440V, can be customized
stainless steel lobe pumps, it is also named rotary lobe pump, three-lobe pump, sole pump,etc. When the 2 simultaneous reverse rotating rotors(with 2-4 gears)revolve, it produces suction force at the inlet(vacuum),which intakes the material delivered.The 2 rotors divide the rotor housing into many smaller parts and revo-Ive in the sequence of a→b→c→d. When it revolves to position a,only housing I is filled with medium;when it revolves to position b,housing B encloses part of the medium,when it goes to position c,housing A encloses medium,and finally it goes to position d,then housing A,B and II are interlinked and the medium is transported to the outlet.As this process is repeated,medium(material)is transpor-ted continuously.
Lobe structure:
1.Butterfly rotor pump: with butterfly rotor, it is superior to other rotor pump when transferring material with high viscosity and larger powder and effectively transports extremely stiff material.
2.Singe butterfly curved rotor pump (powder rotor pump): this pump series are specially design to transport material with larger powder. Its unique shape and curve makes it more outstanding compared to other pumps in delivering material with larger powders. It effectively prevents powders from clashing, which is the top choice of pumps transferring material with powders.
3.Tri-lobe pump: this is commonly type, the capacity and performance is better than other rotors. The shortage is high requirement to medium because its easy to damage grain medium.
1:Are you manufacturer? Yes, we are. Welcome to visit our factory. 2:Can you change the machine voltage as our request? Yes, we can. 3: How about the delivery time? With the standard products delivery time will be15-35 days after we receive your payment. 4: What's the payment terms? Usually is T/T, L/C, or Western Union. We also accept Money Gram, PayPal and other payment terms.
5: Where are the main markets for your products?
Products have been exported to all over the world, especially in Northern Europe Western Europe, Eastern Europe North American, South American, Middle East, South Asia, Eastern Asia, African and etc.
