Introduction

The series of pneumatic rock drills are mainly used in mine, railway, water irrigation works and quarrying works to drill holes. It's suitable for wet or dry drilling in all kinds of rocks. Drilling direction: Hand held type for perpendicular; Air leg type for titling direction.





Advantage: Light weight & convenient operation, Low consumption & long life parts, High efficiency & fast drilling velocity.

Parameter

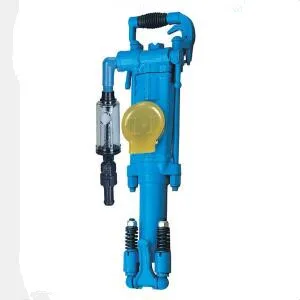

YT26 pneumatic rock drill is an important tool for rock drilling operation in mines, railway, communication and water conservancy projects. Suitable for making horizontal and inclined blast holes in medium-hard and hard rocks. Computer controlled drilling machine from the factory run test bed, grasp the dynamic characteristics of each product to avoid the occurrence of human error to ensure that the manufactured products of excellent quality and superior performance.



Main Characteristics:

1. The use of modern design means, performance of each product is optimized.

2. For all operating agencies were arranged according to ergonomic principles, to ensure that the products of high-performance, high efficiency and convenience of operation, security.

3. Quality materials and scientific and forging, all reflect the "quality" content, to ensure that the products of high strength, high wear resistance and impact resistance.





Model:	YT26
N.W:	26 Kg
Length:	650 mm
Cylinder Diameter:	65 mm
Piston Stroke:	70 mm
Working Pressure:	0.4 Mpa
Impact Energy:	≥30 J
Impact Frequency:	≥23 Hz
Air Consumption:	≤47 L/S
Working Water Pressure:	0.2~0.3Mpa
Air Pipe Inner Diameter:	19 mm
Water Pipe Inner Dia.:	13 mm
Rock Drill Hole Diameter:	34~42 mm
Rock Drill Hole Depth:	5m
Shank Size:	22x108 mm

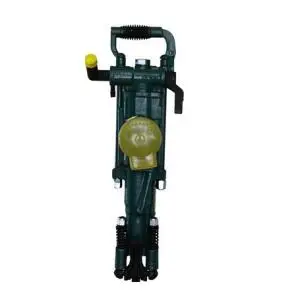

YT27 pneumatic rock drill is a small type of rock drill that treats compressed air as power. It is used to drill holes on stone. There are two patterns of operating, wet pattern and dry pattern. Dust will be reduced effectively while it works in wet pattern, so it's good for the environment.



Machine body uses high performance ADI spheroidal graphite cast iron, it has both high strength and abrasive resistance, so the service life is prolonged.

Model:	YT27
N.W:	26 Kg
Length:	668 mm
Cylinder Diameter:	80 mm
Piston Stroke:	60 mm
Working Pressure:	0.4~0.5 Mpa
Impact Energy:	≥70 J
Impact Frequency:	≥36 Hz
Air Consumption:	≤85 L/S
Working Water Pressure:	0.2~0.3Mpa
Air Pipe Inner Diameter:	25 mm
Water Pipe Inner Dia.:	13 mm
Rock Drill Hole Diameter:	34~42mm
Rock Drill Hole Depth:	5m
Shank Size:	22×108 mm

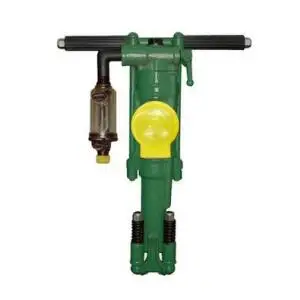

YT28 Air Leg Rock Drill Machine is a new high efficient machine for drilling rock, which is necessary tools apply for mining workings, various rock drilling places, such as metallurgy, coal mine, railway, transportation, water conservancy construction, Defense stone engineering.



YT28 Air Leg Rock Drill Machine widely apply for vertical drilling and sloppy blasthole etc on the medium hard or very hard rock. Also for drilling anchor holes verticaly on the top of roof. The blasthole diameter range is from 34 to 42mm, the drill depth can be reached  to maximum 5m. The machine not only can be used together with FT160BD short leg machine, FT160BC long leg machine or FT160S double stage air leg machine,according to roadway section area. It also cab be installed on the drilling carriage or drilling rig.



Model:	YT28
N.W:	26 Kg
Length:	661 mm
Cylinder Diameter:	80 mm
Piston Stroke:	60 mm
Working Pressure:	0.4~0.5 Mpa
Impact Energy:	≥60.2 J
Impact Frequency:	≥37 Hz
Air Consumption:	≤81 L/S
Working Water Pressure:	0.2~0.3Mpa
Air Pipe Inner Diameter:	25 mm
Water Pipe Inner Dia.:	13 mm
Rock Drill Hole Diameter:	34~42mm
Rock Drill Hole Depth:	5m
Shank Size:	22×108 mm

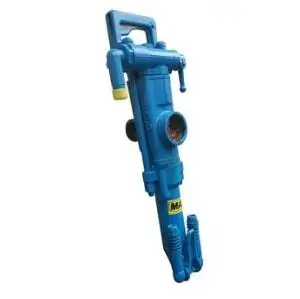

Model:	YT29A
N.W:	26.5 Kg
Length:	659 mm
Cylinder Diameter:	82 mm
Piston Stroke:	60 mm
Working Pressure:	0.4~0.63 Mpa
Impact Energy:	≥70 J
Impact Frequency:	≥37 Hz
Air Consumption:	≤65 L/S
Working Water Pressure:	0.3Mpa
Air Pipe Inner Diameter:	25 mm
Water Pipe Inner Dia.:	13 mm
Rock Drill Hole Diameter:	34~45mm
Rock Drill Hole Depth:	5m
Shank Size:	22×108 mm
Torque:	≥16N.m 0.5 MPa
Working temperature:	-30~45 ℃
