Легкий Прочный полый гидравлический алюминиевый цилиндрический

Легкий Прочный полый гидравлический алюминиевый цилиндрический

Категория: Другой домкрат >>>
Поставщик: Taizhou,Kashon,Power,Equipment,Co.,ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.70 $*	0.2 $*
Aug-15-2025	0.60 $*	0.98 $*
Jul-15-2025	0.87 $*	0.40 $*
Jun-15-2025	0.25 $*	0.43 $*
May-15-2025	0.61 $*	0.33 $*
Apr-15-2025	0.42 $*	0.20 $*
Mar-15-2025	0.58 $*	0.90 $*
Feb-15-2025	0.68 $*	0.33 $*
Jan-15-2025	0.8 $*	0.54 $*

Характеристики

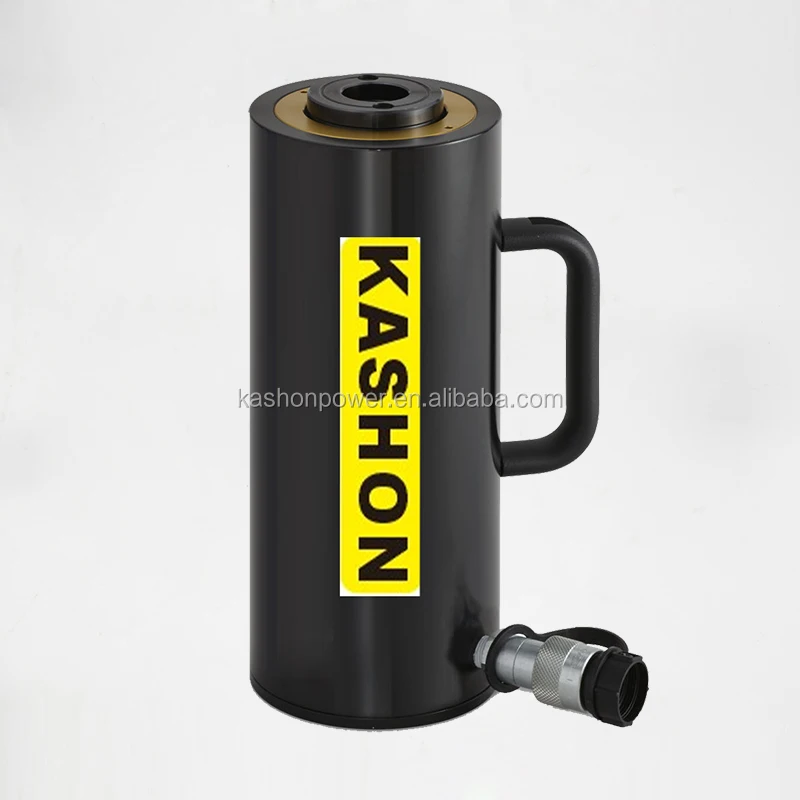

Light wight hollow hydraulic aluminum cylinder jack

KASHON hollow aluminum cylinders are a lightweight solution for tensioning and testing.

Hollow plunger cylinder design allows for both pull and push forces

Composite bearings increase cylinder life and sideload resistance

Hard-Coat finish on all surfaces resists damage and extends aluminium cylinder life

Floating center tube increases seal and product life

Handles standard on all models

Steel base plate and saddle for protection against load-induced damage

Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity

High strength return spring for rapid cylinder retraction.

CR-400 coupler and dustcap included on all models

HOLLOW ALUMINUM HOLLOW JACK PHOTO AND SPECIFICATIONS:

Cylinder Capacity (ton)	Stroke (mm)	Model Number	Cylinder Effective Area (cm2)	Oil Capacity (cm³)	Collapsed Height (mm)	Extended Height (mm)	Outside Diameter (mm)	Center Hole Diameter (mm)	Weight (kgs)
20	50	KSRAH-202	32.7	164	188	238	100	27	5.2
	100	KSRAH-204		327	251	351			6.1
	150	KSRAH-206		491	315	465			7.1
	200	KSRAH-208		654	378	578			8
	250	KSRAH-2010		818	442	692			9
30	50	KSRAH-302	51.1	256	208	258	130	34	8
	100	KSRAH-304		511	267	367			9.5
	150	KSRAH-306		766	333	483			11.2
	200	KSRAH-308		1022	395	595			12.9
	250	KSRAH-3010		1277	458	708			14.5
60	50	KSRAH-602	84.7	423	251	301	180	54	16.2
	100	KSRAH-604		847	315	415			19.5
	150	KSRAH-606		1270	380	530			22.8
	200	KSRAH-608		1694	445	645			26
	250	KSRAH-6010		2117	510	760			29.6
100	50	KSRAH-1002	164.6	823	258	308	250	79	33.8
	100	KSRAH-1004		1646	325	425			39.8
	150	KSRAH-1006		2487	391	541			46.2
	200	KSRAH-1008		3291	459	659			52.2
	250	KSRAH-10010		4114	527	777			58.8

SUITABLE HYDRAULIC MANUAL PUMP:

Model	P-80
Pump type	Two speed and single acting
Oil capacity	2200ml
Max. pressure	700bar(10,000Psi)
Weight	10.7kgs

HYDRAULIC CONNECTING HOSE

ID: 1/4"
Couplers: 3/8" or 1'4'' Screw Connection ( Ball or needle Type )
Rating: 4:1
Working Pressure: 10,000 psi ( 700 Bar )
Burst Pressure: 40,000 psi ( 2800 Bar )
Construction: Steel Braid
Length: 6m,7.5m,10m,15m and any lengths available
