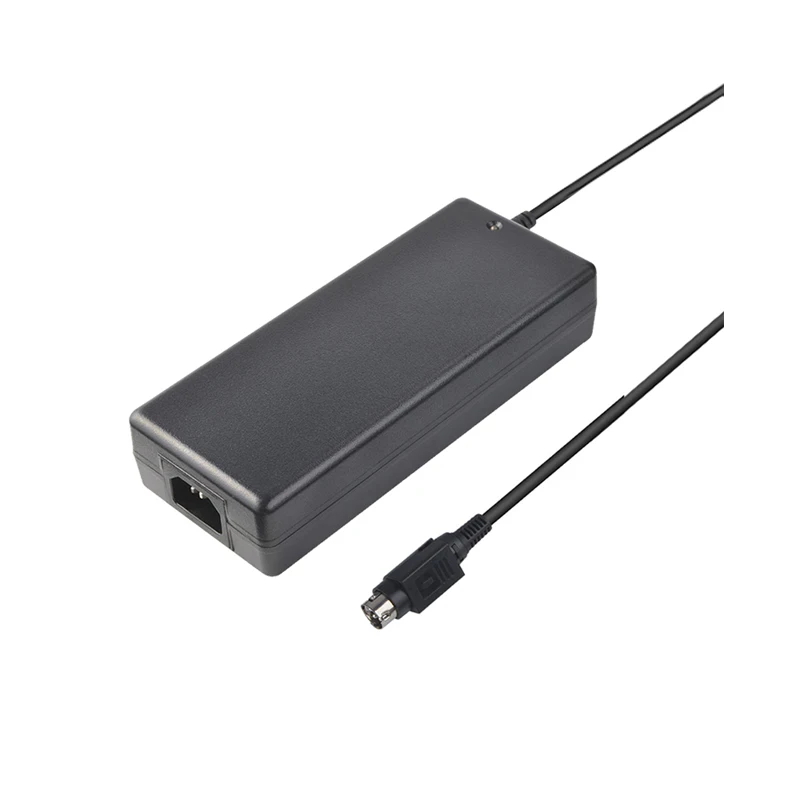

Трансформатор 24 в 120 Вт постоянное напряжение светодиодный вольт 5 ампер выход адаптер переменного и постоянного тока импульсный Trafo блок питания В
- Категория: Switching Power Supply >>>
- Поставщик: Shenzhen,Yinghui,Yuan,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.15 $* | 0.25 $* |
| Aug-17-2025 | 0.65 $* | 0.20 $* |
| Jul-17-2025 | 0.84 $* | 0.14 $* |
| Jun-17-2025 | 0.44 $* | 0.21 $* |
| May-17-2025 | 0.14 $* | 0.17 $* |
| Apr-17-2025 | 0.24 $* | 0.68 $* |
| Mar-17-2025 | 0.64 $* | 0.2 $* |
| Feb-17-2025 | 0.55 $* | 0.7 $* |
| Jan-17-2025 | 0.25 $* | 0.47 $* |
Характеристики
Products Description
Specification | ||
Input Voltage Range | 100-240Vac 50/60Hz | |
Input Current(Max) | 2.5A | |
Temperature Coefficient | ±0.05%/℃ | |
Voltage Accuracy | ±2% | |
Total Regulation | ±5% | |
Ripple & Noise | 120mV | |
Short Circuit Protection | Continuous - hiccup mode | |
Over Voltage Protection | 110-150% of nominal (Cycle input power to reset) | |
Efficiency at Average Load | 88% min | |
Operation Temperature | 0 to ＋60℃, derating linearly to 50% load above 40℃ | |
Storage Temperature | -10 to ＋85℃ | |
Humidity (non condensing) | 10-90% RH | |
Cooling | Convection | |
Withstand Voltage | Input to Ground 1.5kVAC Input to Output 3kVAC (Output is connected to Ground) | |
Vibration (non condensing) | 23.52m/s2 (10 - 55Hz: constant sweep 1 min X, Y, Z for 1 hour) | |
Shock | < 196.1 m/s2 (20G) | |
Safety Agency Certifications | UL62368,UL1310,UL60950-1, EN609501-1, IEC60950-1, CE Mark | |
DOE Regulation | VI | |
Off-Load Power Consumption | <210mV | |
Conducted & Radiated EMI | EN55023-B, FCC Class B | |
Immunity | EN55024 | |
Recommend Products
More Models
Desktop
Products List
Power | Output Voltage | Output Current | AC Type | |||
Series | 0-12.0V | 0-10.0A | Desktop (C6/C8/C14) | |||
13-15.0V | 0-8.0A | |||||
16-20.0V | 0-6.0A | |||||
21-24.0V | 0-5.0A | |||||
25-30V | 0-4.0A | |||||
Remark: 1.Model NO : YHY-XXXYYYYY , "XXX" is for current , "YYYYY" is for voltage 2.Input :100-240Vac , 50-60Hz , 2.5A max. | ||||||
Company Profile
Shenzhen Yinghui Yuan Electronics Co.,Ltd is a leading manufacturer of power supplies in China
-Since 2007
-Real Service From Real People
-Global certifications,ISO 9001 Quality management
-More Than 2000 clients from all over the world
Our products are widely used by led lighting,3D Printer,Laptop,loudspeaker box,digital products,house-hold appliances,security products,etc
