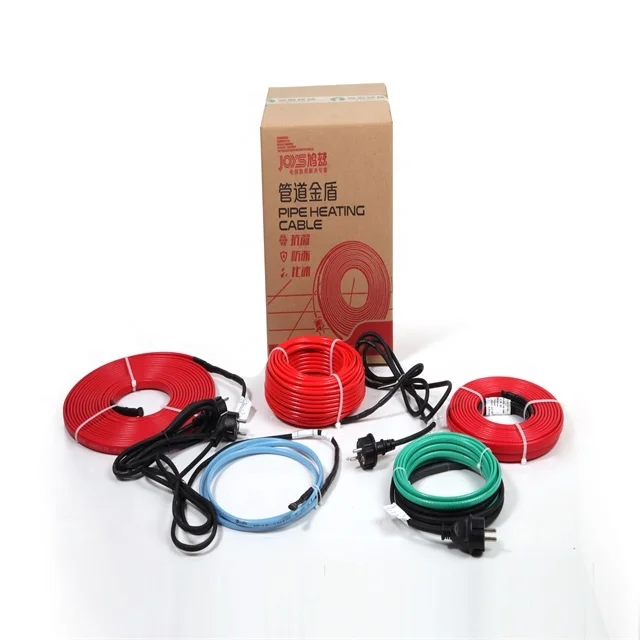

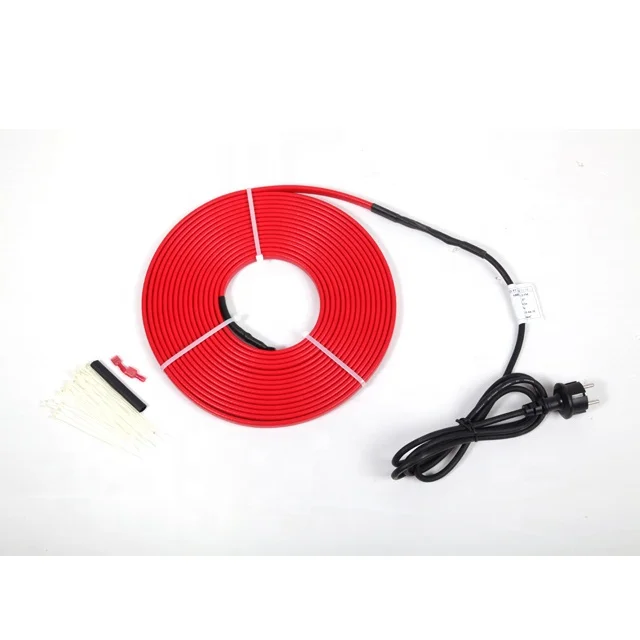

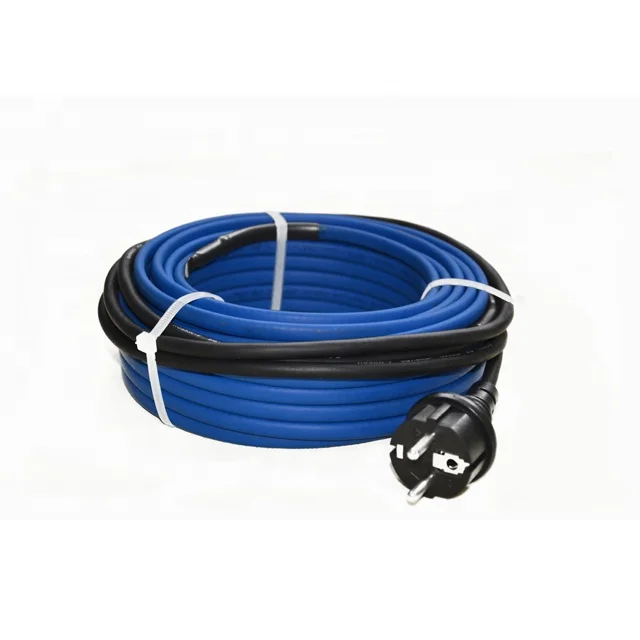

FSR pipe frost protection & roof and gutter heating cable kit

FSR kit self-limiting heating cable with plug easily prevents damage and leakage caused by frost and eliminates the inconvenience from iced water, as well as prevents the ice and snow from forming on roof and in gutter.

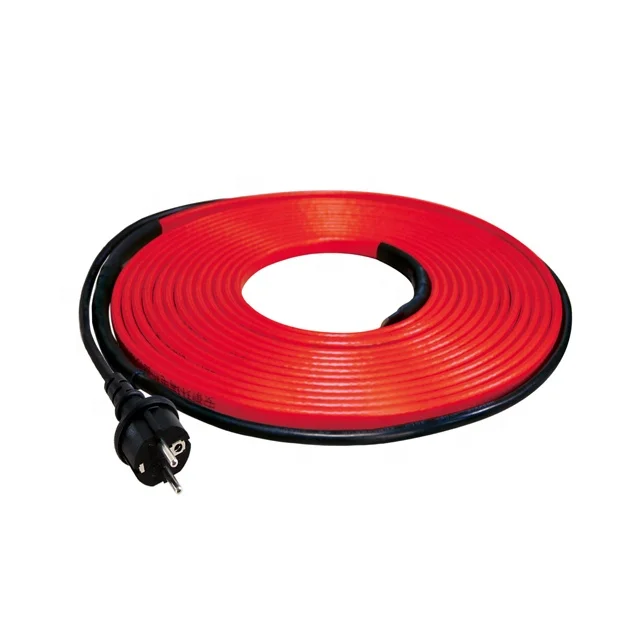

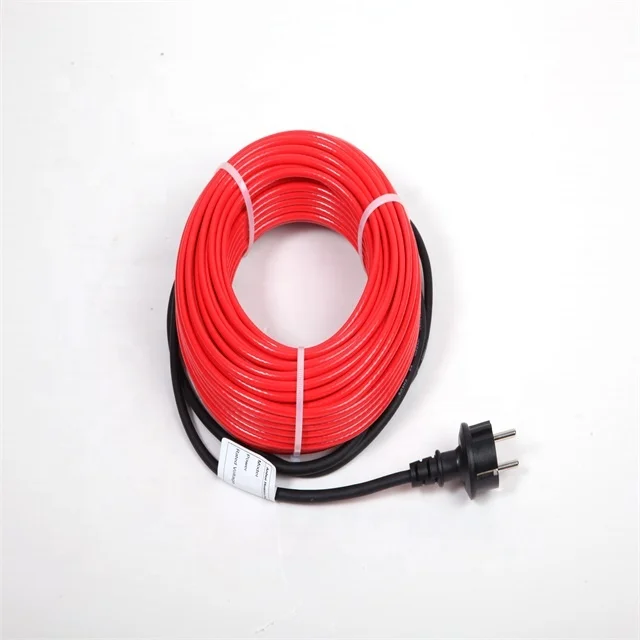

FSR heating cable with a prefabricated plug is easily connected to an AC outlet.

Typical applications include roof & gutters, drains, water pipes, large diameter tanks, valves, flanges where have high heat loss.

Interior or Exterior

The heating cable kit with fluoropolymer or thermoplastic outer jacket is free and suitable for drinking water pipes. The kit is energy saving and environmental protection, it is also UV-proof.

For exterior laying, use additional kits. For interior laying, maximum applicable cable length is 60m.

Technical Information

Output wattage                                      17, 23(W/m)

Max. maintain temperature                   65°C

Max. exposure temperature                  85°C

Min. installation temperature                 -10°C

Rated voltage                                       110V-120V / 220V-240V

Max. current length / 16A breaker        80m exterior fitting

Outer jacket                                          Fluoropolymer/Thermoplastic

Certifications                                           CE EAC

Packing: usually packed in white box first, and then packed into carton box. If it is big order with large quantity, we can provide the customized service, such as the cable marking, adhesive tape with logo, individual color box or other order requirements.

Shipping: customer can choose the carton box packing by pallet or without pallet; the delivery method can be by sea, by air, by train, by truck or by international express.
