Vacuum honey enrichment honey water evaporating machine with vondense tank

 Vacuum honey enrichment honey water evaporating machine with vondense tank

Introduction of honey concentration machine

1.	This machine has evaporator, pre-heating pot, separators, filter, concentrate port, vacuum pump an so on,  can create vacuum condition , melt crystal, concentrate honey, filter sterilizing, and fast cooling ,continuous batching charging.
2.	Material is food grade SUS304, that meet the QS standard requirement.
3.	Processing line : Pre-heating and mixing~~filtering~~concentration and condensing ~~finally get the finished honey.

Working principle of honey concentration machine

By the theory that under high vacuum condition , boiling point of water will become lower then the water in honey can evaporate rapidly ,finally get high concentration honey. This set can melt honey crystals , remove dust inside , sterilization ,which can guarantee quality of honey.

Specification of honey concentration machine

Model code	Daily output (T/day)	Heating method	Heating Power	Vacuum power	Concentration effect	Machine size(m)
CHE-50	0.5	Electric/steam	8kw	0.75kw	Increase 4°Bé per hour	1.8*0.6*1.7
CHE-100	1	Electric/steam	15kw	1.1kw	Increase 4°Bé per hour	2.0*0.95*1.8
CHE-200	2	Electric/steam	24kw	2.2kw	Increase 4°Bé per hour	2.4*0.95*1.9
CHE-300	3	Electric/steam	36kw	2.2kw	Increase 4°Bé per hour	1*1*1.4 1*1.6*1.8
CHE-500	5	Electric/steam	48kw	4kw	Increase 4°Bé per hour	Customize

Our factory can also customize large capacity machine like 1 ton/h,2ton/h,3ton/h honey enrichment processing line, and also make large honey storyage tank.If you need, please just feel free to contact me.Kindly noted:

Vacuum honey enrichment honey water evaporating machine with vondense tank

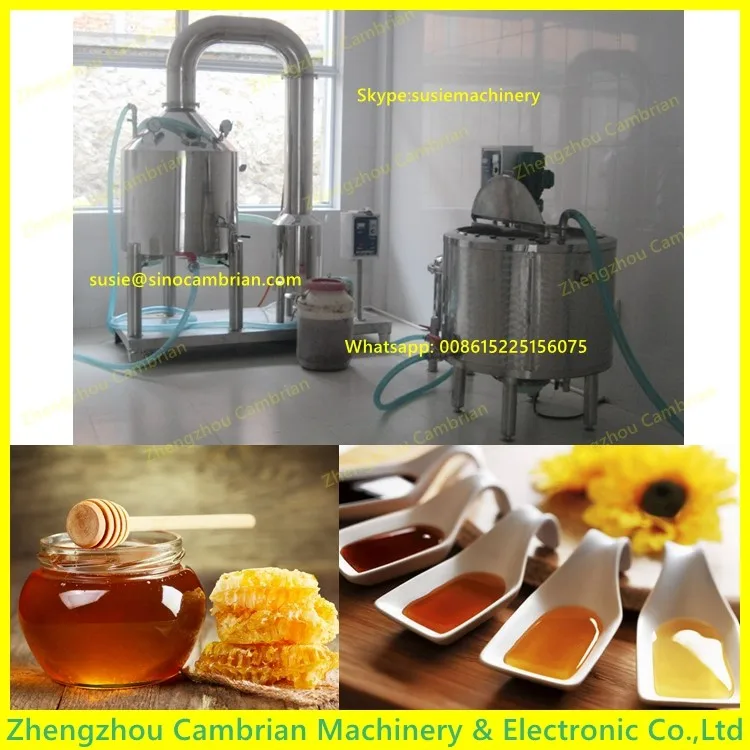

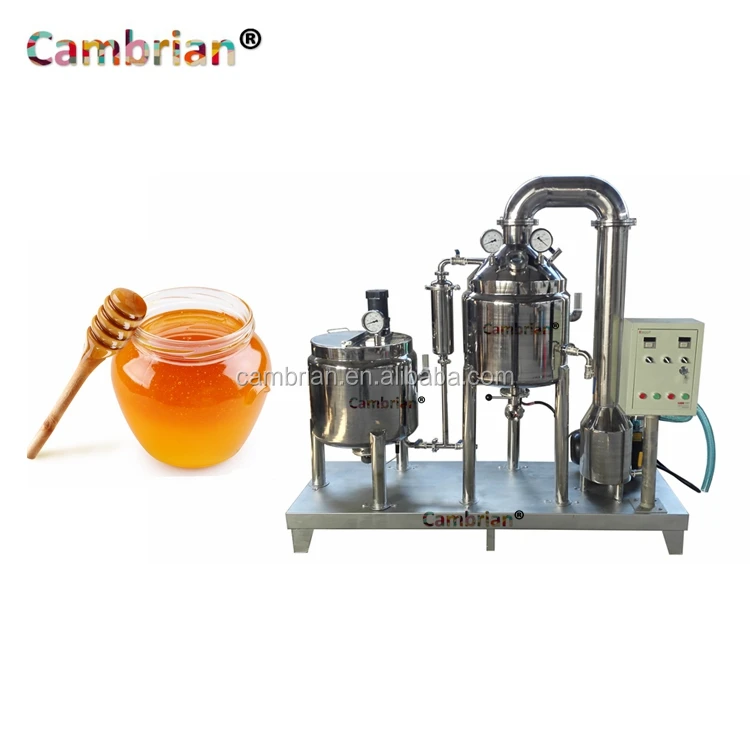

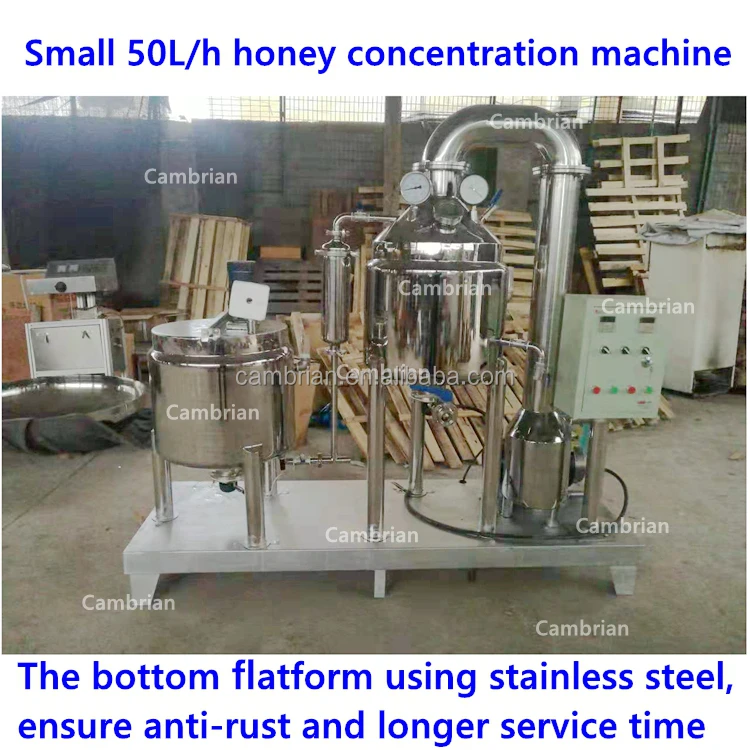

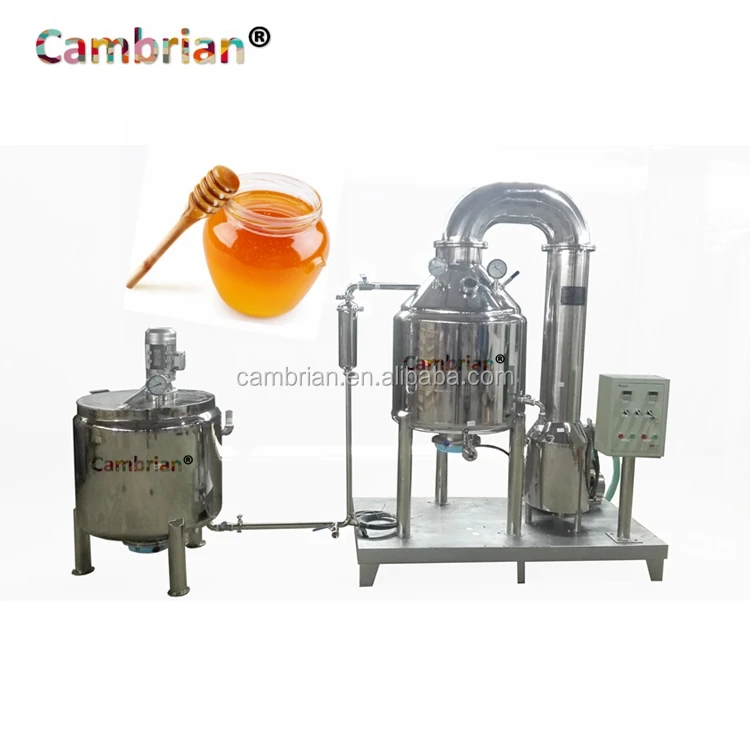

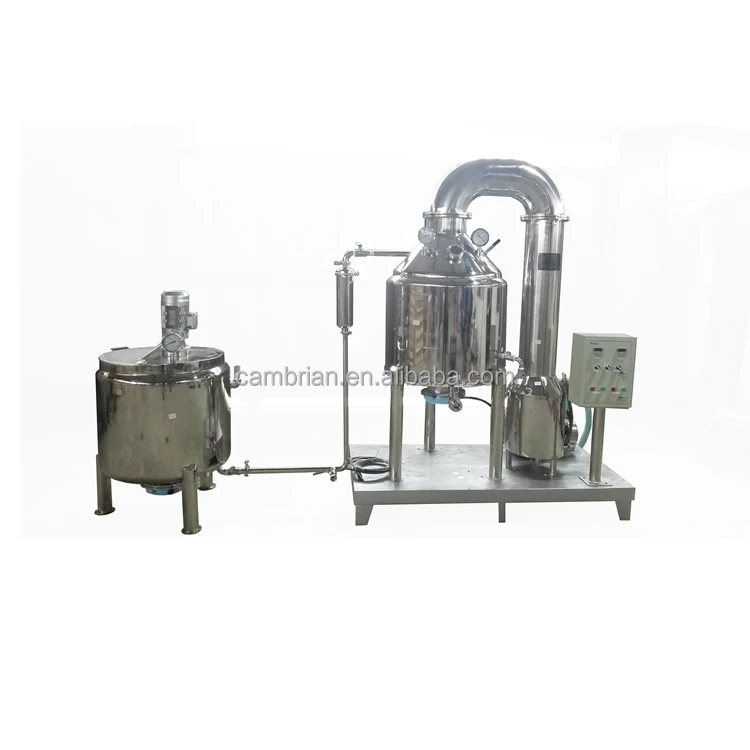

Pictures of honey concentration machine

Our factory can customize larger capacity honey concentration machine

Vacuum honey enrichment honey water evaporating machine with vondense tank

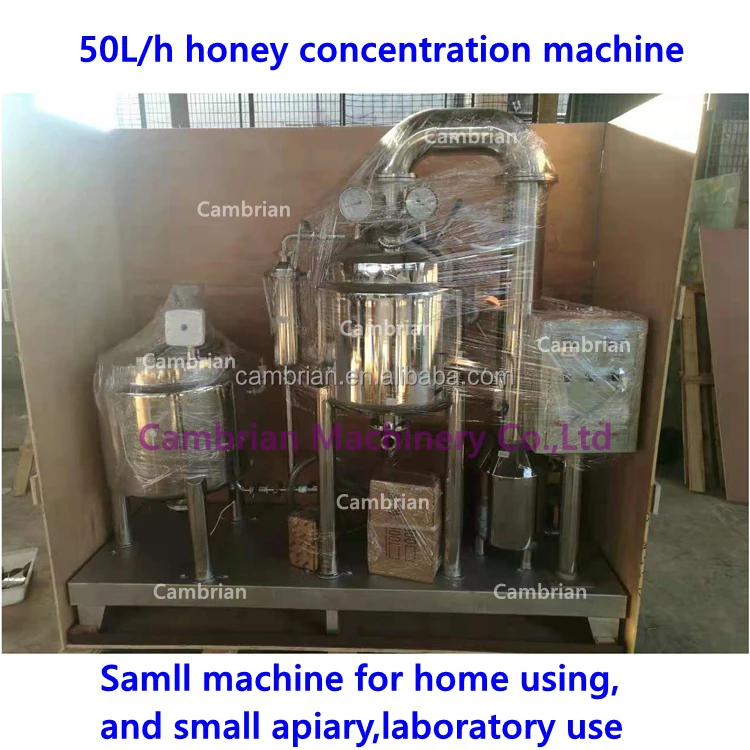

Packaging of honey concentration machine

Plywood case/Iron box for protecting the machine when shipping

Vacuum honey enrichment honey water evaporating machine with vondense tank

Shipping of honey concentration machine

We have been cooperating with several large transport agents and shipping

companies for long terms,the machines will be transported to you safety and timely.

Delivery time

Normally, 5-7 working days for preparing after received your payment.

Vacuum honey enrichment honey water evaporating machine with vondense tank

1.Before sending the honey concentration machine,we will test and adjust,so you can use directly when you get it.

Will test the heating motor and vacuum pump before sending.

2. Will send instruction book for you.
3.Any problems occur while using, professional advice will be given by us 7*24hours.
4.Can supply beekeeping tools and honey flow beehives,honey stick filling machine, honey bottle filling machine, capping machine, labeling machine and so on.

If you need please feel free to contact me.

Vacuum honey enrichment honey water evaporating machine with vondense tank

Zhengzhou Cambrian Machinery And Electronic Co., Ltd.is a professional manufacturer and exporter specialized in the R&D & Marketing of food machine.Our company has a professional team and in-depth study on the application of all kinds of machines and projects.

Our factory have been started from 1997, in the past decades, we have exported our machines to many countries,and established long term business relationship with customers.

Vacuum honey enrichment honey water evaporating machine with vondense tank

1. Do you have videos?

Susie:Yes, we have. Please contact me so that we can share the video.

2. What's the capacity?

Susie:50L-300L as your demand,kindly inform me your requirements

Also can customize large capacity.

3. Does the machine have filter?

Susie:Yes,the filter is 120mesh.

4. Can we change the voltage?
Susie:Yes, 220V,50hz or 380V,60hz or customize

5. How long will you send the machine after I pay?

Susie:Normally, 5-7 days

6. How can I pay?

Susie:By T/T(wire transfer),Western Union, Money Gram, Alibaba Trade Assurance
