Upgraded Iroquois Helicopter UH-1

(Helicopter SW204HP)



The Ultimate High Altitude – Medium Single Helicopter



Upgraded Version of Helicopter “Iroquois”, “Huey” UH-1, Bell 204 HP



Presenting the SW204HP Condor



The Condor is engineered and manufactured to meet the demands of hot day-high altitude medium lift operation. Equipped with the 1800 shaft horsepower T53-L-703 engine, this helicopter has the muscle to effectively operate in hot environments, and at altitudes inaccessible to most of its contemporaries. The design maximum gross weight limit of 8,500 lbs provides for a useful load of just over 4,500 lbs.



As a result-an approximate 3,000 payload lift capacity can be achieved when a 1,550 lb fuel load is factored in. (An optional max gross weight increase to 9,500 lbs is available). The Condor can take-off and land at altitudes well above 10,000 feet at full gross weight-in temperatures up to 30° over Standard Day values. Like its namesake, the Condor can soar to altitudes unreachable by other “birds”. The superlative high altitude lift capability is achieved through a redesigned light weight airframe, more powerful engine, stronger transmission/gearboxes and new generation high efficiency rotor blades.



These improvements, combined with other proprietary technical enhancements, increase Standard Day hover performance by 39%; and at the upper temperature operating limit - hover capability is increased by 275%. Production quality of this very unique aircraft is governed by the stringent airworthiness requirements mandated by the U.S. Federal Aviation Administration (FAA) for issuance of the Type Certificate (TC) granted to begin the manufacture of the SW204HP in July 1989.





Operational Benefits



•  Vne increased to 130 Knots



•  Increased Payload (optional)



•  Increased In-Ground-Effect (IGE) Hover



•  Increased Out-of-Ground-Effect (OGE) Hover



•  Increased Range



•  Increased Reliability



•  Increased Time Between Overhauls (TBO)



•  Latest Technology Long Life Components



•  Off-the-Shelf World-Wide Parts Support



•  Parts Commonality with other Bell Huey helicopters



•  Rough Terrain High-Clearance Skids



•  Increased Operational Readiness



•  Excellent Hot-High Altitude Capability



The Genesis



Twenty-five years ago, a demand for rotary wing lift by law enforcement agencies, fire fighters, loggers, and foreign militaries spawned a secondary market for surplus military helicopters. In the void of any credible logistical infrastructure to support this newly created niche, we established a full-service FAA certified Aircraft Repair Station - complete with a metric based Quality Assurance Program. This quality system insured the highest value in services and component repair/overhaul for our customers.



Over the years, we have accomplished required repairs (maintained), overhauled, and modified a vast array of customer aircraft and equipment. In this role, customers continually identified components and systems they wanted modernized. This activity highlighted a comprehensive list of items which were viable candidates to be modified and successfully marketed.



The end result was a complete performance enhancing modernization program for the Bell Huey - which eventually led to the issuance of a FAA Type Certificate for the manufacture of a new aircraft - the SW205. This new machine outperformed the standard model by 50% in hover on a Standard Day, and delivered an amazing 325% increase in hover capability on an extremely hot day.



We weren’t done yet...we wanted to move the genre forward by producing a single engine medium helicopter that outperforms them all.



Evolution (Only the fittest survive)

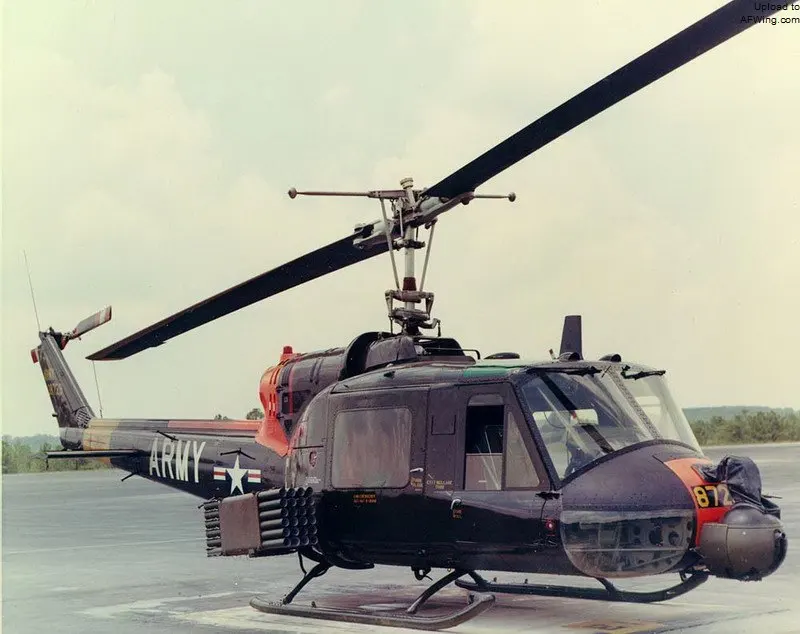

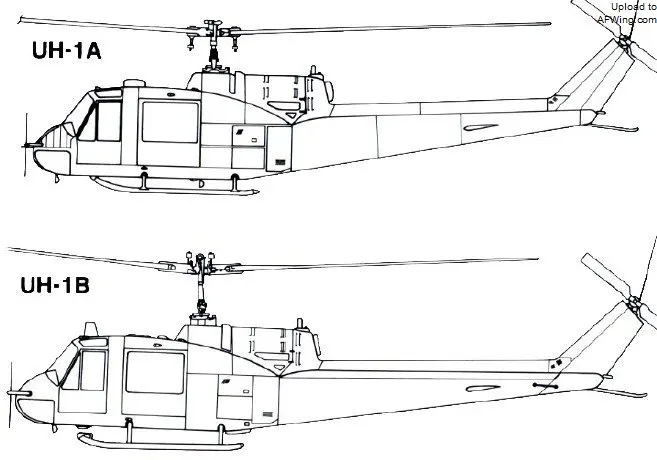

The combat tested, rugged, and reliable UH-1B was chosen as the genetic basis for the ultimate high altitude medium lift helicopter. This was not a decision made lightly, but one based on several critical operator concerns. They wanted this new machine to utilize components still in production - so existing off the shelf spares support could be employed.



Additionally, these operators wanted commonality with other currently operated aircraft to reduce redundancy in logistical requirements, as well as aircrew training-directly translating into significant cost savings. Existing Huey operators will be right at home operating and maintaining the highly capable SW204HP Condor.



Condor Performance



Installed Power Plant T53-L-703	1,800 SHP
Gross Weight (lbs / kg) (Internal) (9,500 Optional)	8,500	3,856
Empty Weight (Ibs / kg)	3,965	1,798
Useful Load (lbs / kg)	4,535	2,057
Full Fuel (Jet A) (Ibs / kg)	1,621	735
Fuel Consumption	75-90 GPH
SLS (kts / km/hr)
Maximum Speed Vne	130	226
Maximum Endurance	2.7 hrs
Operational Radius at SLS (nm / km)	169	312
With VFR Reserve at Maximum Endurance
Average Cruise Speed (kts / km/hr)	120	216
Maximum Rate of Climb, SLS	2,070	10.5
Takeoff Power (fpm / m/s)
Vertical Rate of Climb, SLS	460	2.3
Takeoff Power (fpm / m/s)
Service Ceiling, NRP (ft / m)	21,000	6,400
Hover Ceiling, OGE
OGE ISA (ft / m)	19,500	5,793
35º C (ft / m)	6,500	1,981
Hover Limit, IGE (ft / m)	18,700	5,700







THE NEW SW204HP CONDOR





• High Torque Engine T53-L-703



• Larger/ More Efficient Main Rotor System (212)



• Model 212 Anti-torque System on the Tail Rotor



• Light Weight Composite 212 style Nose



• Dual Hydraulic System – updated from single. (Optional)



• Kaflex Drive Shaft – 212 Transmission



• Remanufactured Airframe - Aligned in Fixture



• Modernized Wiring



Internal seating is made up of two pilot seats and optional seating for up to nine in the cabin. The maximum seating arrangement consists of an aft facing four-man bench directly behind the pilots’ station and a forward facing five-man bench seat in front of the transmission structure.



All passenger seats are constructed of aluminum tube frames with canvas material and are quickly reconfigurable. The cabin may also be outfitted with stretchers, an internal rescue hoist, auxiliary fuel tanks, spotlights, or many other mission kits. As with any aircraft, cockpit configuration is a matter of operator preference and mission requirements.

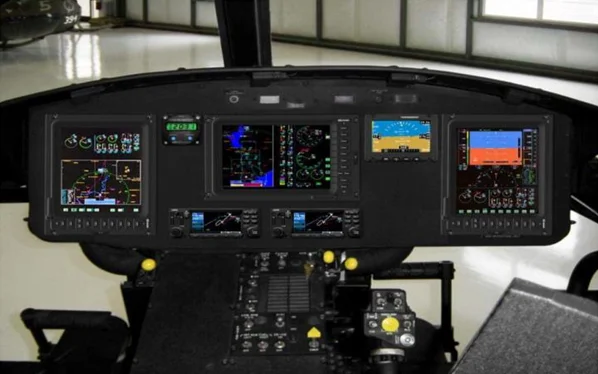

The Condor can come configured with a standard level instrumentation/avionics package to support VFR flight or all the way to an all-weather digitally generated multi-function “Glass Cockpit” navigation system to support any level IFR operations. The aircraft can be tailored to the customer’s specific requirements beyond the standard level equipment to match operational needs and budget.



Options



Customers can select a well-equipped conventional “Round dial” instrument panel combined with latest generation communications and navigation components from a vast array of capabilities to satisfy the most demanding mission requirements. Your Condor can also be equipped with a latest state of the art avionics suite to make it one of the most advanced helicopters in the world. Optional installations can include your choice of an Integrated Cockpit Display Systems.



With a selection of display panel options, your system can include; Primary Flight Instruments, Engine Instruments, GPS Caution Advisory System, and other Multifunction Display System functions such as moving maps, enhanced vision when linked to a camera, Terrain Obstacle Proximity Systems (TOPS), route information, etc. Your Condor can truly be a one of a kind machine.



Real Value



Super Performance Acquisition costs are substantially less than comparable helicopters. Manufactured using the latest aerospace technologies, the SW204HP Condor provides an excellent return on investment. In addition, a reduced maintenance man-hour to flying-hour ratio coupled with longer lasting parts results in lower overall life cycle outlays.



So whether your mission is into high altitudes or hot desert theaters of operation - choose the best value helicopter with a reputation for safety, reliability, and performance - choose the SW204HP Condor! Our sales specialists are standing by to tailor your Condor to meet your specific needs. Offered With 3-Year or 1,000 Flt Hour Warranty.
