TK-7Y регулятор солнечного нагрева воды под давлением
US $10.00-$30.00
Тепловая труба Солнечный нагреватель с расширительным насосом рабочей
- Категория: Солнечные водонагреватели >>>
- Поставщик: Haining,Jixiang,New,Material,&,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.66 $* | 0.76 $* |
| Aug-17-2025 | 0.22 $* | 0.78 $* |
| Jul-17-2025 | 0.33 $* | 0.54 $* |
| Jun-17-2025 | 0.33 $* | 0.67 $* |
| May-17-2025 | 0.49 $* | 0.61 $* |
| Apr-17-2025 | 0.13 $* | 0.29 $* |
| Mar-17-2025 | 0.34 $* | 0.1 $* |
| Feb-17-2025 | 0.77 $* | 0.64 $* |
| Jan-17-2025 | 0.92 $* | 0.17 $* |
Характеристики
Product Details

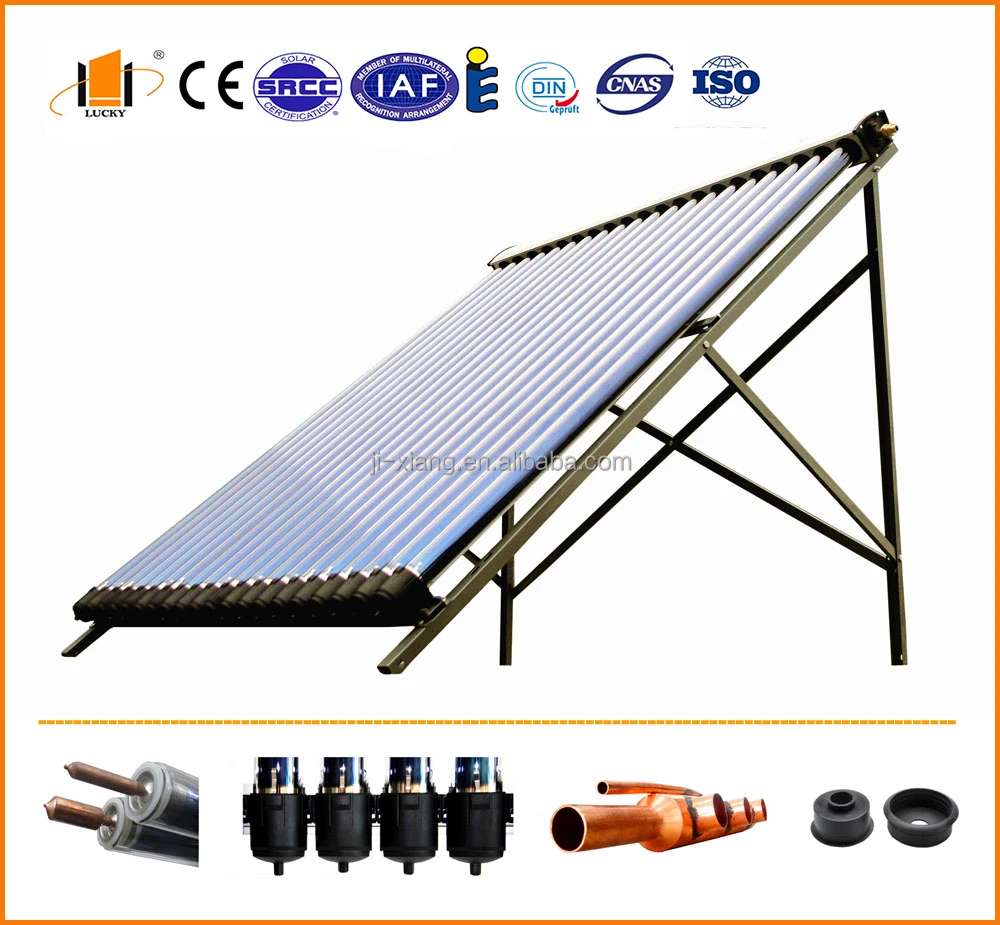

Seperated Pressure Bearing Collector
1.Adopts red copper channel,with great performacnce of heat exchange.
2.Utilize copper heat pipes containing special medium liquid with low boiling point.
3.Work well in all climates, can be functioning well even in ambient temperature of minus 30 degrees celsius.
4.Each heat pipe tube works independently and efficiently.
5.No water flows inside the vacuum tube,no risk of freezing.withstand high water pressure of up to 1.2 Mpa.
Manifold | ||||||
Channel of manifold | red copper | |||||
Outer manifold | aluminium alloy | |||||
Max pressure | 0.6Mpa | |||||
Insulation layer | Rock wool | |||||
Installation size of water pipe | PT 3/4 | |||||

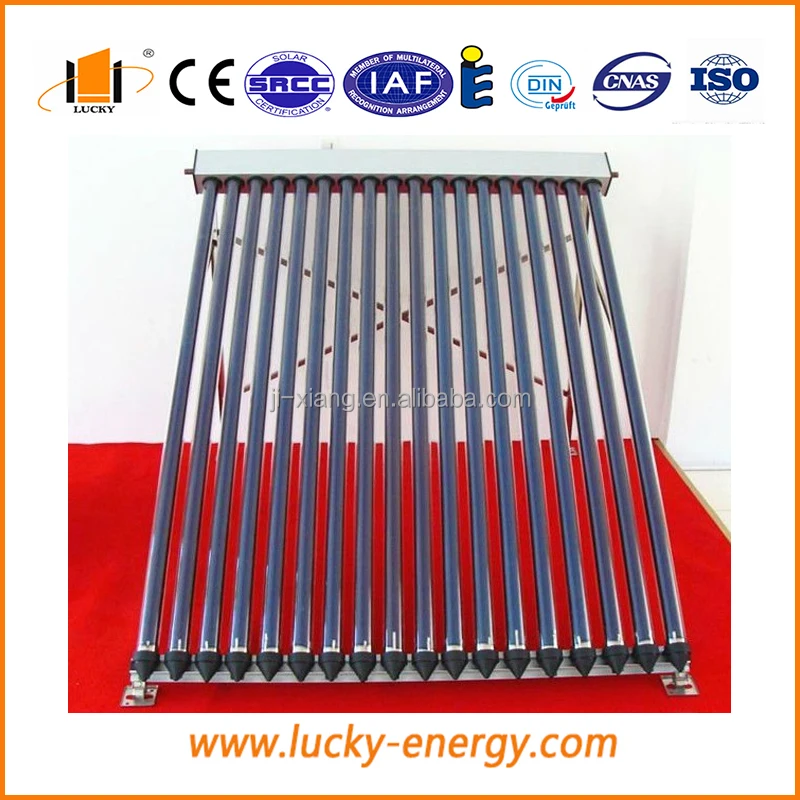

Heat pipe evacuated vacuum tubes | ||||||
Tube material | High borocillicate 3.3 glass | |||||
Vacuum tube size | 58mm*1800mm | |||||
Absorptive coating structure | Cu/SS-ALN(H)/SS-ALN(L)/ALN | |||||
Specifice absorption | ≥0.96(AM1.5) | |||||
Vacuum tightness | 5.0×10¯³ Pa | |||||
Idle sunning property parameters | 260-300 m².C/KW | |||||
Resistant Hail | ≤25mm | |||||
Useful life | 25 years | |||||
BRACKET | ||||||
Frame | 1.5mm stronger galvanized steel /2.0mm aluminum alloy | |||||
Bracket angle | optional, pitched roof, flat roof optional. | |||||
Solar Water Tank Specification | ||||||
Material of out tank | High quality color coated steel | |||||
Material of inner tank | SUS 304-2B stainless steel | |||||
Tank insulating layer | 55mm high-density polyurethane foamed | |||||
Copper coil connector size(inch) | 1/2 inch NPT | |||||
Working pressure(Mpa) | 0.6Mpa | |||||
Temp Control | 30-95℃ | |||||
Heat exchanger material | copper coil | |||||
Components | Electric heater,Magnesium rod,T/P valve,pressure reducing valve | |||||
Size | copper coil: male G 1/2,15 meters per copper coil/PT valve, T/P value:G3/4 PT valve, T/P value:G3/4,Eletric heating stick ,magnisium stick included . | |||||
Company and Service
Haining Jixiang Solar Energy Co.,Ltd is a new high-tech company specializing in developing and utilizing of solar energy.Locating in Haining city, we are specialized in solar water heaters.Our products include heat pipe collectors,split pressurized system,compact thermosyphon systems,solar heating project.
We are an ISO9001 and SGS certified company,we have acquired the EN12975,solar key-mark and Chinese well-known trademark,CCC and CE,and we are applying for the certificate of SRCC.
OEM Service
We can maufacture the products as the design and requirement of the customer,like logo printing,marks,packing service.
Reasonable Price
As the factory,we can provide a low price.And we also can give discount based on the quantity of the order.
After-sale service
Quality guarantee , 5 years for complete system, 15 years for vacuum tubes . 1 year for components.We can provide a solution based on the fact of the production.
Process and Packing
Exhibition image
FAQ
Q:Quality after-sale service? | ||||||
A:5 years for complete system, 15 years for vacuum tubes,1 year for components. | ||||||
Q:Minimum Order Quantity? | ||||||
A:As the sample,1 set for each type is available. | ||||||
Q: Payment term and methods? | ||||||
A:30% deposit & 70% balance at sight of B/L copy and At sight L/C and Time letter of credit is accepted. | ||||||
Q:OEM service is accepted? | ||||||
A:We can print your logo on the water tank and make a packing as your requirement. | ||||||
Q: Accept Alibaba trade assurance order? | ||||||
A:Yes,Alibaba will guarantee your payment, product quality and delivery in this way. | ||||||
