Характеристики
Products Description
High-End! Disc Brake 700c Carbon Wheels Super Light Weight Tubeless Ready DT Swiss180s EXP 36T Ratchet System
- Aero and light weight carbon road rim for disc brake
- High end DT Swiss 180S hubs, straight pull spoke system
- Sram 12s XDR freehub.
- High end Sapim CX-Ray spokes, light and aero
- High end DT Swiss 180S hubs, straight pull spoke system
- Sram 12s XDR freehub.
- High end Sapim CX-Ray spokes, light and aero
Features
- Strong and aero design disc brake road carbon rims, clincher (tubeless ready) and tubular optional.
- Upgraded layup structure, allow as high as 180psi tire pressure.
- Easy mount for both tube tires or tubeless tires.
- Pro racing DT Swiss 180S disc brake hubs (center lock, 12*100/12*142mm), straight pull spoke system, ceramic bearings.
- Sram 12s XDR freehub.
- High end Sapim cx-ray spokes, aero and light
- Upgraded layup structure, allow as high as 180psi tire pressure.
- Easy mount for both tube tires or tubeless tires.
- Pro racing DT Swiss 180S disc brake hubs (center lock, 12*100/12*142mm), straight pull spoke system, ceramic bearings.
- Sram 12s XDR freehub.
- High end Sapim cx-ray spokes, aero and light
Detailed Images

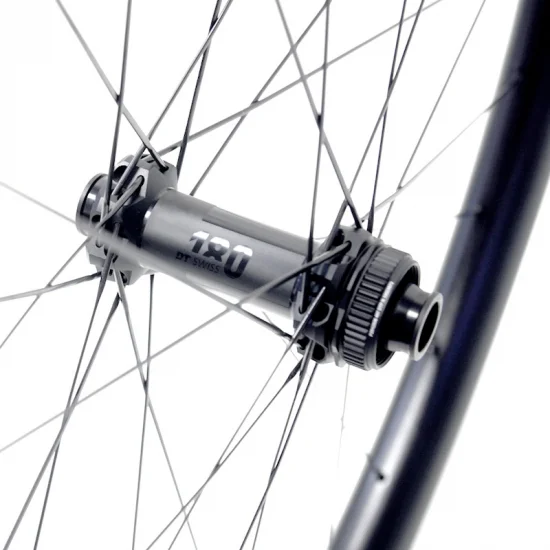

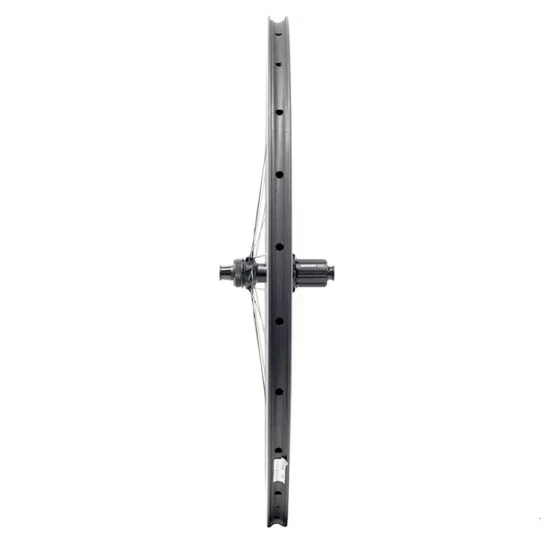

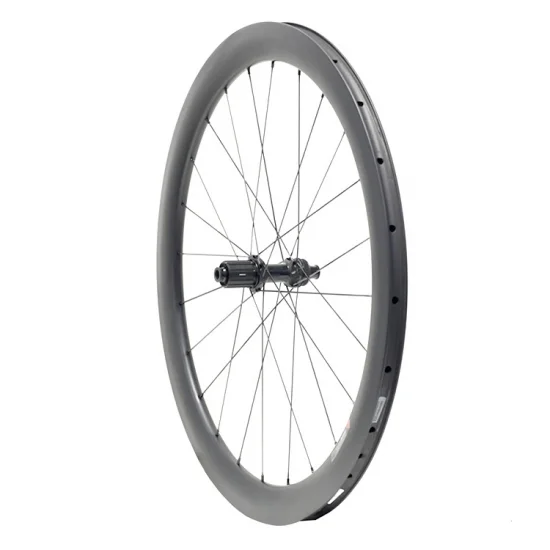

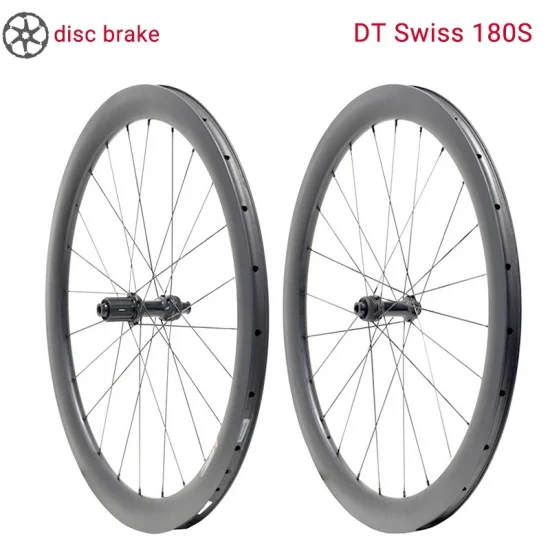

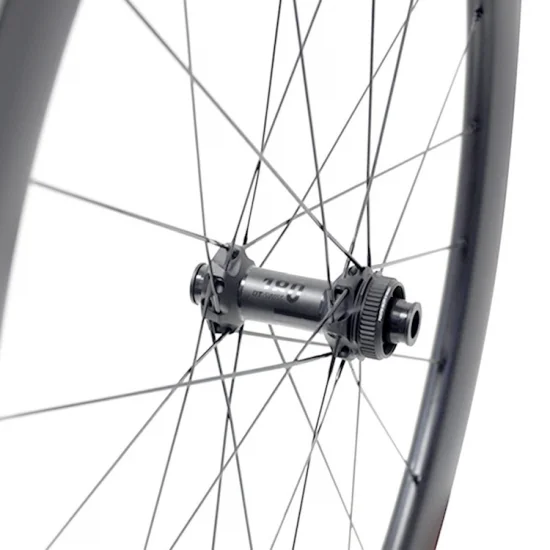

DT180 EXP Disc Brake Road Carbon Clincher(tubeless ready) Wheels, 36T ratchet system
Acceptable OEM wheels building/customs decal
DT180 EXP Disc Brake Road Carbon Clincher(tubeless ready) Wheels Specification
-Rims: 29mm outer width/22mm inner width
-Hubs: DT swiss 180S Road Disc Brake, 36T EXP ratchet system, center lock, straight pull
-Thru Axle Size: front 12/100mm TA, rear 12/142mm TA
-Rear Cassette Body: Shimano road 11s or SRAM XDR 12s
-Spoke holes: 24H
-Tire Type: Clincher/Tubeless
-Spoke: Sapim CX-Ray spokes
-Recommended tire: 700*28-50C
-Max Tire Pressure: 125psi/8.6bar
Model | Rim | rim depth | Max Weight Limit | Weight (+/-3%) |
180DB-35C-CX-Ray | AD35C-DISC-SL | 35mm | 100kg/220lb | 1345g |
180DB-45C-CX-Ray | AD45C-DISC-SL | 45mm | 100kg/220lb | 1415g |
180DB-50C-CX-Ray | AD50C-DISC-SL | 50mm | 100kg/220lb | 1445g |
180DB-58C-CX-Ray | AD58C-DISC-SL | 58mm | 100kg/220lb | 1515g |
Precise Handbuilt Carbon Wheels
Our carbon wheels are precise hand built, then trued by Holland Mechanics Pro Truer.
The perfect allocation of spoke tension in every spoke, and relatively high spoke tension give many advantages:
- High radial, lateral and torsional stiffness.
- Less spoke tension loss over time.
- Longer durability.
- Less maintenance needed.
Wheel roundness tolerance: ≤0.3mm
Wheel lateral tolerance:≤0.3mm
Wheel center tolerance: ≤0.3mm
Who is LightCarbon?
Xiamen LightCarbon Composite Technology Co., Ltd. is the leading manufacturer of carbon bike components in China.
Our main products are: carbon frames and carbon rims.
2012 – We set up a carbon frame factory in Huizhou City, Guangdong Province. Since then we started developing and manufacturing of carbon frames and carbon forks.
2015 – We took shares of a carbon rim factory in Xiamen City, Fujian Province. At the same time, we set up international
LightCarbon team, handling international sales and after-sales service.
Since 2016, we started to exhibit in global bike exhibitions, including Eurobike, Interbike, Cosmo Bike, etc. And have established business relationship with many well-known brands. After 7 years fast development, now we have served customers in over 50 countries.
Our main products are: carbon frames and carbon rims.
2012 – We set up a carbon frame factory in Huizhou City, Guangdong Province. Since then we started developing and manufacturing of carbon frames and carbon forks.
2015 – We took shares of a carbon rim factory in Xiamen City, Fujian Province. At the same time, we set up international
LightCarbon team, handling international sales and after-sales service.
Since 2016, we started to exhibit in global bike exhibitions, including Eurobike, Interbike, Cosmo Bike, etc. And have established business relationship with many well-known brands. After 7 years fast development, now we have served customers in over 50 countries.
Why Trust Us?
We have more than 20 engineers in our R&D Dept. Some of them have over 15 years experience in carbon frame bicycle industry, plus worked in OE factories for brands of Specialized, Cannondale, Pinarello etc... With the support of experienced R&D Dept., we are always in the leading for new products developing.
All of our carbon frames and rims are made of high modulus carbon fiber (Toray T700, T800 and T1000), and they are tested under new ISO4210 standard.
In addition, we raise the test standard up to 20% to do stricter testing. We never start mass production until our new products pass all the tests successfully.
Warranty: 2 years quality warranty is offered for all our carbon frames and forks, carbon rims and wheels.
At present, there are about 180 workers in our carbon rim factory, and about 150 workers in our carbon frame factory. Our current production capacity is:
carbon frame ---> 2000 sets/month
carbon fork ---> 3500 pcs/month
carbon rim ---> 4500 pcs/month
carbon wheel ---> 1000 pairs/month
All of our carbon frames and rims are made of high modulus carbon fiber (Toray T700, T800 and T1000), and they are tested under new ISO4210 standard.
In addition, we raise the test standard up to 20% to do stricter testing. We never start mass production until our new products pass all the tests successfully.
Warranty: 2 years quality warranty is offered for all our carbon frames and forks, carbon rims and wheels.
At present, there are about 180 workers in our carbon rim factory, and about 150 workers in our carbon frame factory. Our current production capacity is:
carbon frame ---> 2000 sets/month
carbon fork ---> 3500 pcs/month
carbon rim ---> 4500 pcs/month
carbon wheel ---> 1000 pairs/month
