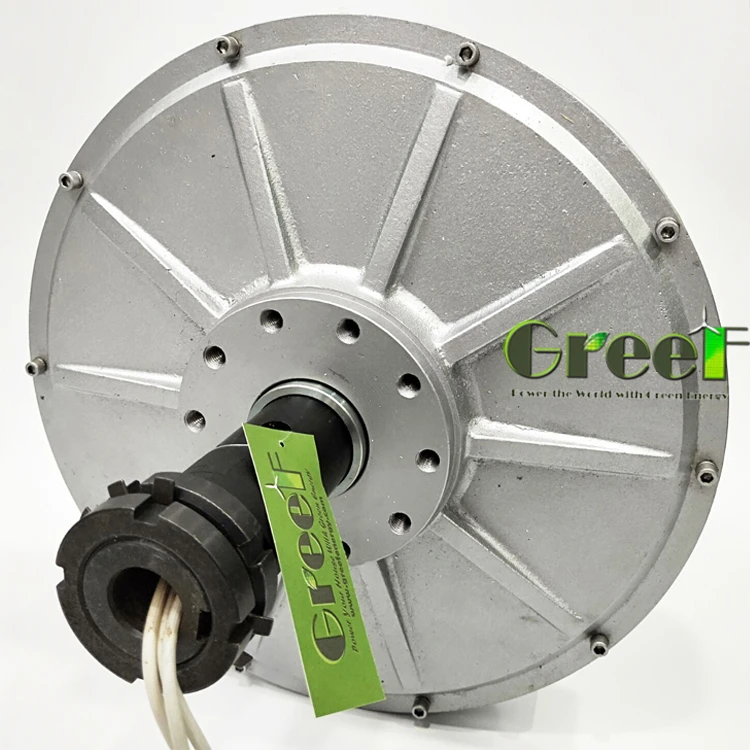

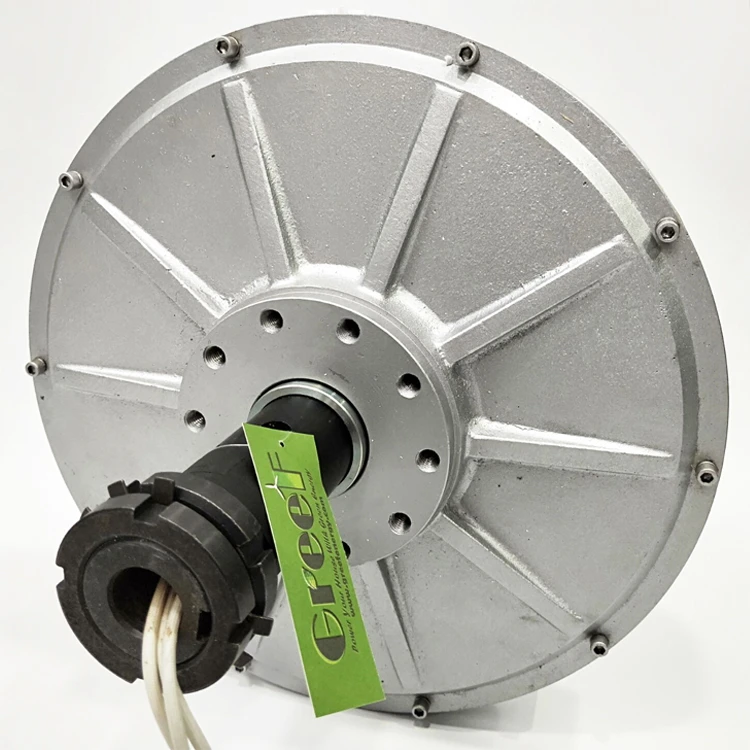

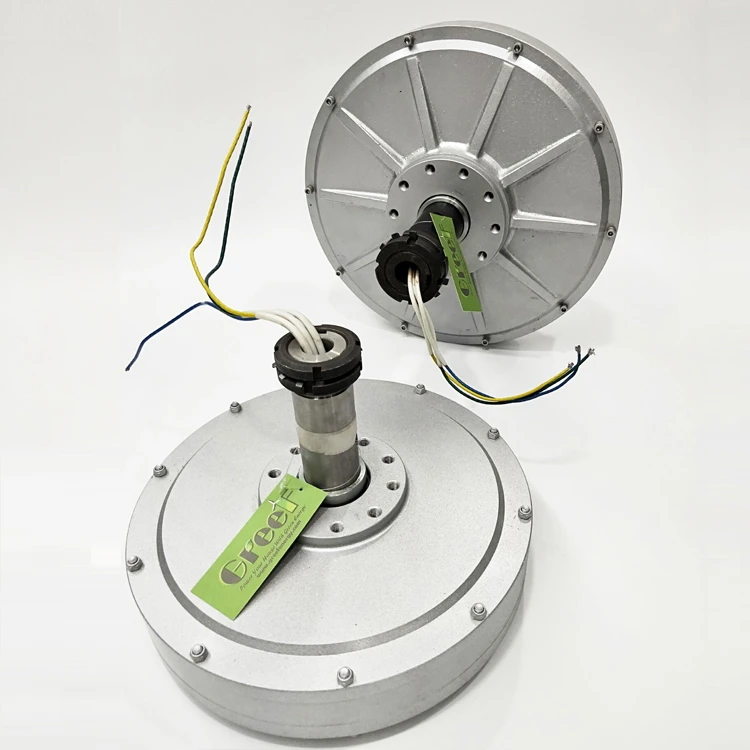

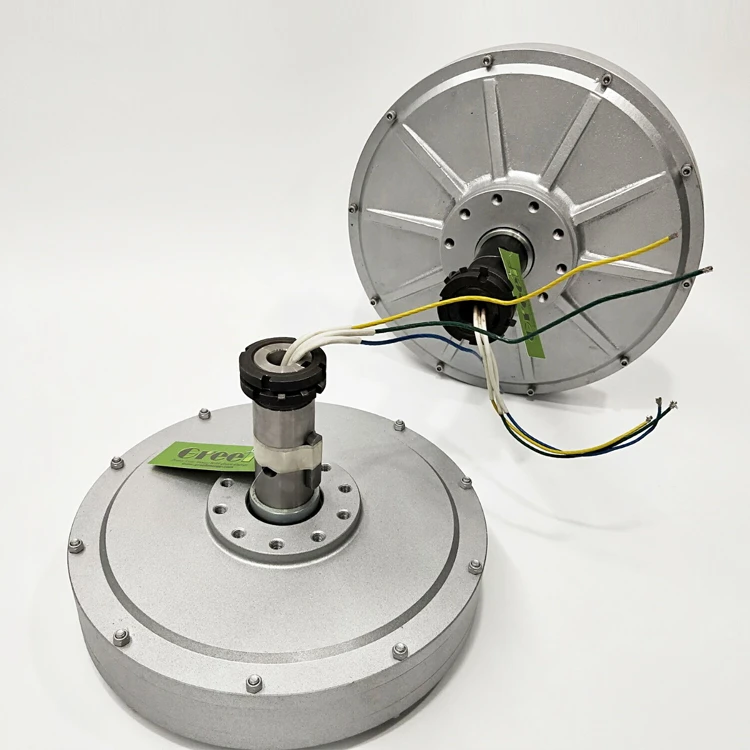

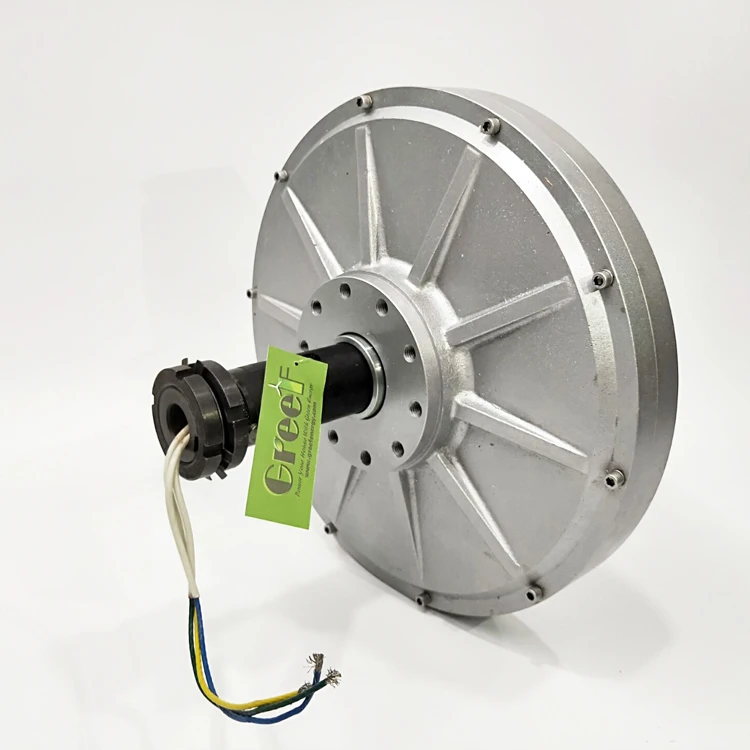

1 кВт 300 об/мин генератор с постоянным магнитом без сердечника для вертикальной ветровой

1 кВт 300 об/мин генератор с постоянным магнитом без сердечника для вертикальной ветровой

Категория: Альтернативные генераторы электроэнергии >>>
Поставщик: Qingdao,Greef,New,Energy,Equipment,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.70 $*	0.0 $*
Aug-16-2025	0.37 $*	0.73 $*
Jul-16-2025	0.90 $*	0.21 $*
Jun-16-2025	0.59 $*	0.56 $*
May-16-2025	0.78 $*	0.57 $*
Apr-16-2025	0.31 $*	0.40 $*
Mar-16-2025	0.79 $*	0.25 $*
Feb-16-2025	0.58 $*	0.32 $*
Jan-16-2025	0.41 $*	0.96 $*

Характеристики

Disc Coreless Permanent Magnet Generator

Technical Data

Model	GDG-1KW-300
Rated Power	1KW
Rated Rotate Speed	300RPM
Option Rated Voltage	48V-400Vac
Efficiency	>89%
Wending Method	Y
Insulating Resistance	100Mohm Min(500V DC)
Leakage Level	<5 ma
Start Torque	<0.3N/M
Rated Torque	56N/M
Phase Type	3 Phase
Structure	Outer rotor
Stator	Coreless wire coil
Rotor	Rare Earth Permanent Magnet
Generator Shell Diameter	380mm
Generator Shell Length	241mm
Weight	32kg
Shaft drameter	50mm
Generator shell material	Aluminum alloy
Shaft material	Carbon steel
Bearing	NSK Deep groove ball bearing

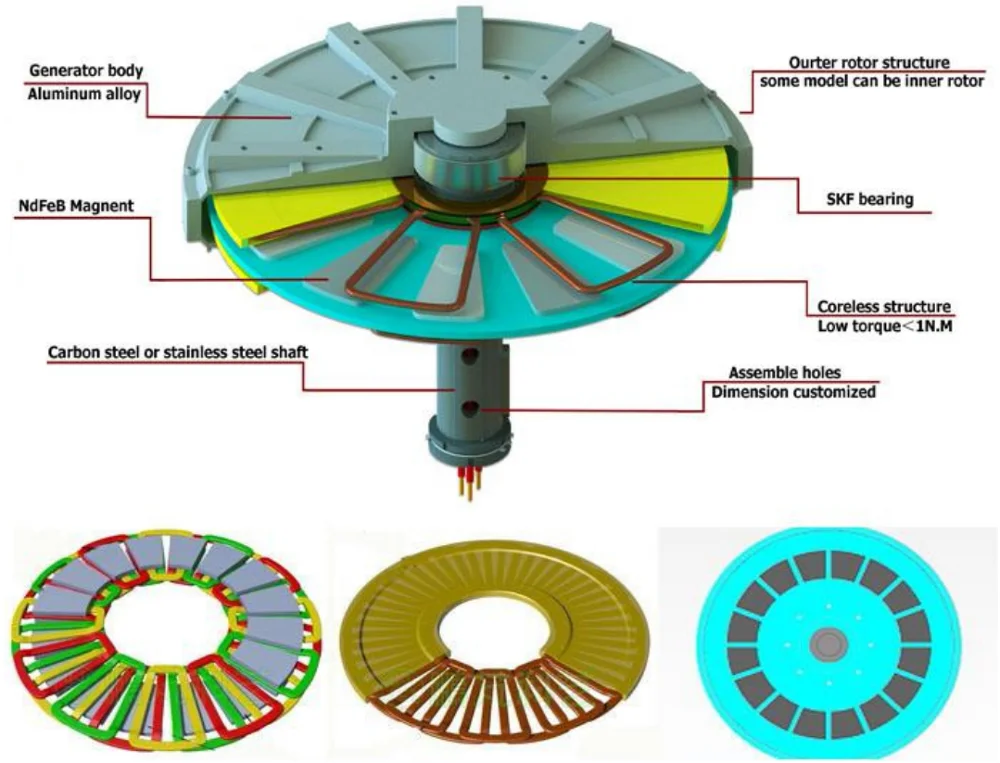

Drawing Sample and Pictures

GDG-1-180 1.jpg GDG-1-180 2.jpg

Product Advantages

This Coreless Permanent Magnet always being used in vertical axis wind turbine, and other generator system which requests very low start torque and low rated rotate speed, low start wind speed, low weight and small size.

1	Torque Patent Technology: use newest “Precise Coil” technology. No hysteresis and gear notches effect make the start torque very low <0.3N.M
2	Original Structure: use disc coreless motor to take place traditional motor makes it less volume and weight.
3	Higher Utilization: use special coreless motor technology to eliminate the use bottlenecks of lower speed wind energy.
4	Higher Reliability: special structure make it bigger ratio of power to volume, power to weight and have long life of 8 times longer than traditional motor.
5	Gearless, direct drive, low RPM generator.
6	High standard, quality components for use in harsh and extreme environments for wind turbines
7	High efficiency and Low mechanical resistance energy loss
8	Excellent heat dissipation due to the Aluminum alloy outer frame and special internal structure.


Application

We can provide the complete generator system including Controller and Inverter:

On-grid Generator System

Off-grid Generator System
