630mm2 гидравлический инструмент для обжима кабеля CO-630HE hydraulikschlauchpresse автоматическая гидравлическая
- Категория: Other Hydraulic Tools >>>
- Поставщик: Hailin,Industrial,&,Development,(Shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.24 $* | 0.6 $* |
| Aug-17-2025 | 0.9 $* | 0.58 $* |
| Jul-17-2025 | 0.15 $* | 0.13 $* |
| Jun-17-2025 | 0.75 $* | 0.2 $* |
| May-17-2025 | 0.49 $* | 0.99 $* |
| Apr-17-2025 | 0.14 $* | 0.6 $* |
| Mar-17-2025 | 0.89 $* | 0.86 $* |
| Feb-17-2025 | 0.7 $* | 0.77 $* |
| Jan-17-2025 | 0.56 $* | 0.55 $* |
Характеристики
Dear Friends:
Welcome to browse our product:

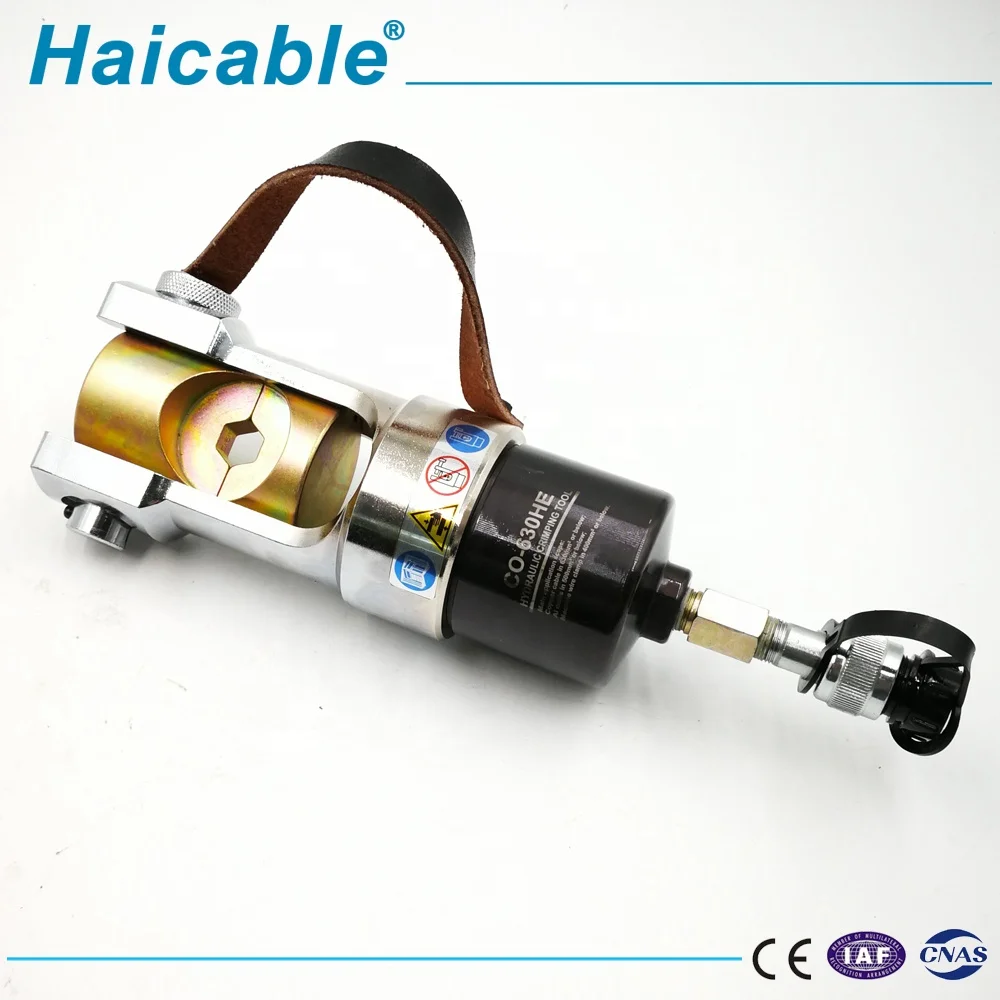

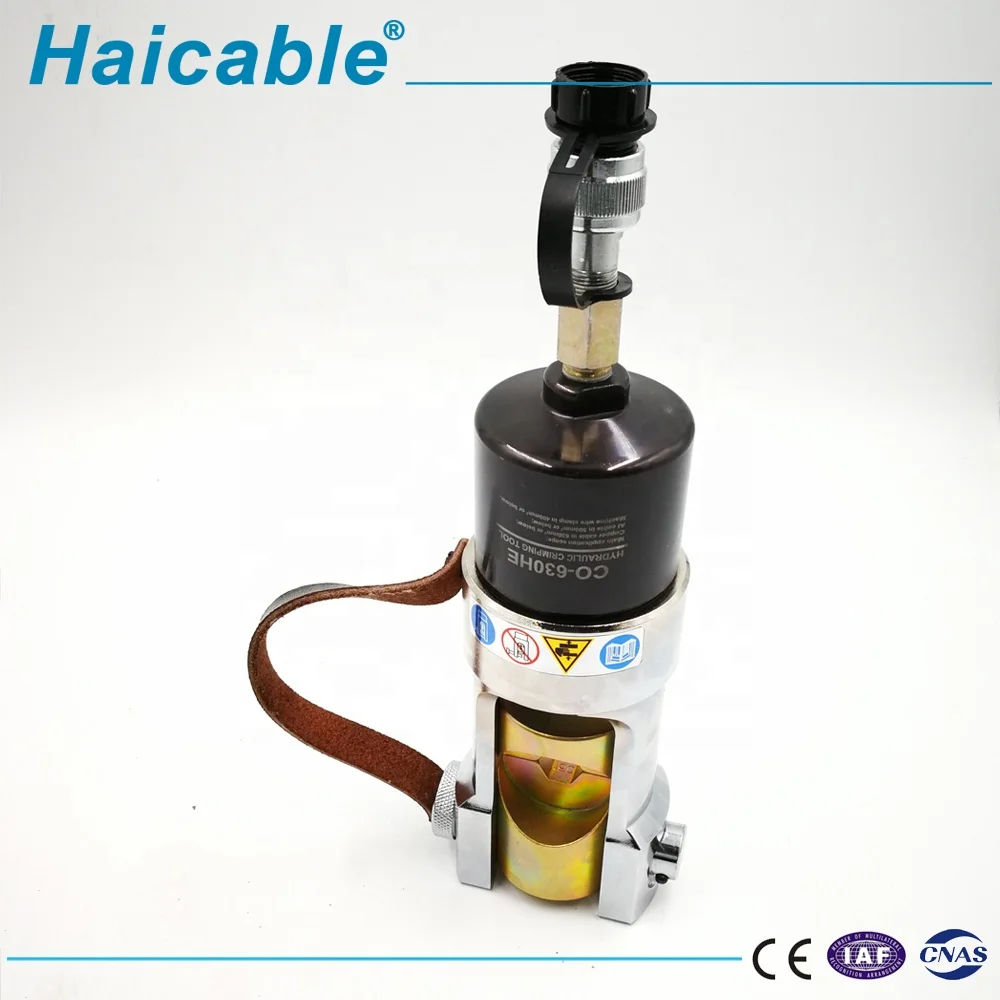

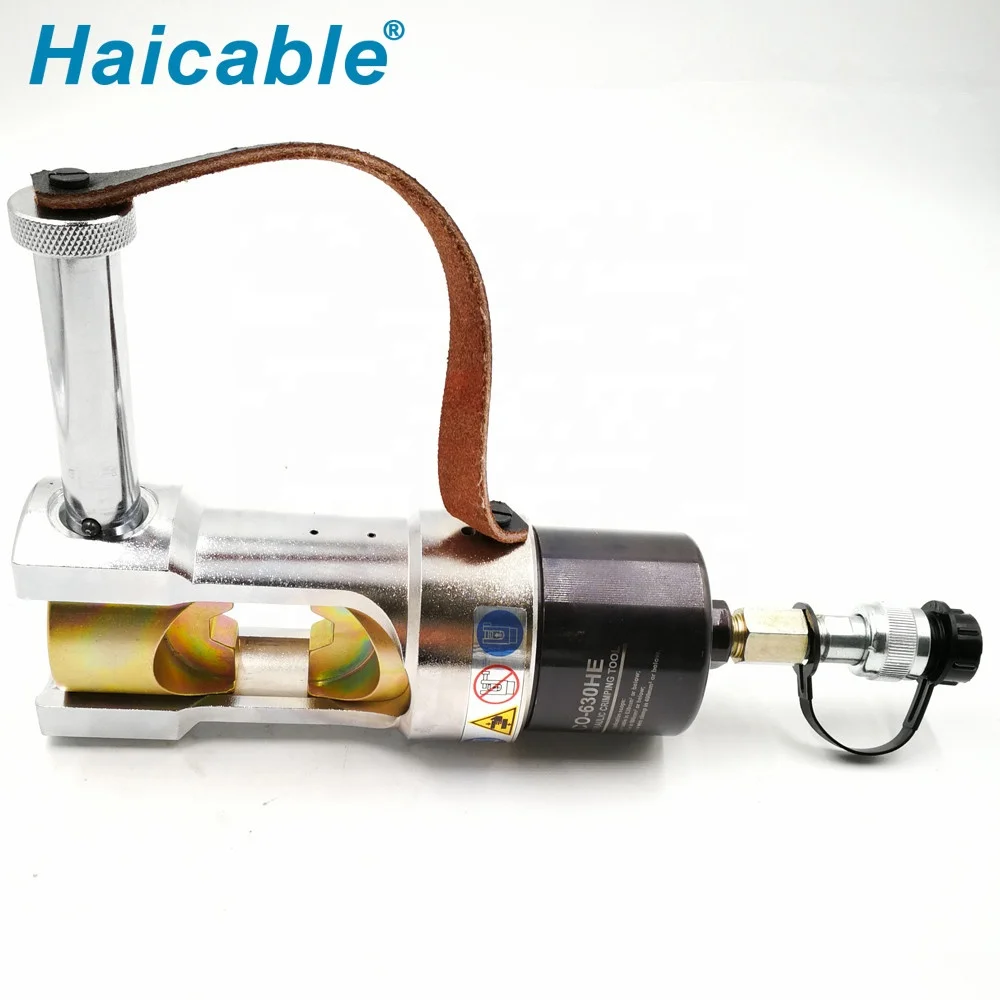

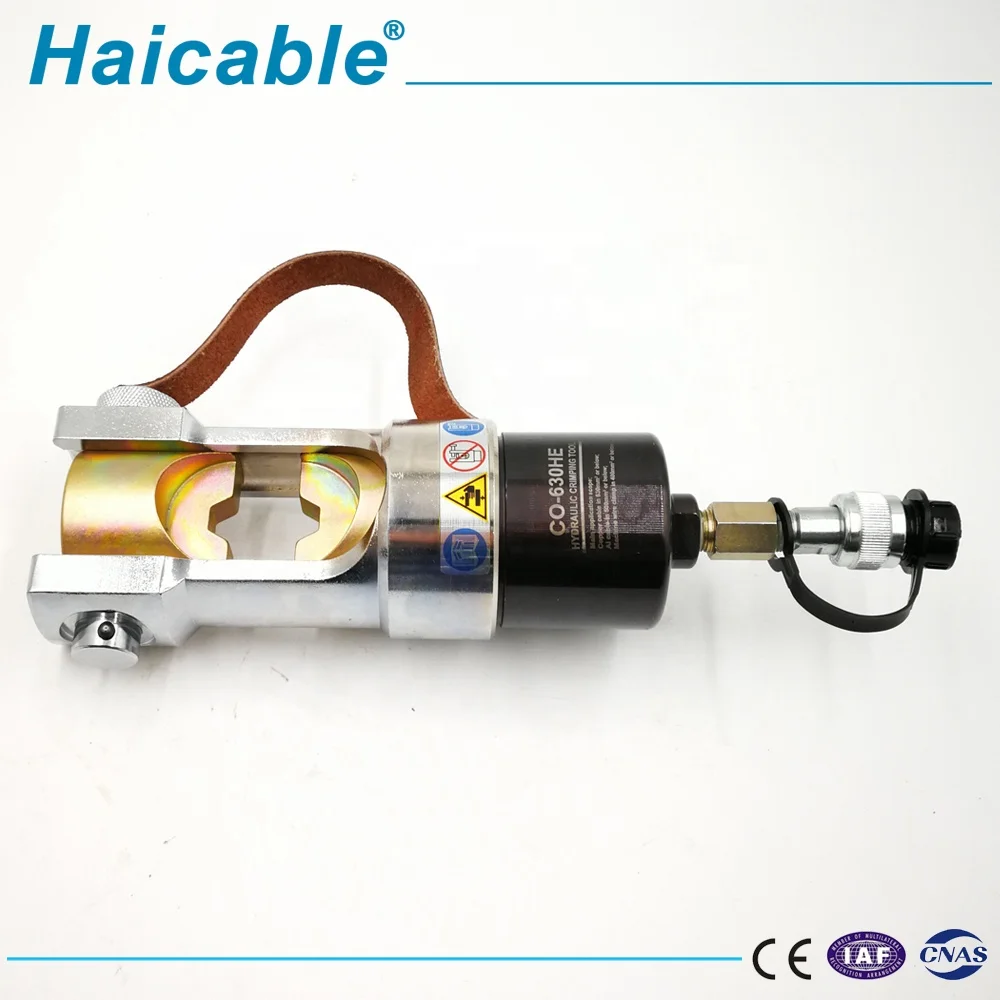

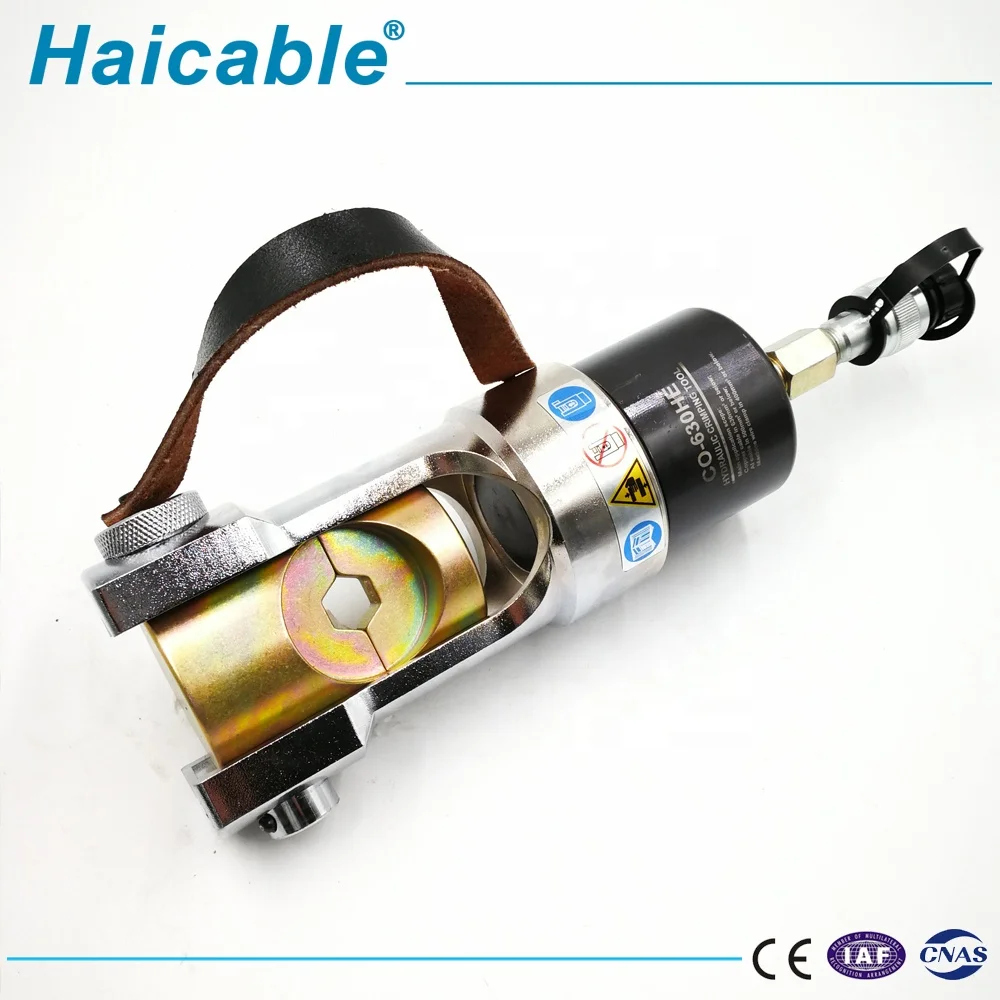

CO-630HE hydraulic connector terminal crimping tool
General Introduction:
CO-630HE is a Remote Control Hydraulic Crimping Head, works with external hydraulic pump. Capable of crimping Cu/AL cable connectors from 150mm2 to 630mm2. There are total 7 sets standard crimping dies sold with CO-630HE
Product Description
Feature:
- Application: Crimp Large Size Cable Connectors
- Crimping Capacity: 150-630mm2 (Hexagon)
- Standard Dies: 7 Sets 150 / 185 / 240 / 300 / 400 / 500 / 630mm2
- Crimpng Head: works with external hydraulic pump (700Bar), Our foot pump CFP-700FT is strongly recommended.
- Bolt Style Head Design for easy dies remove and installation

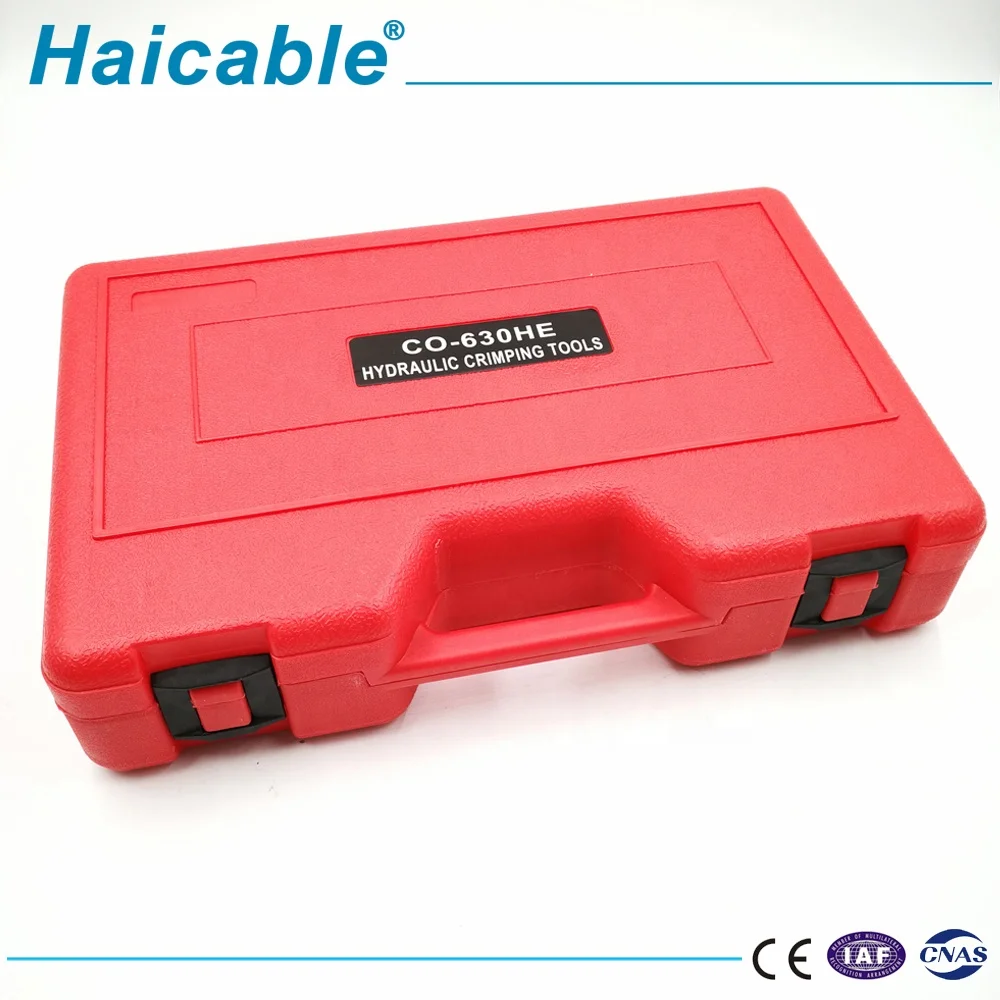

- Plastic Case Package for easy carrying and well tool protection
- Weight: 5.6kgs Size: 260*88*120mm
Technical Parameters:
Model | CO-630HE |
Capacity | 150-630mm2 (Hexagon) |
| |
Output | 25 tons |
Max travel |
|
Mould disposition (mm2) | 150 / 185 / 240 / 300 / 400 / 500 / 630mm2 |
Size | 260*88*120mm |
Weight | 5.6kg |
Company Information
Our Services
Our Service:
**We have professional technical team to meet your new items developing.
**We will be your eyes while producing, which means we will send producing picture for every steps.
FAQ
FAQ:
Q: What kind of Blade Proceeding is?
A: By forging, which make body more healthy and powerful.
Q: What the different compare other company.
A: we could promise our tools are light weight, but save about 50% labor cost.
Q: Are u manufacturer or trading Co?
A: Yes, we are the manufacturer, but also we doing trader, if there is more items u hope to buy in china, but no time. Welcome u contact with us. Our whole team will be working with u together.
