36V/48V 500W Низкий уровень шума регенеративная Байк способный преодолевать Броды контроллер для электрического велосипеда контроллером KT с

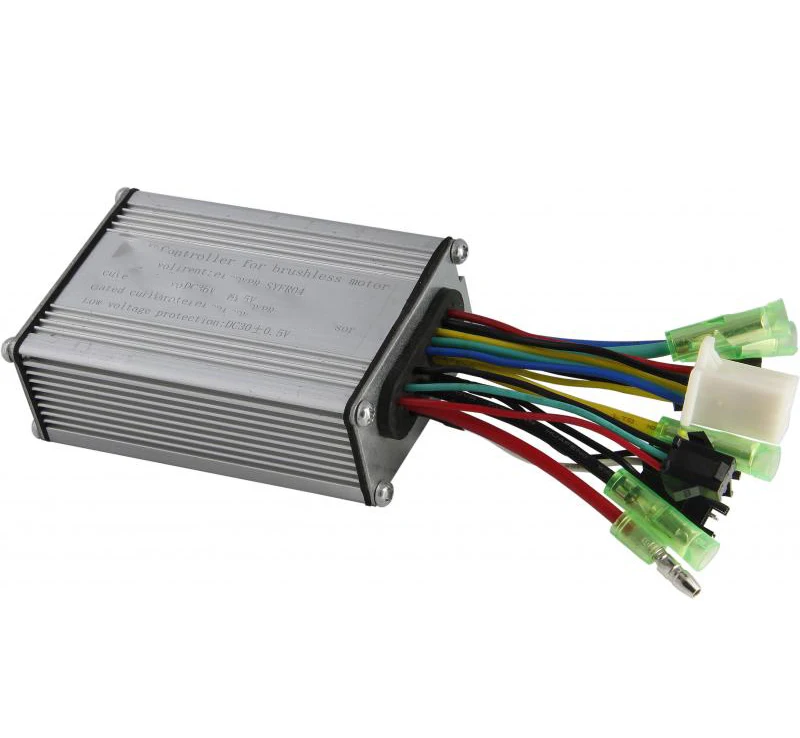

500W low noise regenerative e bike controller, e-bike controller

Functions and features:

1. The finished product controller is directly assembled in the shanshan box, which has the characteristics of simple assembly and high reliability;

2. High controller conversion efficiency can effectively reduce the temperature-rise and prolong the discharge time of lithium battery;

3. With a multi-protection functions such as the stall, over-current, over-temperature, under-voltage, speed driving, phase shortage, output short circuit etc., so as to protect the vehicle electronic control systems and traffic safety;

4. Hall or no hall motor drive, adapting to various kinds of high and low speed motor;

5. Controller power range is 150-500W (10-15A);

6. It is with two options of sine wave and square wave controller.

500W low noise regenerative e bike controller, e-bike controller

Main technical parameters:

1. Rated voltage:DC24-48V;

2. Rated current:5-8A (maximum specified 10A);

3. Maximum current:10-15A (maximum specified 20A);

4. Rated power:150-500W;

5. Maximum power:300-1000W;

6. Static power consumption:<50mA;

7. Under-voltage protection:set according to customer requirements;

8. Optional light control and instrumentation headlight indicator.

The following is some hot selling products you may like:

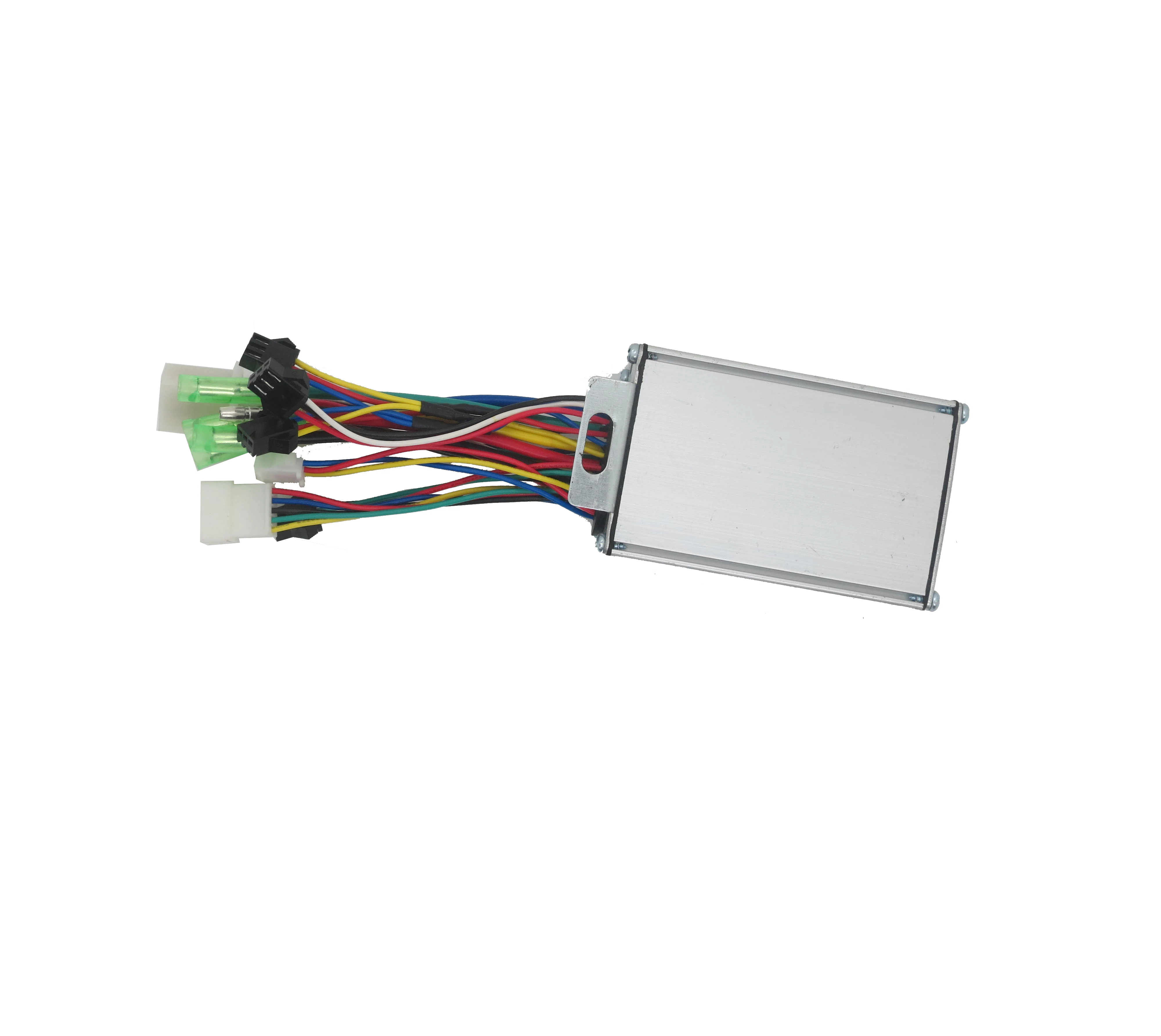

The following smart controller for 36V 250W, 300W and 350W motor selling very well, it can work with all kinds of e bike motors, no matter hall or halless, it even can work with the hall broken motor. It work only with KT displays, LED or LCD.

We provide one stop service for our customers, We provide many different e bike motors, e bike controllers and displays, e bike spare parts, e bike batteries, e bike conversion kits and electric bicycles. Please feel free to choose the goods you need.

To see all the hot selling product...

We not only sell the e bike conversion kit, also provide professional service.

We would give advice according to customer's requirements and need.

We are not only selling one part or one products, we provide whole soultion.

We provide long time warranty:

    e bike frame: 3 years

    motor:  3 years

    battery:  1.5 year

    battery charger: 1 year

    controller:  1 year

    other electric bike parts:  1 year
