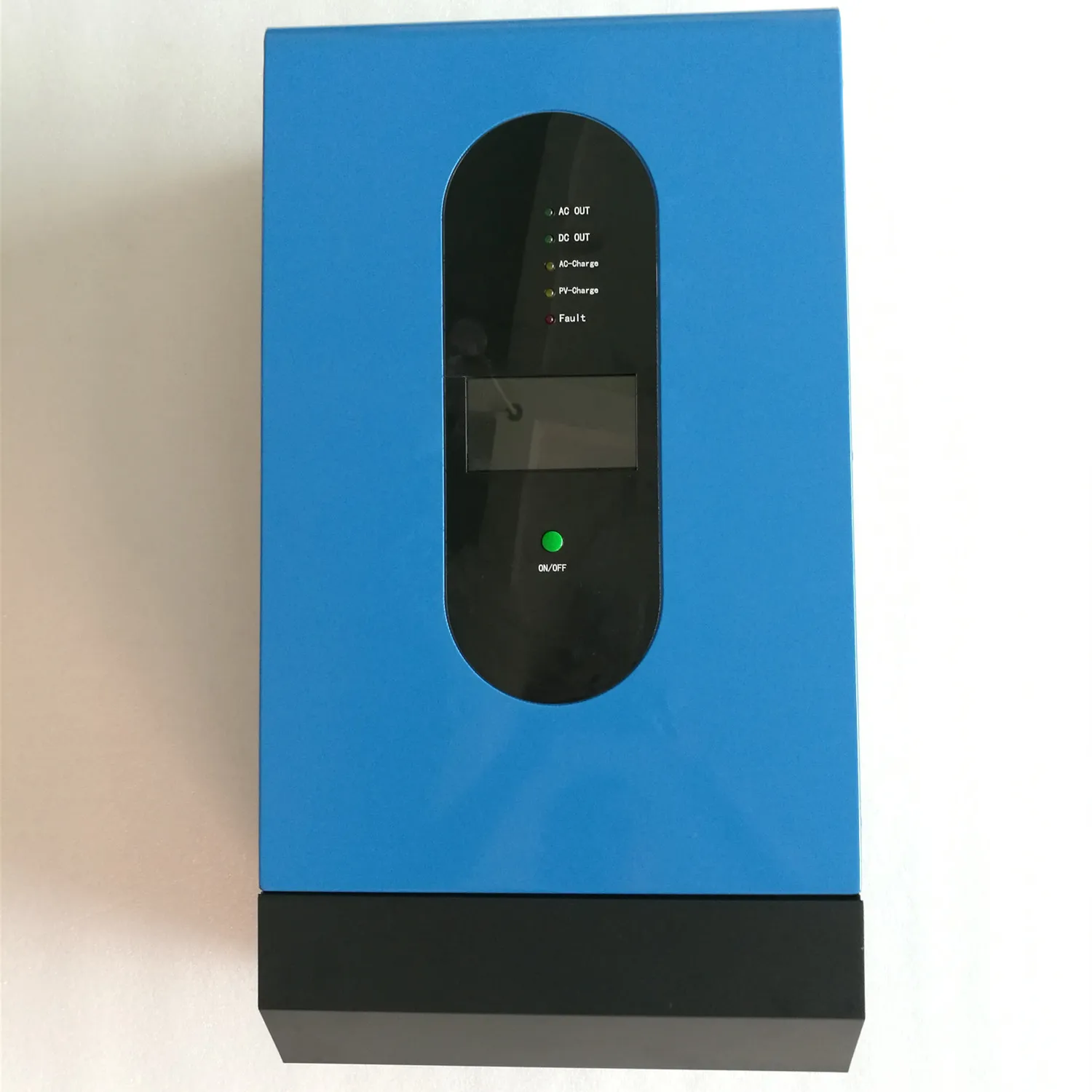

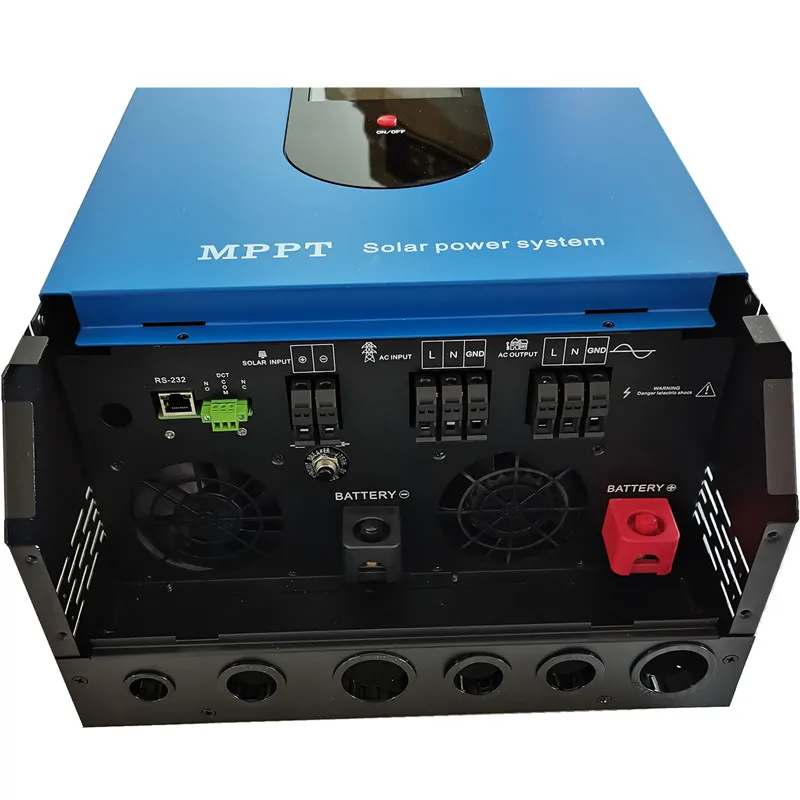

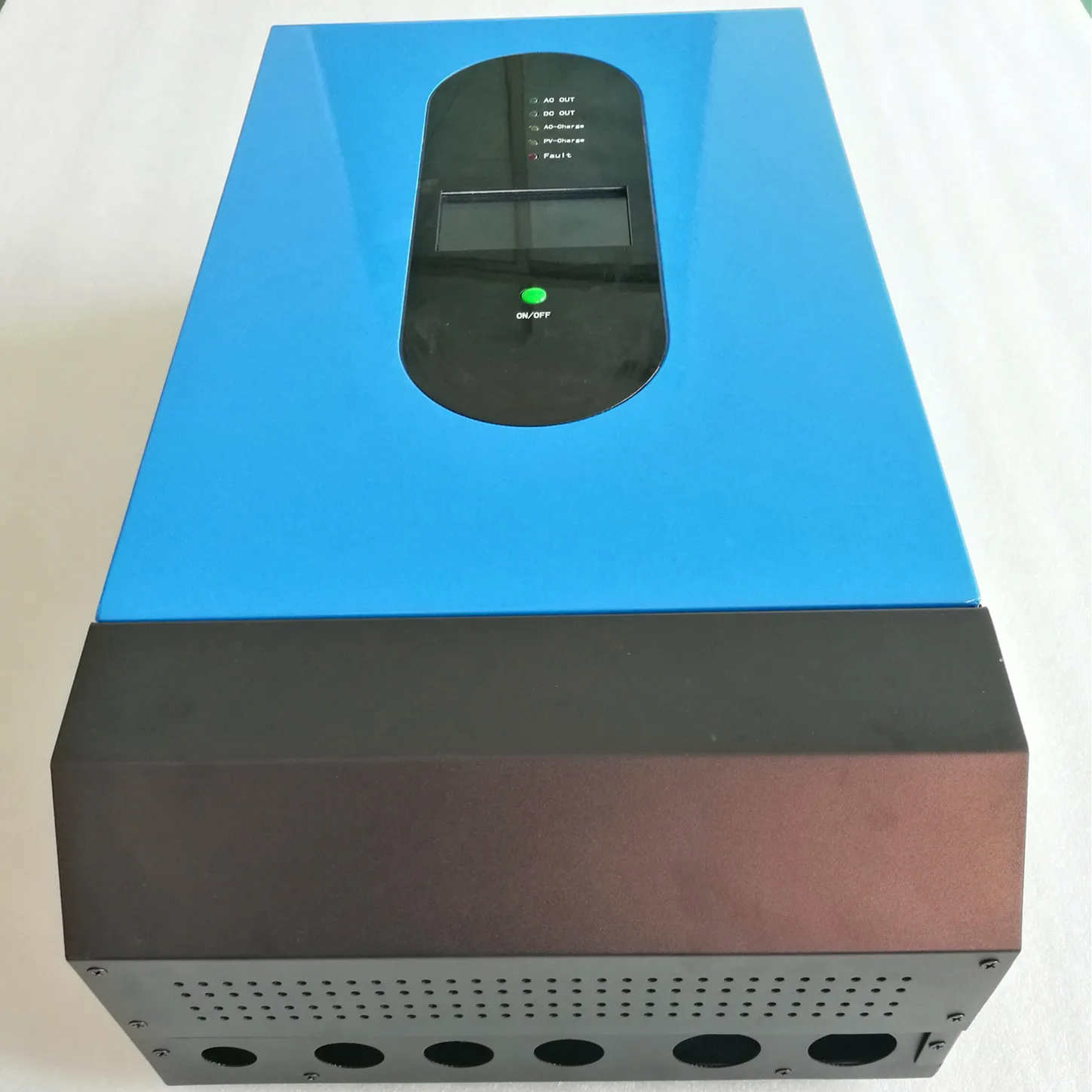

3000w pure sine wave off grid solar charger controller inverter with UPS function
Product Description

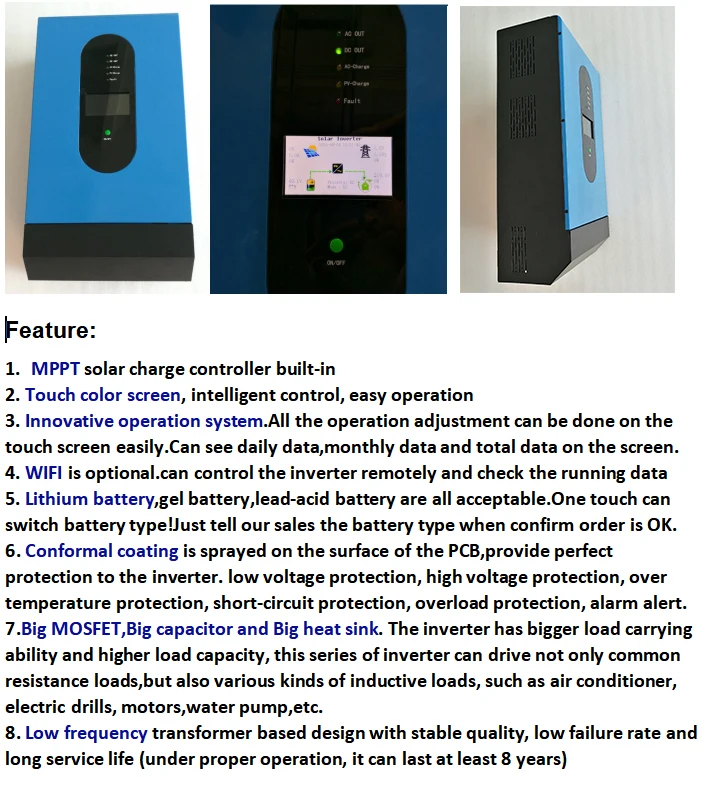

Sunchees off grid solar charge controller inverter features
1. MPPTsolar charge controller built-in
2. Touch color screen, intelligent control, easy operation
3. Innovative operation system.All the operation adjustment can be done on the touch screen easily.Can see daily data,monthly data and total data on the screen.
4. WIFI is optional.can control the inverter remotely and check the running data
5. Lithium battery, gel battery, lead-acid battery are all acceptable. One touch can switch battery type!Just tell our sales the battery type when confirm order is OK.
6. Conformal coating is sprayed on the surface of the PCB, provide perfect protection to the inverter. low voltage protection, high voltage protection, over temperature protection, short-circuit protection, overload protection, alarm alert.
7.Big MOSFET, Big capacitor and Big heat sink. The inverter has bigger load carrying ability and higher load capacity, this series of inverter can drive not only common resistance loads,but also various kinds of inductive loads, such as air conditioner, electric drills, motors,water pump,etc.
8. Low frequency transformer based design with stable quality, low failure rate and long service life (under proper operation, it can last at least 8 years)
Off grid solar charge controller inverter Specification
Battery over voltage and low voltage protection, overload protection, short circuit protection, over temperature protection, etc.
MPPT Solar controller
Solar rated voltage
72V
Maximum PV open circuit voltage
150V
Maximum input voltage
150V
Maximum efficiency
≥99%
Average charging voltage
56.8V
Floating charge voltage
55V
Charging current
60A
Over charging protect voltage
60V
Over discharge
protect voltage
40V
Operating ambient temperature
-15℃-60℃
Display
LCD (inverter output voltage, input AC voltage, battery capacity percentage, load capacity percentage, solar input voltage, generating capacity, solar charge current, etc..)
Cooling method
Auto detective cooling fan, ≤42 Fan slow turning heat dissipation, ≥45℃ Fan high turning heat dissipation
Storage ambient temperature
-20 - +60 ℃
Operation / storage environment
0-90% No condensation
Product size: length * width * height
610*330*200mm
Package size: length * width * height
720*440*235mm
Net weight
31kg
35kg
37kg
We design and make complete set solar power system, detailed quotation and specification, welcome to contact us directly.

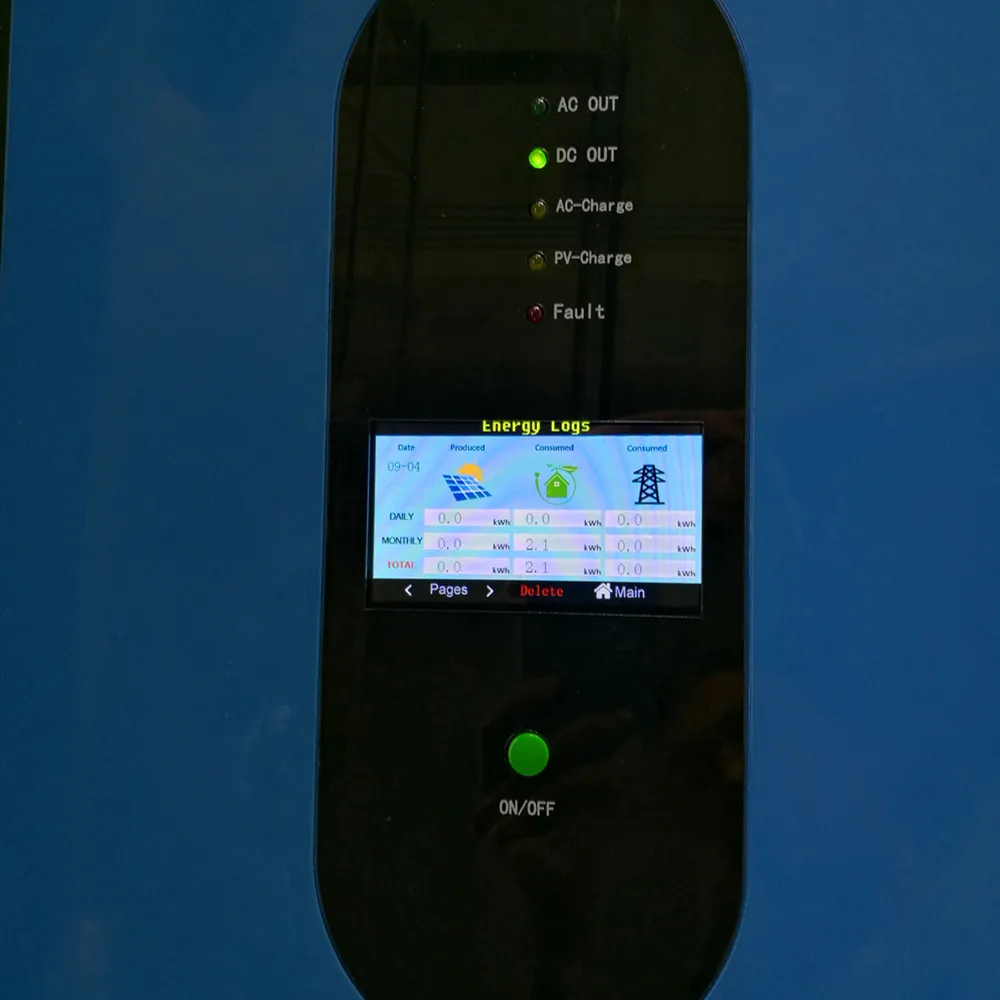

LCD display
Packaging & Shipping
Company Information
FAQ
Q1.Are you factory?
A1. Yes, our factory and sales department are located in Foshan and we would be pleasured to welcome you in our factory at any time when you are in China.
Q2.All products have a warranty?
A2.Yes. All products are at least 2 years warranty.
Q3.What is the shipping way?
A3.DHL,UPS,TNT,EMS,FedEx, Ship by sea.
Q4. What is the payment method?
A4. We normally require a T/T advance payment. 30% deposit and 70% before shipping. Western Union/MoneyGram/Alibaba can also be used.
Q5.Can we design packing?
A5.Yes.We can use customer's own packing
Q6.Can we add our logo on products?
A6.Yes.We can add your logo on products.
Q7.Can we customize product?
A7.Yes.OEM&ODM.
A8.Are there some optional function for your inverter?
Q8.Yes,it have battery priority function,grid priority function,AC grid charger function,AVR function,RS232 interface telecommunication function.Solar system inverter mostly use battery priority function,AC grid charger function.It can make full use of solar power.
Q9.what is Sunchees inverter after sales service
A9.during the warranty ,ship free PCB by DHL or FEDEX.
Q10.what is your trade Assurance
A10:100% product quality protection
100% product on time shipment protection
100% payment protection for your covered amount
Our Services
We accept OEM and small trial orders, more information or would like the quotation, pls feel free to contact with me directly!
3000w pure sine wave off grid solar charger controller inverter with UPS function
