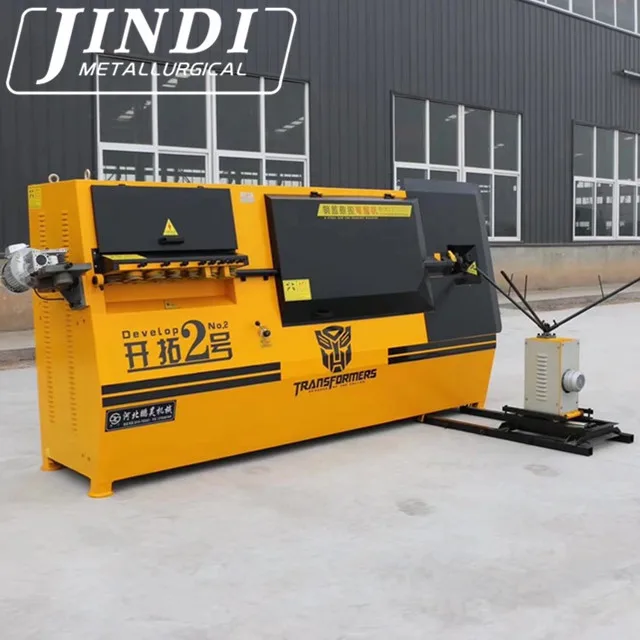

Automatic rebar bending machine is a whole machine with straightening, bending, shear, length measurement, counting. It has compact and reasonable structure, easy to operate, with high production efficiency. It can save labor and automatic micromputer control servo drive motorof the machine. This machine has advantages of fast speed, strong power, high technology, low failure and so on.
CNC rebar bending machine contain reducer,big gear wheel,pinion,curve disk.Twin-stage braking motor directly connection with the reducer acting as stair speed cut.pinion cooperate with big gear wheel acting as second level speed cut.Big gear wheel always drive rotation of curve disk.Curve disk is installed centre axle hole and numbers of curve axle hole.
Product Overviews
steel bar bender stirrup

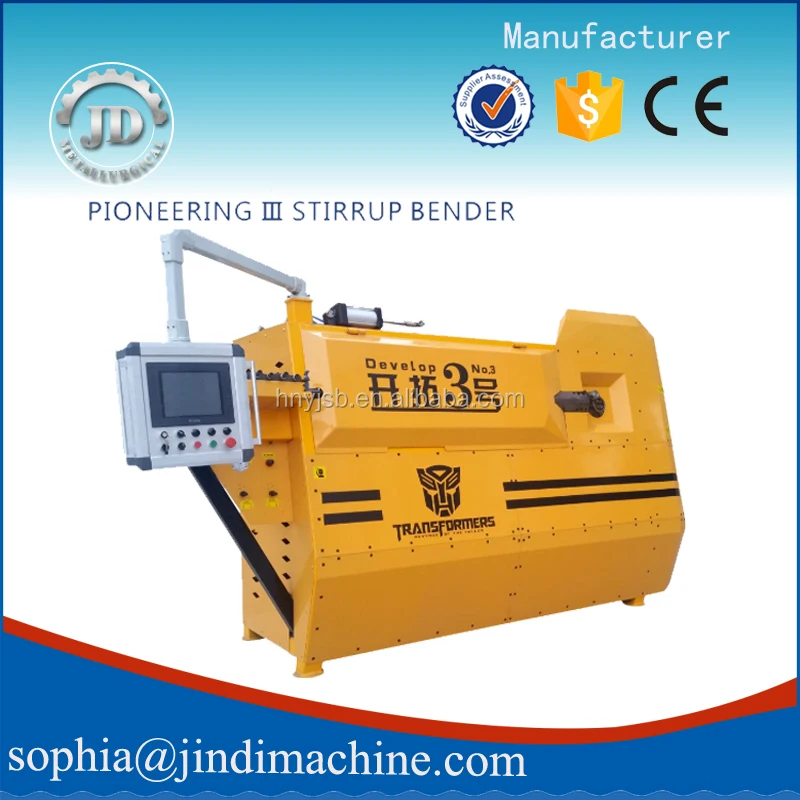

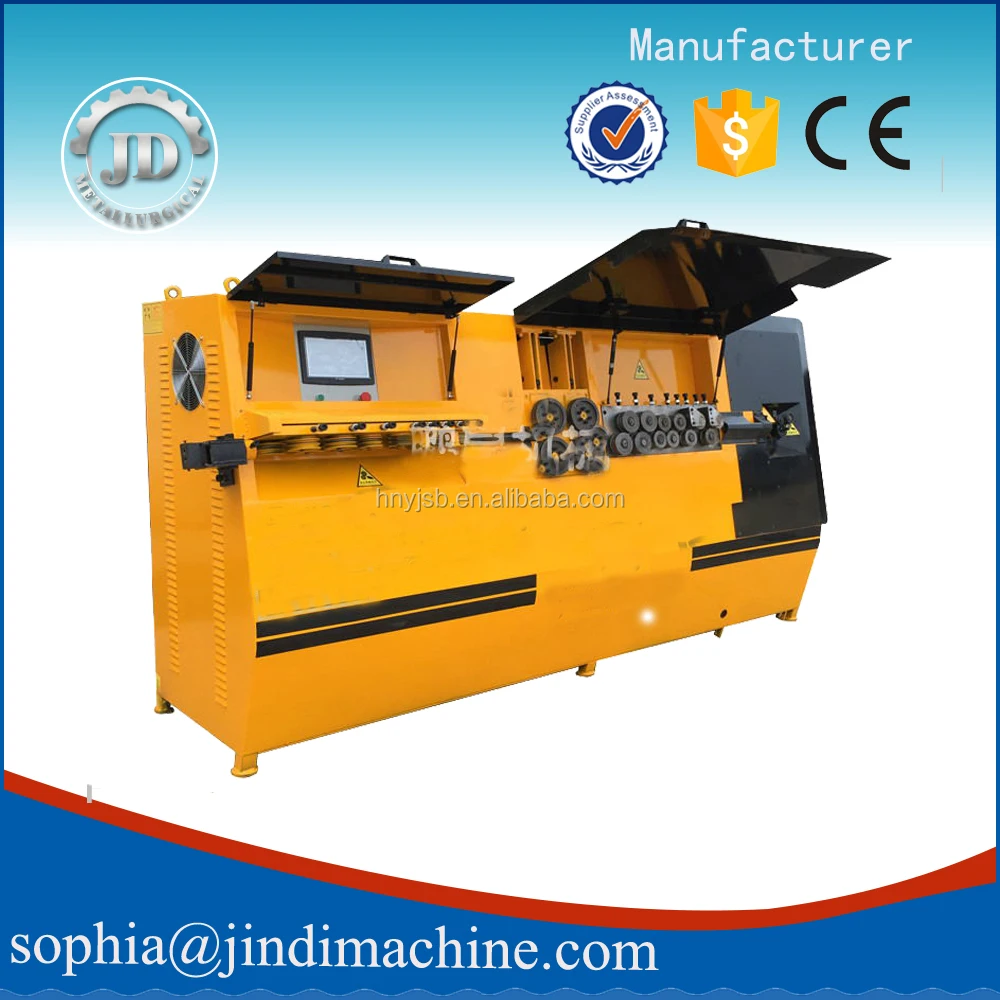

Other types of automatic steel bar bending machine for different specs.
steel bar bender stirrup
Manual bending machine
steel bar bender stirrup
steel bar bender stirrup
Finished products
steel bar bender stirrup
Tecnical parameters
No.
Item
Specification
1
Model number

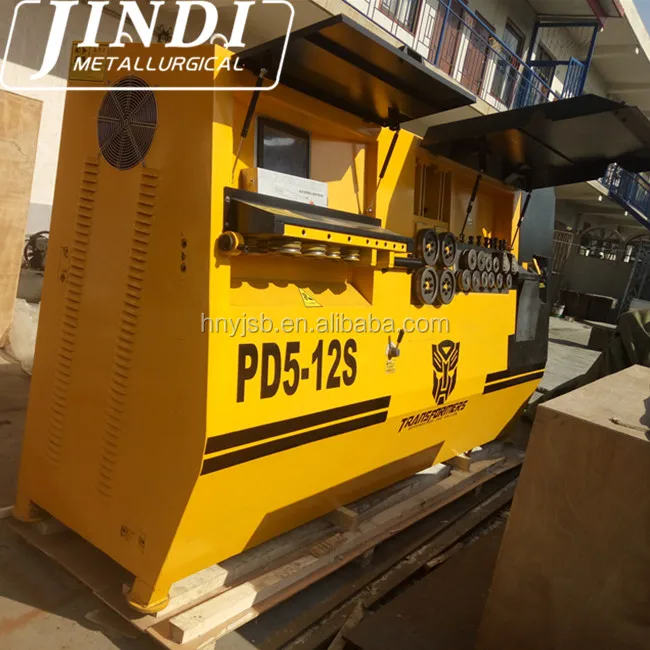

PD5-12S
2
Power
25kw
3
Ⅰ grade Round bar
Φ4-12mm
4
Ⅲ grade Deformed steel bar
Φ4-12mm
5
Production efficiency
1400 pcs/Hour
6
Max feeding rate
3000mm/s
7
Max bending speed
1000°/s
8
Max bending angle
180
9
Length accuracy
±1.5mm
10
Angle accuracy
±1.5°
11
Average power
5kw/h
12
Size of host machine
4100*1100*2100mm
13
The height from the center axis of bending to the ground
1280mm
14
Total weight
1500 kg
15
Color
yellow or customized
Features of automatric bending machine
· The rebar bending machine adopt servo controlling system;
· Automatically accomplish the functions of rebar's feeding, straighten, bending and cutting etc.;
· The rebar bending machine Max bending diameter of rebar is 14mm;
· The rebar bending machine Continuously bend various stirrup of plane figure;
· The rebar bending machine Widely used in construction industry and rebar manufacturing enterprise;
· The rebar bending machine High efficiency and accurate processing precision.
Related Products
steel bar bender stirrup
Except steel bar bending machine, we can also provide rebar making cold rolling machine.
Packaging & Shipping
Wooden box is also available if you require.
