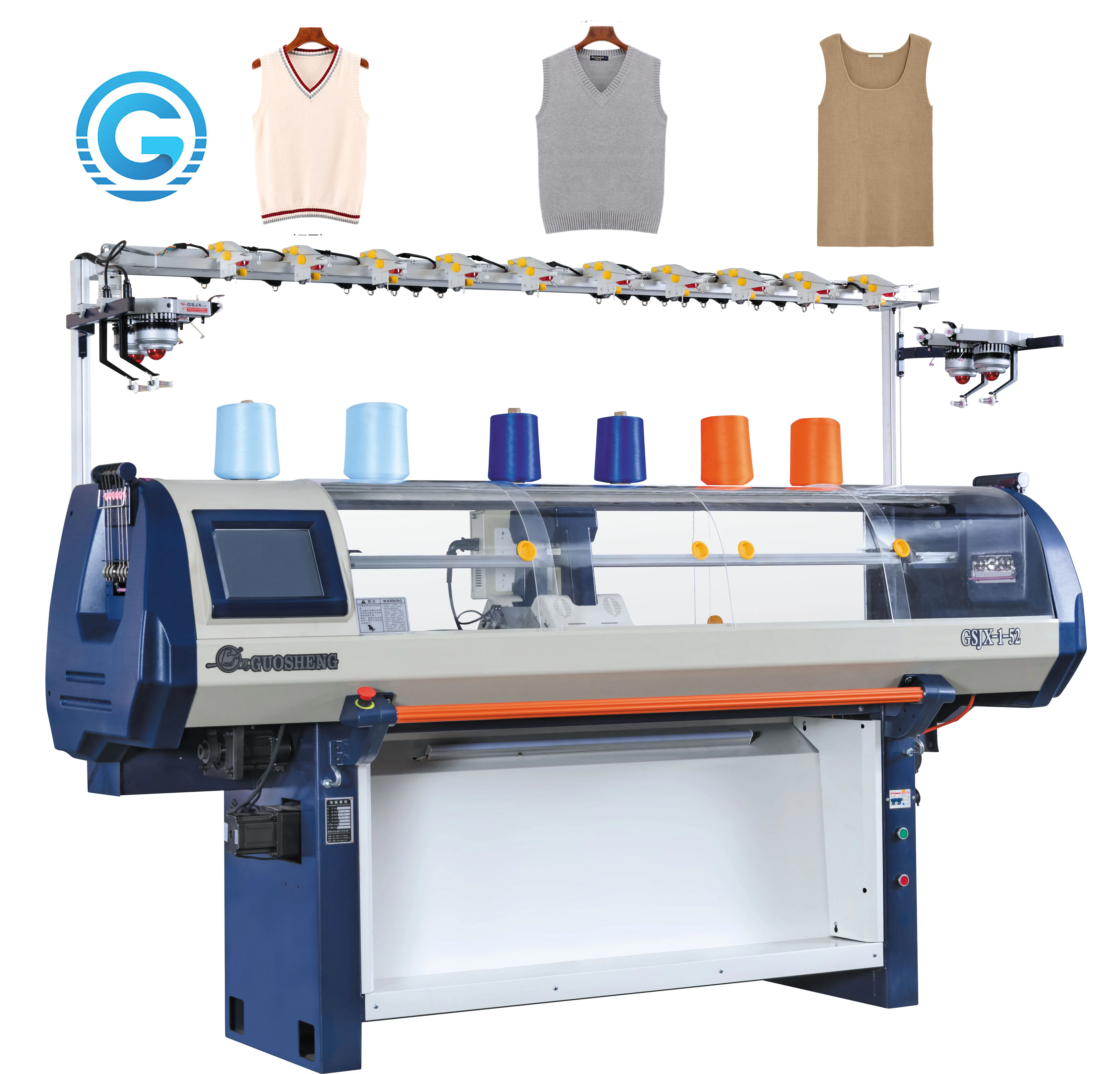

Автоматические вязальные машины changshu для кардиганов с

GAUGE

5G,6G,7G,8G,9G,10G,12G,13G,14G,15G,16G

KNITTING SYSTEM

Single system single carriage

KNITTING WIDTH

44INCH 52INCH 60INCH 80INCH 100INCH,Variable knitting range

KNITTING SPEED

MAX.1.2m/sec

KNITTING FUNCTION

Tranfer,Tuck,Miss,Jacquard,Intarsia,Hide or Apparent Shaping

STITCH DENSITY

Stitch system controlled by stepping motor ,32 section stitch selectable ,adjustable scope supported by subdivision technology :0-650.

RACKING

Controlled by AC servo motor,racking within 2 inches and with fine adjusting function.

Drive System

Synchronous belt drive,AC servo system.

Needle Selection

Controlled by computer,electric magnet needle choose system with high efficiency.

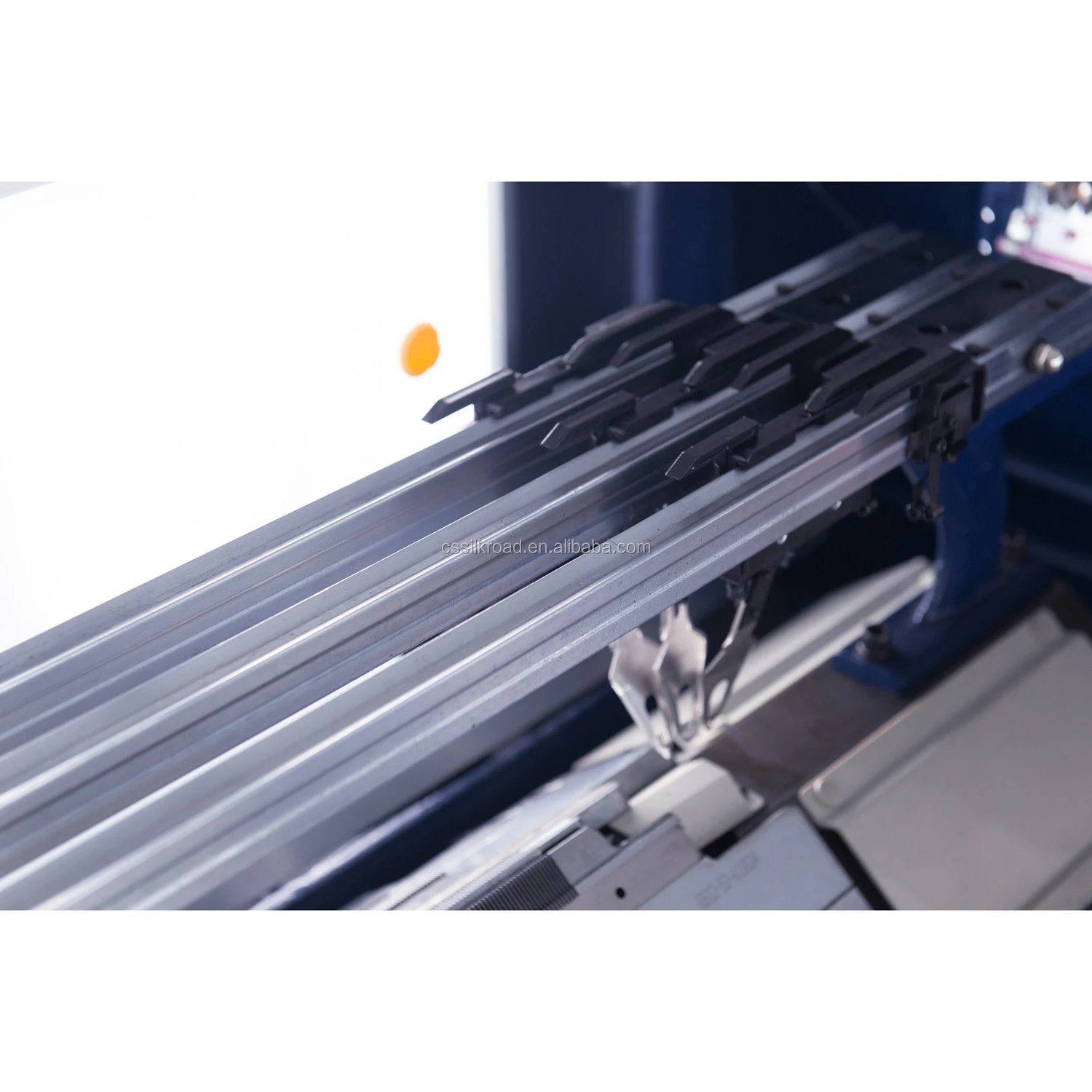

Yarn Carrier

2x8YARN CARRIERS ON EACH SIDE OF 4 GUIDE RAILS,SHIFTABLE ON ANY NEEDLE POSITION

Take Down Roller

Programmed instruction controlled by stepping motor,32 section levels selection adjustable area:0-100.

Protection System

The machine will automatically alarm if yarn breaking,float yarn,rewind,end of knitting,fail of racking,needle breakage and error programming occur ect.Automatic reset needle detector is convenient and reliable.

Control System

1.Adopt lcd screen,input device:usb,system memory 2G,a great amount of design files can be stored.
2.Monitoring menu,each knid of operating parameter,can be shown,and they can be adjusted at any time when the machine is running.
3.Design system is visual and easy to understand and upgrad.
4.Multi language version,there are chinese,english etc.

Power

220v,single-phase,have memorizing function at the power-off moment.
