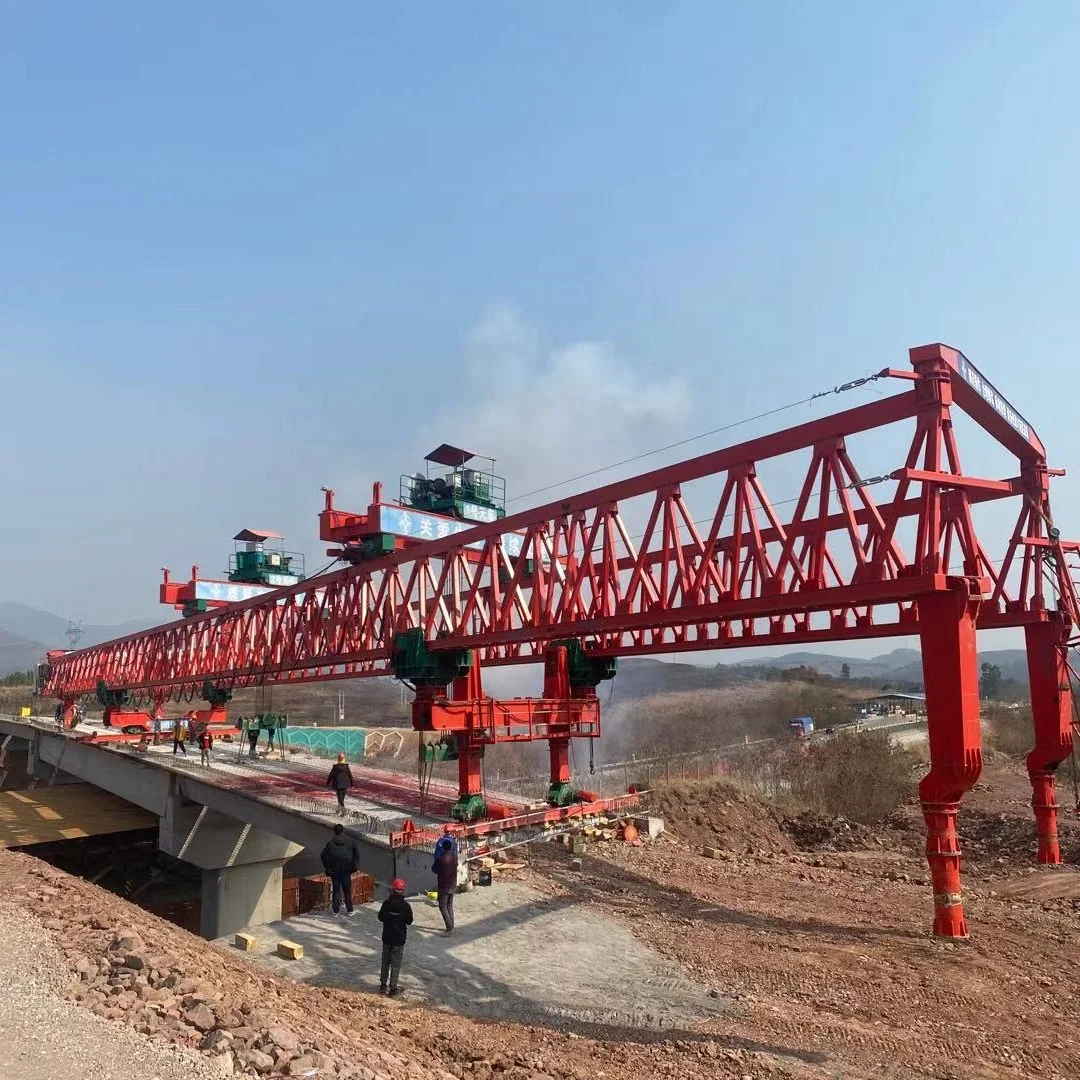

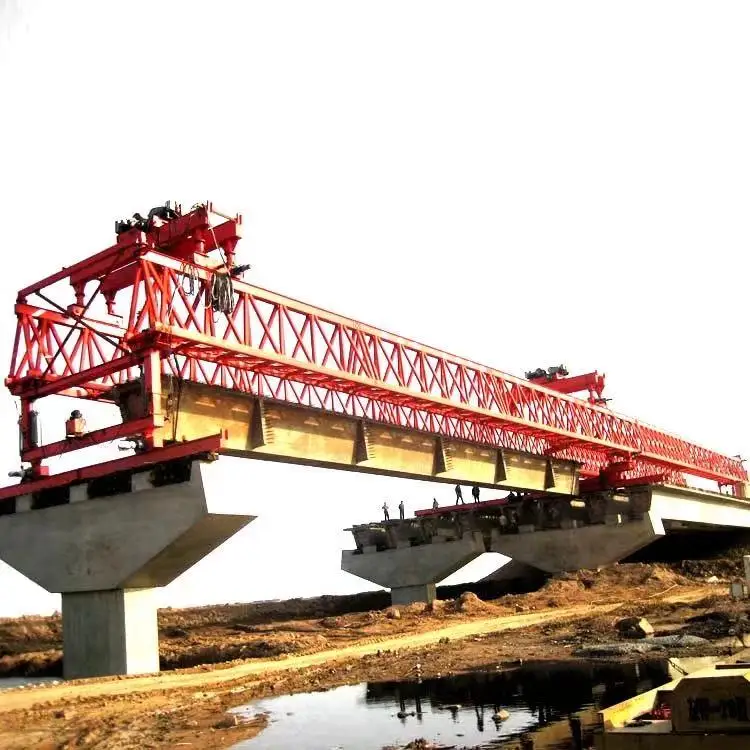

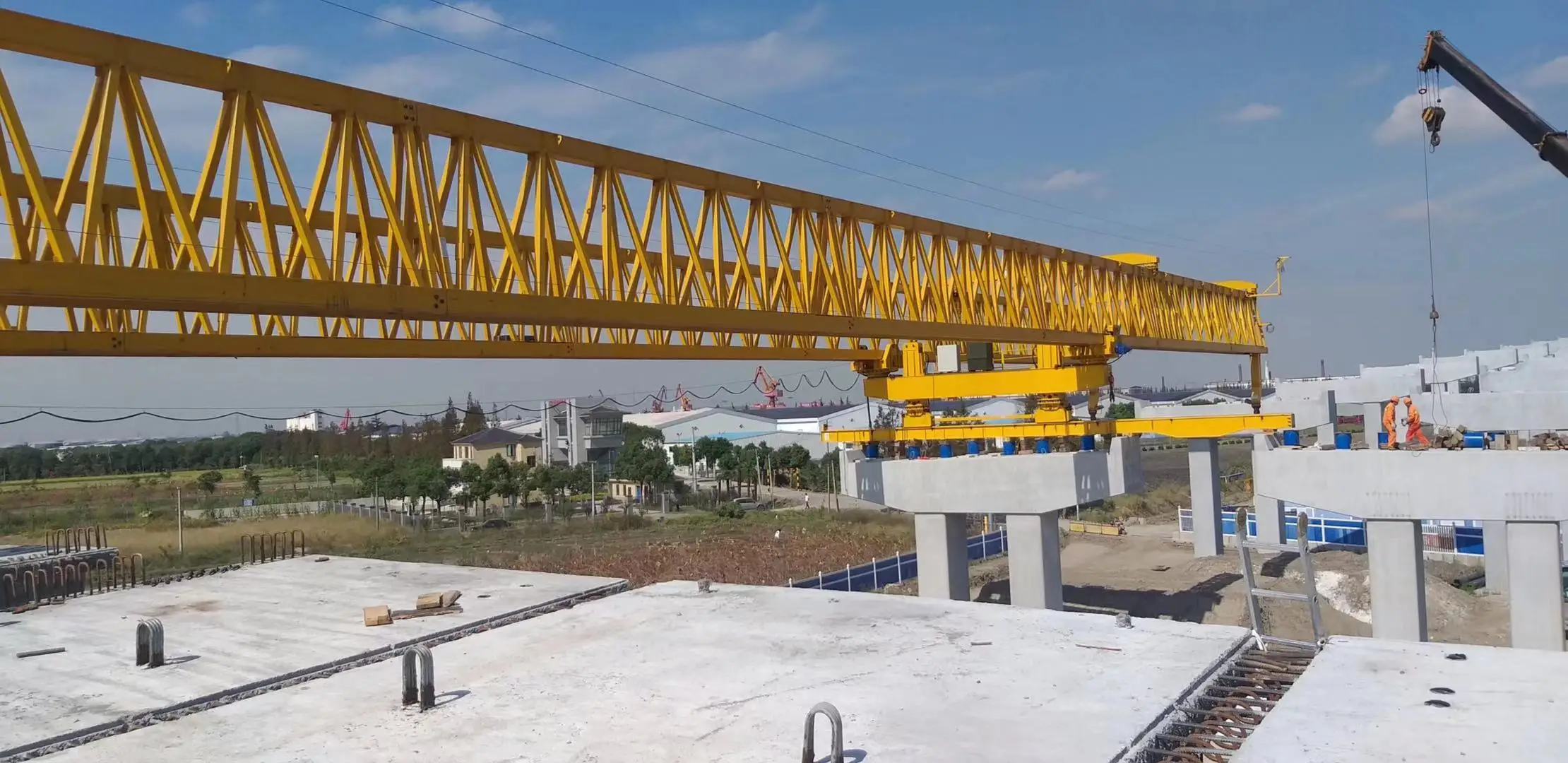

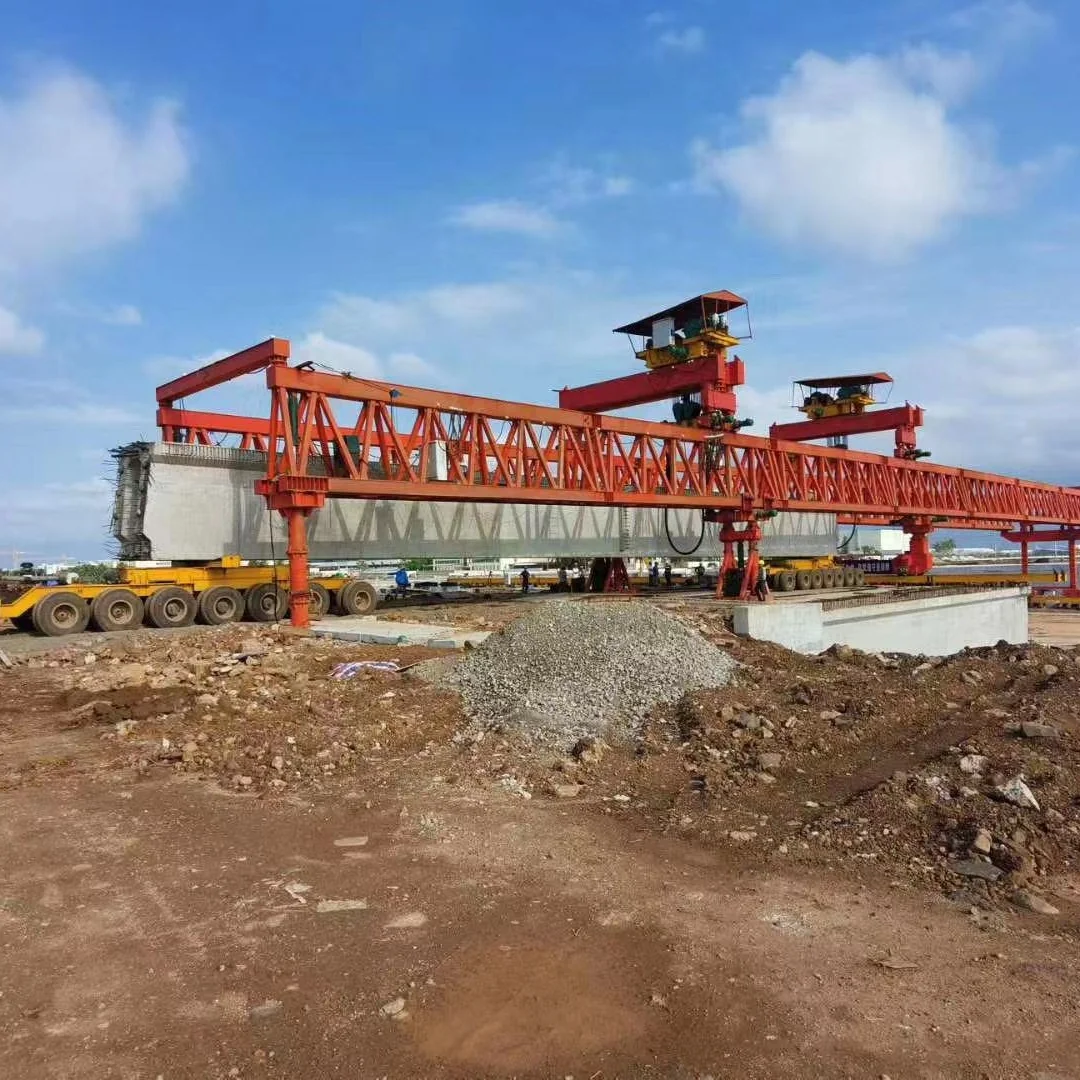

80-300t пусковые Балочные

Product Type: JQ

Lifting Capacity: 60-200T

Span Length: 20-50M

Control Mode: Pendant, Remote Control and Cabin Control.

Design features include:

1. Reliable performance

a) Apply the latest separate pinned structure of triangular space truss to main girder, so as to improve the stiffness and strength of whole crane.

b) Main girder is made of Q345 high strength steel, and melt into the latest design to ensure the main girder can work under high strength mode safely.

c) Modern crane brand launching crane is pioneering in continuous one time operation during bridge launching progress in China. It is of the most complete function launching crane for single machine domestically.

d) Compared with similar products from other supplier, Moderncrane brand launching crane have its unique design concept to the most difficult hole-span during bridge erection, in the way of laying side beam. So, it is safer to operate under high difficult and risk condition.

e) Powerful front, middle beam and three transom crane connect together to ensure transverse stability during bridge erection fully.

f) There is separate stroke switch control to each traveling mechanism, so as to decrease mutual collision between each traveling mechanism.

g) Overload resistance system: there is high performance weight limiter on two sets of trolleys, so if the lifting girder is overloading, the weight limiter will stop it at once.

h) There are normally three legs from other supplier. But we have four legs, including one front leg, one middle leg, one rear leg and one temporary leg.

i) Apply inner shrink leg to one time erect side beam in position and have more safety.

2. More powerful corrosion resistance

a) Strictly execute standard painting process to ensure blasting and painting quality.

b) Apply H steel enclosed section for main girder chord. Web chord is made by customized square tube to realize enclosed welding, which can avoid inner rust.

3. Higher working efficiency

a) There is traveling rail together with main girder, trolley and longitudinal crane. So, it is no need to lay traveling rail more. In this way, a lot of auxiliary materials are saved and production time is also saved.

b) Moderncrane launching crane has higher working efficiency, with 6~8 pieces girder erection every day, based on enough concrete plate supplying, skilled operator and good condition at site.

4. More flexibility

a) It is symmetrically designed. Two way girder erections can be realized without split and slewing at original place.

b) Use one meter of hydraulic jack for front leg and rear leg. This design improves working efficiency, safety and flexibility largely.

c) Erect skew bridge by inclined way. Apply rotary face flange to connect each mechanism and structure, to erect 0~45°skew bridge. Side beam can be positioned one time for over 320m curve radius bridge.

5. Easier assembly and disassembly

a) Each structure is connected by pins and bolts to facilitate assembly.

b) Normally one set of launching crane can be assembled within 7days.

6. Plentiful experiences in this field

a) Our chief engineer Dr. chen is professional and very famous in China to design launching cranes.

b) Modern crane brand launching crane is one of the highest market shares manufacturers in China, especially in Yangtze River Economic Delta, you can see our products everywhere.

c) There is zero accident for Modern crane launching crane.

d) Modern crane brand launching crane have been used at various key projects, such as Hyning Railway, Hangzhou-bay sea span bridge, Minpu Bridge, Wenzhou Super large bridge, Jiubao bridge projects etc.

e) There are 17 years’ experiences in this field for Modern crane. Excellent employee personality, skilled production line and advanced production process are the most important guarantee to our products.

,

We are specialized in scientific research, production, service and sale. Our products are all kinds of Overhead Cranes, including Single/Double Girder EOT Cranes, Jib Cranes, Gantry Cranes, Portal Cranes, Explosion Proof Cranes, Grab Cranes, Ladle Casting Cranes, Inverter Cranes, Magnet Cranes, etc.

Our products are all kinds of Electric Hoists, including Electric Wire Rope Hoists, Electric Chain Hoists, Double Girder Hoists, Manual Hoists, Explosion Proof Hoists, Heavy Duty Hoists, Double Hook Hoists, Inverter Hoists, Overlong Hoists and Hydraulic Platforms.

We are located in Fengqiu County, Xinxiang City, Henan Province, with convenient transportation.

Our strong sales network covers over 30 provinces, municipalities and autonomous regions of China and some of our products are exported to Nigeria, Vietnam, Singapore and other countries and regions. We will develop more markets in more countries and regions. We have won a good reputation among customers for good quality, competitive prices and advanced techniques since our establishment.

If you are interested in any of our products or would like to discuss a customized order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

    1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote! QD model double beam overhead crane  Workdshop crane
2.What's the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated . Workdshop crane
3.How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
