Product Description

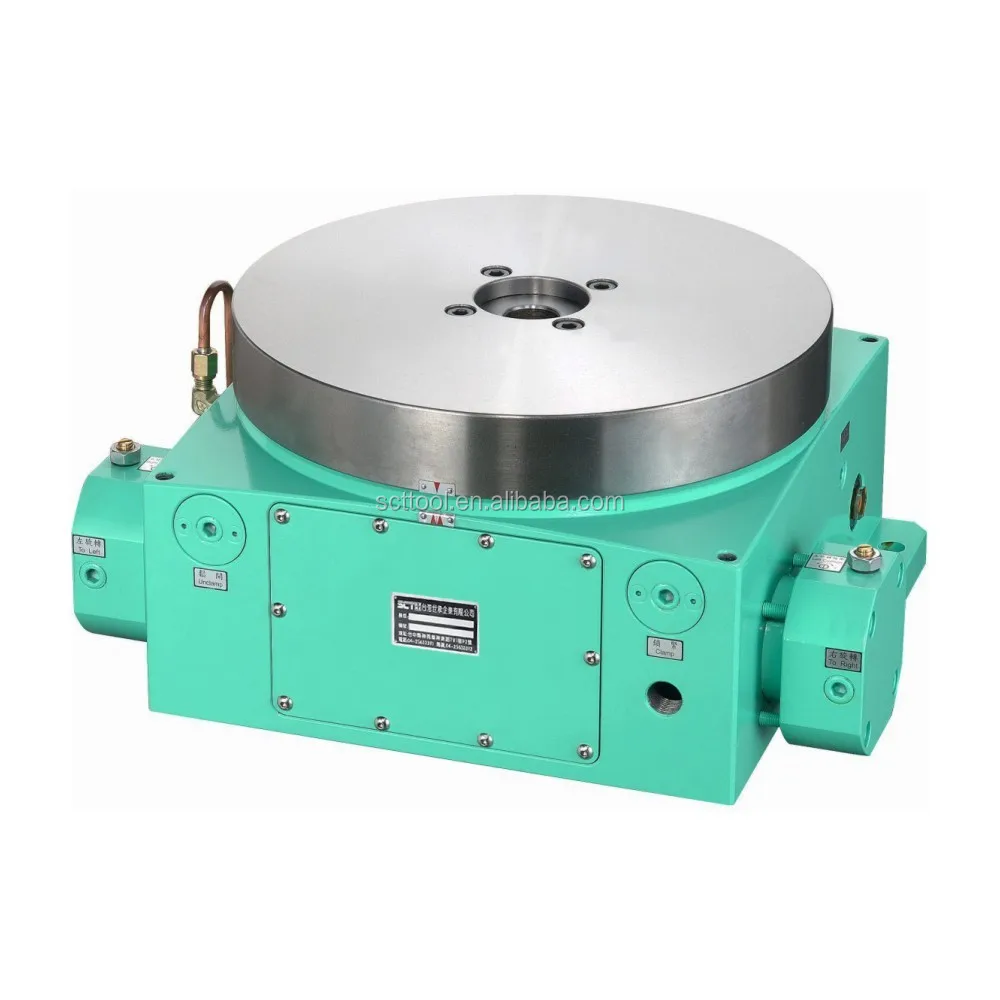

Horizontal Type CT-340 Equal Indexing Rotary Table for Machine Dividing Parts
Feature:
1. This type indexing table use 3 pieces tooth disc ensure that the disc won’t floaty .
2. High transmission efficiency of toothrow .
3. Low cost hydraulic drive.
4. Strong hydraulic locking style ensure the accuracy’s steady.
5. This CNC rotary table can be used with HIC-2010 controler.
6. This CNC rotary table can used in boring & milling machine
Specification:
CT-340
The Disc diameter | 340mm |
The disc spindle center hole | 65H7mm |
The disc spindle center hole depth | 11mm |
The disc spindle center through hole | 30.5mm |
Level placement height | 210mm |
Locking device pressure | 30 hydraulic kg/cm2 |
Division table fixed equal division number | 4,6,8,12,24 (standard) |
Working applicable environment temperature | 18~40 degree |
Rotate direction | CW&CCW |
Rotate 90 degree time | 2.5s |
Release / locking time | 0.6/0.1s |
Loading weight | 500kg |
ivision precision | ±4” |
G.W weight | 120kg |
