Hengxiang china абсолютный кодировщик SJ50 однооборотный/многооборотный 512

Hengxiang china абсолютный кодировщик SJ50 однооборотный/многооборотный 512

Категория: Sensors >>>
Поставщик: Shanghai,Hengxiang,Optical,Electronics,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	0.80 $*	0.38 $*
Aug-20-2025	0.7 $*	0.78 $*
Jul-20-2025	0.11 $*	0.83 $*
Jun-20-2025	0.68 $*	0.38 $*
May-20-2025	0.66 $*	0.78 $*
Apr-20-2025	0.91 $*	0.5 $*
Mar-20-2025	0.1 $*	0.52 $*
Feb-20-2025	0.39 $*	0.66 $*
Jan-20-2025	0.24 $*	0.59 $*

Характеристики

Product Description

SJ50 Absolute encoder

1) Advantages

1, Certification: CE& ISO9001 & SGS.

2, Feature: microminiature, logical compact configuration and easy to install.

3, Application: subminiature motor, small instrument, etc., for automation control

2) SJ50- Series Encoder Specification

Brand	HENGXIANG
External dimensions	External diameter: 50mm
	Thickness: 45mm
	Shaft diameter:8mm(D shape)
Resolution	Up to 12bit(4096ppr)
Count Direction	CW/ CCW
Supply voltage	DC12-24V
Outlettype	Cable out from side
	Cable out from side(with metal sleeve)
	Socket out from back
Output mode	Gray code without reading error
	1. NPN open collector output with low level available
	2. PNP open collector output with low level available
Environmental temperature	Operating temperature: -20~+80° (Non icing)
Environmental temperature	Storage temperature: -25~+85° (Non icing)
Environmental humanity	Operating and storage: 35~85%RH (non-condensing)
Protection grade	IP65
Cable length	1000mm
Shell	Aluminium
Package	Carton box
Net weight	About 150g (with package)
Certification	CE

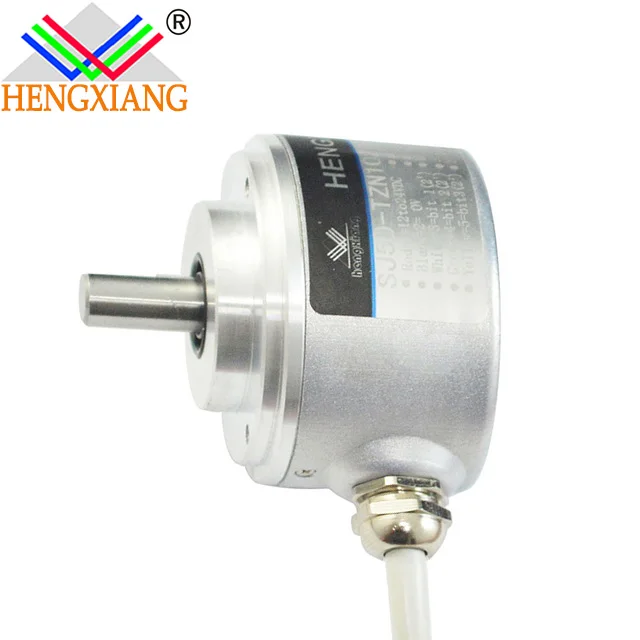

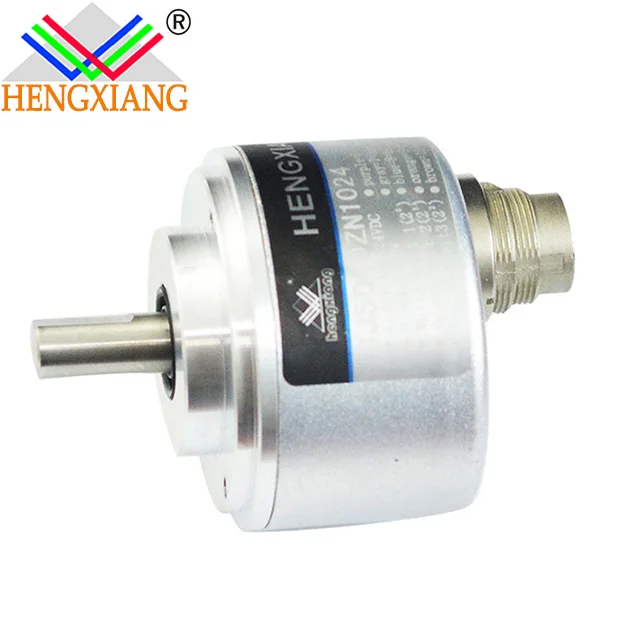

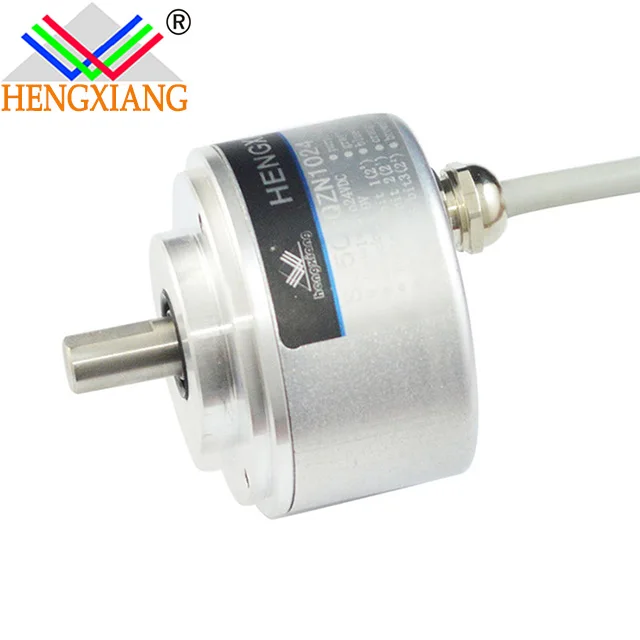

3) Pictures

4)Machine Dimension

SJ50 size.jpg

OUR FACTORY

Shanghai Hengxiang Optical Electronics Co.,Ltd , located on Shanghai , a international city of China , set up in 2001 , is a professional manufacturing high-tech corporation , main operation include research,development and manufacture of rotary encoder , with optical,mechanical and electronical design . Now we have finished primary pipelining of encoder manufacture , and have capability of supplying 20,000 encoders per year .

Brand of encoder , "HengXiang" , has been got certificate of ISO9001:2000 quality control verification and CE verification , while we have got 5 patents of invention and 5 patents of utility model , and got certificate of Shanghai new high-tech production translation item .

HENGXIANG
Main Market

America,Most of Europe countries,Southest of Aisa.

Our target : meeting client's requirement,creating social value,serving attentively and bringing benefits for both sides .

Certifications

Absolute Sensor encoder,Absolute Sensor,Encoder Manufacturer Absolute Sensor MODBUS

CERTIFICATE

Strength proof

All encoder products passed the inspection standards included CE,ISO9001-2008 with 100% quality Assurance.

Encoder Application

encoder application 2.jpg

Packaging & Shipping

Absolute Sensor encoder,Absolute Sensor,Encoder Manufacturer Absolute Sensor MODBUS

Shipping

INTERNATIONAL AIR MAIL

Payment

Fast Delivery

Different amount of time will be required for different

FAQ

Absolute Sensor encoder,Absolute Sensor,Encoder Manufacturer Absolute Sensor MODBUS

Q1.What’s your advantage? Why we choose you?

A:1)Over16 Years experience of producing encoders with the most professional techniques and team. More advantage in price

2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.

3)We use 100% new materials and the best production process, in consequence our defective rate is lower than 0.01%.

Q2.What’s the Payment?

A:T/T would be better with quick transfer and few bank fees. Also Western Union is acceptable,
Citibank and American Bank both OK,including credit card.

Q3.Are you a factory or trading company?

A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.

Q4.How can I get some samples?

A:We are honored to offer you samples.
Kindly check alll parameters needed, such as revolution(PPR), phase, circuit output mode, power supply voltage, motor speed(RPM)
