С прочными колесами новинка скребок для уборки риса маленький зерноуборочный комбайн четырехколесным

Описание и отзывы

Трекер стоимости

Характеристики



Technical parameters
Item		Specification
overall size(L*W*H)		3550*1950*1330mm(without overhead guard) (L*W*H)
Total weight		640.00kgs
Engine	Model	192F DIESEL ENGINE
	Engine type	Single-cylinder, vertical, 4-stroke, air-cooled, direct injection
	Displacement	0.499L
	Output shaft rated speed(rpm)	1800pm
	Calibration power	7.7/10.5 kw/ps
	Start mode	electric starter
	Lubricating oil capacity	1.65L
	Use fuel / tank capacity	diesel (0#)/6L
Walking unit	Gears/speed km/h	1st:2.9;2nd:5.3; 3rd:8.5;reverse:2.1;
	Clutch type	Main clutch -dry dual-plate clutch, harvesting unit clutch-jaw clutch
	steering system	steering wheel control, differential steering system
	Minimum turning radius	3M
	Brake mode	hydraulic disc brakes
	Transmission mode	shaft , flexible connection
Harvesting unit	Cutting width	1400mm
	Cutting platform lifting mode	Electric (self-locking)
	Binding height:	30cm up stubble
	Total loss rate	≤1%
	Bundling rate	≥95%
Productivity		0.4hm2/h
Fuel consumption		1.8-2.3L/H

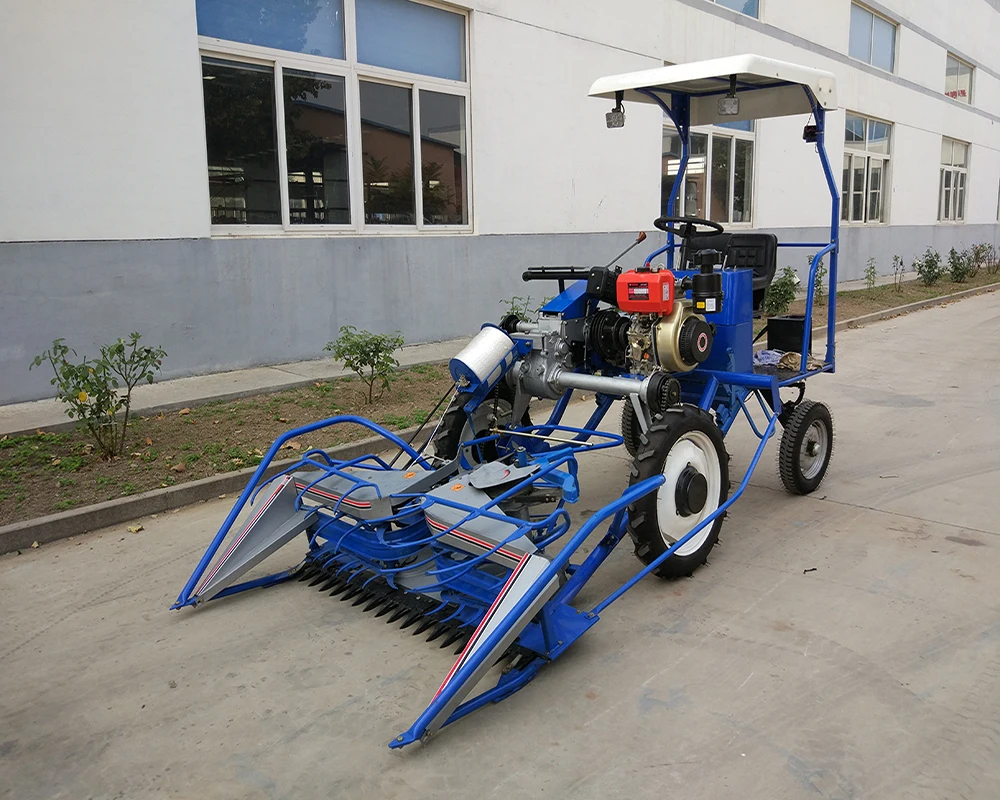

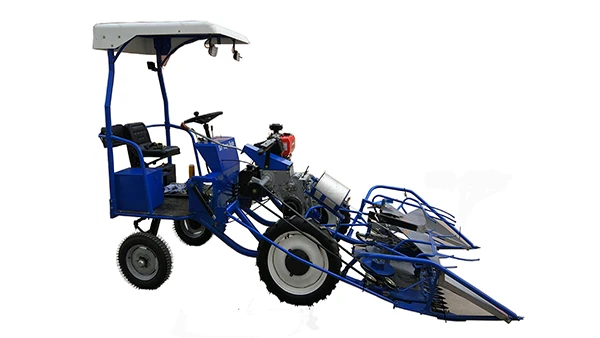

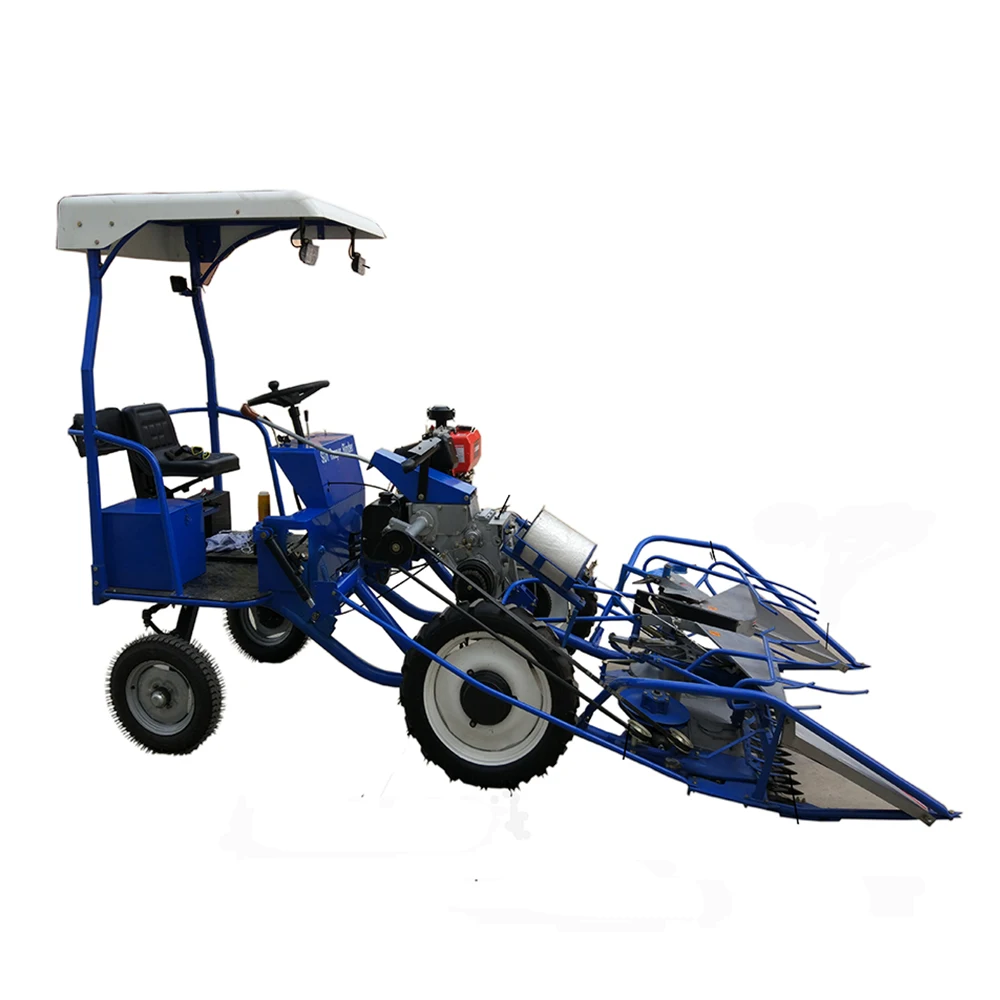

4K-150 reaper binder details













Packaging & Delivery

Packaging Details:	veneer case/plywood box be Strictly comply with the  export standards of shipping
Delivery Detail:	15 work days after receipt of payment

Veneer case/plywood box be strictly comply with the export standards of shipping

cuarantee:

18 months quality guaranty, the machine with main parts(excluding the
consumables) shall be changed free of charge when if any problem during the
warranty period.
Service: ( Provide whole life technical support, 24h online )
Before sale:
 We would always be here to provide any information you need at the first time,
and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs, after everything is
ready, we would tell you everything goes well here;
After sale:
1) We would provide English Version working manual.
2) If you have any questions during using and maintaining, our engineers who



could speak very good English would answer you online or by calls.
3) Machine warranty is one year. So if your machine has any unintentional
damages, we would provide parts for free.
4) If your machine has big problems if by any chance, our engineers would arrive
 there to debug and fix.
5) Could be remote control if needed.

CE certificate
