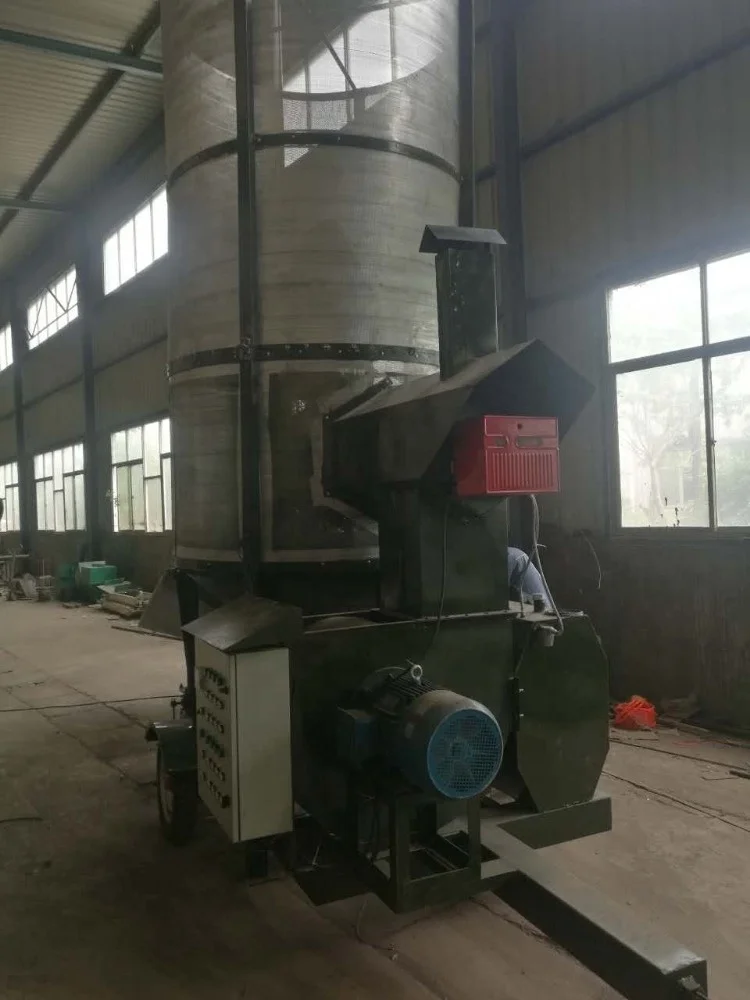

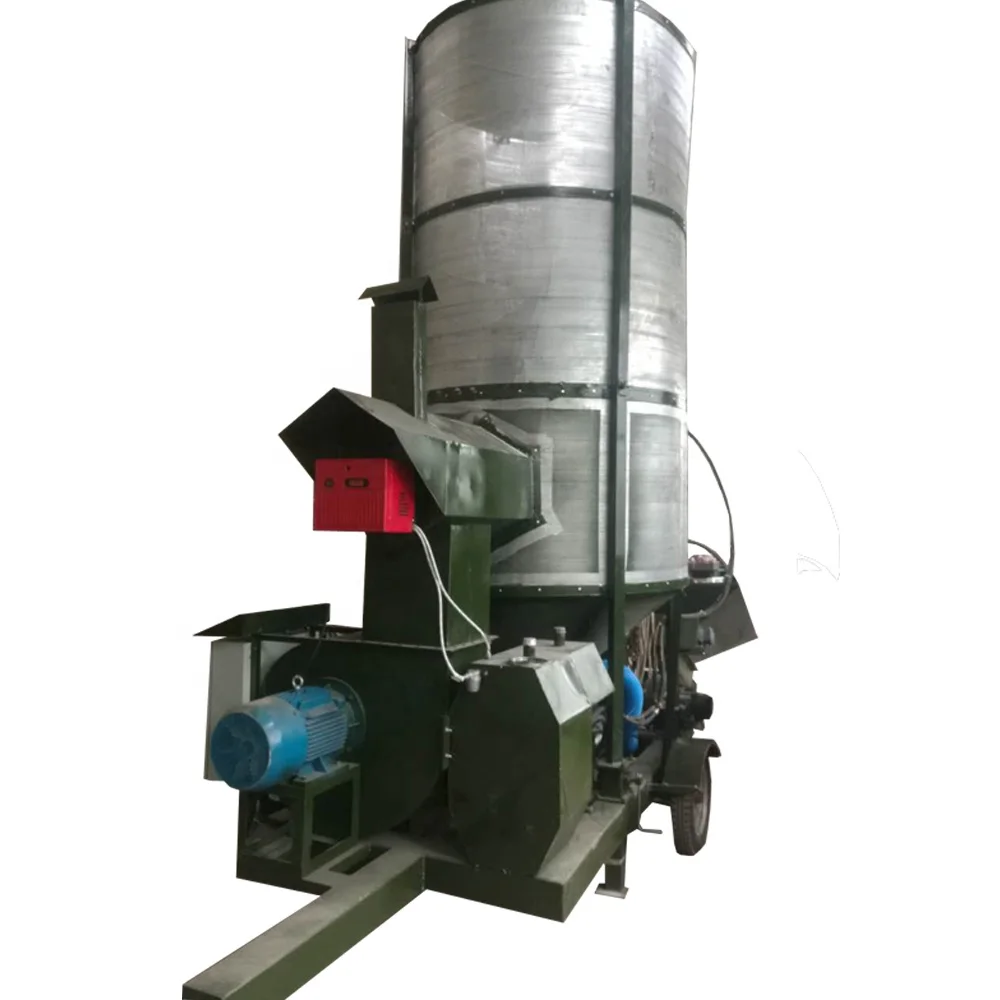

mobile grain drying machine/wheat dryer/rice dryer/peanut drying machine/sunflower seed drying machine

 Suitable for corn, wheat, rice, beans, peanuts, sorghum, sunflower, millet and other crops dry.

Technical parameters for grain drying machine

Model	UDGZ-4T
Drying tower diameter*height	2.2m*5.5m
Drying tower volume	10 m³
Vertical screw diameter*height	300mm*6.5m
Vertical screw speed	450 r/min
Cycling time	20min
Grain depth	400-500mm
Feeding screw diameter*height	200mm*2m
Fan type	centrifugal
Screen diameter	Outer1.5mm  Inner2mm
air flow meter	40,000 m³/h
Capacity	4t/h
Power	8+37.5kw
heating load	800,000 Kcal/h
Machine weight	4100kg
Occupied size	5*2.5*6.5m
Match tractor	80-90HP

 Features

A simple, easy to use.

B high production efficiency, the drying rate, grain circulation speed, you can use a higher air temperature, without causing grain temperature is too high, the food is always in a constant state mixed with the flow, and therefore uniform drying, water evaporates faster.

C drying tempering the same time, grain temperature after drying to the vertical screw on top of the vertebral body, the Soviet Union conducted a short period of slow, easy grain moisture diffusion inside outward, in line with the law of grain drying will help ensure food quality.

D The machine use shorter drying section and recovery section circulates tower instead of slow moving, body height greatly reduced. E high-speed discharge, easy feeding. While dryer batch jobs, but less high average efficiency of circulation for some time, just 15-20 minutes unloading grain, unprocessed water from drying effects of circulation for some time more water is high, the water is low. Do not need to install a dryer and spend because construction costs.
