Характеристики
Product Overview

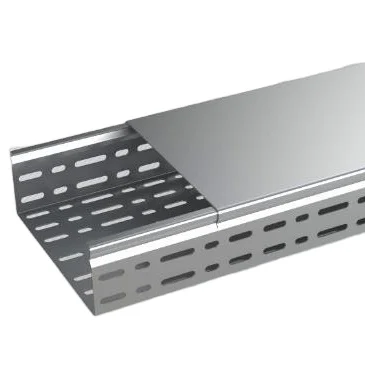

Perforated steel Cable Tray roll forming machine
1. Description
Cable tray roll forming machine is fully automatic production process,all different sizes can produce through machine auto
adjustment to complete. We also can make your required machines.
2.Features
Cable tray roll forming machine produce cable tray, the different sizes width from 100mm to 900mm,height from 50 mm to 150mm.
all these sizes can be produced through main forming machine auto adjustment,one set of rollers can produce all sizes cable tray
products,workers change the rollers distance.one set punching die can finish all sizes punching and cutting.
Cable tray roll forming machine is fully automatic production process,all different sizes can produce through machine auto
adjustment to complete. We also can make your required machines.
2.Features
Cable tray roll forming machine produce cable tray, the different sizes width from 100mm to 900mm,height from 50 mm to 150mm.
all these sizes can be produced through main forming machine auto adjustment,one set of rollers can produce all sizes cable tray
products,workers change the rollers distance.one set punching die can finish all sizes punching and cutting.
Main forming parameter
Forming width is adjusted by automatic forming wall moving, it also can adjust height and width quickly.
It has one pieces of remote control to control two sides machine frames,it stops when it moves in right position,it has size marks on top of machine bed.
General description:

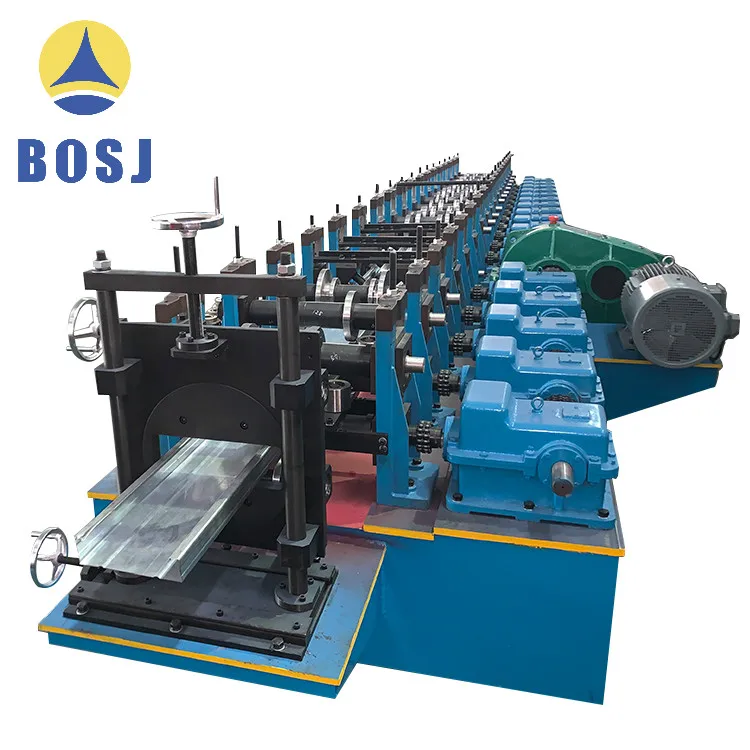

Forming machine consist of speed regulation alternating, reducer, high-precision linear rails, gearbox (left and right side), the crosswise adjusting mechanism and one complete set of rollers.
One set of roller can complete all type of the cable tray.
The main body de-stressing processing; gear material is 45 steel hard tooth surface.
Forming technology of main forming machine is from Italy, it will guarantee high-precision.
The material of the roller is the GCr15 forging, after whole quenching then by numerical control processing, degree of hardness
can reach HRC58-62;
Forming width is adjusted by automatic forming wall moving, it also can adjust height and width quickly.
It has one pieces of remote control to control two sides machine frames,it stops when it moves in right position,it has size marks on top of machine bed.
General description:
Forming machine consist of speed regulation alternating, reducer, high-precision linear rails, gearbox (left and right side), the crosswise adjusting mechanism and one complete set of rollers.
One set of roller can complete all type of the cable tray.
The main body de-stressing processing; gear material is 45 steel hard tooth surface.
Forming technology of main forming machine is from Italy, it will guarantee high-precision.
The material of the roller is the GCr15 forging, after whole quenching then by numerical control processing, degree of hardness
can reach HRC58-62;
PRODUCT SPECIFICATIONS
Production process

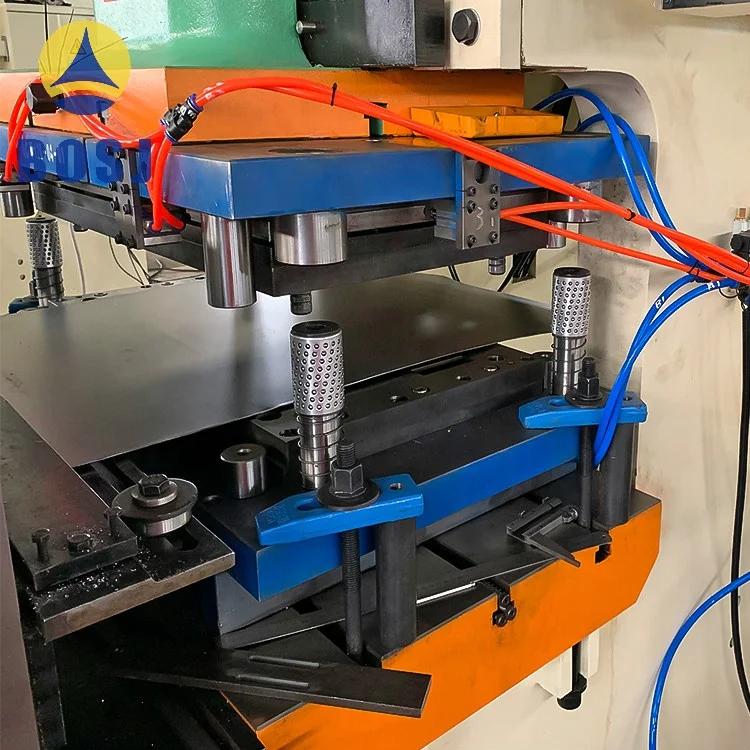

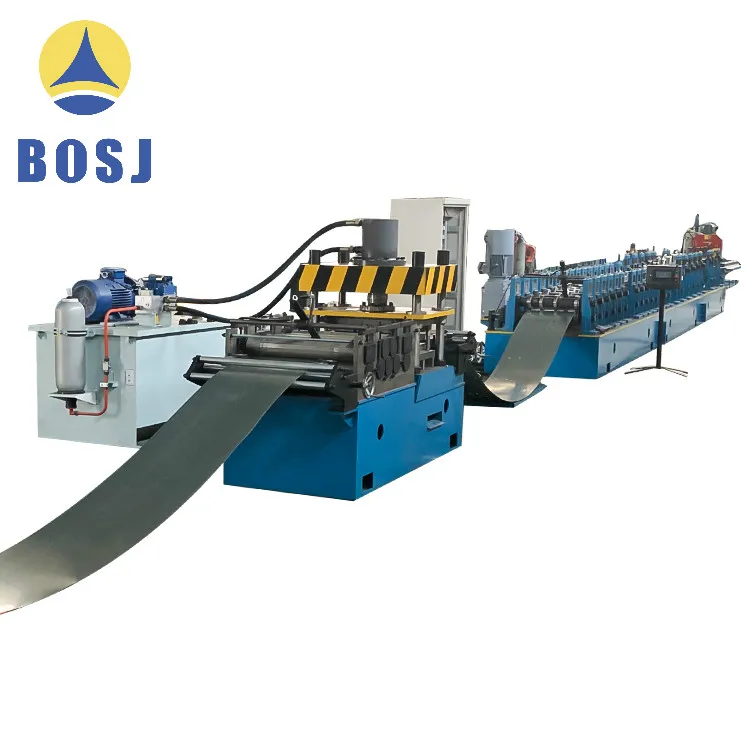

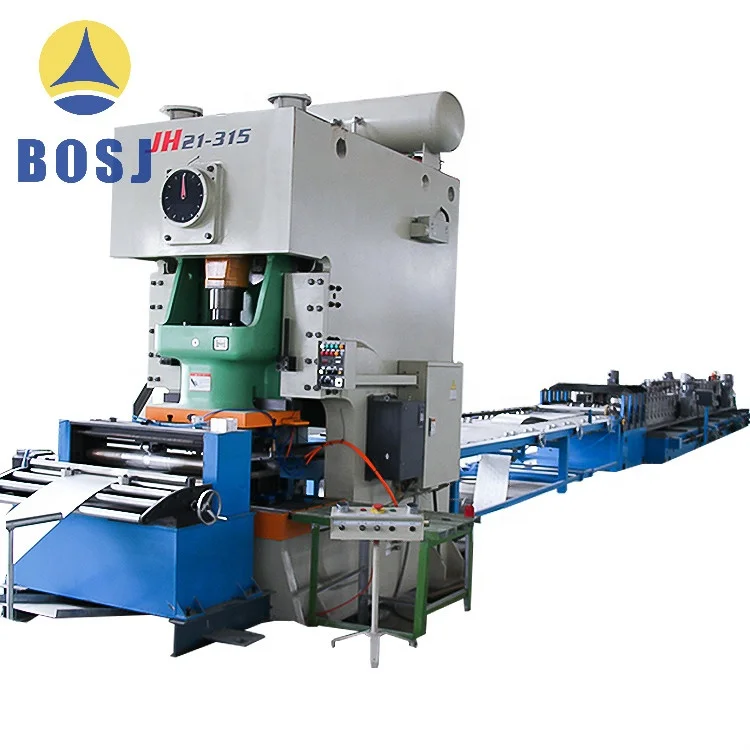

Decoiler---- straightening ---- servo feeder ---- punching /cutting --- sheet conveying ---- forming--- collection
Decoiler---- straightening ---- servo feeder ---- punching /cutting --- sheet conveying ---- forming--- collection
1 | Profile sizes | galvanized sheet,strip steel,etc,100mm≤§≤650mm |
2 | Production speed | 6-8m/min |
3 | Material of roller | GCr15 quenching treatment |
4 | Drive type | motor |
5 | Motor Power | Forming speed:about5 m/min |
6 | Electric control system | PLC interface |
7 | Dimensions(Length*width*height) | Gearbox driven |
PRODUCT CONFIGURATION
Reducer
BOSJ High performance Machine

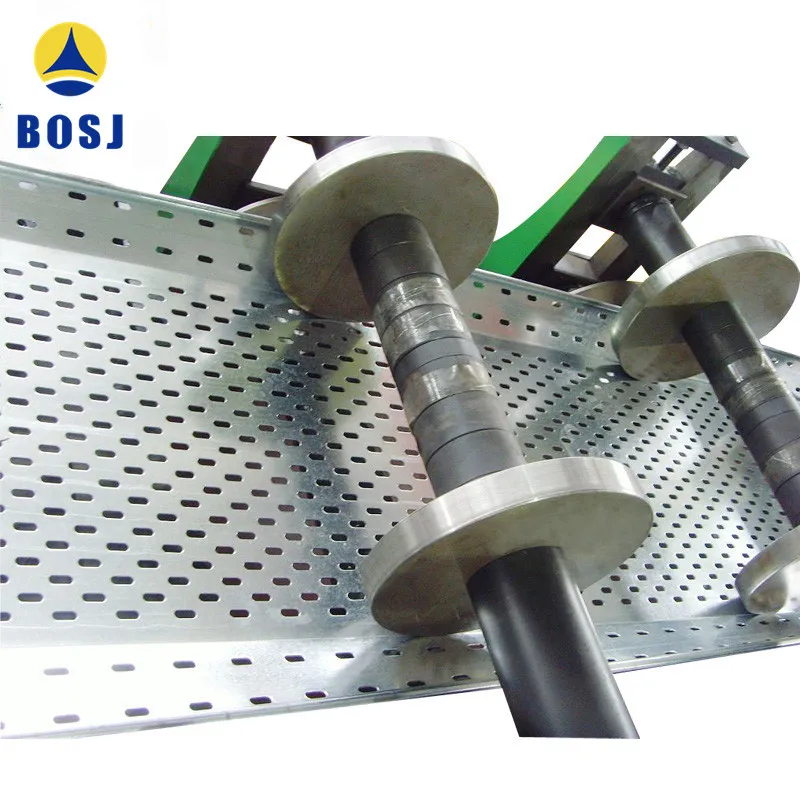

GCR15 Roller
SALES AND SERVICE NETWORK
Customer Photos
FAQ
Width of coil sheet:120-940mm
thickness of coil:1.0-2.0mm
Length of cable tray:3m-6m
Coil type:Galvanized steel
thickness of coil:1.0-2.0mm
Length of cable tray:3m-6m
Coil type:Galvanized steel
