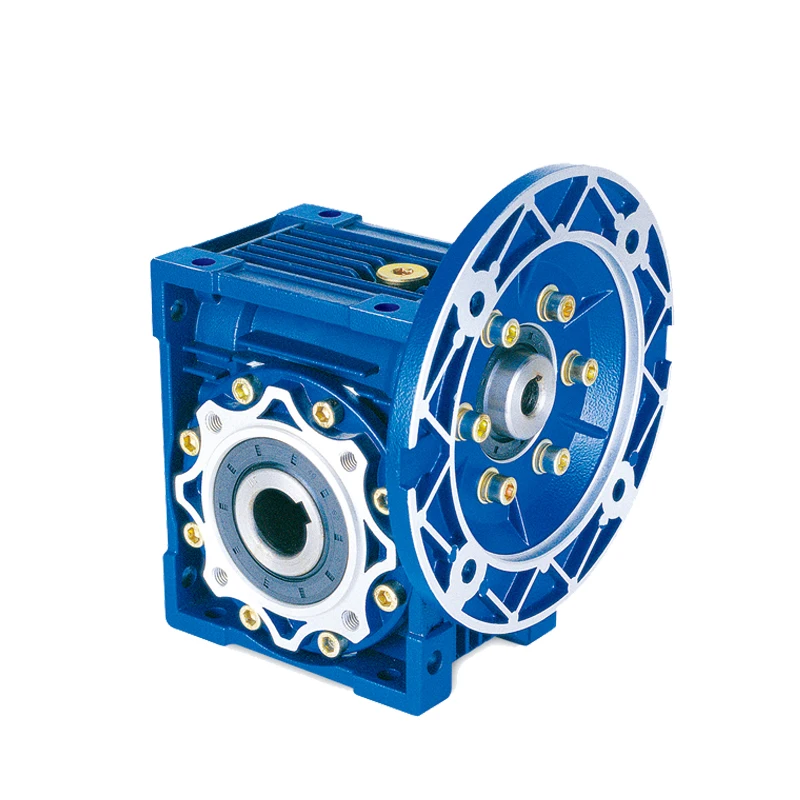

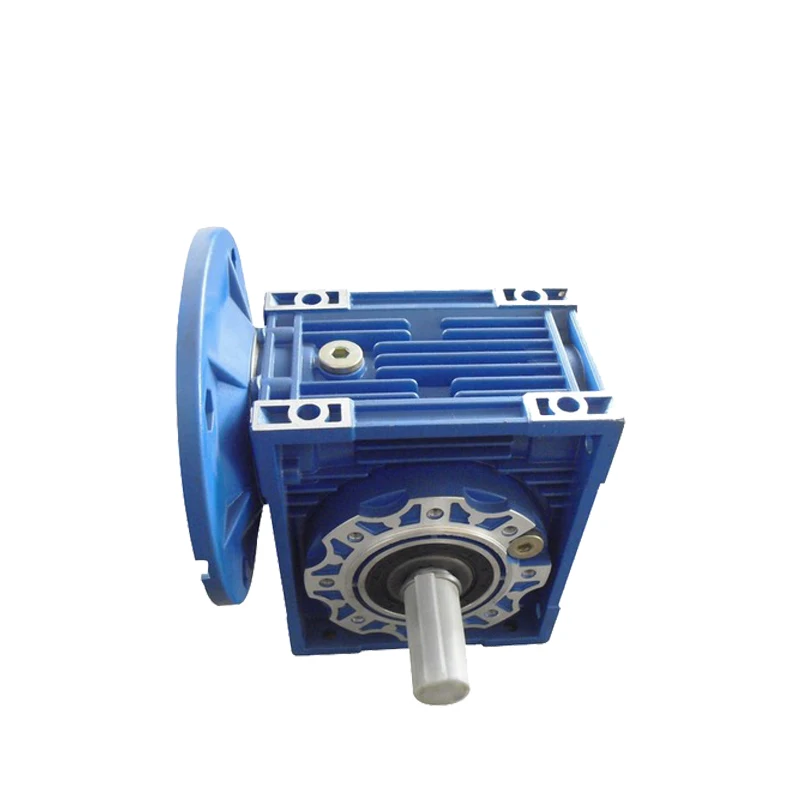

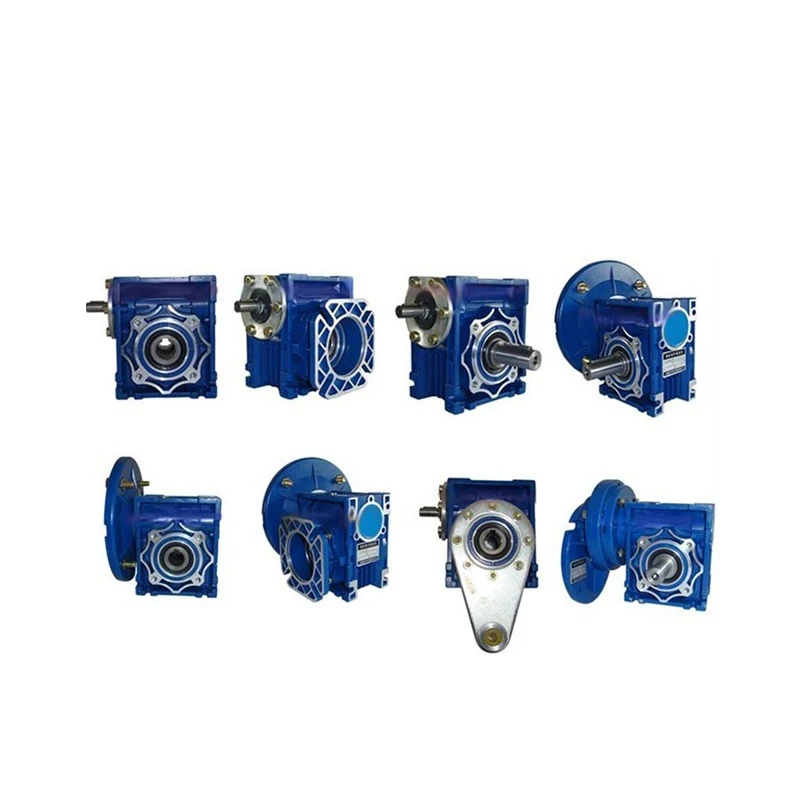

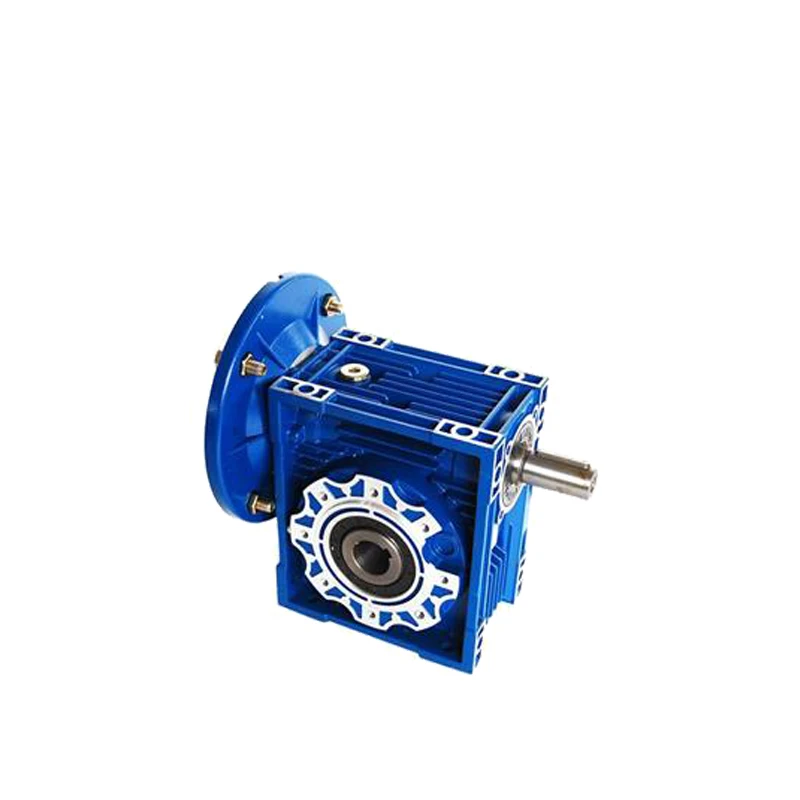

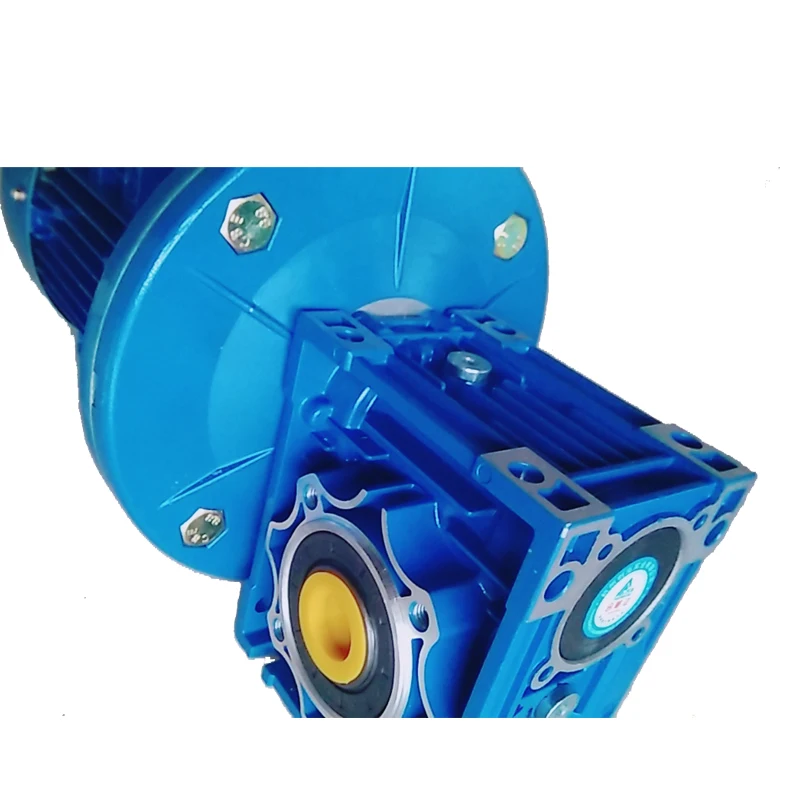

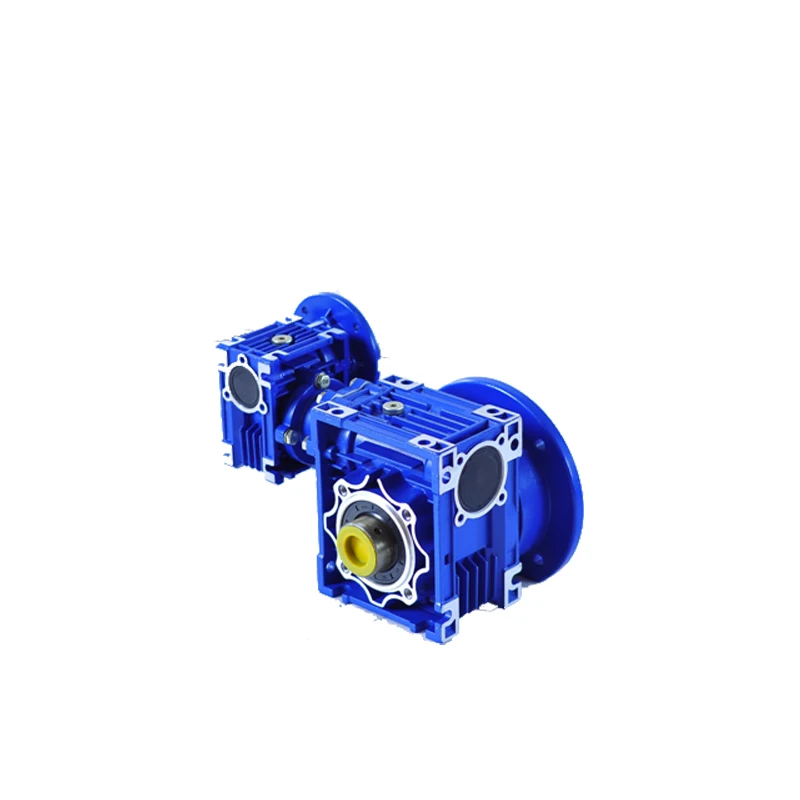

  China Guomao industry Guomao NMRV63 alumunium worm speed gear reducer gear box

Data






Mainly characterictics:



· Wide range of application

· Easy mounting, free linking, high efficiency

· Smooth operation with lower noise or vibration

· Good temperature change resistance

· Low price and easy mounting

· Wide transmission rate, strong output torque



Applied range:



Gear and Bearing:



Please feel free to inform us your reqeust POWER,VOLTAGE,RATIO,OUTPUT SPEED,TORQUE and

QTY to get more information about sample, price, packing, leading time and any other related informations!



Connected with IEC, NEMA, SERVO motor input





One of Gearbox Parameters:



NMRV-063-30-VS--AS-80B5-0.75KW-B3
NMRV	Means hole-input with flange
NRV	Means shaft-input without flange
063	Centre-to-centre spacing of worm-gear speed reducer
30	ratio
VS	Double input shaft	F1(FA)	Flange putput shaft
AS	Single output shaft	AB	Double output shaft
PAM		80B5	Motor mounting facility
0.75KW		B3	Mounting position





Manufacturing Equipment:



We have Niles contour gear grinding machine imported from Germany,OKUMA horizontal machining center imported from Japan, gear inspection and test center and three-coordinates meaine.



Advantages:



1. Low MOQ with full types of worm gear reducers: It can meet your variety needs very well.

2. OEM Accepted: We can put clients logo.

3. Good Service: We treat clients as friend.

4. Good Quality: We have strict quality control system .Good reputation in the market.

5. Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).



structure and features :

1. High quality die casting aluminum alloy housing, suitable for universal mounting.

2. Heat sink design for cooling provides great surface area and higher thermal capacity than the  casting iron housings.

3.  8 sizes from 030 to 130, with power scope rom 7.5w to 60kw.
4.Larger speed ratio range. each single frame size has 12 ratios from 5:1 to 100:1.

5.  Hardened worm with fine grinding has the features of higher efficiency and big output torque.

6.  Low noise and stably running, can adapt long term work condition in terrible environments.

7. Light weight, high mechanical strength




Main products:       B,X serial cycloidal reducer,

                              ZDY,ZLY,ZSY serial cylindrical gear reducer,

                              ZLYJ serial gear reducer specially for plastic extruding machine,

                              DCY bevel and cylindrical reducer,

                              GR serial helical geared motor ,

                              GS serial helical worm geared motor,

                              GK serial helical bevel geared motor ,

                              GF serial parallel helical geared motor,

                              PVserial general gear box,MBY edge-driven geared reducer.

Processing machine

l  We are the first manufacturer of reducers and gearboxes in China who was given export license since year 1993.

First to achieve ISO9001 and CE Certificate among all manufacturers of gearboxes in China.
