Used Sinotruk HOWO Suction Truck
US $6600-$8500
6x4 8 куб. М HOWO Комбинированный Вакуумный грузовик с всасывающим
- Категория: Илососная машина >>>
- Поставщик: Jiangsu,Keepmoving,Vehicle,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 328440.16 $* | 344862.23 $* |
| Aug-16-2025 | 325680.94 $* | 341964.1 $* |
| Jul-16-2025 | 273240.68 $* | 286902.94 $* |
| Jun-16-2025 | 320160.65 $* | 336168.53 $* |
| May-16-2025 | 278760.88 $* | 292698.53 $* |
| Apr-16-2025 | 314640.4 $* | 330372.36 $* |
| Mar-16-2025 | 311880.86 $* | 327474.22 $* |
| Feb-16-2025 | 309120.18 $* | 324576.84 $* |
| Jan-16-2025 | 306360.53 $* | 321678.84 $* |
Характеристики
Name Card
Iris brief introduction
-Experienced: 15 years in export trade and 11 years in Truck trailer field,which will offer better service to you.
-Profession:Rich knowledge at truck and trailers,which will better understand your demand,and will offer better solution to support your purchase job.
-Profession:Rich knowledge at truck and trailers,which will better understand your demand,and will offer better solution to support your purchase job.
-Customer Cared: I not only work for my company,but also work for you,I will assist you to control products quality,delivery dates......
Warm welcome all friends to visit our website!!!
Product Description

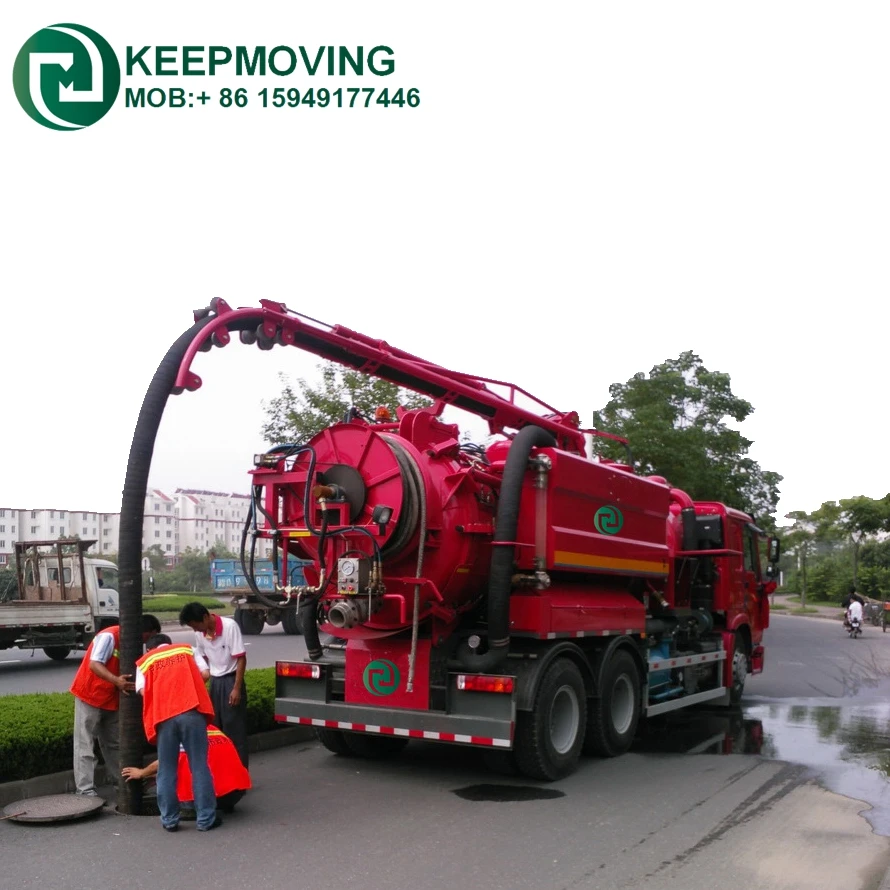

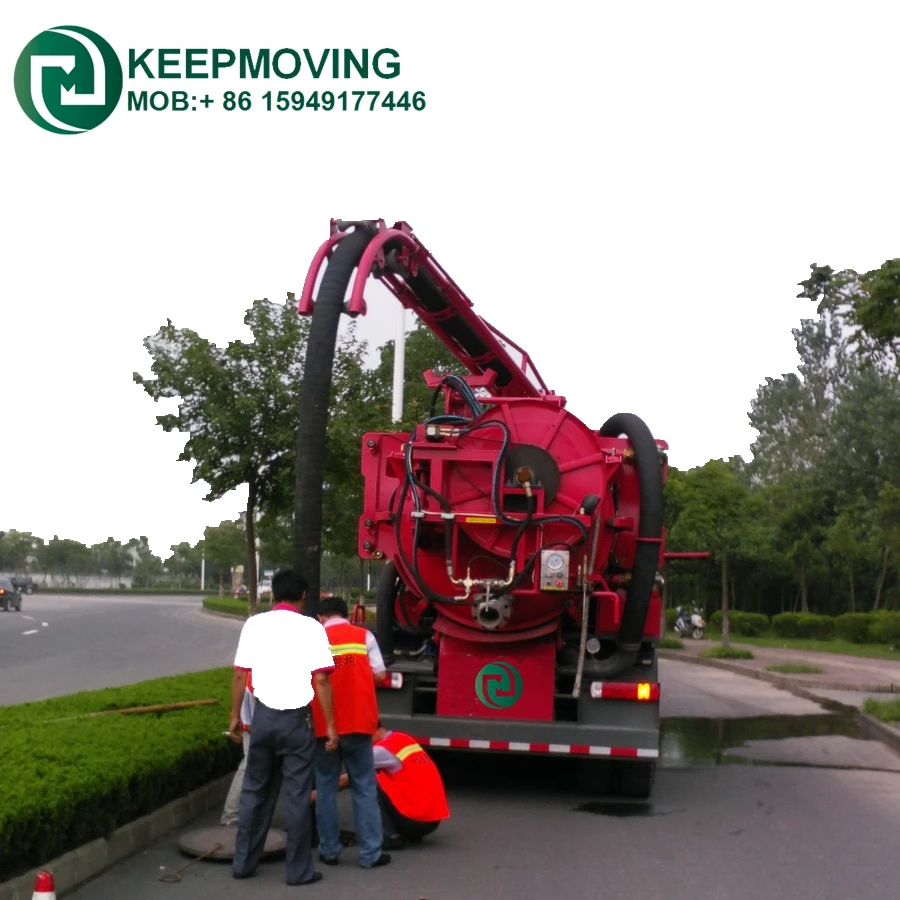

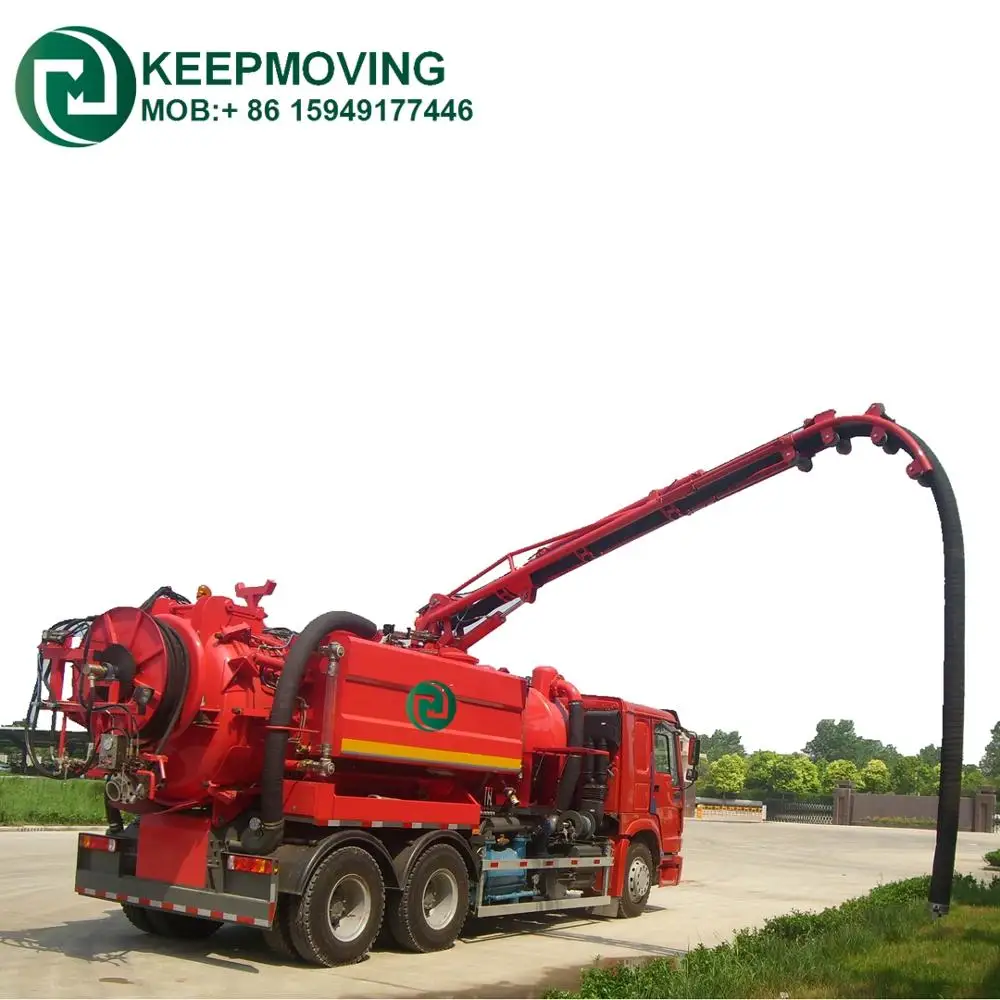

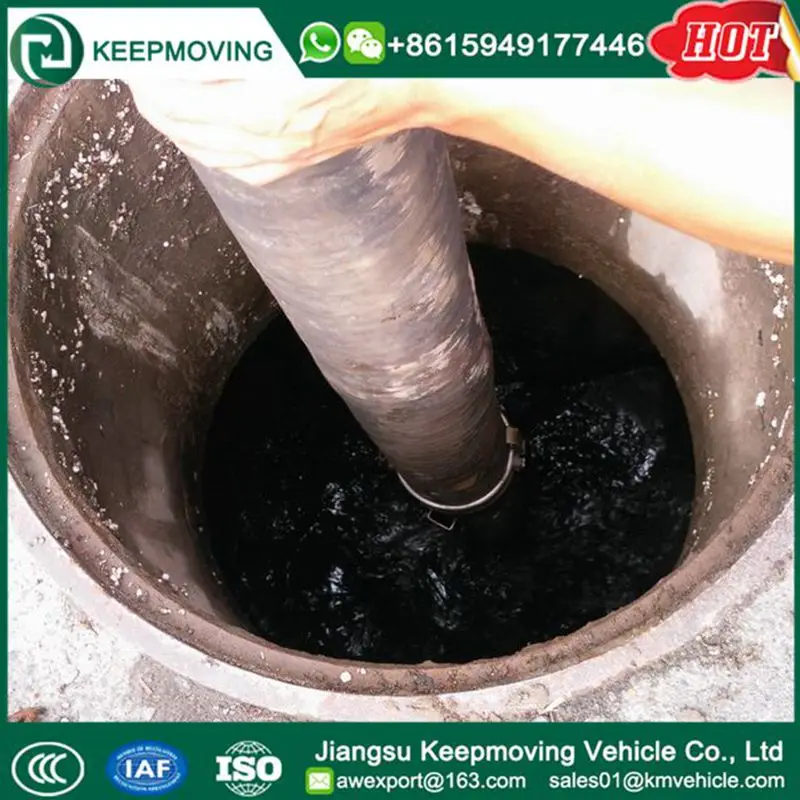

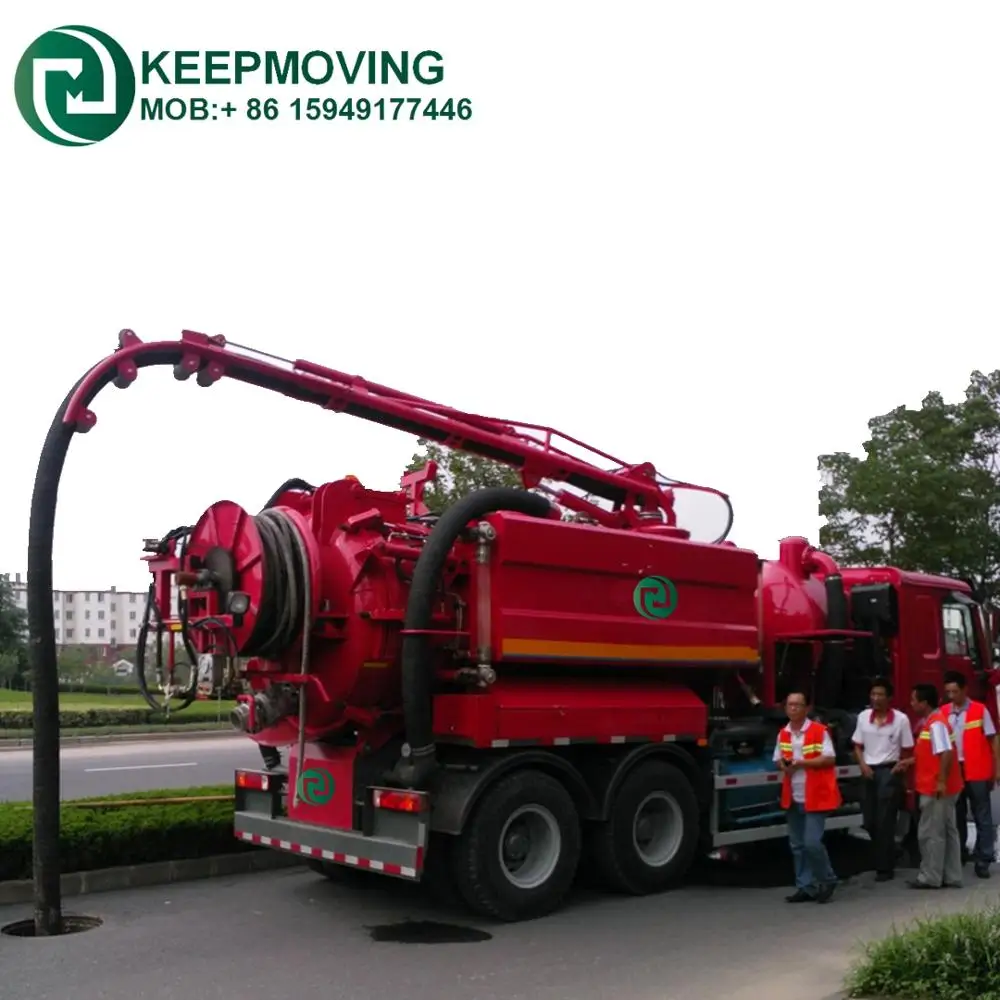

This COMBINED VACUUM TRUCK Suitable for suction,transportation and dumping soil and mud from various sewer man-hole,water wells and sediment.It is necessary tool for city sanitation department,waste processing company,big factory......,it can help to clean the sewer pipe undergroud,clean the sludge in the river around city, it also can help big factory to clean the greasy dirt and waste water.More specification about the vacuum tank please kindly refer to following information .
No. | Main components | Detail Description |
1 | Chassis | Dongfeng brand 6x4,Engine is Euro 3 or 4 emission standard, There four pcs PTO to drive vacuum pump,high pressure pump and all kinds of hydraulic equipment. Chassis Model will as per cusotmer's final confirm. |

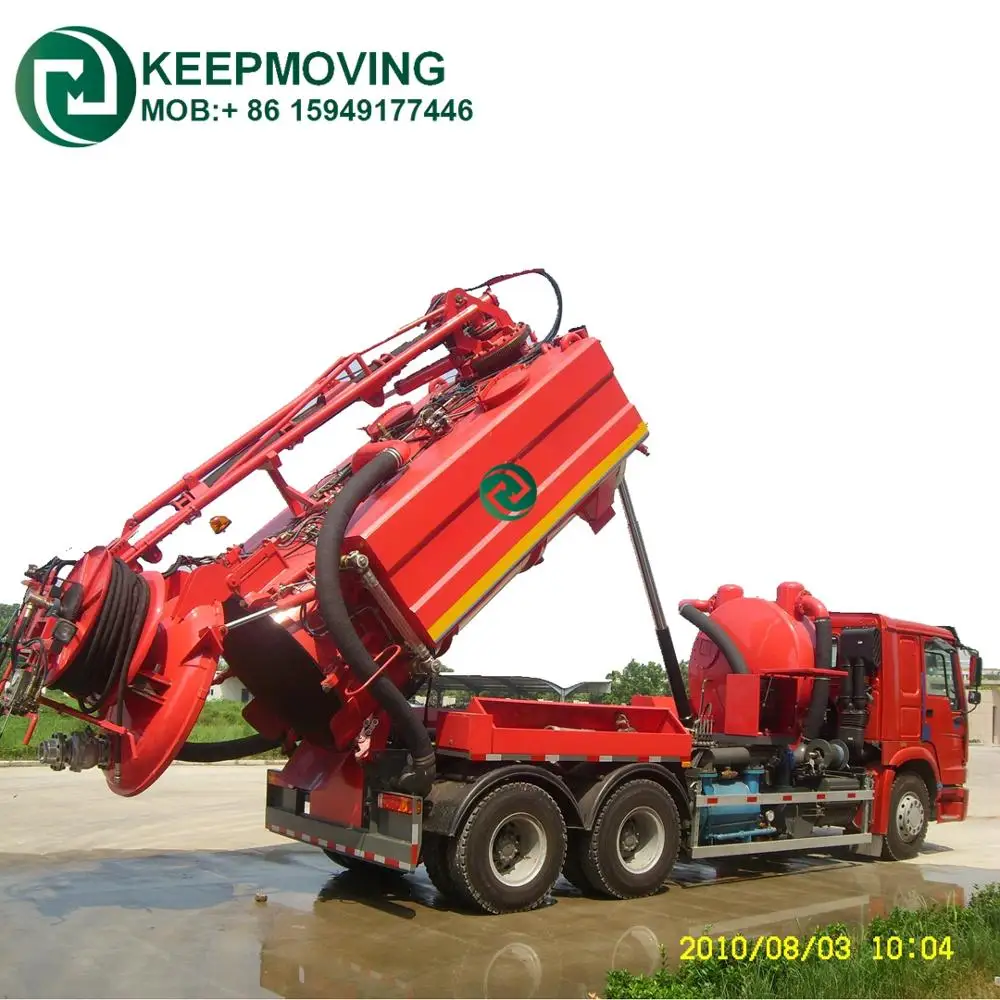

2 | Vacuum tank | Tank Shape:Cylinder type ,Vacuum tank volume is 8000 liters,made by SS304L,6mm thickness shell. Design Pressure:-0.9 Bar.There some U shape strengthen rims outside the sludge tank body to offer stonger support to the tanker body. Hydraulic lift sylinder to lift up the tank body to outlet the sludge in 45 degree with safety support. Water level instrument locate in the rear of the tanker body.6 or 4 outlet valve in the rear to release the sludge. |
3 | Clean Water tank | Tank volume 3CBM,made by SS304 steel,4mm thick,located on both side of the vacuum tank,with lower lever alarm. |
4 | Rear Door | Controlled by Hydraulic,2 cylinders open the door,and 4 cylinders closed the door,6 suction pipe and 6 discharge valves. |
5 | Cooling water tank | 1500L,located behind the Cab of the truck,use for cooling the vacuum pump. |
6 | Vacuum pump | Liquid ring Chinese Kenflo brand,3000H/M air flow rate,vacuum rate 90%,vacuum pump can be choose according to customer's requirement. |
7 | High Pressure pump | Piston pump imported from Germany,Water flow 212L/m at 200 bar,Brand can be specify by customer. |
8 | Others | Telescopic suction boom: Swivel in both the vertical and horizontal plane.300°horizontal rotation, 6m working radius and vertical lift up to 3m above ground.Dia 6 stailess and rubber suction hose. High press hose reel 1.120 M HP hose ID25MM,Control by hydralic 100°horizontal rotation. Painting All stainless steel parts will painted by primer and finish paint,sand blasting before painting,coloer as per customer's choose. Operation instructions This instruction will guide customer how to operation this truck. Training Before delivery:we can offer one or two days operation of the truck training in our factory. |
9 | Remarks | Above information just for reference,we can adjust the specification according to customer's requirement,for further information,please feel free to contact Iris huang. |
Certifications
We have Obtained CCC,ISO9000,BV certificates,we also obtained many other Honorary certificate issued by loccal Government.
Products Overview
Our main products including Vacuum jetting truck,sewer jetting truck,Mub grab truck,Biogas liquid vacuum truck,oil tanker trailer,vacuum tank trailer,rear dumper trailer,lowbed trailer, container trailer,side wall cago trailer, chemical liquid tanker truck, bulk power goods tanker trailer,cement tanker trailer, water tanker semi trailer,full semi trailer,and so on. Total 100 style available for sales.
Vacuum Truck Manufacturing Process----Rear door and tank assembly.
Detailed Images
Control Panel
The control panel mainly control vacuum pump and high pressure pump working,it also control the electrical system working,including working lights,alarm,emergency button and so on.
Remote Control
This remote control used to control the Suction boom to go in different direction.
Packing & Delivery
Ready For Delivery:
Vacuum truck will in nude packing,delivery by Roro ship or by bulk vessel,or according to customer's requirement.
Service to Customers
We went to our customer's work site to offer after-sale service to our customer,our truck very famous in local market,many local TV Media come to make reports on local TV channel.
Customer Visit
Following are some of our customers came to visit us from different countries, we warm welcome more friends from all over the world come to visit us in the near future!!!
