Заводская поставка на заказ расход энергии метр 3 фазы цифровой измеритель
- Категория: Energy Meters >>>
- Поставщик: Shanghai,Fengyilong,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.41 $* | 0.41 $* |
| Aug-19-2025 | 0.9 $* | 0.52 $* |
| Jul-19-2025 | 0.62 $* | 0.73 $* |
| Jun-19-2025 | 0.55 $* | 0.37 $* |
| May-19-2025 | 0.62 $* | 0.93 $* |
| Apr-19-2025 | 0.78 $* | 0.58 $* |
| Mar-19-2025 | 0.13 $* | 0.35 $* |
| Feb-19-2025 | 0.86 $* | 0.74 $* |
| Jan-19-2025 | 0.82 $* | 0.60 $* |
Характеристики
Factory Supply Custom Power Consumption Meter 3 Phase Digital Kwh Meter
item | value |
Place of Origin | China |
Brand Name | Forlong |
Model Number | DRS-205A/D |
Display Type | Digital Only |
Phase | Single Phase |
Measuring Energy Range | 0-999999.99 kWh |
Accuracy Class | Class1.0 |
Output Voltage | 110V,127V,133V,230V,240V |
Operating Temperature | -10°C - +50°C |
Dimensions | 117.5*58.5*17.5mm |
Item Name | Digital Kwh Meter |
Operating temperature | -25°C - +55°C |
International standard | EN 50470-1 and EN 50470-3 |
Operational voltage | 195-253V AC |
Nominal voltage\t(Un) | 230V AC |
Maximum rated current (Imax) | 45A |
Storage temperature | -30°C - +70°C |
Operating Humidity range | ≤75% |
Storage humidity | ≤95% |
Weight | 0.12 Kg (net) |

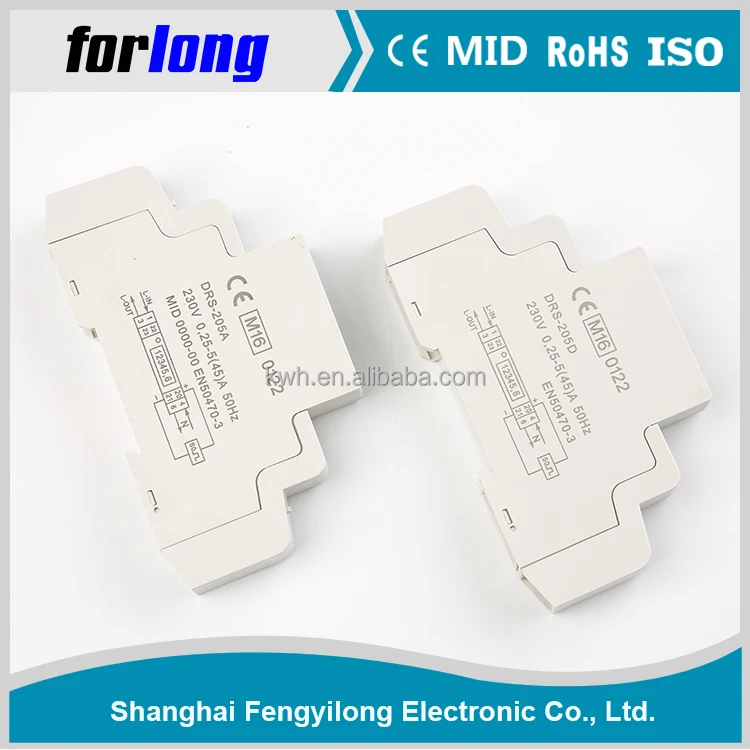

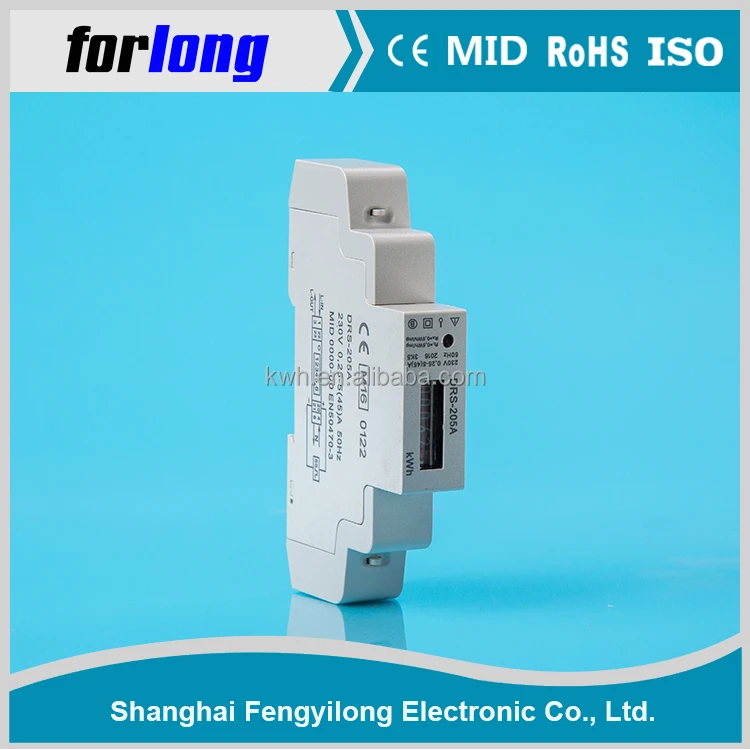

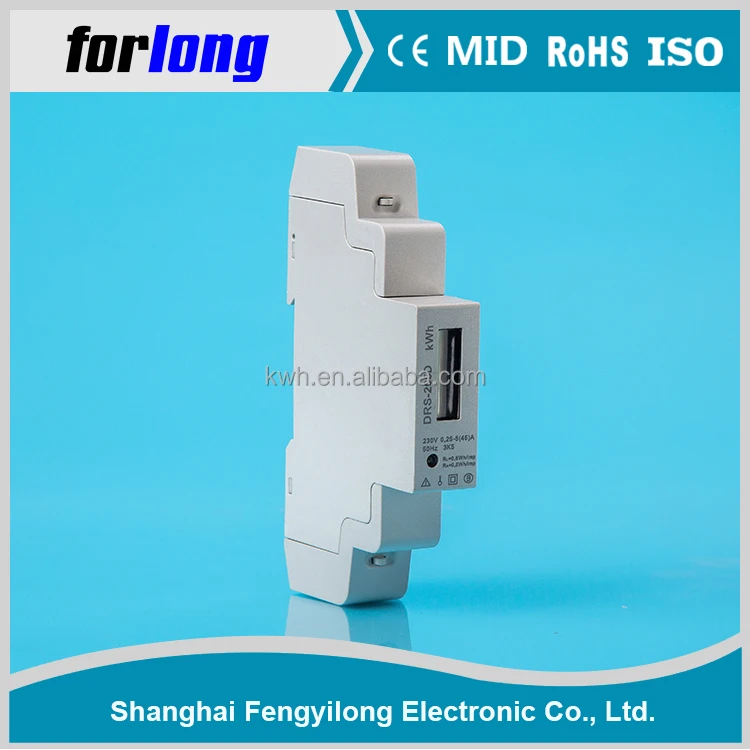

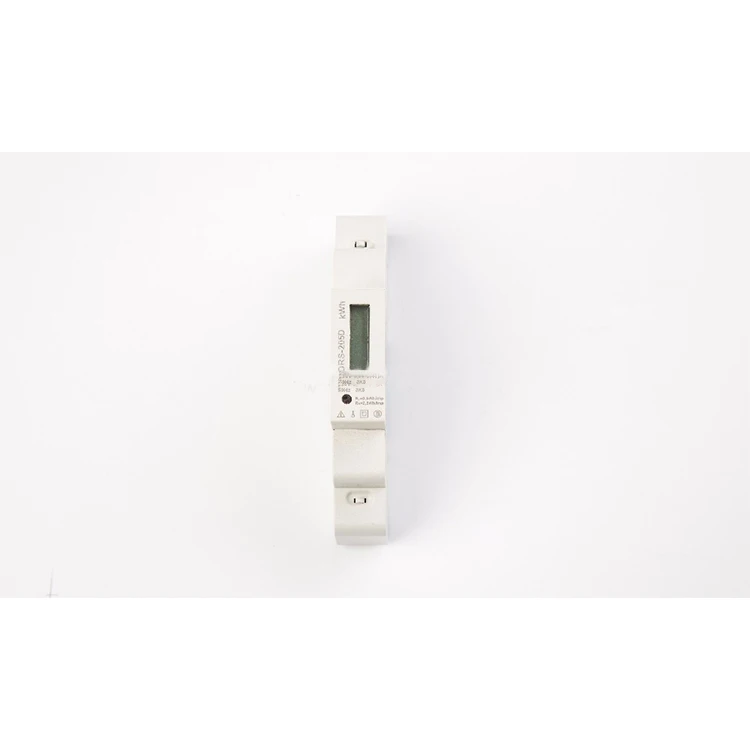

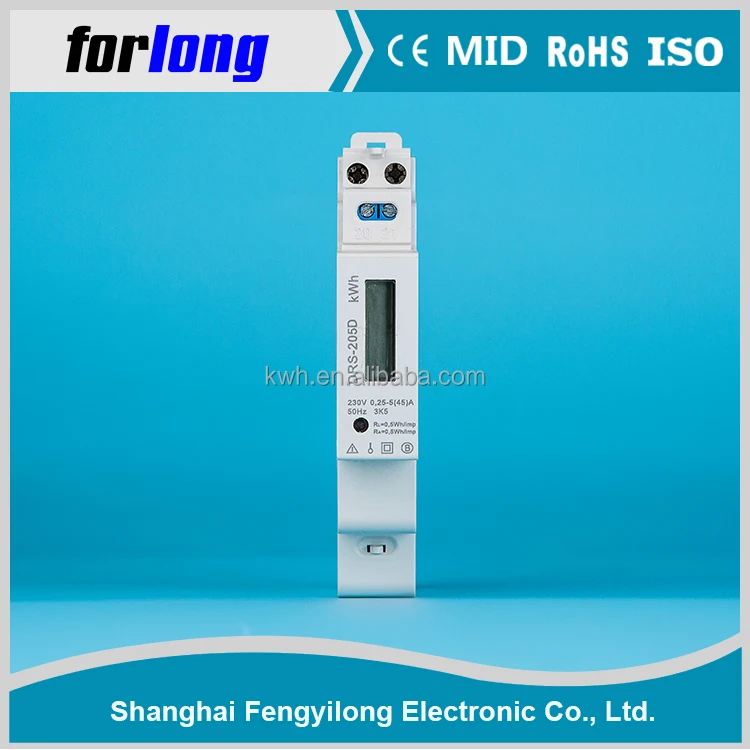

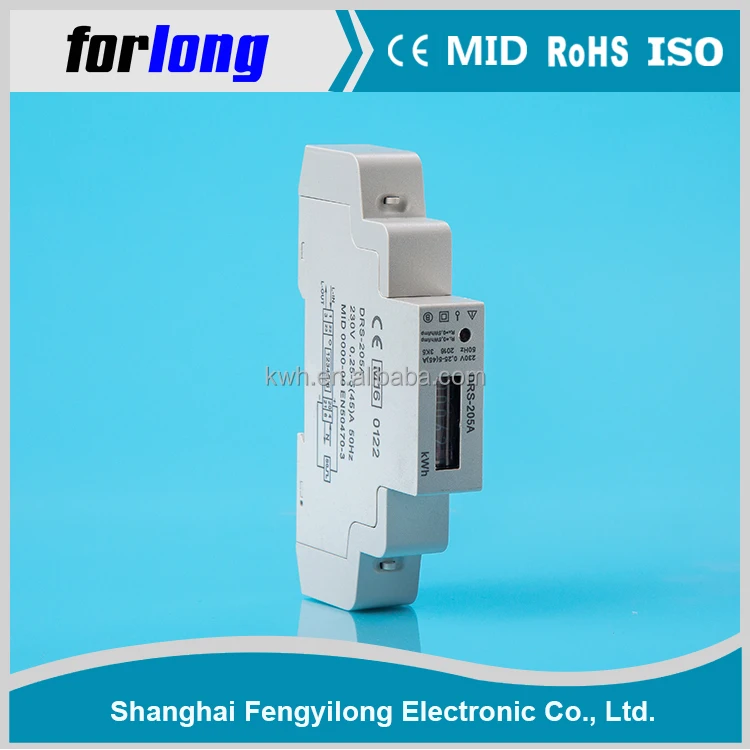

Product Display
Related Products
Company Profile
Our Advantages
Transportation
1. Q:No light for the consumption indicator
A:Check switch or circuit-breaker and fuse or thermal cut-off.
A2:Reinstall terminal screws on the 1 and 4. Make sure all screws are fixed. Than there should be a 230V 50Hz AC voltage between the terminal screws on the 1 and 4 when power supply is input.
2. Q: No light for the consumption indicator.
A1:Only when load is running, this LED will flash.
A2;If the operating power is too low, the spacing interval of flashing will take some more time, this is why it seems like LED isn’t burning.
A3:Please contact your technical supporter to replace this meter.
3. Q:The register can’t run.
A1: Check that the power supply indicator is burning.
A2: If the operating power is too low, the spacing interval of the pulses will take some more time, this is why it seems like the meter won’t count.
A3: Please contact your technical supporter to replace this meter.
4. Q: No pulse output.
A: Check the external voltage source (Ui) is 5-27V DC.
A2: Check correct connecting:connect 5-27V DC to connector 20 (anode), and the signal wire (S) to connector 21 (cathode).
A3: Please contact your technical supporter to replace this meter.
5. Q: Pulse output rate wrong.
A: Please contact your technical supporter to replace this meter.
