Электрический паровой котел 100 кг 72

Категория: Boiler & Parts >>>
Поставщик: Zhangjiagang,Future,Boiler,Manufacture,Co.,Ltd.

Цена:2 700,00 $ - 2 950,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	3213.90 $*	3374.44 $*
Aug-16-2025	3186.71 $*	3345.20 $*
Jul-16-2025	2673.52 $*	2807.42 $*
Jun-16-2025	3132.55 $*	3289.28 $*
May-16-2025	2727.38 $*	2863.63 $*
Apr-16-2025	3078.65 $*	3232.38 $*
Mar-16-2025	3051.64 $*	3204.96 $*
Feb-16-2025	3024.68 $*	3175.95 $*
Jan-16-2025	2997.81 $*	3147.19 $*

Характеристики

Integrated LPG Fired Steam Generator

Stainless Steel Electric Steam Generator

No Emission Qucik Start Electric Boiler

Certifications

Product Description

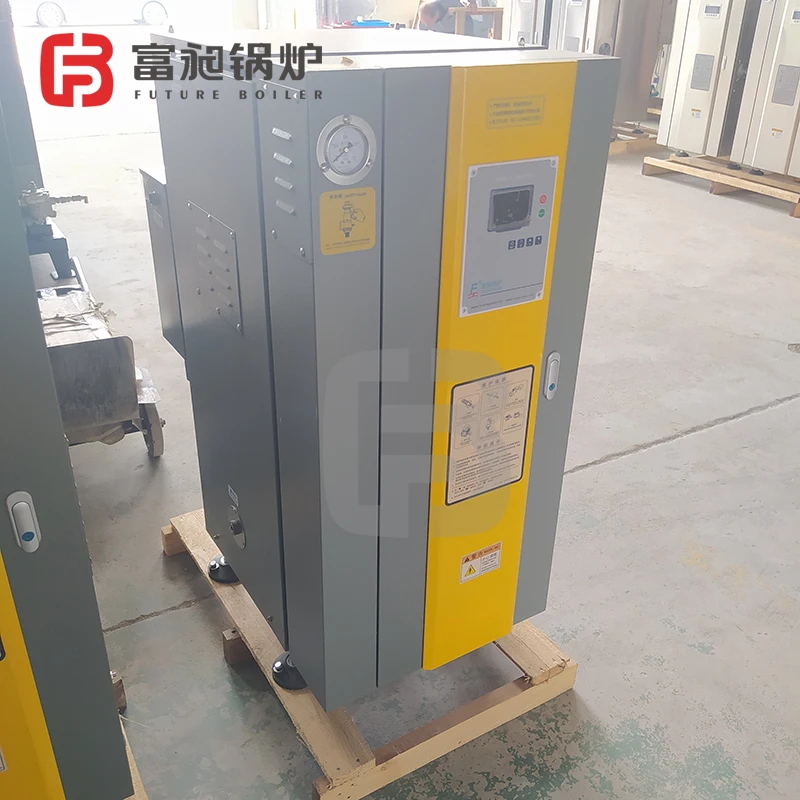

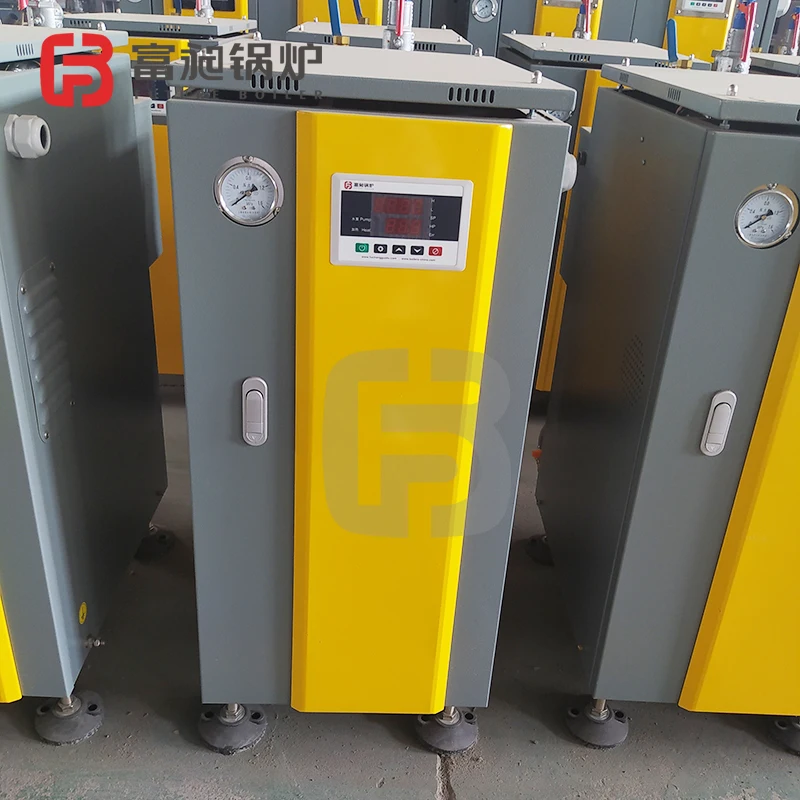

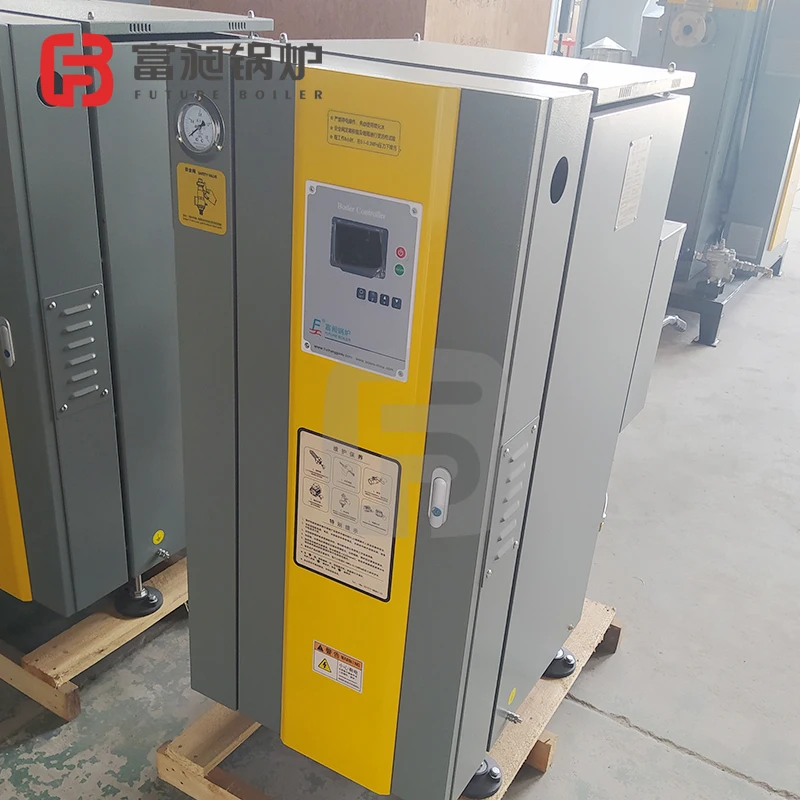

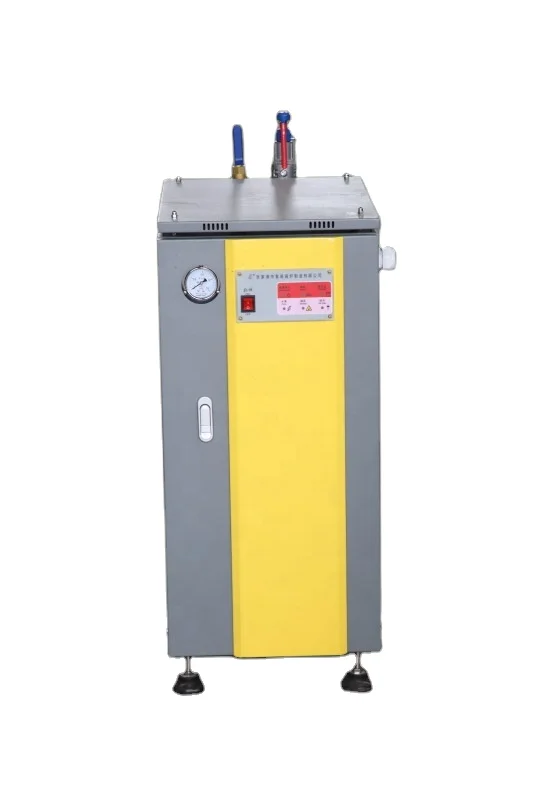

0.2-0.5Ton Electric Steam Boiler

"FUTURE" Electric Steam Boiler has a higher thermal efficiency while radiation loss is minimal. With a carefully calculated heat to steam ratio, operating pressure is achieved quickly with maximum efficiency. Electric boiler has no exhaust going out the stack as associated with fossil fuel; therefore, electric boiler will be environmentally friendly. There is no NOx emission to the atmosphere.

SPECFICATIONS FOR AUTOMATIC ELECTRIC STEAM BOILER

Model			LDR0.2-0.8	LDR0.25-0.8	LDR0.3-0.8	LDR0.4-0.8	LDR0.5-0.8
Item	Unit		LDR0.2-0.8	LDR0.25-0.8	LDR0.3-0.8	LDR0.4-0.8	LDR0.5-0.8
Steam capacity	kg/h	200	250	300	400	500
Rated pressure	MPa	0.8	0.8	0.8	0.8	0.8
Saturated steam temperature	°C	175	175	175	175	175
Input power	kW	144	180	216	288	360
Rated current	A	216	270	324	432	540
Main voltage	V	380	380	380	380	380
Steam outlet valve dia.	DN	25	32	32	32	40
Safety valve dia.	DN	25	25	25	32	40
Water inlet dia.	DN	20	25	25	25	25
Blow-down valve dia.	DN	25	32	32	32	32
Overall dimension (L×W×H)	mm	1130×750×1780	950×900× 1830	1320×1040×1920	1380×1040×2070	1020×890×2350
Net weight	kg	450	650	760	890	1020

STATEMENT:

1. The company reserves the right to modify the above parameters, also reserve the right to modify above the parameter.
2. It' s availble for customization of the various specifications.

Main Features

1) The item is excellent absorption of similar products from Europe and USA, the new design is based on domestic actual situations. Specifications from 144KW-360KW will satisfy different usages and needs.

2) By use of titanium alloy heating elements, high temperature resistance of electric wire is more than 1000°C, the service life is 8-12 times than traditional types, the application of magnesium rod anode technology, it ensures that heating tube difficult to be formed scale, so any other product is incomparable.

3) Unique built-in steam-water separator solved a problem of steam with water which brought by similar products. And it's also the most significant difference compared with domestic similar products.

4) All internal piping and boiler control system has been connected before delivering the factory. One-touch automatic control, safety, energy saving, environmental protection, durability, high output and low consumption, meanwhile thermal efficiency as high as 98%.
