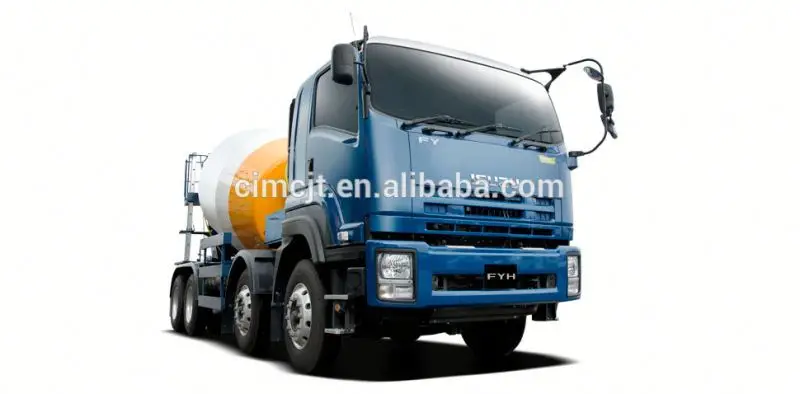

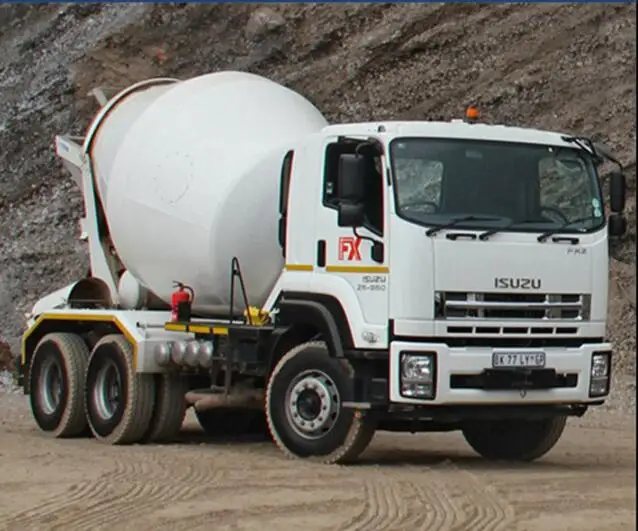

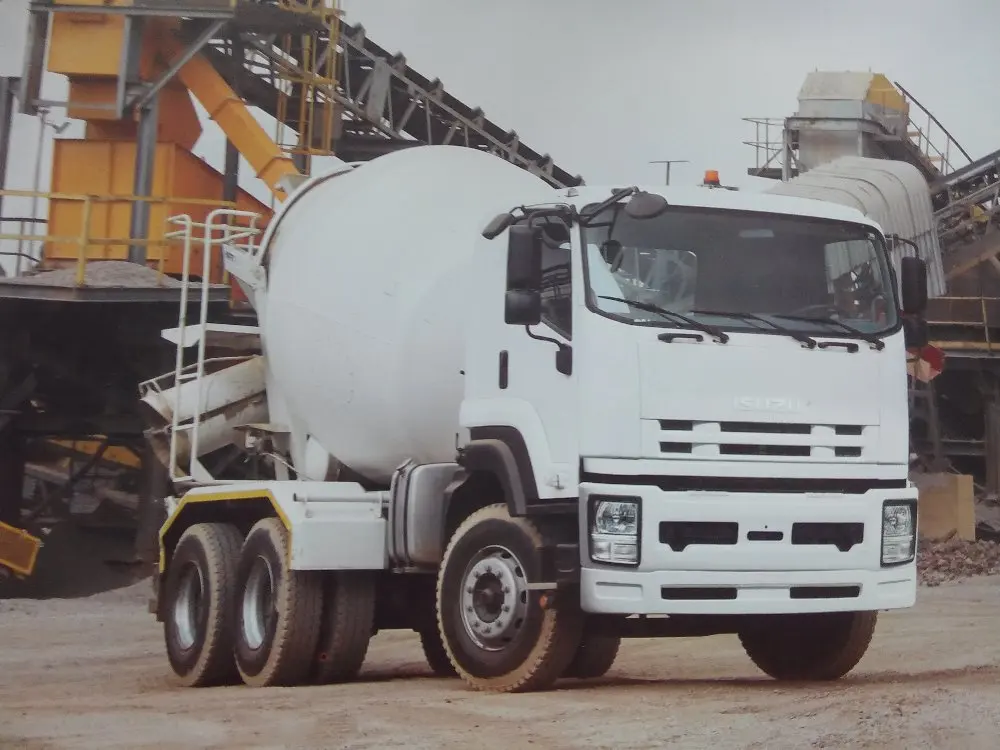

ISUZU 9.8L concrete mixer truck for sale, concrete mixer truck dimensions, concrete mixer truck price

ISUZU mixer truck, started production in China since 2015, with stable quality in the world!


New ISUZU trucks model with most competitive price from China:











SPECIFICATION

Model	QL5320THBUPCZY
Driving type	8*4 left hand driving
Engine Make	ISUZU
Engine model	6UZ1-TCG40
Maximum output	350 hp (257 Kw) at 2000 rpm
Drum speed	0~16 rpm
Displacement	9.8 L

Photo of Dump truck

Engine Make: ISUZU
Diesel 4-stroke direct injection diesel engine, Electronic control

Engine model:6UZ1-TCG40

Euro IV emission standard
6-cylinder in-line with water cooling, turbo-charging and intercooling

Transmission Fuller 9JS150TB, 9 forwards and 1 reverse, 1500N.m, 2600rpm
Ratio: 12.65   8.38   6.22  4.57   3.40  2.46   1.83   1.34  1   13.22 (R)

Front Axle ISUZU F075, Steering with doubleT-cross section beam, 7.5 Tons Capacity
Rear Axle ISUZU RT210, Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles .
21 Tons Capacity, Ratio Selective: 4.1,  4.3

Wheels & Tyres Tire:11.00-20 18PR, all Nylon tyre

Driver's Cab Standard cab, with two seats, 1 bed, 2-arm windscreen wiper system with three speeds



Parameter of the Mixer Tanker Agitating Volume( m³): 12
Charge speed ( m³/min): ≥3
Discharge speed (m³/min): ≥2
Surplus (%): ≤0.5
Drum speed (rpm): 0~16
Drum inclination :15

Drive system Decelerator ZF Germany P5300
Pump EATON USA 5423-159
Hydraulic motor EATON USA 5323-138
Water supply system Water tank volume L/Form of 400/Electric water pump


Our company

CIMC VECHICLE was founded by 1980, having over 63, 000 staff across China, North America, Europe, Asia and Australia. CIMC the biggest truck and truck body manufacturer in China, CIMC is famous in the world!



CIMC China truck supermarket cooperates with all brands of trucks which all produced in China for the GVW>15, 000 kgs heavy trucks, CIMC produces the cargo body or special truck body for the trucks. The CIMC own truck brand is C&C, and cooperate other truck chassis brand which produced in China, FAW, DFAC-DONG FENG, SHACMAN, SINOTRUK, FOTON, JAC, CAMC, SAIC-Iveco, NORTH Benz(BEI BEN), HYUNDAI China, Nissan UD China, HINO China, ISUZU China...



ISO Certificate:

FAQ

Q:  I want to transport the truck by container, is it ok?

A: Yes, it is ok .But we need take apart the truck.You should reinstall in your country.

Q: How about the quality guarantee and after -sale service?

A: For quality guarate, we give one year guarantee, and with 24hours response principle for better service.

We have more than 30 agency all over the world, you can get the most convenient service by nearest agency.

Q:I want to be your agent in my country , is that ok?

A:It’s ok, If your quantity is big, we will consider. For the first time 50 units is ok.

Q:  I want the front two tyres are bias tyre and the rear 9 tyres are radial tyres, is it ok?

A: We can make the tyres as your requirement to suit your country's need.
