Professional industrial raw wool washing machine/sheep wool washing production line



Brief introduction of sheep wool washing production line

This wool washing machine made of stainless steel,the material is wearable and easy to clean.Opean the door and put the dirty wool into it,add wool cleaner,shut the door,the water will into the machine automatically,select the washing time(usually 40 minutes),the machine will wash the wool very efficiency.

Features of sheep wool washing production line

The industrial washing machine has the following features: quick steam heating, easy operation, convenient upgrading, wide usage range, to meet with the users’ requirements, Based on the applicable scope, beautiful outside appearance, convenient operation, stable running and convenient upgrading. It is a kind of economic washing machinery.

Working process of sheep wool washing production line

Turn on the power switch, the switch light is on and the stop light is also on. The time screen shows the general setup time and the temperature screen shows the setup temperature, the output relay are not working, this is the very beginning situation. Press the starting/pause button, the starting light turns green. The rotating drum and heating are both workable. The rotating drum must work according to the following cycle: positive rotating (setup time), stop (setup time) then negative rotating (setup time) and stop (setup time). The heater will be controlled to work as per the preset temperature. The drying time will be reduced gradually until 0. Cut off the heating and rotating drum and alarming for 1 minute, the stopping light is twinkling, the buzzer is alarming for 1 minute and then the machine comes back to the very beginning situation.

Parameters of sheep wool washing production line

Model	Max.washing Capacity(kg)	Drum dimensions (mm)	Speed (r/min)	Power (kw)	Steam pressure (MPa)	Overall dimensions (mm)	Whole machine Weight(kg)
DLT-W15	15	550*600	35	0.75	0.3-0.6	1100*850*1200	260
DLT-W20	20	550*700	35	0.75	0.3-0.6	1250*940*1300	380
DLT-W30	30	700*800	33	1.1	0.3-0.6	1650*1100*1450	600
DLT-W50	50	800*1000	33	1.5	0.3-0.6	2000*1300*1500	800
DLT-W80	80	950*1220	33	2.2	0.3-0.6	2050*1400*1800	900
DLT-W100	100	950*1420	33	3	0.3-0.6	2350*1400*1900	1200
DLT-W150	150	1080*1600	31	4	0.3-0.6	2500*1400*2100	1500
DLT-W200	200	1080*2000	31	5.5	0.3-0.6	2940*1480*2100	1950
DLT-W250	250	1200*2260	31	7.5	0.3-0.6	3140*1500*2300	2300
DLT-W300	300	1300*2260	29	11	0.3-0.6	3514*1850*2300	2600
DLT-W400	400	1460*2440	29	15	0.3-0.6	4200*2050*2450	3400



Whole line of wool processing line:washer-dewater-dryer,

with capacity 15kg/h,50kg/h,100kg/h,150kg/h,200kg/h,300kg/h,400kg/h,etc.



Photo of whole line : washing machine,dewatering machine and drying machine

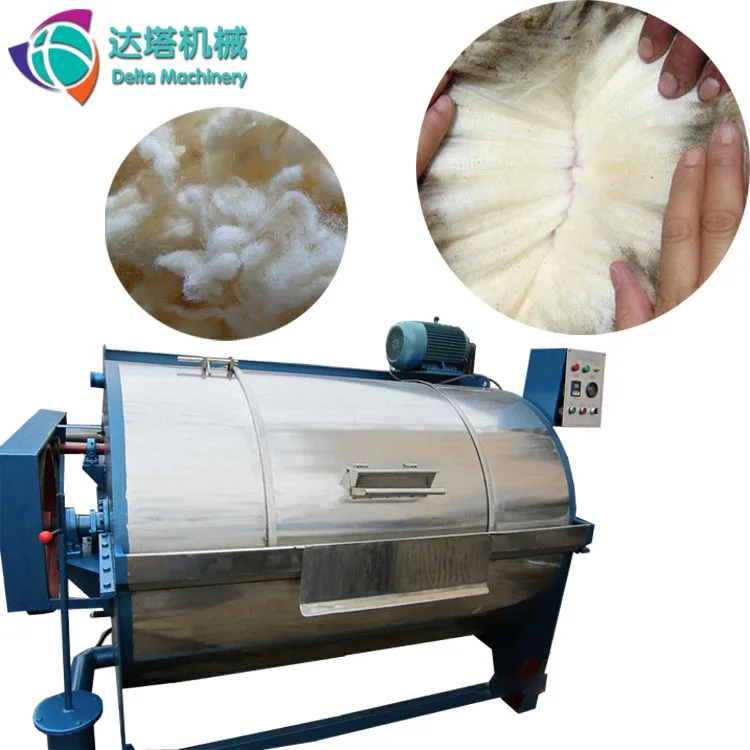

Photos of sheep wool washing production line
