Характеристики
HOME
Product Description

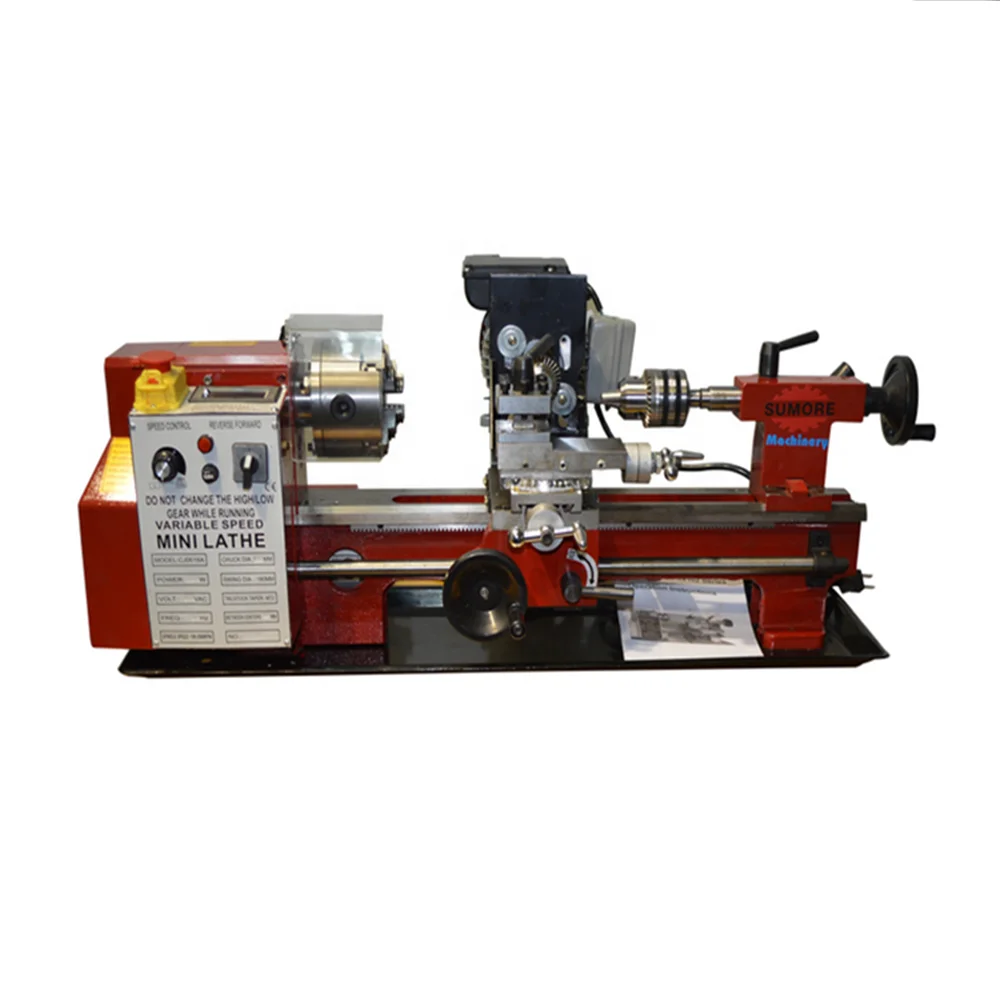

mini manual wood bench lathe machine SP2102 with 20mm spindle bore
have all basic characteristics comparing to normal larger gear head
lathe, it has unique advantages, such as, smaller size, lighter weight, lower noise and so on.
Its relatively simpler structure also remain in full rigid and high strength hardened steel
base construction.
Further more, full scale of accessories are provided for each Sumore Bench Lathe who still
be able to carry on turning, drilling, boring, knurling and threads processes, which also means
it can be widely introduced into small metal / nonmetal workpieces machining during family
metal work, technical school education or scientific facilities research.
- Simple But Rigid Steel Structure
- Easy Operation & Convenient Reparations
- Brushless Motor
- Variable Speed
- Different Worktable Length Options
- Considerable Safety Design

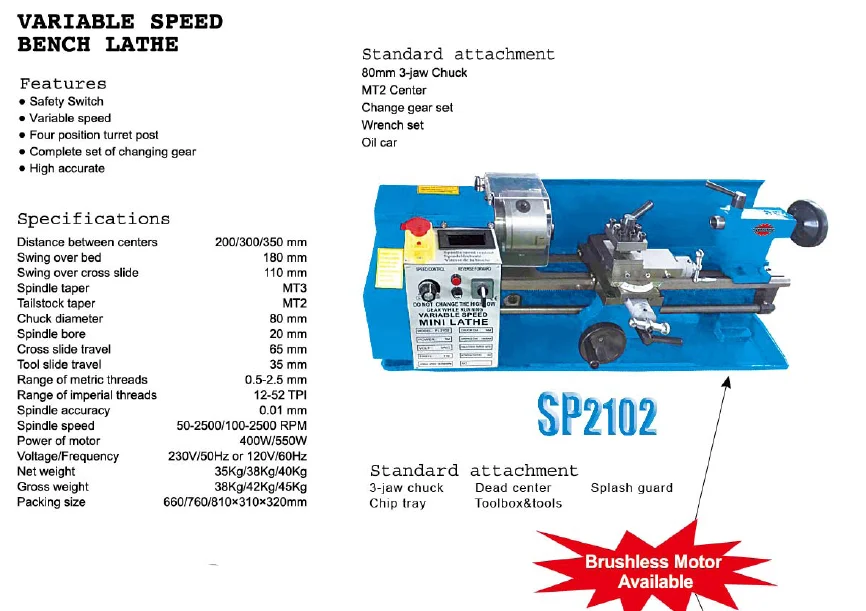

Model | SP2102 |
Swing over Bed | 180 mm |
Swing over Cross Slide | 110 mm |
Distance Between Centers | 200 / 300 / 350 mm |
Spindle Bore | 20 mm |
Headstock Spindle Taper | MT 3 |
Range of Spindle Speeds | 50 - 2,500 rpm |
Compound Slide Travel | 35 mm |
Cross Slide Travel | 65 mm |
Tailstock Quill Taper | MT 2 |
Range of Inch Threads | 12 - 52 TPI |
Range of Metric Threads | 0.5 - 2.5 mm |
Motor Power | 400 / 550 w |
Power Supply | 120 / 230 v |
Net Weight | 35 / 38 / 40 kg |
Packing Size (LxWxH) | 660 / 760 / 810 x 310 x 320 mm |
Gross Weight | 38 / 42 / 45 kg |
keyword | lathe machine |
Standard Accessories | Optional Accessories |

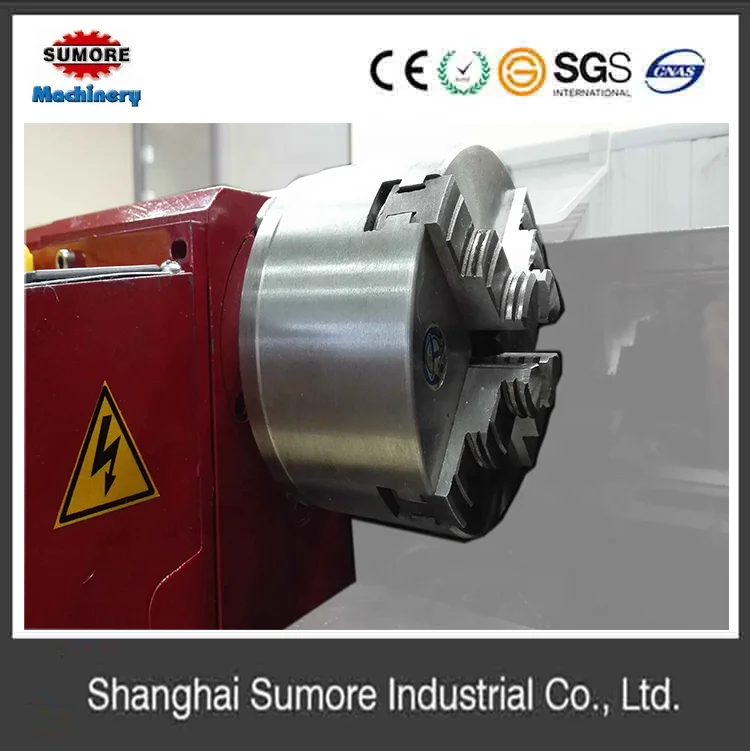

3-jaw chuck | 4-jaw Chuck |
Dead Center | Face Plate |
Cutting Tools | Face Plate Clamping Kit |
Change Gear Set | TiN Coated Cutting Tools & Replaceable Tips |
Splash Guard | Steady Rest |
Chuck Safety Guard | Follow Rest |
Stand | Drill Chuck and Drill Arbor |
Oil Tray | Live Center |
Oil Gun | Quick Change Tool Post |
Manual & Parts List | Clutch for Feed Rod |
Lead Screw Guard | |
| Digital Readout Cutting Depth | |
| Coolant System | |
| Work Light |
Packaging & Shipping
| Package | 1 set/polywood case (aluminum strips strengthen) |
| Minimum Order Quantity (MOQ) | 10 sets |
| Full Container Loading Quantity (FCL) | 340-390sets/20’GP (unitary; customerized packing available) |
| Delivery Time | 25 calendar days after receiving of advance / full payment |
