Стерилизатор UHT с температурой 105-110 градусов

105-110 degree centigrade sterilization temperature UHT sterilizer

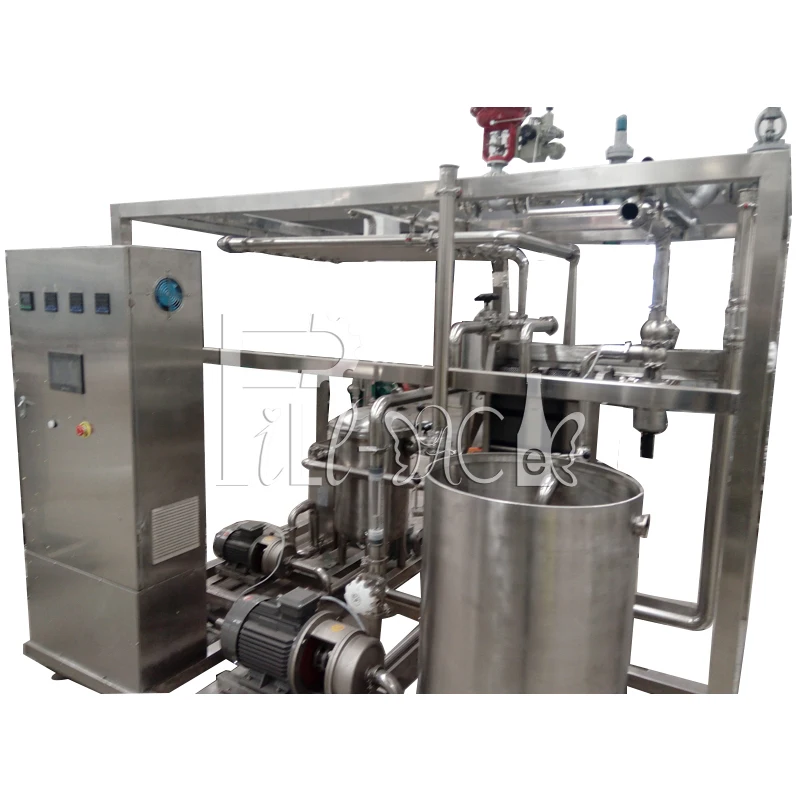

Introduction of the UHT sterilizer
This ultra high temperature UHT sterilizer is suitable for sterilizing the liquid material, such as juice, fresh milk, fruit milk, tea, wine, soybean milk and Chinese medicine, as well as the sticky material (for example, sweat condensed milk). It is with coil tube type heating system, heated by electric. It's set with a heating tank with conduction oil, heating electric power consumption is 32kw/h.
We both have the steam heating type and electric heating type, so you can choose it as your local energy consumption price.
Our factory adopts advanced stainless steel 304 welding technology abroad, selecting the fine polished stainless steel tube, which has good appearance and sterilizing effect.

Technical Parameter of the UHT sterilizer
Treatment Capacity\t1000-5000L/H
Sterilizing Temperature: 115-135 degree centigrade
Inlet temperature : less than 65 degree centigrade
Outlet Temperature:  less than 40 degree centigrade
Heating time: 4-6s
Heating medium: Heat conduction oil
Material: SUS304
Area (m2): 0.9
Heating Power: 32kw
Overall Dimensions :1600*900*1650 (mm)
Weight :350 kg

1. Installation & adjustment
After the equipment are arrived at the customer's site, the customer is responsible for unpacking and arranging the equipment according to the placement drawing; and does under our install-adjust technicians' guidance. Costs of the staff are decided at last.
2. Training
1). We are responsible for offering the technical training to user. The training content includes the structure and maintenance of the equipment, control and operation of the equipment. Through training, users'technical staff can grasp and the skill of operation and maintenance proficiently, and deal with the general troubles in time. We will appoint qualified technical staff for the guidance.
2). The buyer can send staff to our company for learning.
3. Quality assurance
1). We guarantee the goods offered are brand-new, not used, with latest design and suitable material made, and we guarantee the specification of the equipment is consonance with the contract.
2). We guarantee the line achieve product technical performance indicators within 5 days after feeding operation through the correct guidance of the installation and commissioning.
3). We are responsible for the fault and damage of the production line caused by our design, technology, manufacture, installation, adjustment and material defect etc. that all belong to our responsibility.
4). The warranty period is 12 months after acceptance check of the production line. If there is any different between the furnished equipment in the customer's factory and the equipment concerned in the contract, the users have the right to pass the inspection book to the legal department to claim for compensation to our company within goods warranty period.
4. Warranty
Offer 12 months maintenance period to the problem that caused by our design, manufacture and the material quality, and offer the relevant parts and effective service for free for above reason. We will offer a widely and favorable technical support, after service all the time after guarantee period.

ZhangJiaGang City FILL-PACK Machinery Co.,Ltd. is loacated in Zhangjiagang city which is famous for beverage machinery producer collection. Intergrated the industry advantange and its own development in R&D, production, sales, after sales service, FILL-PACK is ready to serve more and more customers with our full range products and satified service.
FILL-PACK product is very critical in the choice of raw materials and spare parts. Korea 304 \\ 316 stainless steel plate, ABB, SEW motors, Siemens, Mitsubishi, OMRON electrical control components, FESTO CAMOZZ the control valve, as well as international precision machining center for the fine quality of the machine foundation.
At present we produce: production lines for mineral water, pure water, fruit juice, tea drink, milk drink and carbonated drink with capacity 1000-20000bottles/hour; production lines for vinegar, soy sauce and wine 1000-20000bottles/hour; 3-5 gallon barreled water with capacity 80-1200 barrels per hour and various water treatment plants; We provide separate machinery or turnkey project.
Our product pass quality inspection executed by Bureau of Quality and Technical Supervision every year. Our factory is in accordance with ISO9001: 2000 certification system standards and we gain CE certificate for exportation to Euro countries. Our machineries are sold to more than 30 cities in China and over cross to American, Spanish, Hungary, middle east and African countries.
We help to set up your factory as our own home with our pure heart, we do to service, we learn to support!
