  CJZ Series

chocolate moulding machine  / chocolate depositing machine / chocolate bar production line

The automatic Nuts chocolate machine is for chocolate making,it can produce single color,two colors,chocolate filling,filled with nuts,grain etc.



Full automatic chocolate moulding line is an advanced and compact moulding solution for chocolate production. It is comprised of activities of mould drying, depositing, vibrating, cooling, de-moulding and transporting in one unit. And it is automatically controlled by PLC. The special dosing head synchronizes hydraulic movements with mould drive chain and all aspects such as double-jacketed hopper, special stirrer, and the valve/pistons/dosing plate set. Automatic de-moulding, mould heating, and integrated controls and elements can also be incorporated. The plant can produce the compound chocolate or pure chocolate products; also can make the central-filled products and two color (up/down or left/right) products base on different manifold plate. Features:



1. Chocolate moulds standard size is 280x200mm with chain holding part, or other size as per design. 2. Chocolate depositing any quantitative scope of regulation from 3-15g other weight as per the mould design. 3. One shot technology with standard 32-bit pistons, any combination or adjustment of the holes can be made to cast. 4. Heat cycle insulation system to set the temperature control automatically. 5. Full automatic processing with less labor required and space occupy.

Nuts chocolate machine Technical parameters:

Model	Capacity	Power	Moulds Qty	Weight	Machine size(mm)
CJZ275/320	10-30 moulds/min	7.47 kw	200 pcs	500 kg	4000x250x1500
CJZ275A	10-30 moulds/min	19 kw	280 pcs	3500 kg	16000x1000x1800
CJZ275A-2	10-30 moulds/min	23 kw	330 pcs	4300 kg	17000x1000x2350
CJZ275A-3	10-30 moulds/min	31.5 kw	410 pcs	5200 kg	17000x1000x2350
CJZ275A-T	6-12 moulds/min	45 kw	410 pcs	6500 kg	15420x5270x2100

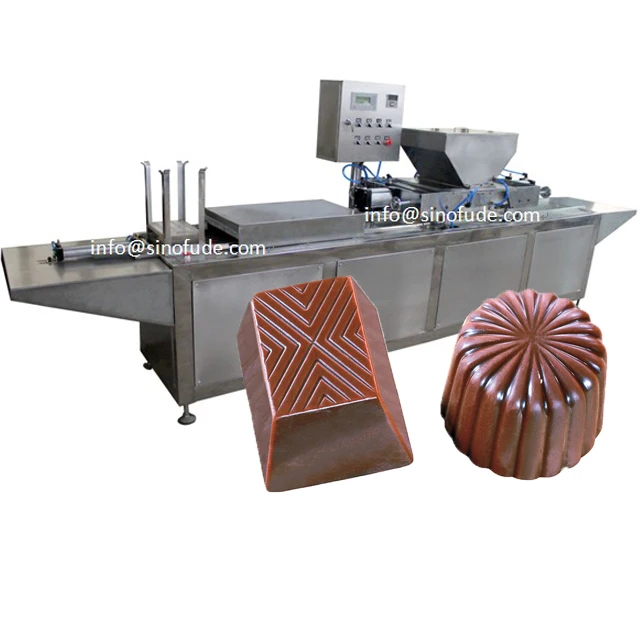

More Nuts chocolate machine photos:

Nuts chocolate machine Products:
