Характеристики

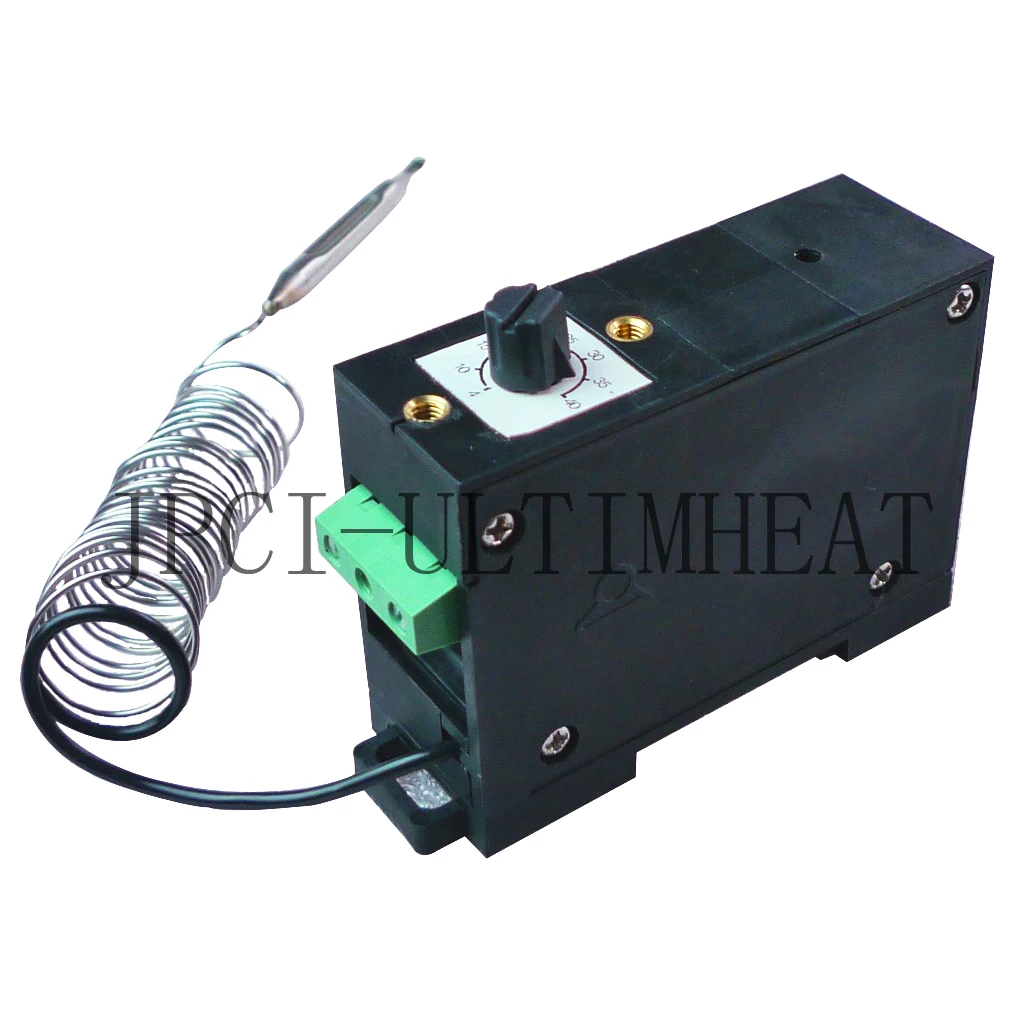

Types KO-V


Single pole control thermostat, bulb and capillary, DIN rail mounting

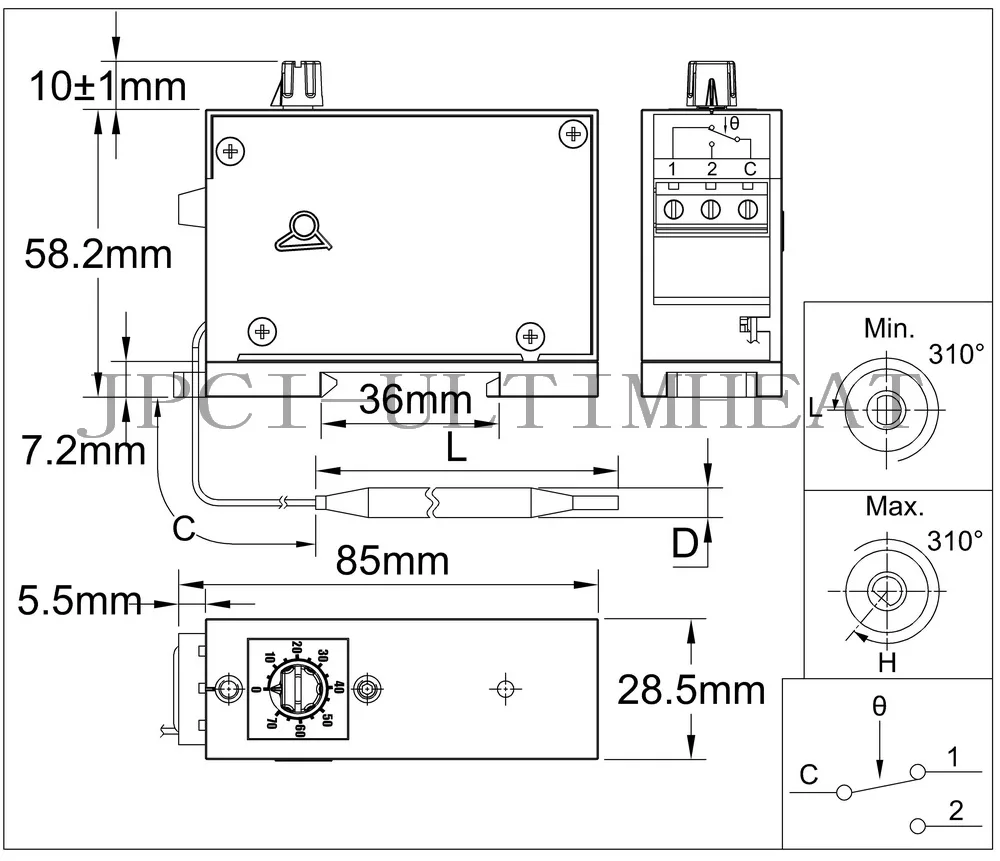

Housing dimensions: 85 x 58.2 x 28.5mm (Knob not included)


Bulb and capillary: Copper or stainless steel depending of temperature range, standard capillary length 1500 mm. Capillary minimum bending radius 5mm.


Temperature sensing element: Liquid filled bulb and capillary.


Terminals:  3 way screw terminal


Adjustment: Dia. 6 mm shaft with 4.6 mm flat, length 10mm, equipped with miniature knob and printed dial.


Mounting: on 35mm DIN rail, upon EN500022


Rating: 16A (1/4 HP) 250VAC, 16A 400V res. Contacts: SPDT  (snap action contact)


Electrical life: >100,000 cycles at nominal rating





 Main references













Caution: Bulbs and capillaries of ranges  above  400°C are filled with sodium potassium eutectic. If they leak or are broken, this liquid will ignite if in contact with water.
