Германиевые плоско-выпуклые ИК линзы диаметром 25
- Категория: Lenses >>>
- Поставщик: Changchun,Ruiqi,Optoelectronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.62 $* | 0.1 $* |
| Aug-19-2025 | 0.31 $* | 0.20 $* |
| Jul-19-2025 | 0.76 $* | 0.96 $* |
| Jun-19-2025 | 0.14 $* | 0.84 $* |
| May-19-2025 | 0.49 $* | 0.68 $* |
| Apr-19-2025 | 0.18 $* | 0.33 $* |
| Mar-19-2025 | 0.79 $* | 0.36 $* |
| Feb-19-2025 | 0.16 $* | 0.2 $* |
| Jan-19-2025 | 0.36 $* | 0.60 $* |
Характеристики

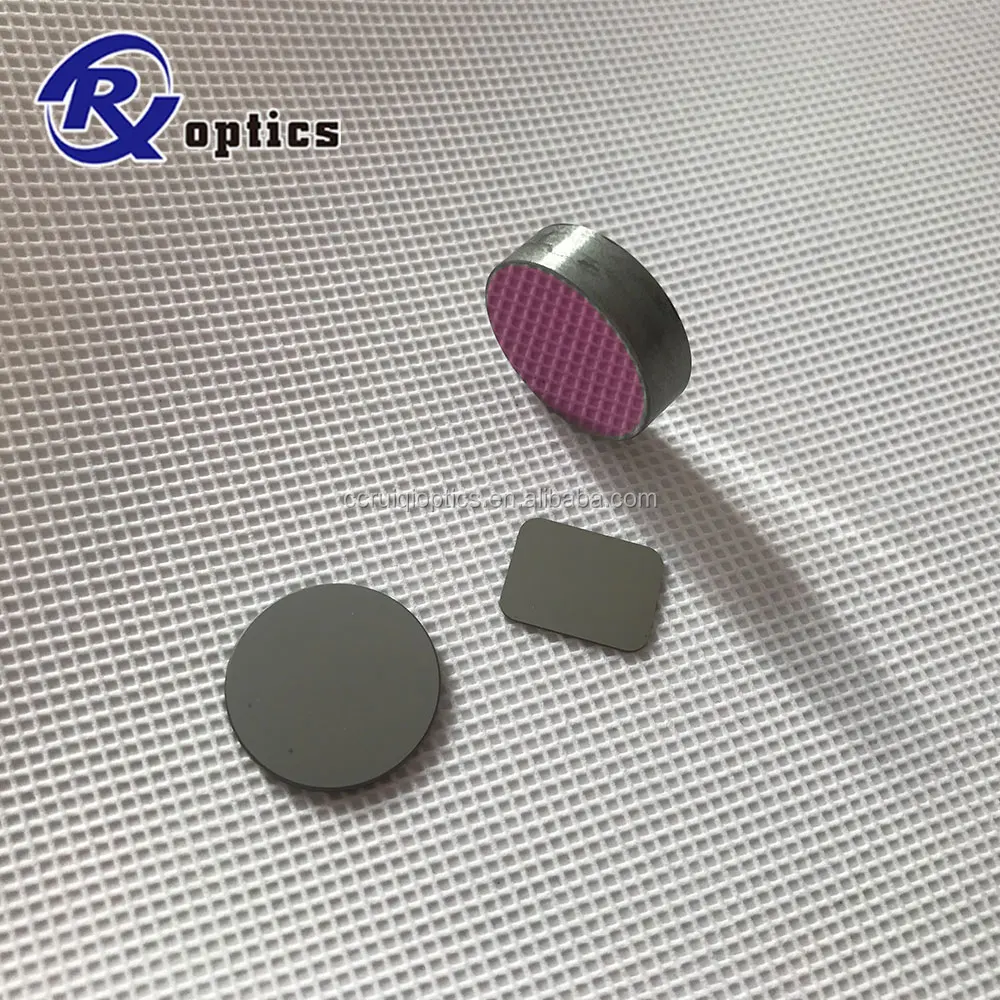

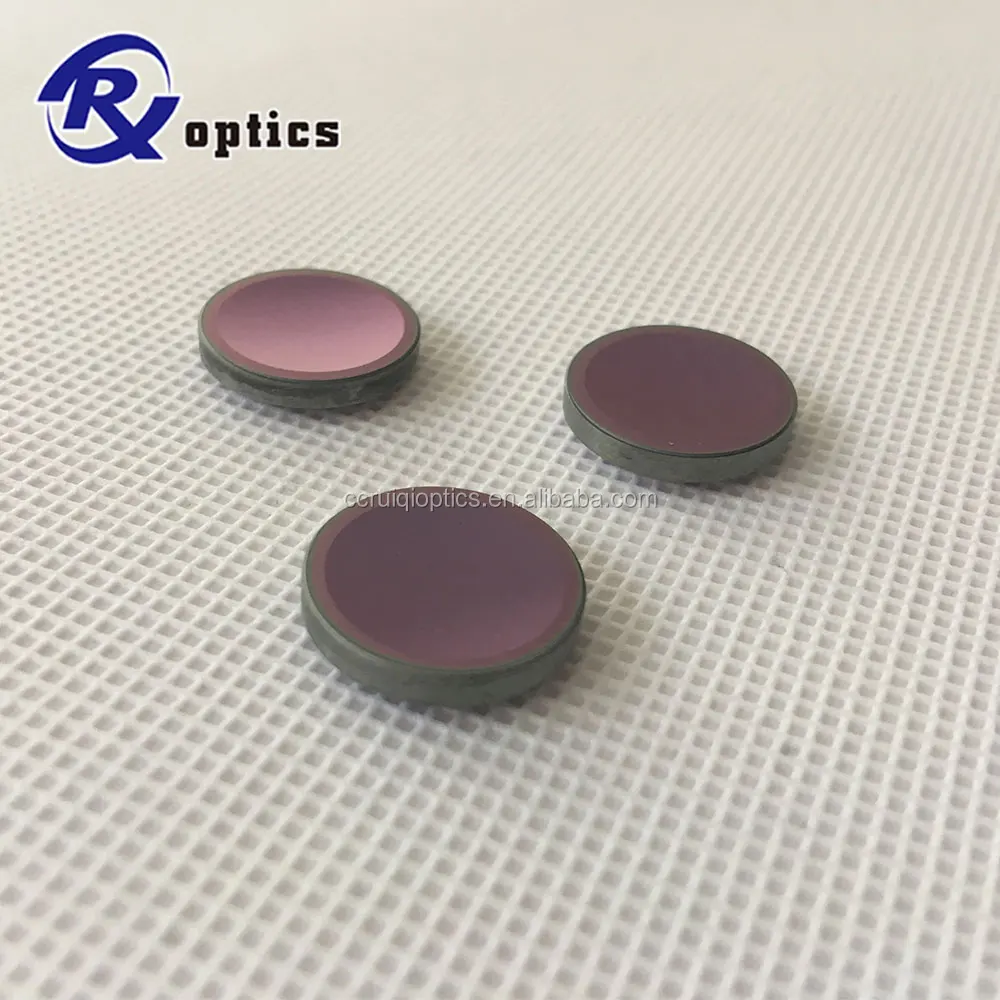

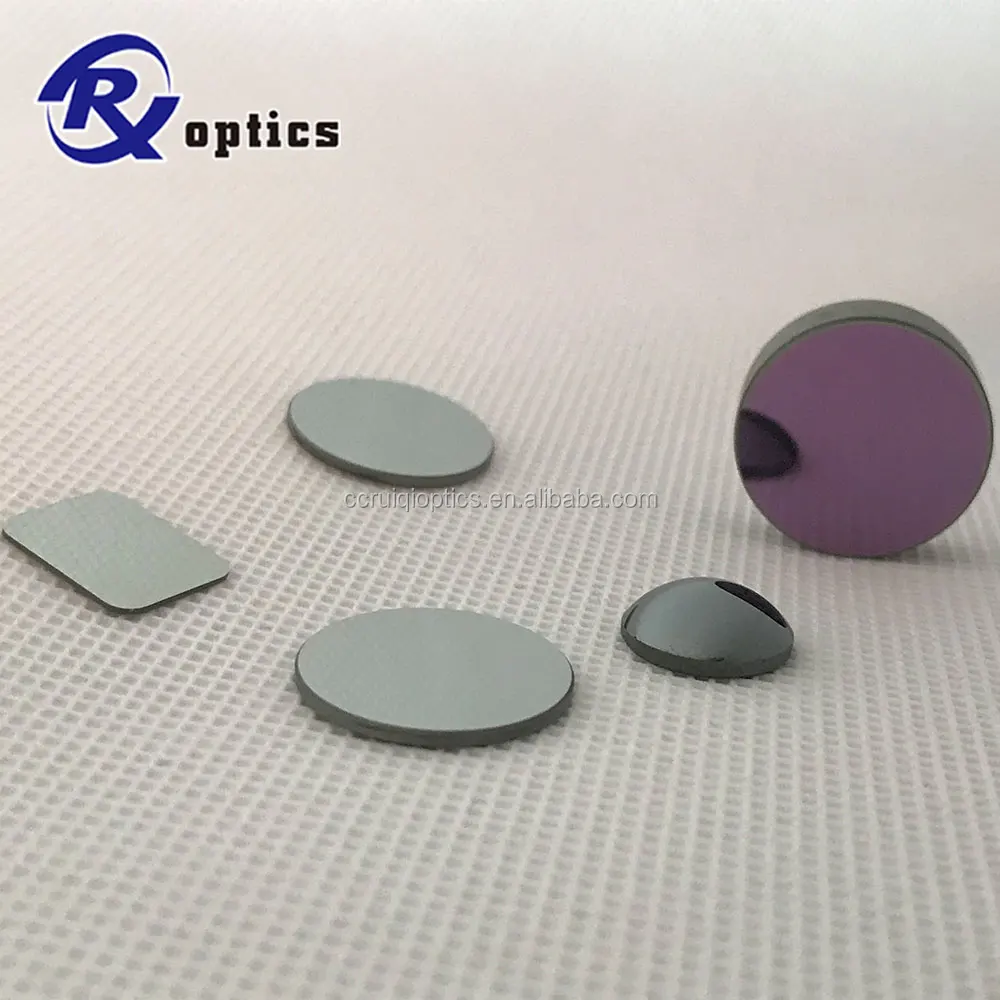

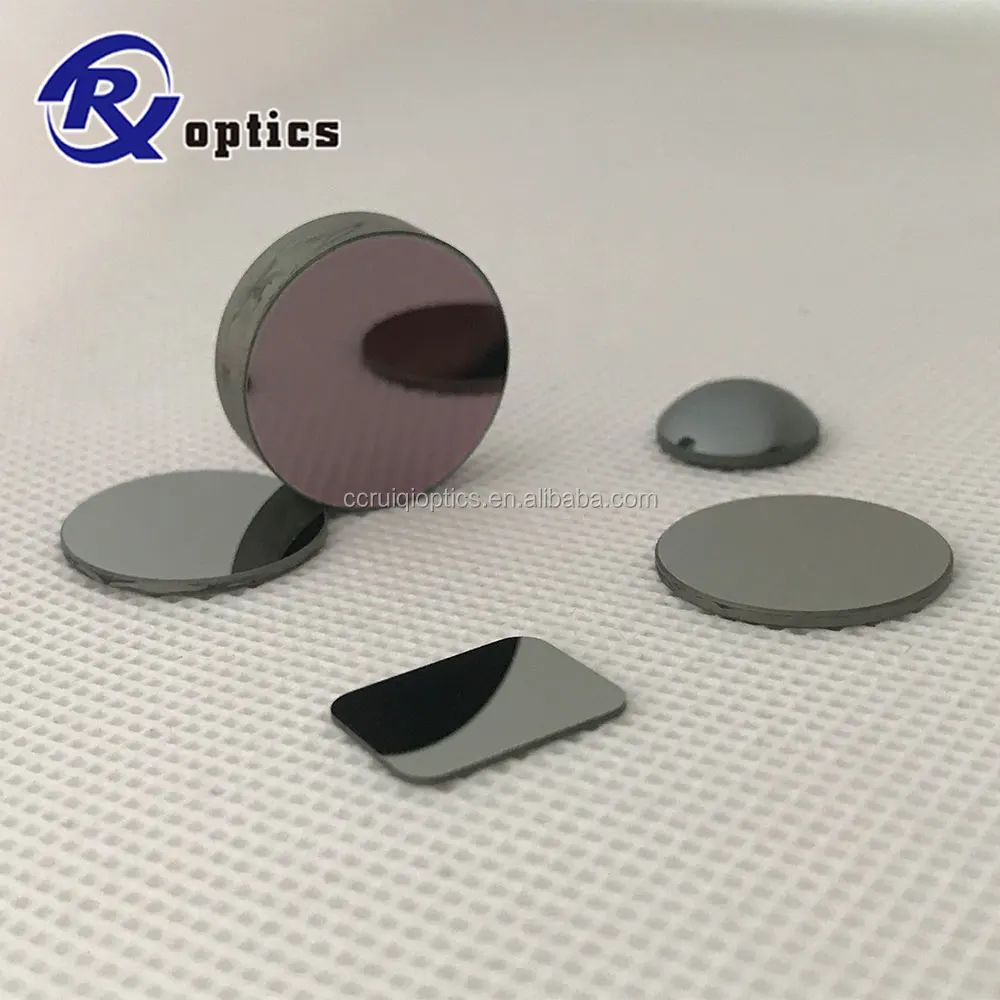

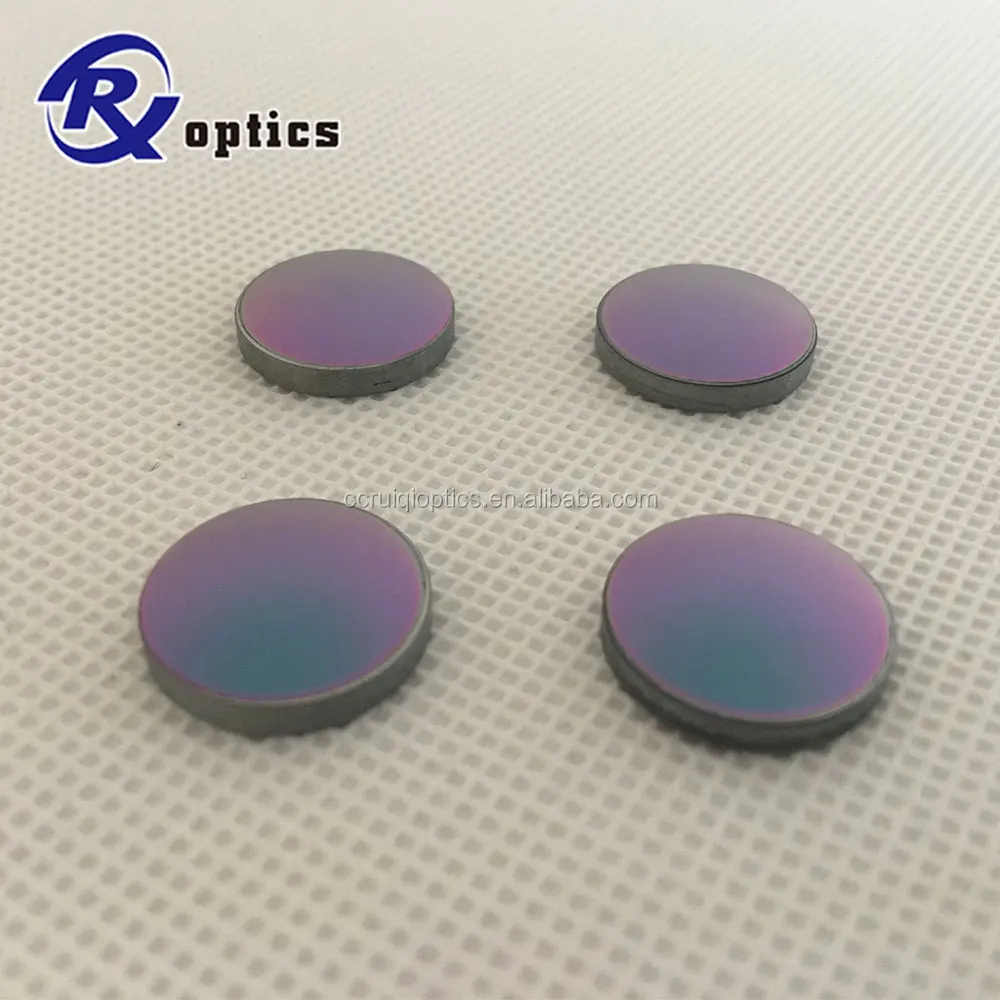

Germanium Plano-Convex IR lenses
Germanium(Ge) Plano-convex lenses are ideal for use in Mid-wave infrared(MWIR)and long-wave infrared(LWIR)
Applications, additionally, Due to thermal runaway, or the decrease in transmisson as temperature increases, Germanium(Ge) lenses should be used at temperatures below 100℃
Germanium windows, DLC coated and AR anti reflection coated as request and available from stock.
We offer AR(antireflection)coating and DLC coating for 7-14um region.It's commonly used on Thermal imaging systerm, and FLIR applications due to it's high transmission in 7-14um
Custom Germanium lenses for Thermal Imaging Cameras, Infrared sectroscopy and Remote sensing are available in any size and configuration at very competitive price.
Technical Specifications:
| Material | Germanium |
| Dimension | 10-100mm circular or square |
| Dimension Tolerance | +0/-0.1mm as request |
| Parallelism | 3arc min |
| Surface Quality | 60/40 |
| Flatness | lambda/4 per 25nm at 632.8nm |
| Type | Circular.Square,Plano convex Customized |
| Edge | 0.2mm*45degree,others are available upon customer request |
| Coating | Anti-Reflective (AR) Coatings,DLC coating |
