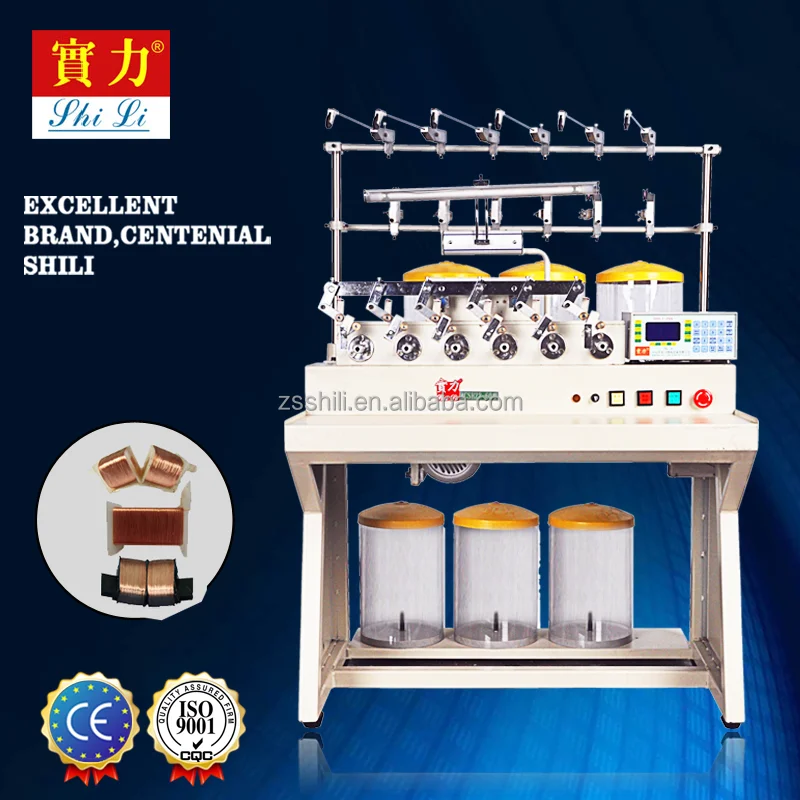

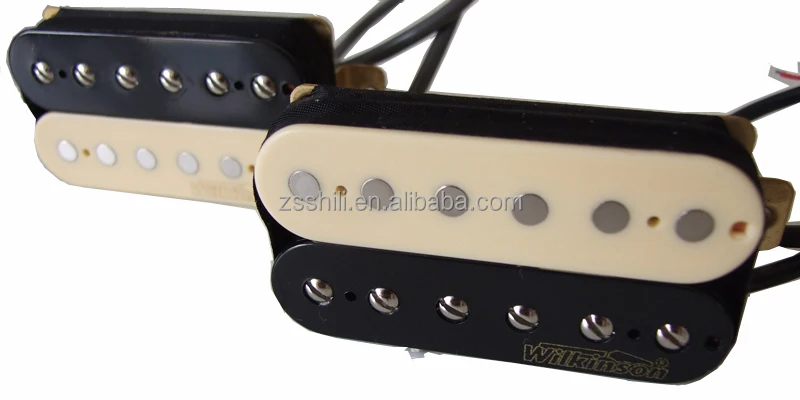

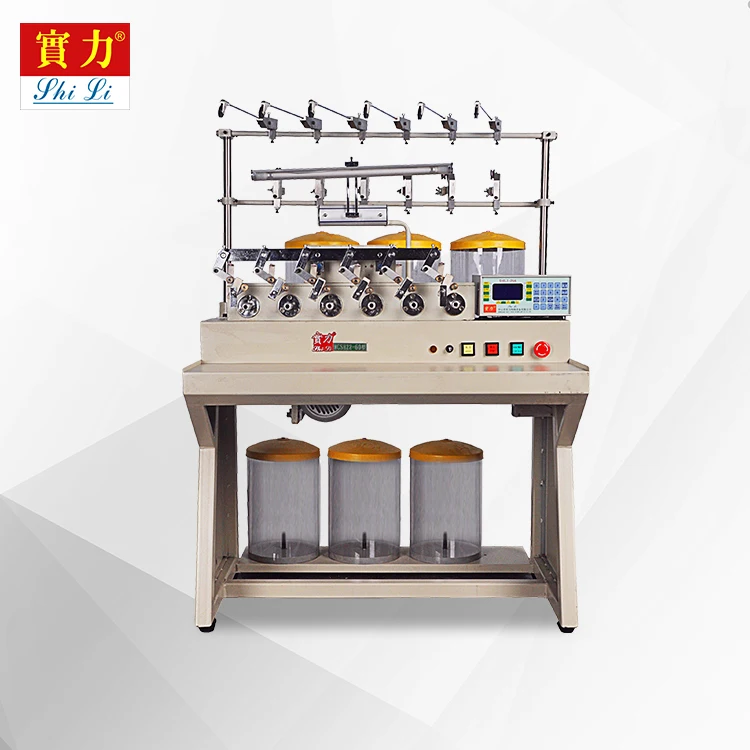

MCSH22-60 Высококачественная шестишпиндельная машина для намотки гитарной
- Категория: Оборудование для изготовления электроприборов >>>
- Поставщик: Zhongshan,Shili,Wire,Winder,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 2975.84 $* | 3124.42 $* |
| Aug-17-2025 | 2950.9 $* | 3098.52 $* |
| Jul-17-2025 | 2475.27 $* | 2599.67 $* |
| Jun-17-2025 | 2900.42 $* | 3045.36 $* |
| May-17-2025 | 2525.21 $* | 2651.1 $* |
| Apr-17-2025 | 2850.11 $* | 2993.48 $* |
| Mar-17-2025 | 2825.65 $* | 2966.78 $* |
| Feb-17-2025 | 2800.12 $* | 2940.39 $* |
| Jan-17-2025 | 2775.74 $* | 2914.85 $* |
Характеристики
Machine Feature
This machine design of 32 bit controller chip, It’ll be faster, and higher reliability. Desktop design, easy operation, functional
excellence.In Chinese and English display,easy to operation,winding data retention after power failure, not to discarded products.
All the parts for this machine are imported prats,such as:Japan Bearing (NSK,NTN),Japan BANDO belt ,Japan GATES belt ,Taiwan Ball
screw (TBI),Taiwan Transducers (Adventist) and so on.
excellence.In Chinese and English display,easy to operation,winding data retention after power failure, not to discarded products.
All the parts for this machine are imported prats,such as:Japan Bearing (NSK,NTN),Japan BANDO belt ,Japan GATES belt ,Taiwan Ball
screw (TBI),Taiwan Transducers (Adventist) and so on.
Function and feature:
a. Using the latest synchronization with the coupling cable controller.
b. With self detection, including setting error, speed tracking and velocity calibration.
c. Optional lifting speed of main spindle.
d. Start moving speed of the spindle motor to climb time to decide
Application range:

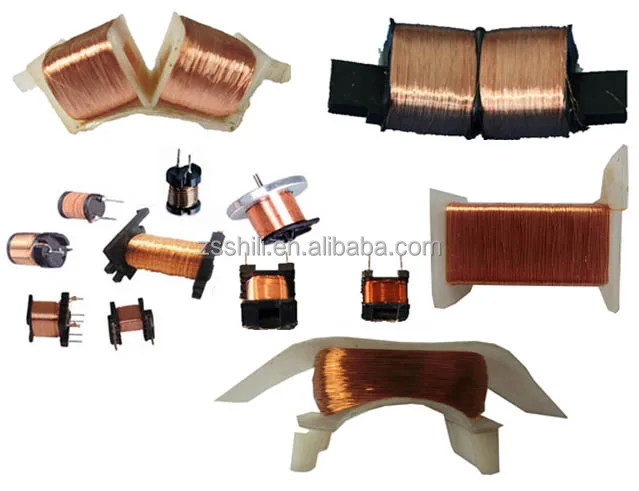

EE transformer,EI transformer,Stepping motor,Relay,coil class,auto ABS,Switch power transformer and special products.
a. Using the latest synchronization with the coupling cable controller.
b. With self detection, including setting error, speed tracking and velocity calibration.
c. Optional lifting speed of main spindle.
d. Start moving speed of the spindle motor to climb time to decide
Application range:
EE transformer,EI transformer,Stepping motor,Relay,coil class,auto ABS,Switch power transformer and special products.
Spindle number | 6 |
Wire size range | 0.05-0.35mm(27 - 44AWG) |
Loop diameter | 60mm |
Max wire spacing | 9.99mm |
Winder width | 60mm |
Max speed | 0-7000 turn/min |
Spindle pitch | 70mm |
Input power | 220V 50HZ/60HZ |
Main motor | AC1/2three phase motor+1HP transducer |
Winder motor | stepping motor |
Machine size | 1000×800×1100mm |
Package size | 1050×850×1140mm |
Net weight | 167kg |
Gross weight | 170kg |
1. Free consultation service before, during, and after sales.
2. Adjusting and inspecting of equipment until everything is functional before leaving the factory.
3. Provide basic production techniques and formulas.
4.The whole set of machine is guaranteed for one year, not including normal consuming parts.
5. One year guarantee for whole machine.
2. Adjusting and inspecting of equipment until everything is functional before leaving the factory.
3. Provide basic production techniques and formulas.
4.The whole set of machine is guaranteed for one year, not including normal consuming parts.
5. One year guarantee for whole machine.
