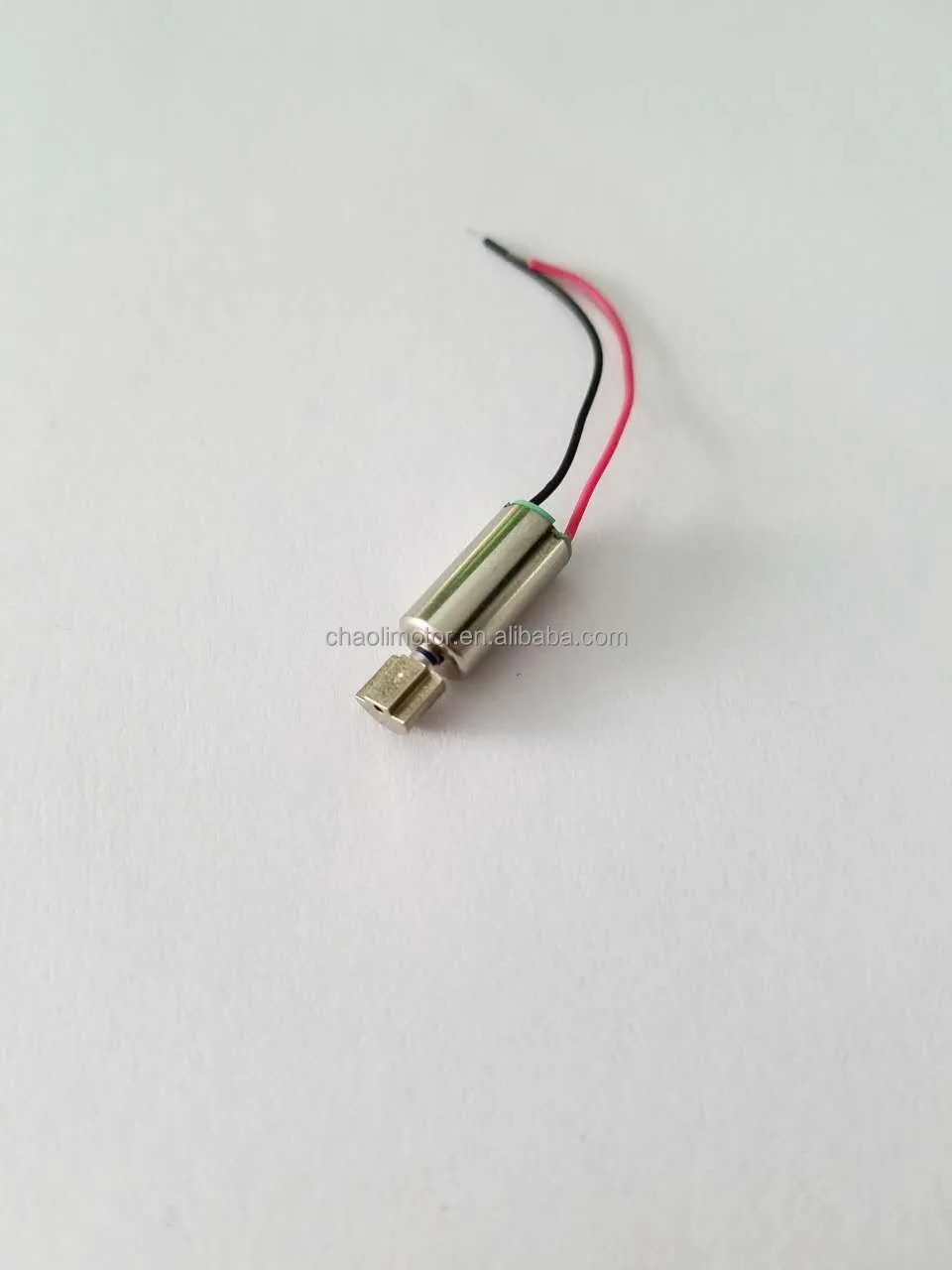

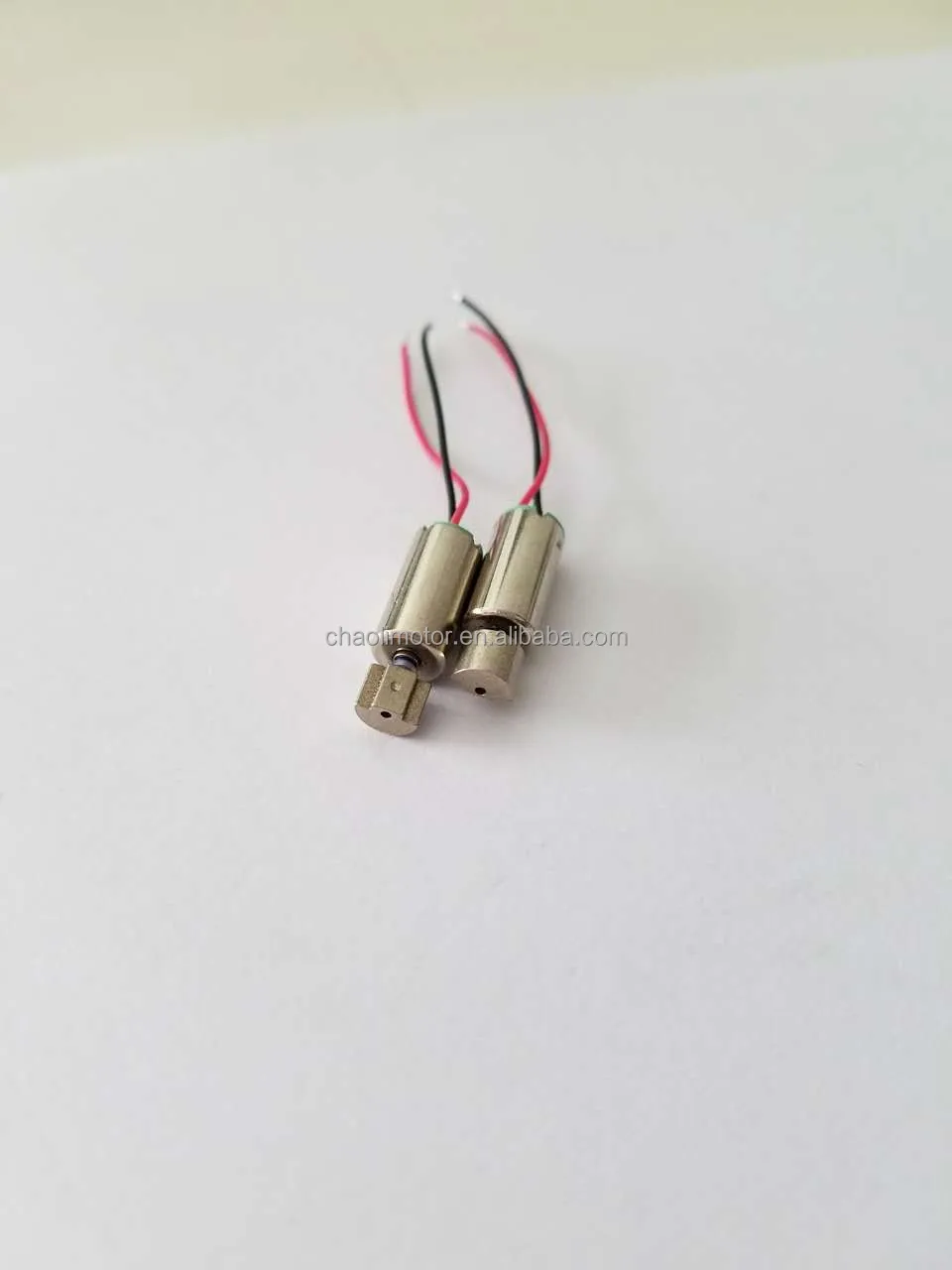

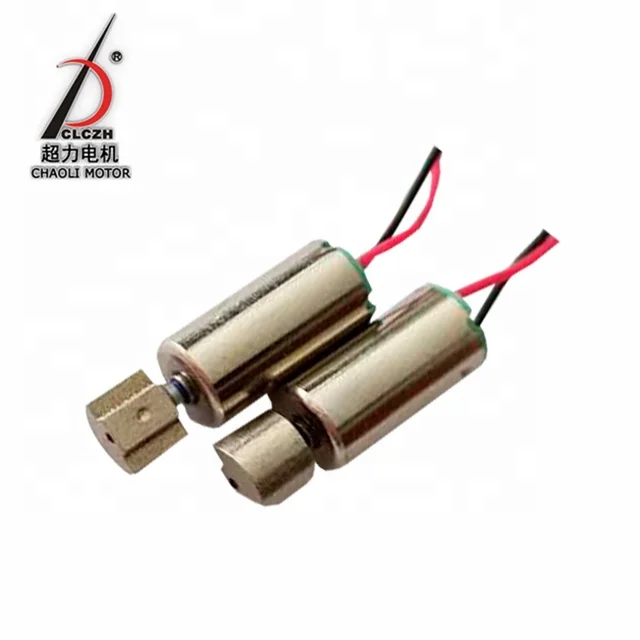

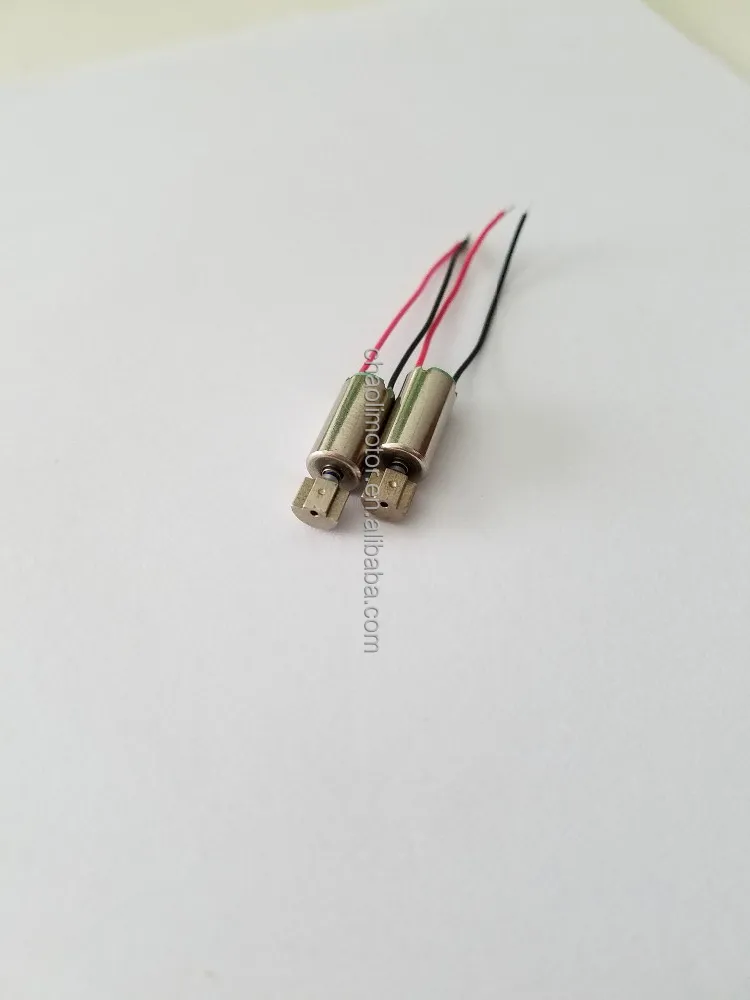

6 мм микро Вибрационный Мотор CL-0610-V игрушкой и 10000 оборотов в минуту 3 0 V для электрической зубной щетки вибрационный

6 мм микро Вибрационный Мотор CL-0610-V игрушкой и 10000 оборотов в минуту 3 0 V для электрической зубной щетки вибрационный

Категория: Vibration Motor >>>
Поставщик: Guangdong,Chaoli,Motor,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.31 $*	0.85 $*
Aug-15-2025	0.86 $*	0.84 $*
Jul-15-2025	0.73 $*	0.26 $*
Jun-15-2025	0.61 $*	0.19 $*
May-15-2025	0.74 $*	0.36 $*
Apr-15-2025	0.70 $*	0.97 $*
Mar-15-2025	0.28 $*	0.2 $*
Feb-15-2025	0.90 $*	0.37 $*
Jan-15-2025	0.20 $*	0.20 $*

Характеристики

Product Description

1.This product

Below are the specifications and structures of the product, for more information, please feel free to contact us.
Furthermore, we provide customizable service of micro dc motor/generator, including consulting, design and manufacture services, all the products are made to your order.

Coreless vibrating motors

Special features/structure:
Motor type: PMDC coreless motor
Motor housing (D*F* L): Φ6*10mm
Housing material: SECD-O
Shaft (diameter): 0.8mm SUS304 steel (nickel coating)
Way of commutation: precious metal-brush
Structure: 2-pole stator and hollow cup type
Magnet type: Nd-Fe-B
Rotation: CW/CCW and reversible
Weight: 2.5g (approximate)
Options:
Length and shape for the extended shaft
EMI/EMC suppression
Gear, eccentric wheel or reducer increased
Magnet type

Micro JST-1.25 plug
Wire diameter and turn number

Key parameters/performance
Rated voltage: 3.0V DC
At no load:
Speed: 12000rpm
Current: 9.0mA
At stall:
Current:0.055 A (maximum)
Torque: 0.94gf.cm

This product is widely used in:

Medical equipment: smart medicine box, blood pressure monitor,blood glucose meter

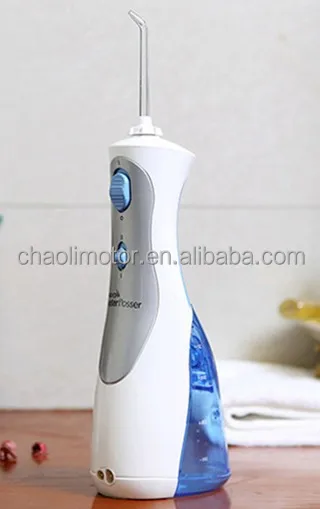

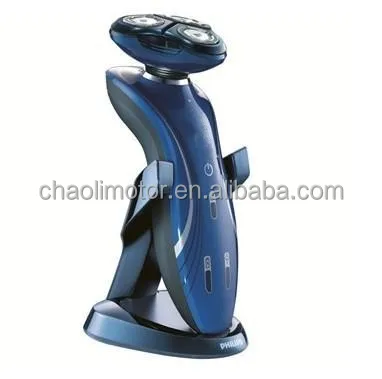

Cosmetic & beauty industry product: electric cosmetic pen, facial cleansing brush, facial massager, eye care massager
Electric toy: aeromodelling, mini drone, quadrocopter,aircraft,UAV
Vibrator: contact lens cleaner, electronic devices,sex product,mobile phone
Servo, precise instruments,robot

Provide high quality, Bring honorable value.

2.Our products

Following are the main products of our company, including coreless dc motors, brush dc motors, brushless dc motors, flat vibration motors and micro generators, etc., covering a wide range of around 1,000 products.
