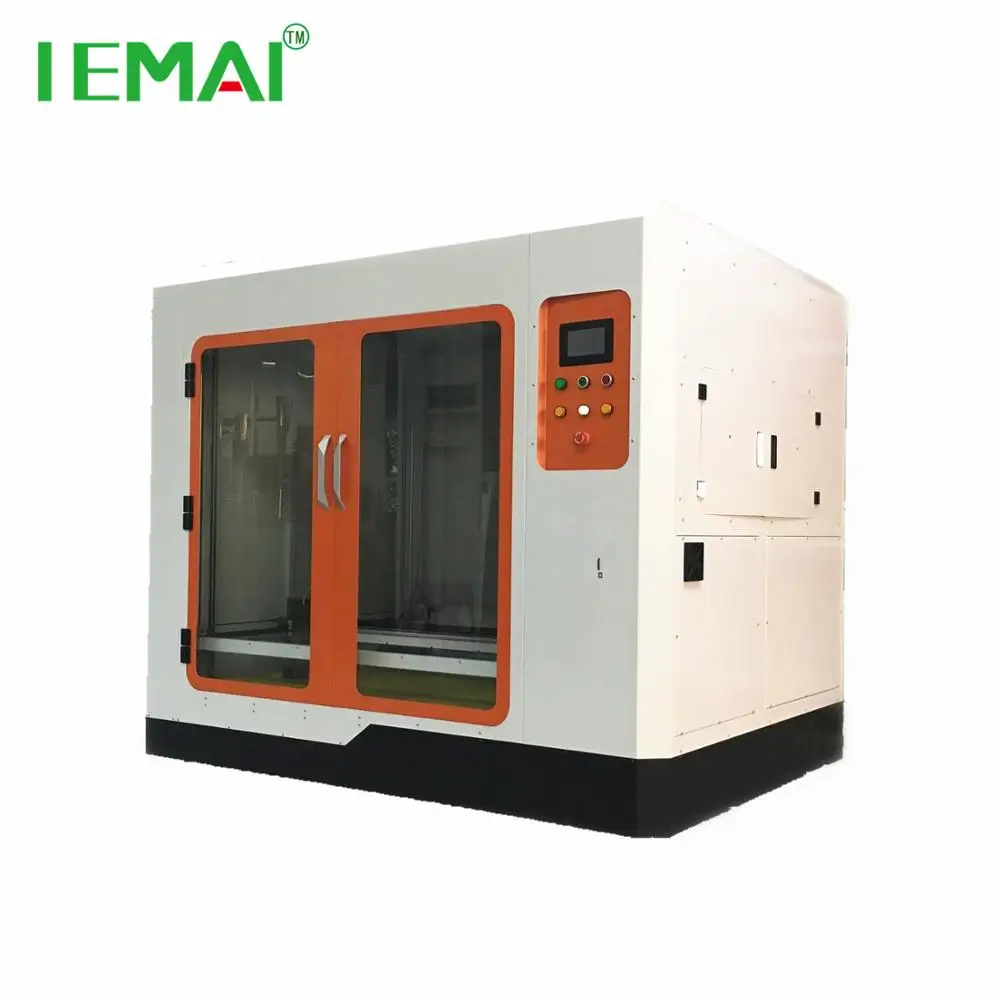

1000 X 1000 X1000mm 3D printer machines with large heated bed impresora 3D industrial for big size 3D printing
Description
YM-NT-750/1000 was designed for precision and professional industrial use, double-headed printing, intelligent operation, Wi-Fi control, cloud printing, power interruption resume , security seal metal frame, accuracy printing, CE and ROHS certification, independent patent and software copyright...
The above is the functional characteristics and qualification certification of IEMAI 3D printer YM-NT-750/1000.
The main advantages of this 3D printer:
1. Printing stability guarantee: X.Y.Z axis adopts industrial linear guide and closed-loop drive motor, magnetic adsorption platform does not move, closed all-metal structure, stable printing, constant cavity temperature 50±5°C. This is essential for clean, vibration-free printing. This is where much of the success of our prints resides, since movement and head accelerations are not transmitted to the printing surface.
2.Silicone heated bed and Printing platform: adopts silica gel heating + aluminum plate platform, high temperature fiberboard, can be heated to 110 °C, reducing warping and cracking. That’s why it’s able to print on the whole range of filaments available in the market.
3. Function points: power failure resume, filament sensor, automatic shutdown after finishing printing, wireless Wi-Fi control, etc..
4. Supports PLA and most of PLA composite materials , supports ABS and modified ABS,PC and modified PC, WOOD, PETG, CARBON FIBER ,PVA and other materials..
5. Double and detachable extruder: adopts quick-release nozzle structure, the maximum print head temperature can be up to 260 °C, two in and two out with two print heads, can use soluble materials or easy to peel print model support, can also be used to print two-color or dual consumables model.
6. Strong structure design: closed metal frame paint (white and orange), matte smooth surface, chassis with pulley, LED lighting inside the electric control box, chassis forklift design, dual filaments built-in.
Technology parameter
We have two models for large size FDM printing.
Here's the technical Parameter of YM-NT-750/1000.
| Parameter | YM-NT-750 | YM-NT-1000 |
Printing Technology: | Fused Deposition Manufacturing Technology | Fused Deposition Manufacturing Technology |
Max build volume: |
750*750*750 mm |
1000*1000*1000 mm |
Dimensions (mm) : |
1642*1110*1320 mm |
1890*1450*1600 mm |
Net Weight (kg) : |
400 kg |
700 kg |
X Y Axis Movement : |
0,005 mm in axis X, Y |
0,005 mm in axis X, Y |
Maximum Print Speed : |
120 mm/s (adjustable) |
120 mm/s (adjustable) |
Maximum Movement Speed (mm/s) : | 250 mm/s | 250 mm/s |
| Z Axis Movement : | 0,0025 mm in axis Z | 0,0025 mm in axis Z |
Minimum layer tickness (mm) : | 0,05-0,3 mm |
0,05-0,3 mm |
| XYZ Precision (mm) : | 0,05 mm | 0,05 mm |
| Number of Extruders supported : | 2 set | 2 set |
| Nozzle Diameter (mm) : | 0,4 mm ( Diameter 0.2,0.6,0.8 can also be used ) | 0,4 mm ( Diameter 0.2,0.6,0.8 can also be used ) |
| Filament Detector : | YES | YES |
| magnetic adsorption platform: | YES | YES |
Hot Bed Maximum Temperature (ºC) : | 110 ℃ | 110 ℃ |
Chamber temperature: | 50±5°C | 50±5°C |
Automatic Shutdown : |
YES | YES |
Anti-blackouts : |
YES | YES |
| SUPPOERT Materials : | PLA ,ABS , PC , Nylon (PA), PETG,POM,CARBON ,HIPS ,PVA,TPU,ETC. PLA ,ABS , PC , Nylon (PA), PETG,POM,CARBON ,HIPS ,PVA,TPU,ETC. | |
Operating Systems : |
Windows, Linux, Mac OS, OSX | |
Languages : | English, Multi-language | English, Multi-language |
Software : | Cura , IEMAI 3D | Cura , IEMAI 3D |
| Formats : | STL, OBJ, GCode, Amf, Dae | STL, OBJ, GCode, Amf, Dae |
Print From : |
SD Card, USB, Wi-Fi |
SD Card, USB, Wi-Fi |
Screen : |
5-inch color touch screen |
5-inch color touch screen |
Print Head Material: |
Aluminum/Copper/Steel/PTFE Throat |
Aluminum/Copper/Steel/P Throat |
Transmission: |
Industrial Belt + Synchronous Wheel |
Industrial Belt + Synchronous Wheel |
XYZ axis stepper motor drive: | with professional expansion closed-loop drive | with professional expansion closed-loop drive |
Packing size | 1800*1550*1300 mm | 2050*1545*1790 mm |
| Packing weight | 450 kg | 780 kg |
Technology
High precision transmission structure,To Ensure smooth printing and smooth operation for high print accuracy | 1.1pcs X-axis linear guide + 2pcs Y-axis linear guides. 2. South Korea Imported DONGIL SUPER STAR HTD Timing Belt, 1pcs for X-axis and 2pcs for Y-axis. 3.Z axis consists of 4 precision ball screws + 4 optic axis, distributed in the four corners 4.Adopt Closed loop servo motor,Professional Driver. 5. The substrate is fixed and the Z axis prints from the bottom up. It is more stable and precise when printing large size products. |
Double Detachable Nozzles | 1. Double Detachable nozzles, convenient and quick switching of different materials or different colors of filament; 2. Each nozzle has 3 fan cooling system to ensure the efficient operation of the nozzle 3. Expansibility. Support printing. |
Special Floor & Heated bed design | 1. Magnetic adsorption Hotbed platform or Vacuum adsorption. 2. There are four screws that can adjust the level, distributed in the four corners of the floor to ensure the level of the hot bed. 3. There are 16 screws distributed on the bottom plate for further fine adjustments to avoid wavy deformation of the hot bed. |
All-metal body, stable base, humanized design | 1. The thickness of the base sheet metal is up to 5.0 mm, which meets the thickness requirements of the car's base sheet metal. 2. The forklift mouth is designed at the bottom,to reduce the risk of damage to the machine during transportation. It also has universal wheels. 3. The thickness of the metal plate is 2.0 mm.The frame uses aerospace-grade aluminum profiles for durability. |
Maximum print temperature 265℃ | Accurate temperature control, high heating efficiency,Support the printing of a variety of materials,avoid warping |
Automatic, easy operationPower-off resume Filament sensor | 1. Recovery of power off accident printing 2. Reminding the material to break 3. Near-end and remote motors Simultaneously deliver printing filament, ensuring smoother printing. 4. 7*24 hours continuously working; Automatically shut down after printing. |
Safe and high versatility | 1. Reasonable wiring and cable layout |
Structure & Parts
Fast detachable type dual nozzle
Fixed build plate
Transmission parts
Application
Summary of Engineering Materials | ||||
Material | Key Characteristics | Applications | ||
ABS | Multi function(strong) | High requirement prototype | ||
PETG | Transmittance | Tail lens and steering lamp Perspective, functional prototype | ||
ASA | UV stability and best aesthetic sense | End use parts for outdoor use Sports goods Building material | ||
PC | Sturdy (tension) | High requirement prototype Manufacturing tools, fixtures and carriers Composite tools and moulds and metal bending | ||
Summary of Normal Materials | ||||
Material | Key Characteristics | Applications | ||
PLA | Environmental degradation | Education | ||
TPU | Flexible material | Sole,Clothes & Accessories | ||
Carbon | Low density | Education,Automotive | ||
Summary of Support Materials | ||||
Material | Key Characteristics | Relative material | ||
PVA | Water solubility | PLA,PETG,ASA | ||
HIPS | Soluble in limonene | PC,ABS,PA | ||
Easy Support | Easy to dismantle | PLA,ABS,PETG,PC,ASA | ||

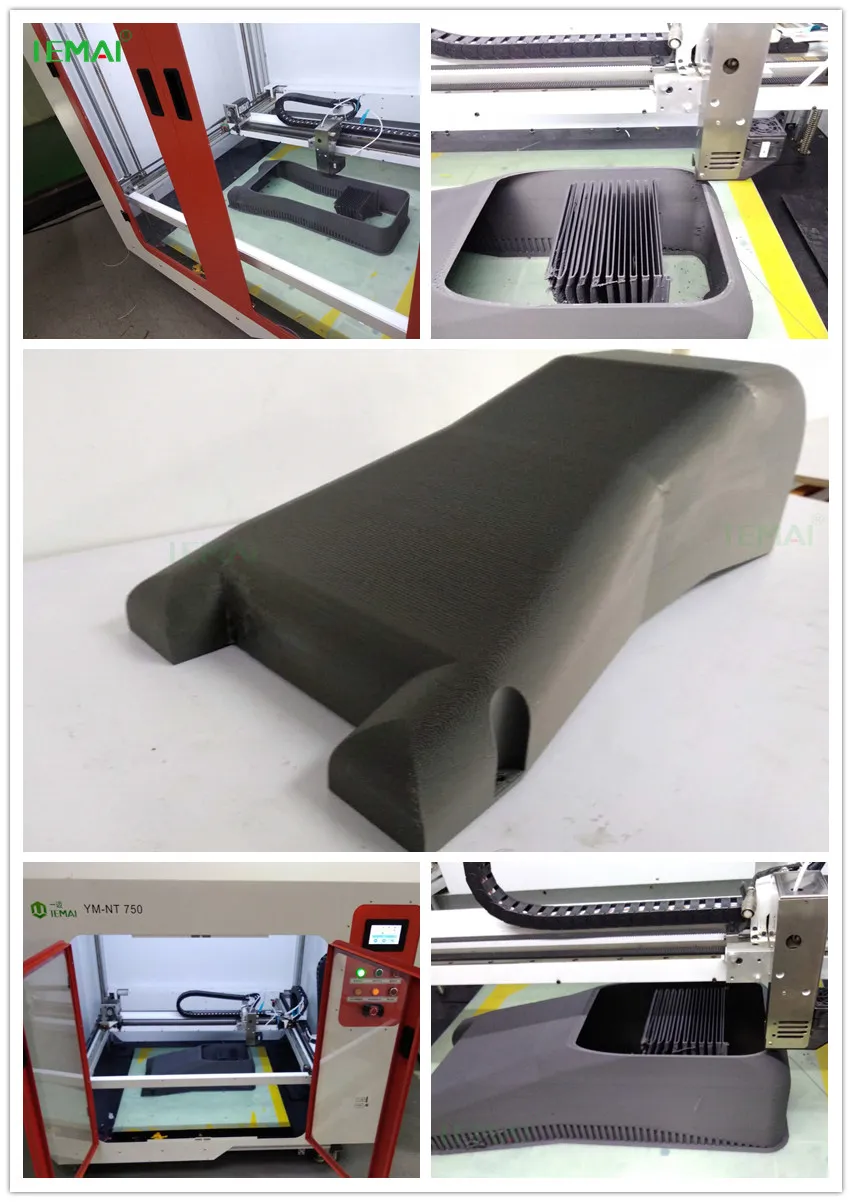

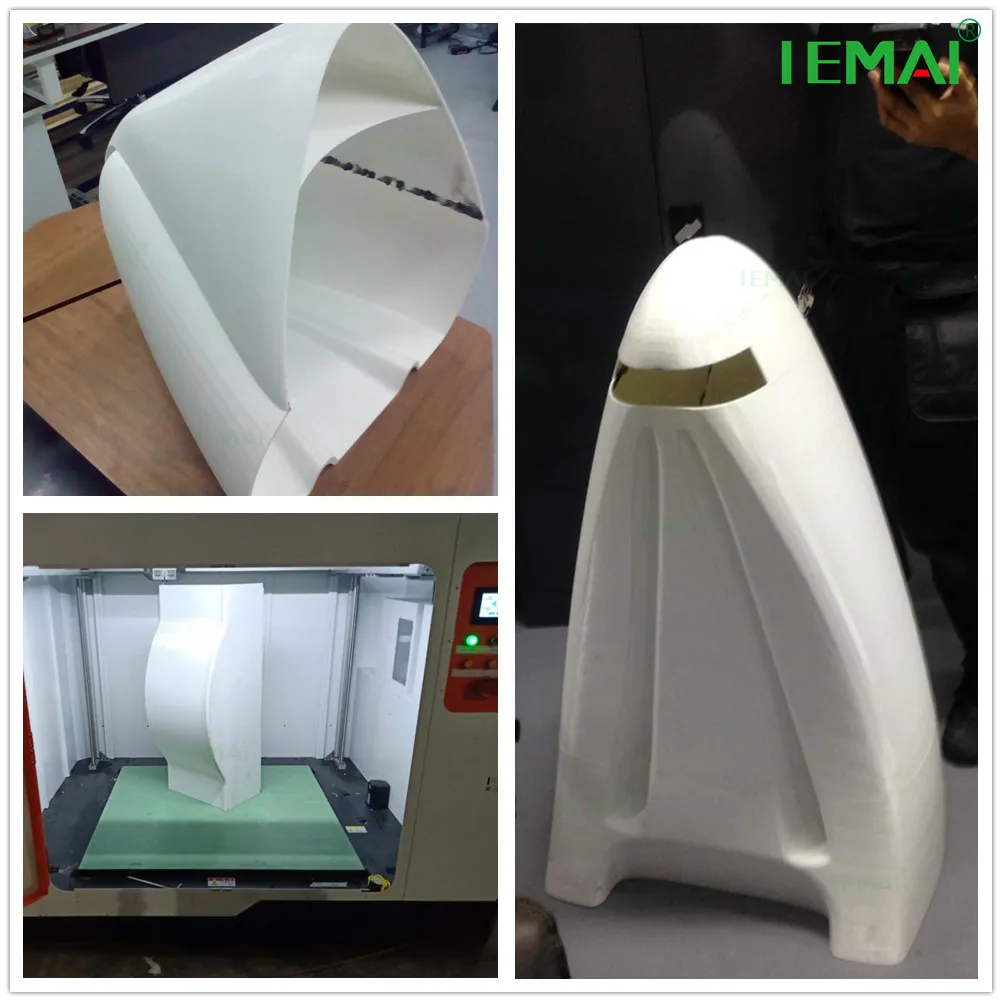

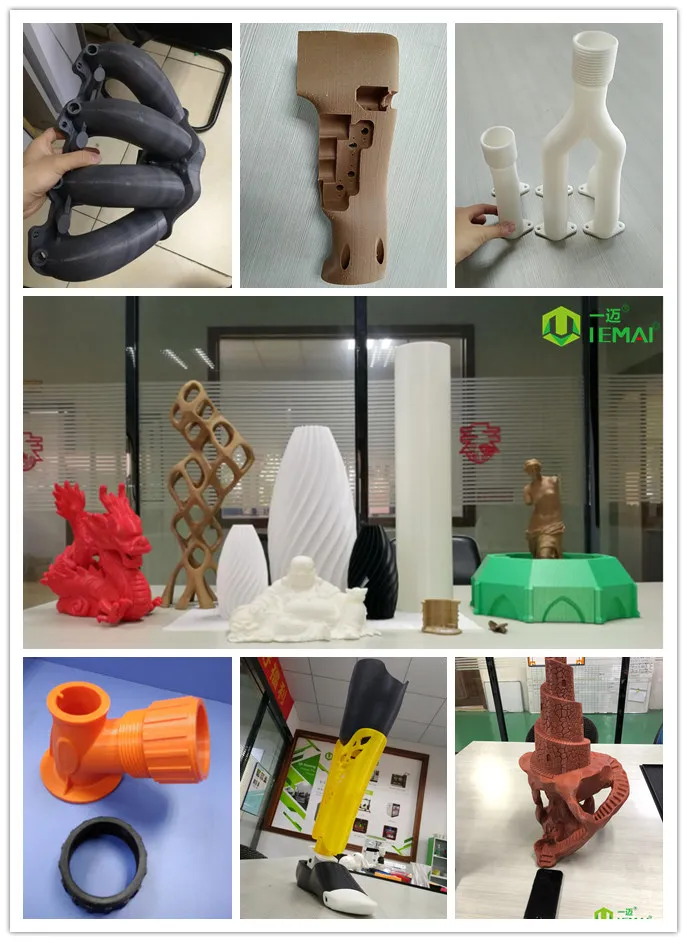

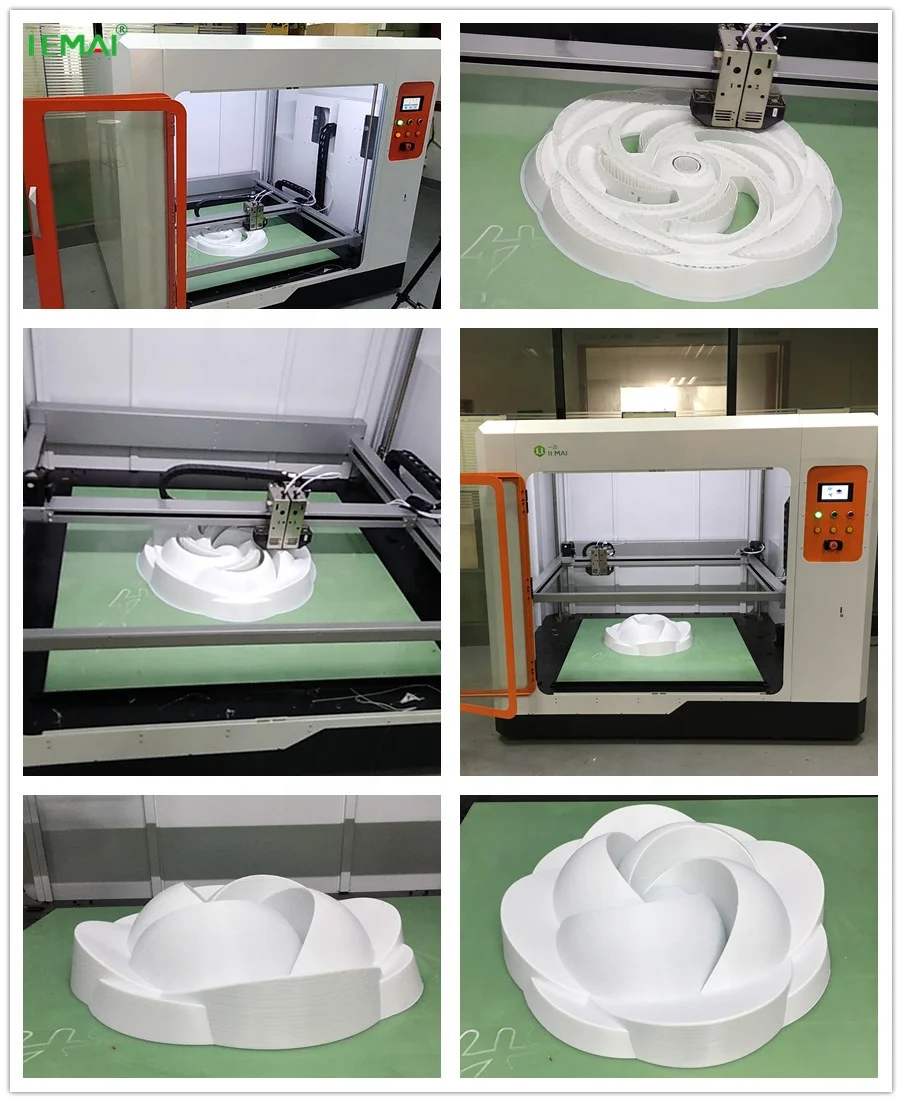

Printing samples
Company Information
Dongguan Iemai Intelligent Technology Co.,Ltd is a high technological enterprise which specialized in producing 3D printers and 3D filaments in the Pearl River Delta of China. IEMAI 3D develops, manufactures, and sells high performance functional materials and Industrial 3D printing solutions.
IEMAI is committed to the highest manufacturing design and quality standards where all 3D printers have received ROHS and CE certifications. IEMAI is committed to the research and development of core technology, and we have software copyright and invention patents.
Today, IEMAI's 3D printing solutions cover the aerospace, automotive, oil and gas, medical, dental and electronics manufacturing industries.
Our Main products:

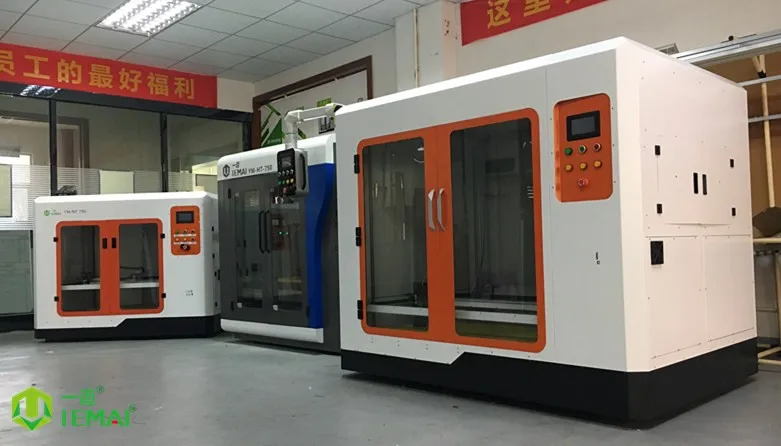

1. Large printing size industrial series: YM-NT-750, YM-NT-1000.
2. High performance materials high temperature 3D printing series: MAGIC-HT-M, MAGIC-HT-L, MAGIC-HT-PRO, YM-HT-750.
3. Desktop 3D printers: MAGIC-L , YM-S400, YM-S600. MAGIC-M, MAGIC-S, MAGIC-PRO.
4. 3D Letter printing machine: YM-4020 , YM-600.
5. 3D printing consumables, including PEEK, PEI ( ULTEM ) , PPSU , PLA, ABS, PETG, PC, CARBON FIBER, TPU , TPE, PVA, HIPS, METAL , PA6, etc..
Our certification:
- 8 Patents.
- CE , Rohs certification.
- 1 software copyright
- Our trademark has been authorized by China, EU, and the United States.
- China High-tech Enterprise Certificate
Please click the pictures below to visit our homepage.
Contact Us
When you send inquiry, please let us know :
what do you want to print? ( for what application?)
What kind of materials do you want to print? PLA,ABS,PC?
What's the max printing size do you need?
We will give you professional advice and competitive price.
Before placing order, we also provide 3d printing service, if you want to see samples, please send us STL file, we will charge you BASIC cost only.During printing your samples, we will make video and photos ,and send to you.
30-50% Prepayment in advance is acceptable. When machine is ready, you send us STL file for test, we will send you video and photos for checking. After finishing test, balance should be paid before shipment.
Our factory located at Dongguan city, it's near Guangzhou and Shenzhen. Now we do have partners in Spain, France,Germany, Italy , Greece, Czech Republic, Japan, India, Argentina, Brazil, Peru,Mexico,Singapore, etc.
Welcome to visit our factory at Dongguan city.
