1260 л.с. оценка 128 кг/m3 160 печи изоляции из керамического


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 0.91 $* 0.37 $*
Aug-19-2025 0.82 $* 0.64 $*
Jul-19-2025 0.72 $* 0.39 $*
Jun-19-2025 0.43 $* 0.27 $*
May-19-2025 0.42 $* 0.59 $*
Apr-19-2025 0.76 $* 0.17 $*
Mar-19-2025 0.88 $* 0.62 $*
Feb-19-2025 0.30 $* 0.14 $*
Jan-19-2025 0.14 $* 0.66 $*

Характеристики



Product Description


Ceramic fiber blanket with the advantage of uniform quality, smoothly surface, pure white color, completely inorganic, good tensile strength, toughness and fiber structure, so there are no flames when heating for the first time, the working temperature ranges from 950°C to 1430 °C.


Ceramic fiber blanket is produced from high strength ceramic fibers and is double needled to provide exceptional handing strength.


We can provide effective solutions to a wide range of thermal management problems. Utilizing our proprietary high output blowing and spinning techniques, these products supply superior insulating performance, flexibility and resilience.





ProductCharacteristics


1. Good anti-stripping performance.


2. Excellent machining performance.


3. Resistance to wind and erosion, long service life.


4. Low thermal conductivity, low thermal capacity.


5. Excellent thermal stability and shock resistance.


6. Excellent tensile strength, good flexibility.


7. Excellent heat insulation, fire prevention, sounds absorption performance.


8. Easy cutting and installation.





Product Application


1. Ceramic industry: Kiln car insulation and seal, continuous and batch kiln.


2. Steel industry: Heat treating and annealing furnace, furnace lining and seals, reheating furnace and ladle covers, furnace hot face repairs, soaking hit covers and repairs.


3. Refing and petrochemical:  Reformer and pyrolysis lining, tube seals, gaskets and expansion joints, high temperature pipe, duct and turbine insulation; crude oil heater lining.


4. Power generation: Boiler insulation, expansion seals and covers insulation.


5. Others:  insulation of commercial dryers and ovens, refractory materials, glass furnace insulation, fire protection.





Technical Data























































































































Item



Common Grade



Standard Grade



High Pure Grade



High Alumina


Grade



Zirconium Grade



Color



White



Pure white



Pure white



Pure white



Pure white



Classification temp. (°C)



1100



1260



1260



1400



1430



Use temp. (°C)



950



1000



1100



1200



1350



Theoretical density (Kg/m3)



64/96/128



64/96/128



64/96/128



96/128/160



96/128/160



Shrinkage on heating (%)



950°C×24h


≤-3



1000°C×24h


≤-3



1100°C×24h


≤-3



1200°C×24h


≤-3



1350°C×24h


≤-3



Tensile Strength (MPa)



0.04



0.04



0.04



0.04



0.04



Thermal conductivity


(w/m.k) (Physical volume density 128 Kgs/m3)



0.09(400°C)
0.16(800
°C)



0.09(400°C)
0.16(800
°C)



0.09(400°C)


0.16(800°C)
0.20(1000
°C)



0.12(600°C)
0.20(1000
°C)



0.16(800°C)
0.20(1000
°C)



AL2O3



44%



46%



47-49%



52-55%



39-40%



AL2O3+SiO2



96%



97%



99%



99%



82-84%



ZrO2



-



-



-



-



15-17%



AL2O3+SiO2+ZrO2



-



-



-



-



99%



Fe2O3



≤1.2%



≤1.0%



≤0.2%



≤0.2%



≤0.2%



Na2O+K2O



≤0.5%



≤0.5%



≤0.2%



≤0.2%



≤0.2%







Product Size



























Item



Dimensions



Length



14400mm, 7660mm, 7200mm, 3600mm



Width



600mm, 610mm, 1220mm



Thickness



10mm, 20mm, 25mm, 30mm, 40mm, 50mm



Density



64 kg/m3, 96 kg/m3,128 kg/m3, 160kg/m3

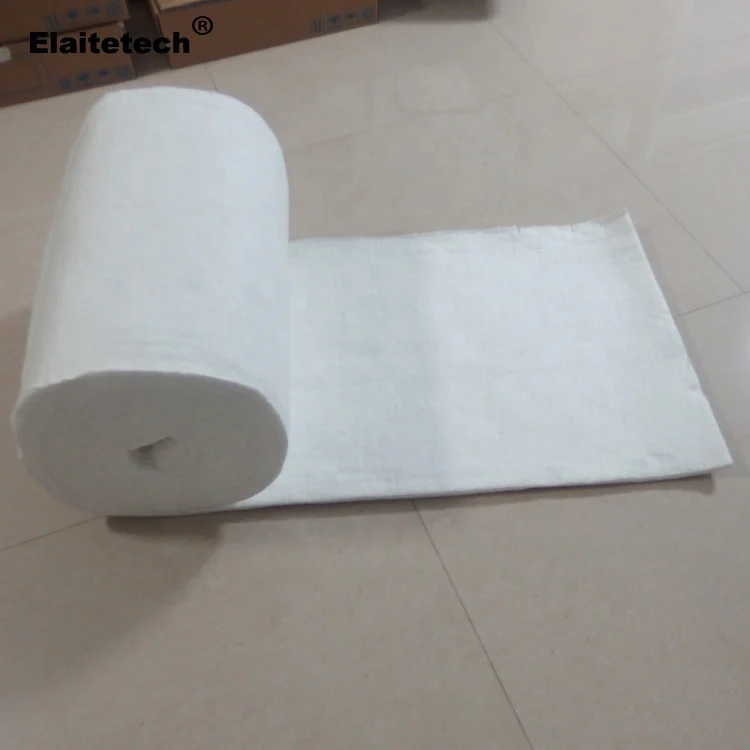

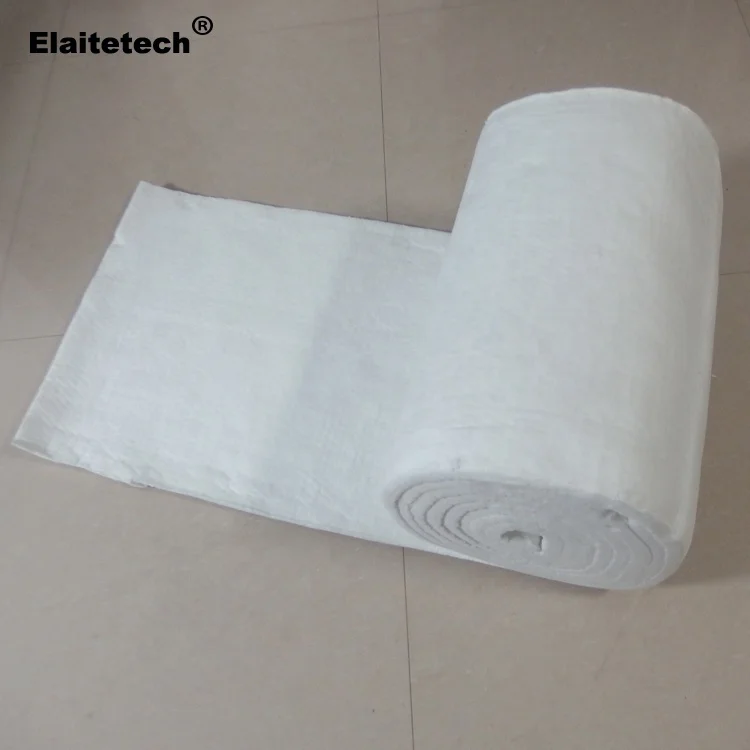

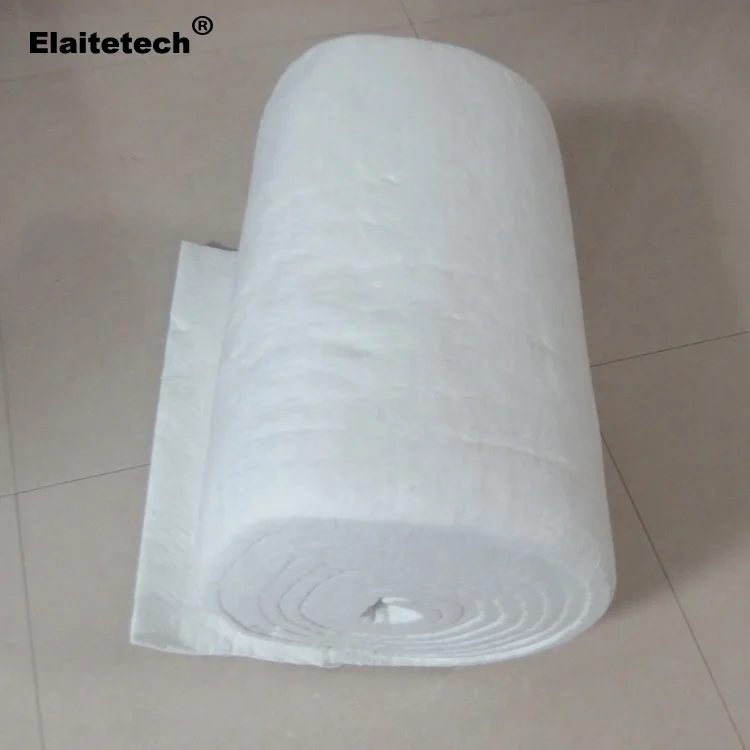

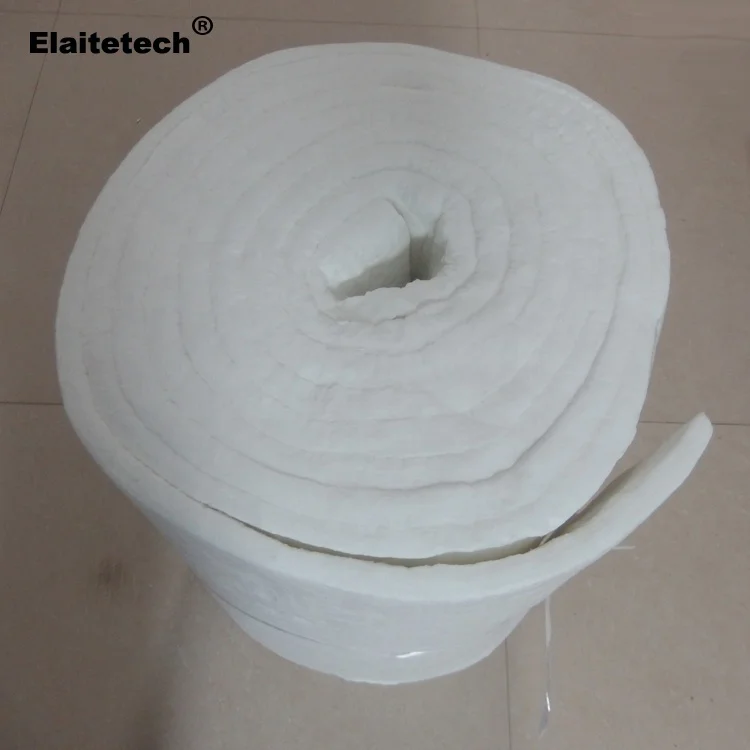

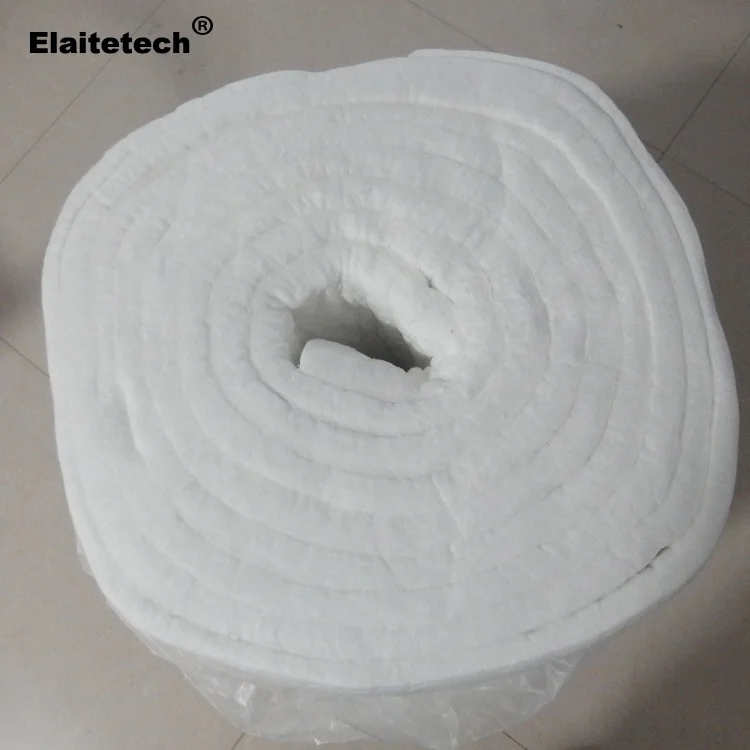

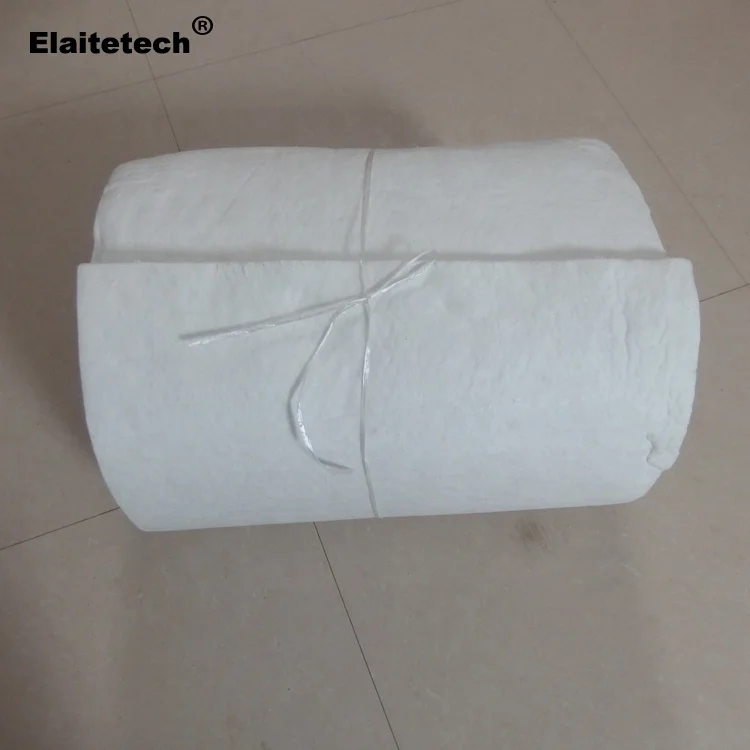

Products show







Product Series







Packaging & Shipping







Contact Us
