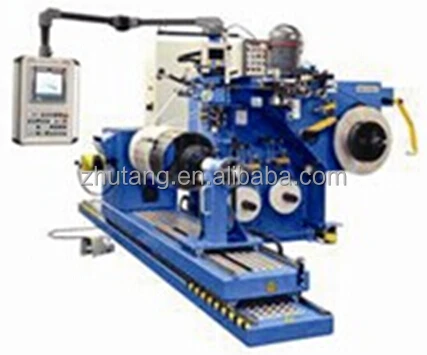

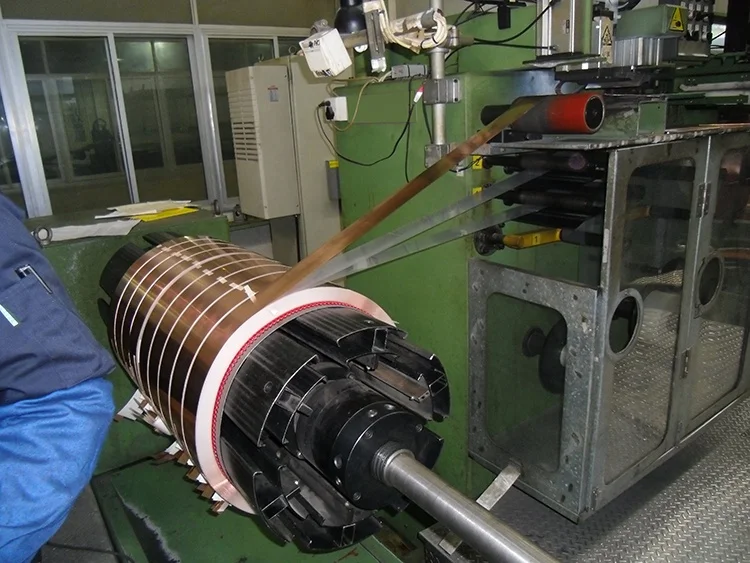

Full Automatic High Voltage Transformer Foil Winding Machine:



1. Functional features

1)Constant tension with setting of two tension sections: low and high and automatic deflection
correction is achieved in the winding process.
2)Preset stop point and pre-welding of the outgoing block can be achieved.
3)The coil can be positioned via the accurate axial movement according to the setting and has
the function of infrared laser positioning.

2.Components of the device

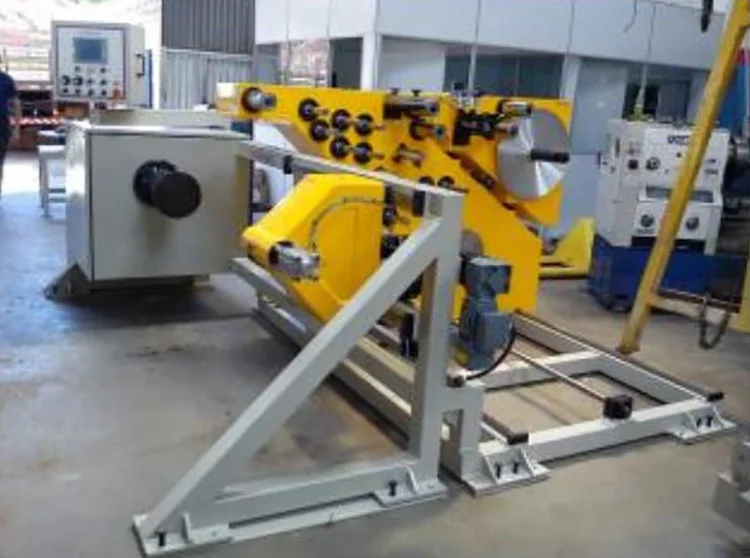

1) Decoiling machine

2) Cleaning device

3)Burr pressing device

4)Interlayer insulation device

5)Automatic welding apparatus

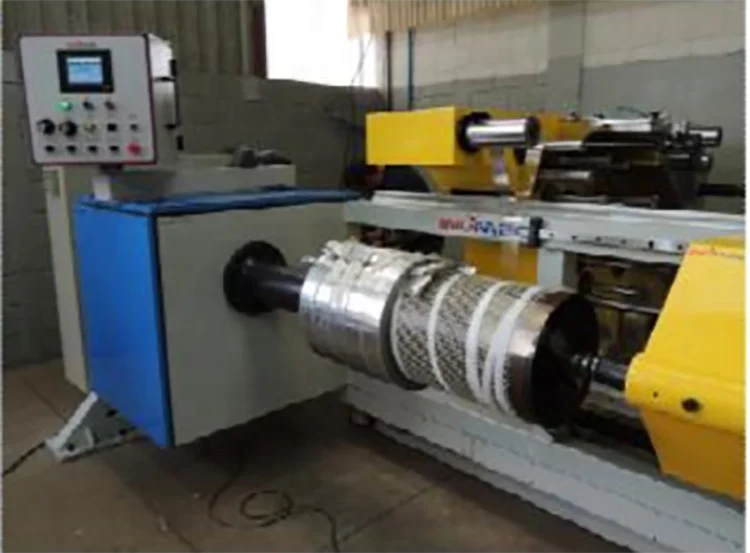

6)Coiling machine

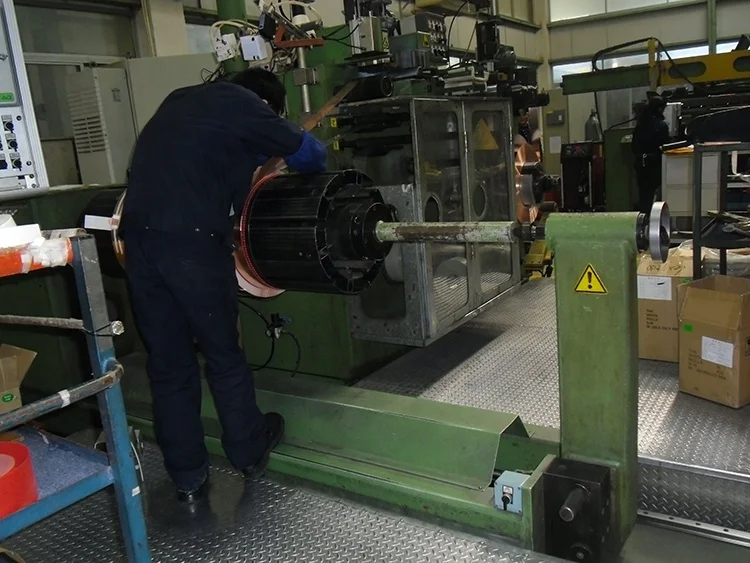

7)Moving mechanism of the coiling machine

8)Electrical control system

3.Main technical parameters of Automatic High voltage foil winding machine

Parameters of the foil roll		Parameters of the insulation roll		Parameters of the coil
Foil width	20-200mm	Length	25-250mm	Length	20-1400mm
Foil thickness	0.2-3.0mm	Thickness	0.015-0.250mm	Tension	0-10N/m m2
Foil thickness	0.1-2.5mm	Tension	10-250N	Outer diameter of the coil	100-1000mm
Foil tension	50-3,000N	Dilatationshaft (76mm)	74-78mm	Weight of the coil	Max.1,000kg
Diameter of unreeling machine	280-330mm	Outer diameter of the roll	Max.400mm	Torque	Max.1,800Nm
Outer diameter of the roll	Max.1,000mm			Winding speed	Max.90rpm
Weight of the roll	Max1,000kg			Motor power	18.5kw
