Ведущая в мире профессиональная эффективная система горячей воды плоский Солнечный
- Категория: Солнечные коллекторы >>>
- Поставщик: Dezhou,BTE,Solar,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 107.42 $* | 112.4 $* |
| Aug-15-2025 | 106.35 $* | 111.66 $* |
| Jul-15-2025 | 89.95 $* | 93.7 $* |
| Jun-15-2025 | 104.65 $* | 109.43 $* |
| May-15-2025 | 91.68 $* | 96.73 $* |
| Apr-15-2025 | 103.26 $* | 108.55 $* |
| Mar-15-2025 | 102.39 $* | 107.32 $* |
| Feb-15-2025 | 101.43 $* | 106.48 $* |
| Jan-15-2025 | 100.61 $* | 105.28 $* |
Характеристики
1. The high weather-proof selective absorbing film from full-automatic magnetron sputtering production line developed by Bontel;

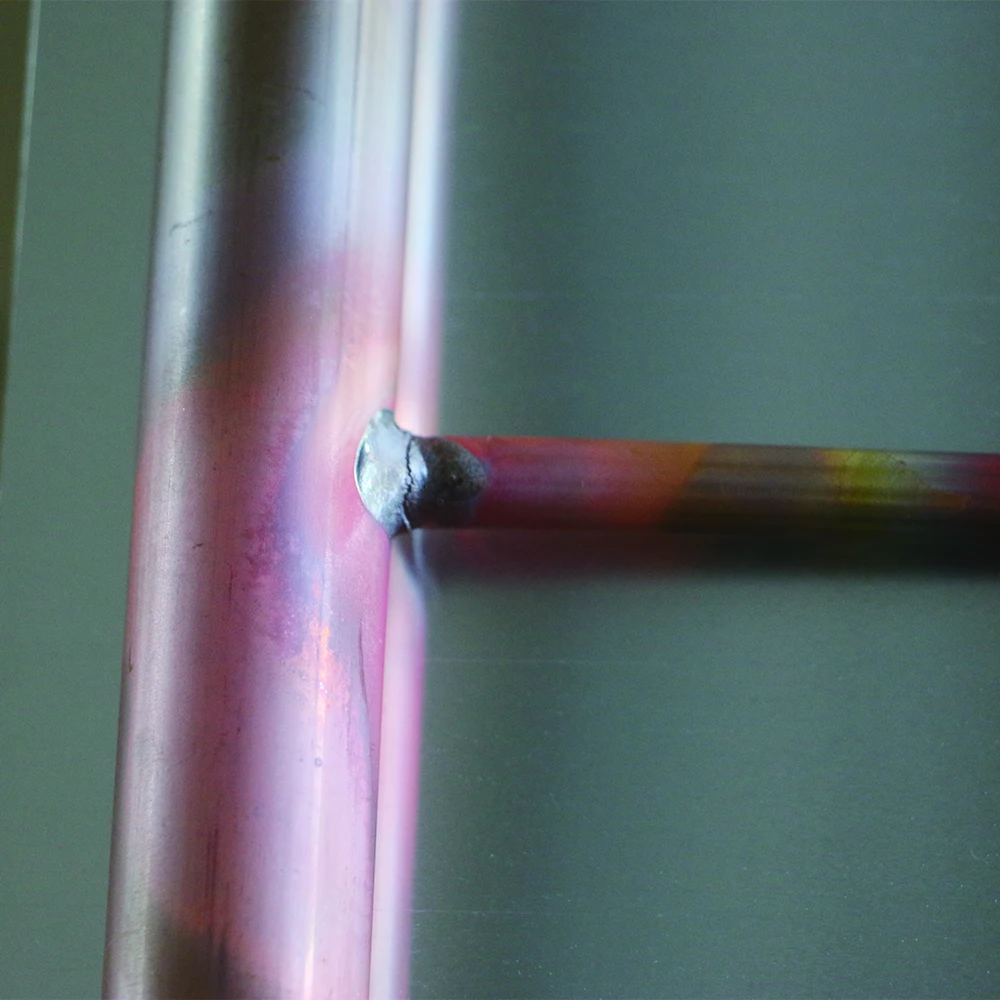

2. With Bonding heat transferring technology and laser welding technology;
3. High quality low-iron tempered glass with surface treatment to get high transmittance and low emittance;
4. Circulation fluid in closed copper pipes, no glass tubes. So collectors without corrosion and circulation fluid leaking;

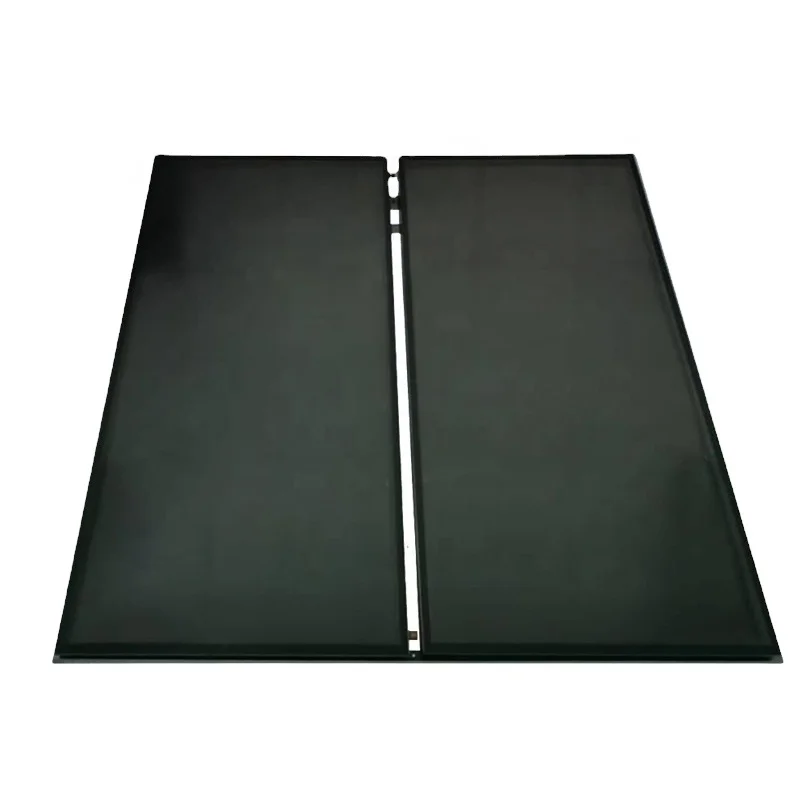

5. The solid built-in absorber plate can absorb all solar radiation improve working efficiency and integrated well with buildings.
Specification
Specification | BTEB-I/0.6-L-2.0 | BTEF-I/0.6-L-2.0 | BTEG-I/0.6-L-2.0 | ||
Film | Black Film | Blue Film | Germany imported Blue Film | ||
Overall size(mm) | 1000x2000x80/95 | 1000x2000x80/95 | 1000x2000x80/95 | ||
Frame | 1.0mm Aluminum | 1.0mmAluminum | 1.0mm Aluminum | ||
Absorption area (square maters) | 1.89 | 1.89 | 1.89 | ||
Header pipe | CopperTP2 Φ22x0.6 | CopperTP2 Φ22x0.6 | CopperTP2 Φ22x0.6 | ||
Grid pipe | CopperTP2 Φ10x0.5 | CopperTP2 Φ10x0.5 | CopperTP2 Φ10x0.5 | ||
Cover material | 3.2Low-iron tempered -glass | 3.2Low-iron tempered -glass | 3.2Low-iron tempered -glass | ||
Transmittance | ≥92% | ≥92% | ≥92% | ||
Bottom cover | 0.50mm Hot galvanized plate | 0.50mm Hot galvanized plate | 0.50mm Hot galvanized plate | ||
Insulation | Bottom: glass fiber frame: polyester fiber | Bottom: glass fiber frame: polyester fiber | Bottom: glass fiber frame: polyester fiber | ||
Working Pressure | 0.8MP | 0.8MP | 0.8MP | ||
Remark | 1. Frame: Aluminum 6063-T5; 2. Our full automatic production line can produce different specification products according to your own requirements; 3. We can supply Self-cleaning Glass for all collectors. | ||||
Products Advantages
All products tested 3 times before delivery and can offer 5 years warranty.
BTE has CE, Solar KeyMark and ISO9001 certification. Ranked the TOP 3 in the solar thermal world.
We can accept OEM & ODM orders. Solar Collectors have high efficiency and long working life.
Product Compared

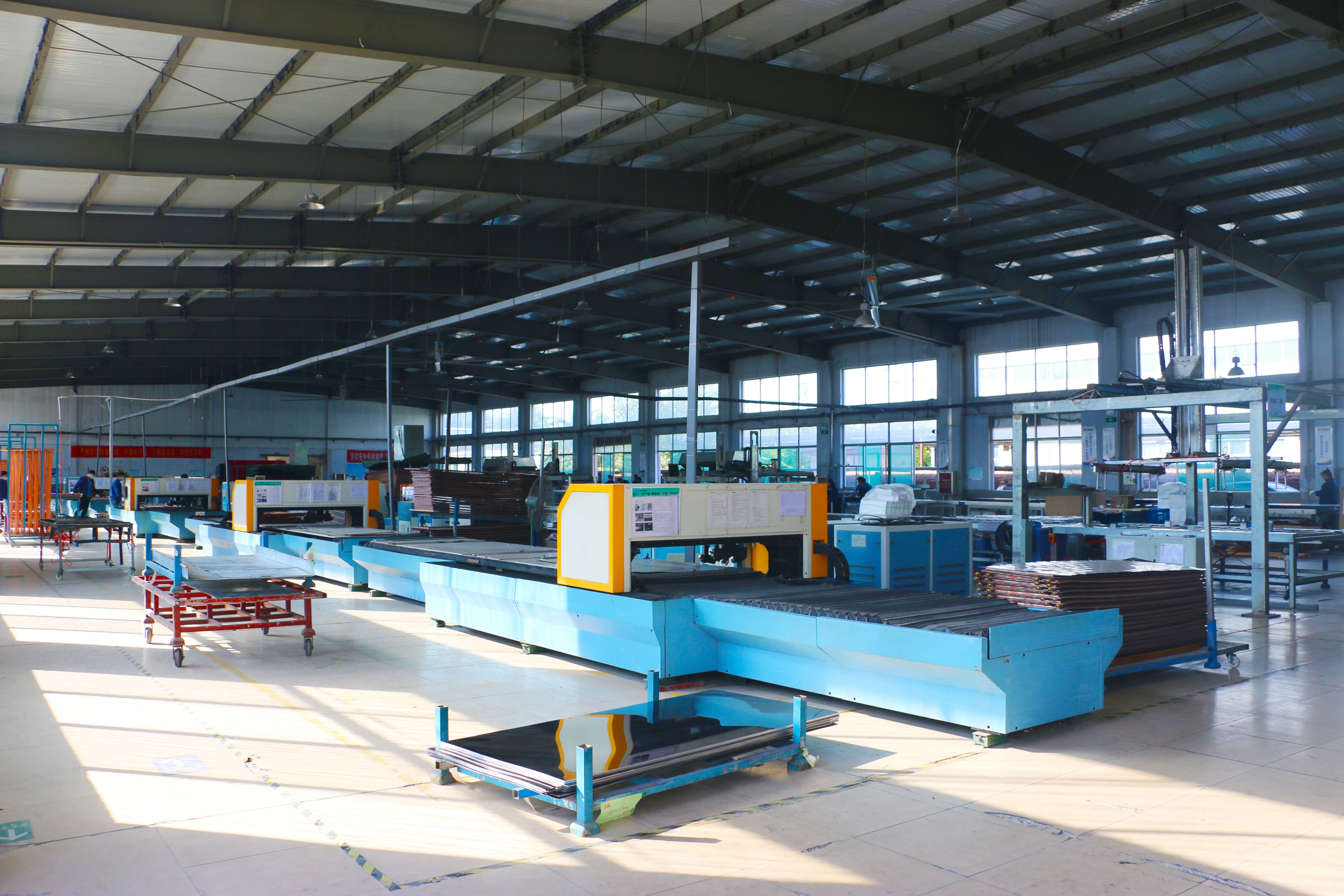

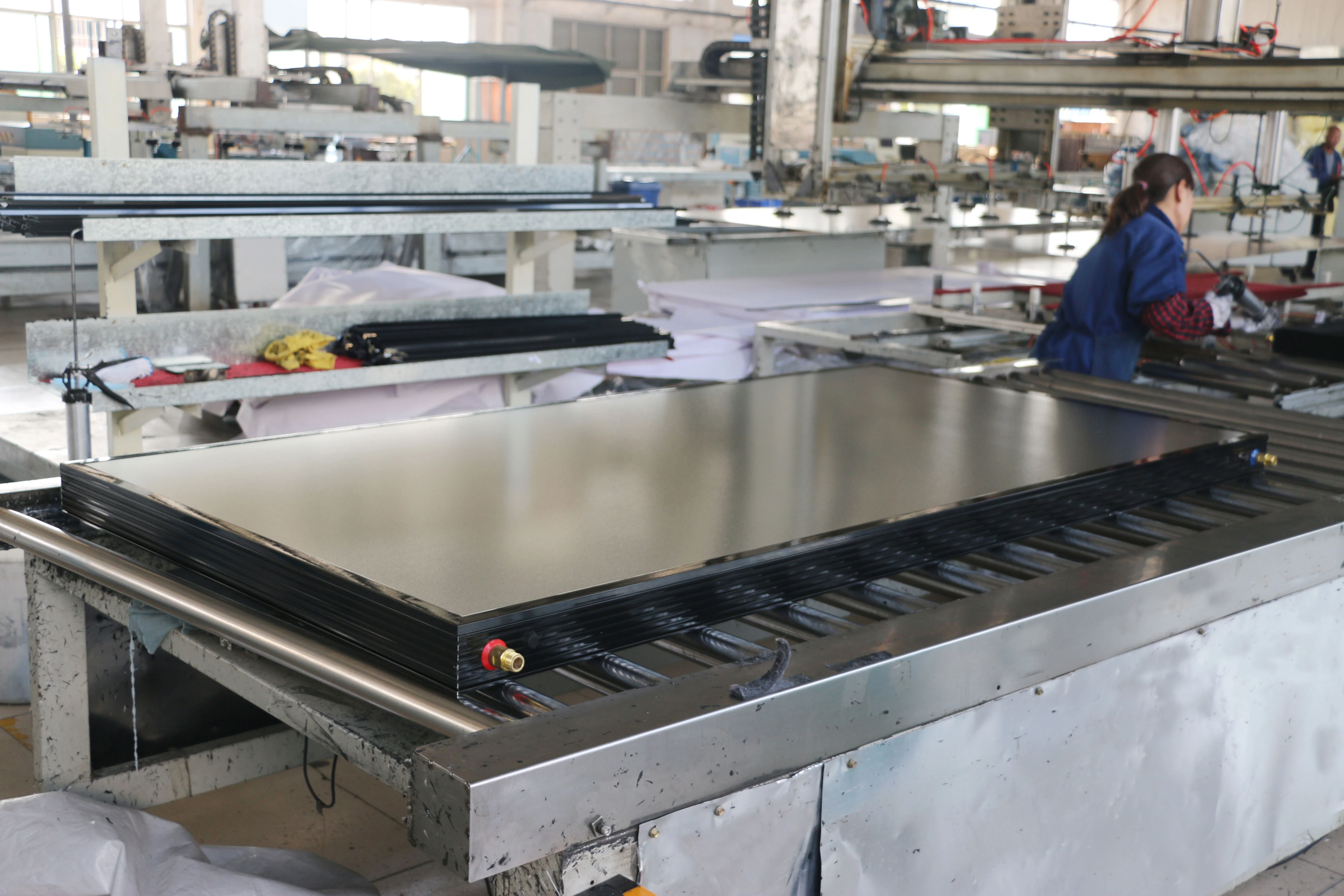

Production process
Product application
Why choose us
Company Profile
Dezhou BTE Solar Co.,ltd was founded in 2009, located in sun city-Dezhou, which is an innovative company focused on the field of solar thermal applications and has a number of independently intellectual property rights of core technology. Relying on strong technical strength, the company has independently developed the high intelligent automatic production lines,and production efficiency has reached the international leading level.Based on the idea of industrial 4.0,it has built a global professional production line of flat plate solar collector and solar water heater, the efficiency of the whole production line can achieve on average speed of 55s/pc,reaching the international leading level.
Packing & Delivery
Packing: LCL: Plywood wooden pallet/case
FCL: Export carton packing
