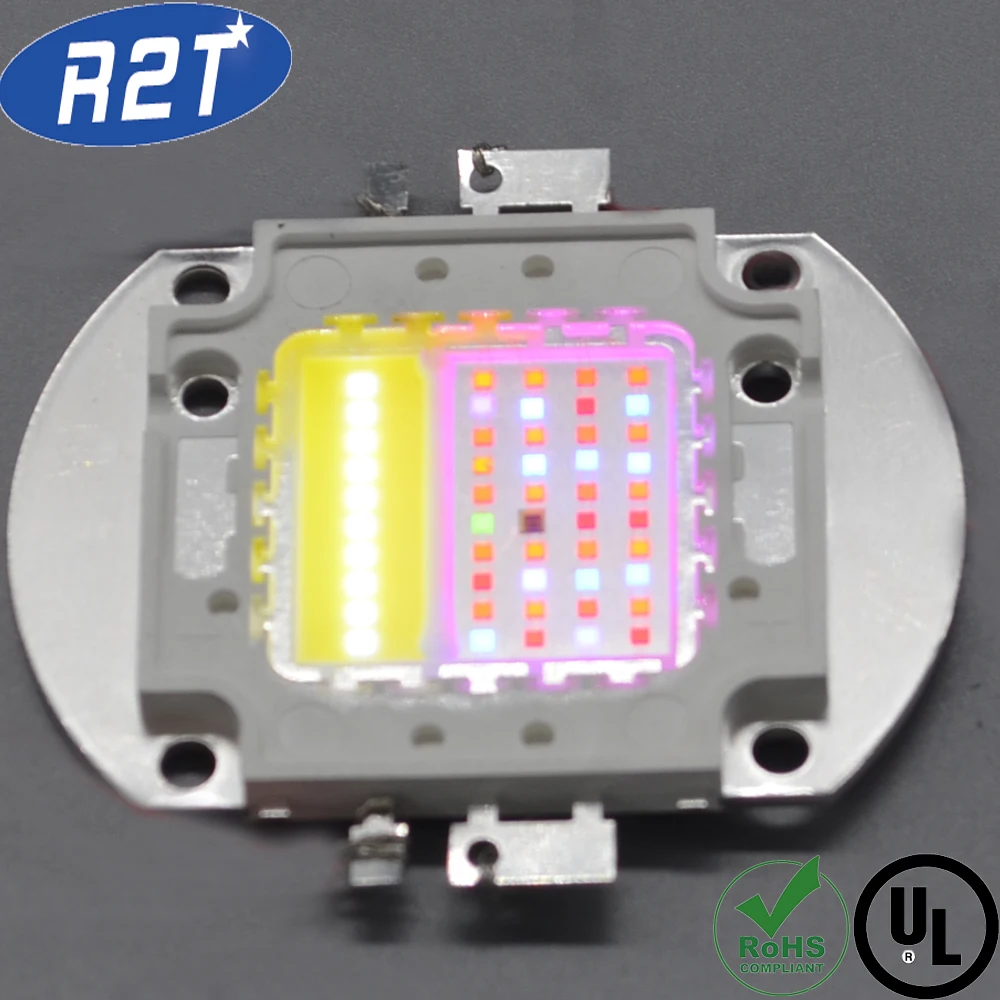

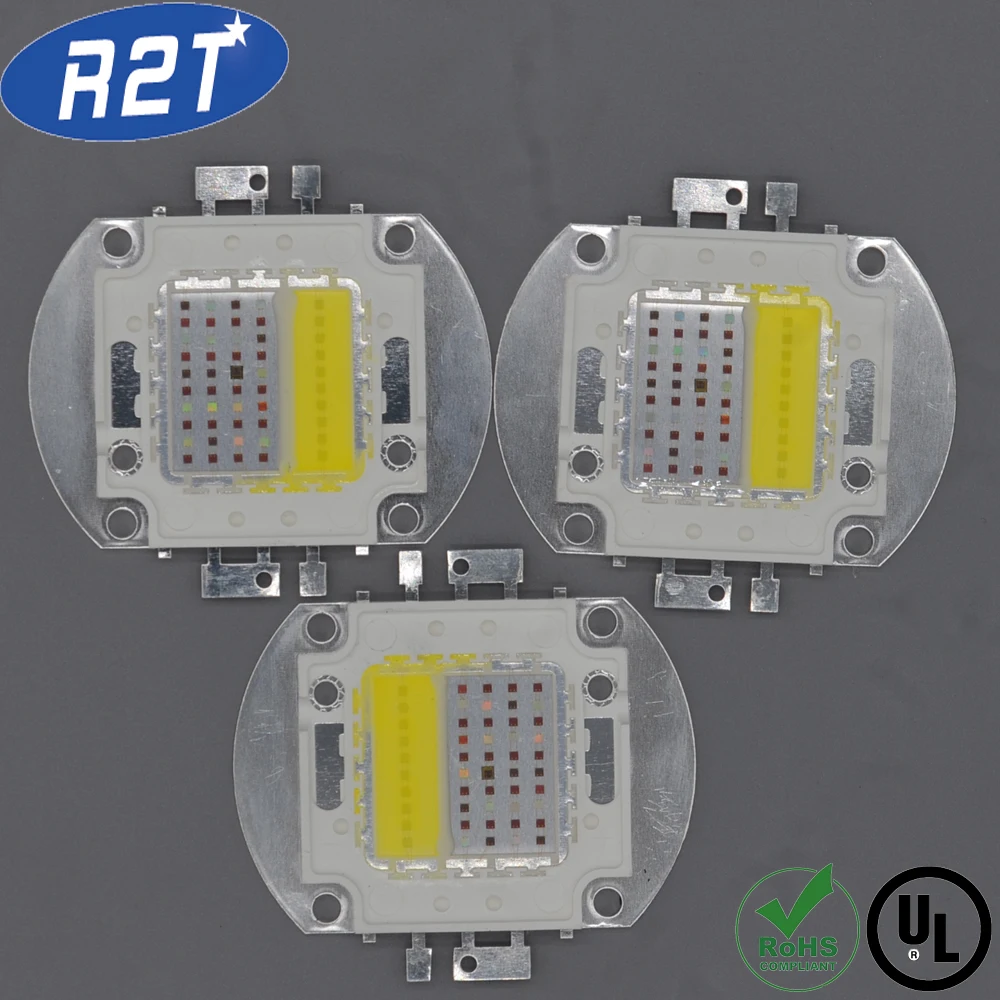

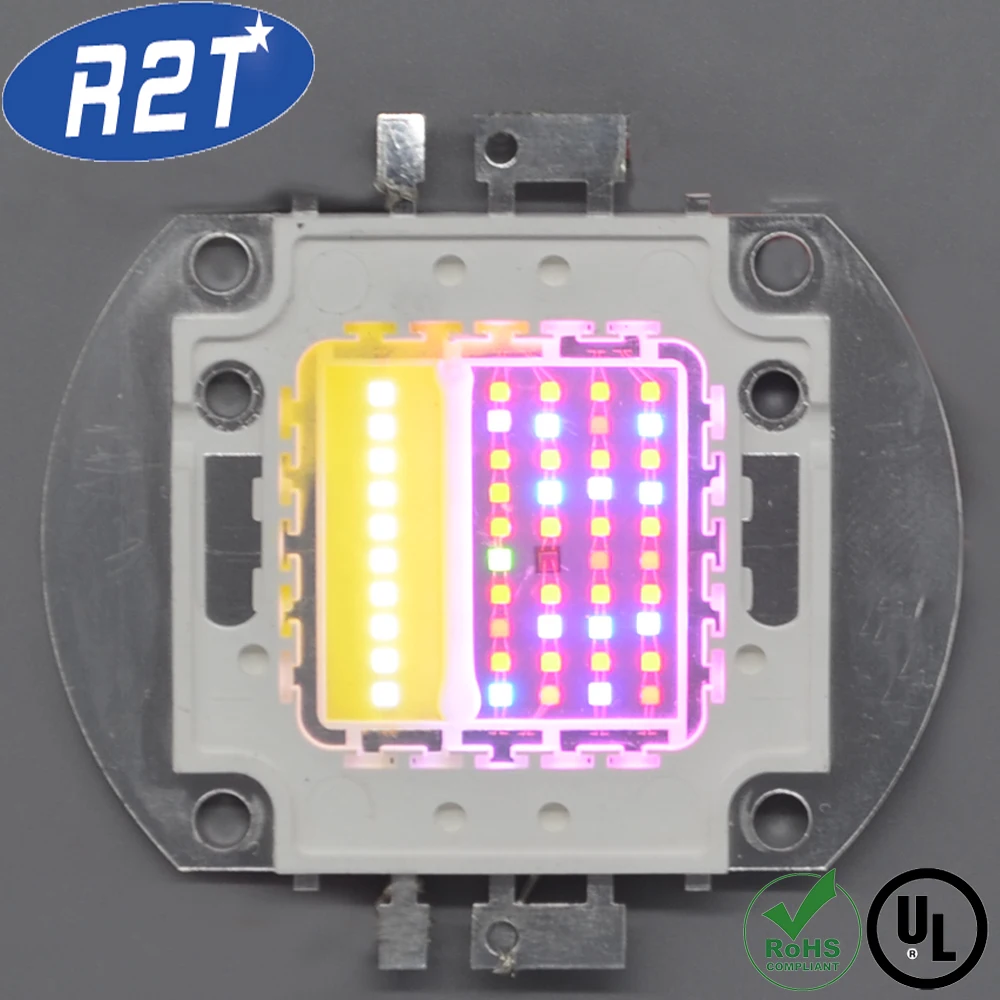

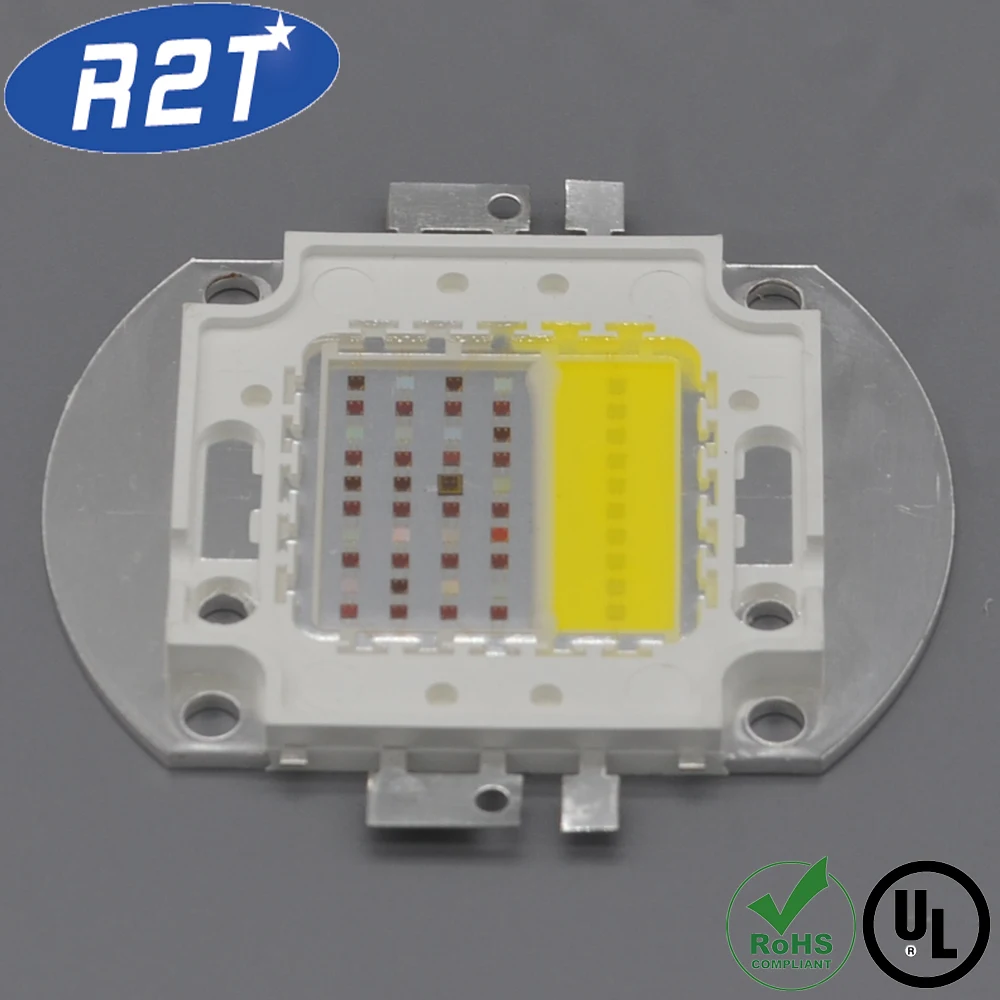

 White Full Spectrum LED plant grow  light COB LED



LED chip is fixed on copper layer of   PCB.The heat from chip can be spread out through copper layer rapidly.



Low lighting decay,decay less than 3% after 1000 hours.



Equable and soft irradiancy,no glaring and eye Protection,

Good reliability,no dead bulb and no motting.



LED full lighting module can be combined into different LED lights easyly.

Highly Color-rendering index and lighting effect.



Safty,Environment friendly.



1.Base material:Copper  Alloy

2.Dimensions of PCB :60*70mm

3.Advantages of Copper  PCB:better lighting effect than usual aluminum PCB;better heat dissipation than usual aluminum PCB





 50W LED Full Spectrum





1.Specification







Item:50w LED Full Spectrum







Input current :1400mA







Input voltage:26-29V







Wavelength:380-670nm







Chip:45mil Epileds







Driver:50W constant current driver







Circuit Relationship:10 series & 5 parallels







Color:Full Spectrum:Red/Green/Purple/Peak/Yellow/Blue







2. Driving Circuit







 As high power LED lamp bead complies with the diode VI characteristic curve, if the floating current with the floating voltage could damage the led bead, that suggest customer using constant current power or IC, not using constant voltage power or IC. The LED lamp bead can’t be drove reversely;









 3. Storage Conditon







 Before open the package, the LED lamp bead could be stored below 30°C/90%RH. After open the package, the LED lamp bead should be used in 30°C/70%RH;







Should be used in 168hrs (7days) after open the package;







LED lamp bead with lens should be used with dustproof measures;





 High Power LED Bracket



1.Base material:Copper  Alloy



2.Dimensions of PCB :34*34mm



3.Advantages of Copper  PCB:better lighting effect than usual aluminum PCB;better heat dissipation than usual aluminum PCB



4.Technical specifications:Min.hole diameter :1.0mm,Min trace width:0.2mm,Min line spacing:0.2mm,Thickness of  immersion gold:3 inches



CE&RoHS Certificaton:





Workshop:



Led Full Spectrum Series Products



Packging Style
