54V 120W 2.2A одиночный выходной источник питания или зарядное устройство 2 года гарантии 13 8 V 7.2A
- Категория: Charger >>>
- Поставщик: Hangzhou,Jiang,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.36 $* | 0.79 $* |
| Aug-16-2025 | 0.48 $* | 0.4 $* |
| Jul-16-2025 | 0.60 $* | 0.99 $* |
| Jun-16-2025 | 0.74 $* | 0.40 $* |
| May-16-2025 | 0.11 $* | 0.67 $* |
| Apr-16-2025 | 0.89 $* | 0.12 $* |
| Mar-16-2025 | 0.33 $* | 0.42 $* |
| Feb-16-2025 | 0.21 $* | 0.46 $* |
| Jan-16-2025 | 0.86 $* | 0.85 $* |
Характеристики
54V 120W 2.2A Single Output Power Supply or Battery Charger 2 Years Warranty 13.8V 7.2A PA/PB-120-54
Product Description
Features:
- Mean well 54V 120W Single Output Power Supply or Battery Charger
- Built-in passive PFC function compliance to EN61000-3-2
- With AC ON-OFF switch
- 3 poles AC inlect with fuse holder
- Protections: Short circuit / over load / Over voltage / Over temperature
- Charger type can be selected(optional )
- 2 color LED loading indicator
- Open frame models available (without safty approval)
- Low cost, High reliability
- Warranty: 2 years
Model Series:

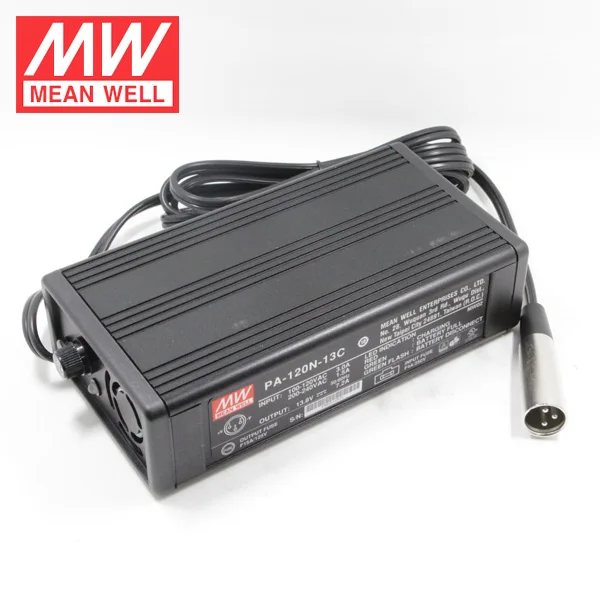

PA-120()-13 / PA-120()-27 / PA-120()-54
Detailes:
| MODEL | PA/PB-120 -54 | |
| OUTPUT | DC VOLTAGE | 55.2V |
| RATED CURRENT | 2.2A | |
| CURRENT RANGE | 0 ~ 2.2A | |
| RATED POWER | 121.44W | |
| LED INDICATED PA | series voltage 105% ±1% ↓: RED / 105% ±1% :GREEN↑ | |
| LED INDICATED PB | series load 46% ±110% ↓: GREEN / 46% ±110% :RED↑ | |
| INPUT | VOLTAGE RANGE | 88 ~ 132VAC / 176 ~ 264VAC selected by switch 47 |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | >0.65 (with PFC series) | |
| EFFICIENCY (Typ.) | 79% | |
| AC CURRENT (Typ.) | 3A/115VAC 1.5A/230VAC | |
| INRUSH CURRENT (Typ.) | COLD START 25A/115VAC 50A/230VAC | |
| LEAKAGE CURRENT | <1.5mA / 240VAC | |
| PROTECTION | OVERLOAD | 90 ~ 110% rated output power |
| OVER VOLTAGE | 60 ~ 66V | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER TEMPERATURE | RTH2 ≥70°C ±10°C detect on RTH2 thermistor Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP. | -10 ~ +45°C (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85°C , 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.05%/°C (0 ~ 45°C ) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | U60950-1, TUV EN60950-1, EN60335, EN60335-1, EN60335-2-29 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | |
| EMI CONDUCTION & RADIATION | Compliance to EN55022 (CISPR22) Class B) | |
| HARMONIC CURRENT | Compliance to EN61000-3-2,-3 | |
| OTHERS | MTBF | 149.6K hrs min. MIL-HDBK-217F (25°C ) |
| DIMENSION | PCB Type:144*90*33mm External case type:180*96*49mm (L*W*H) | |
| PACKING | 1.1Kg; 16pcs / 17.9Kg / 1.47CUFT(without PFC) 1.24Kg; 16pcs / 20.1Kg / 1.47CUFT(with PFC) | |
54V 120W 2.2A Single Output Power Supply or Battery Charger 2 Years Warranty 13.8V 7.2A PA/PB-120-54
