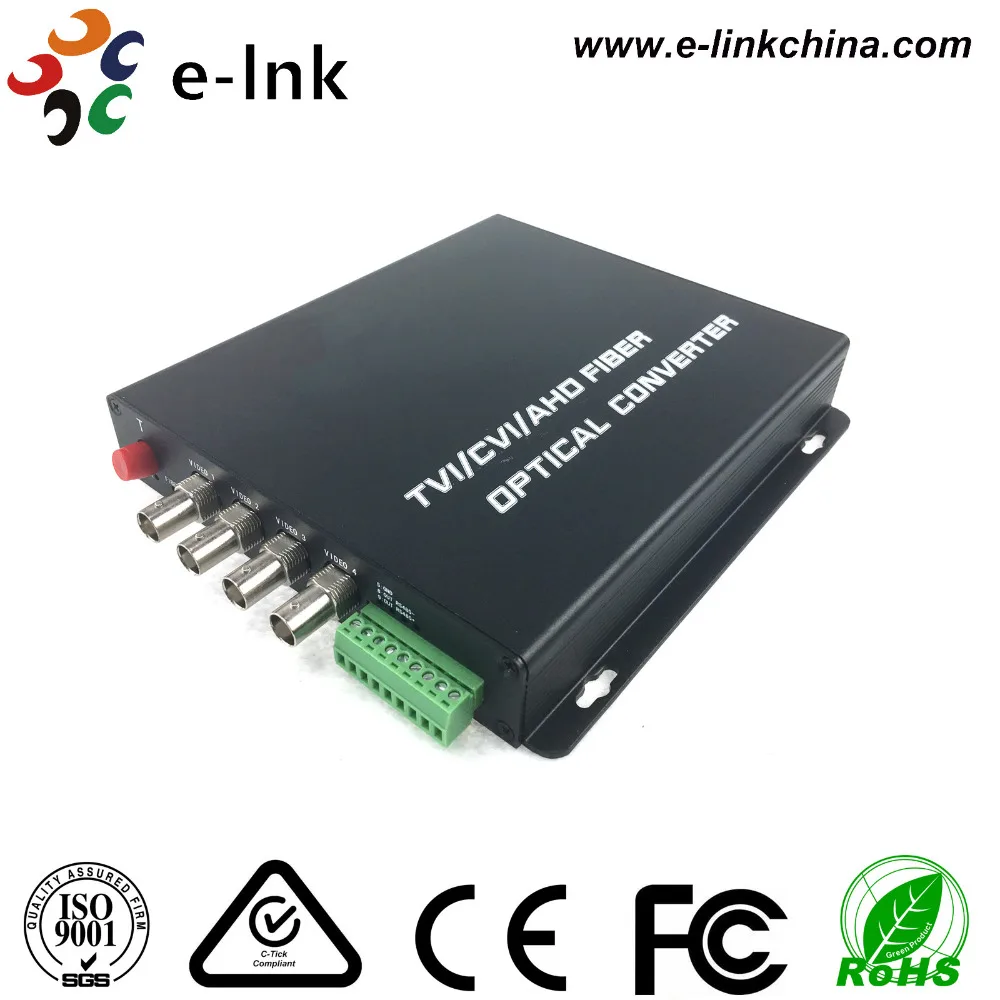

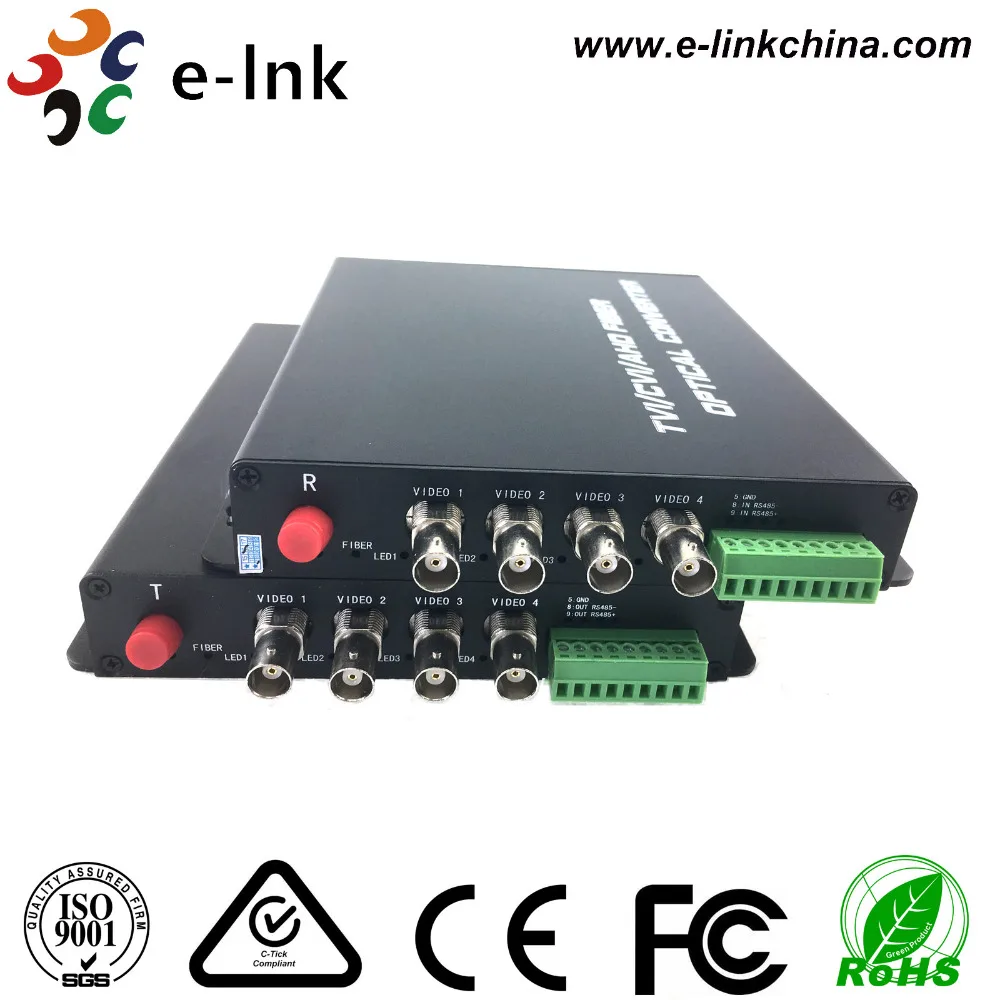

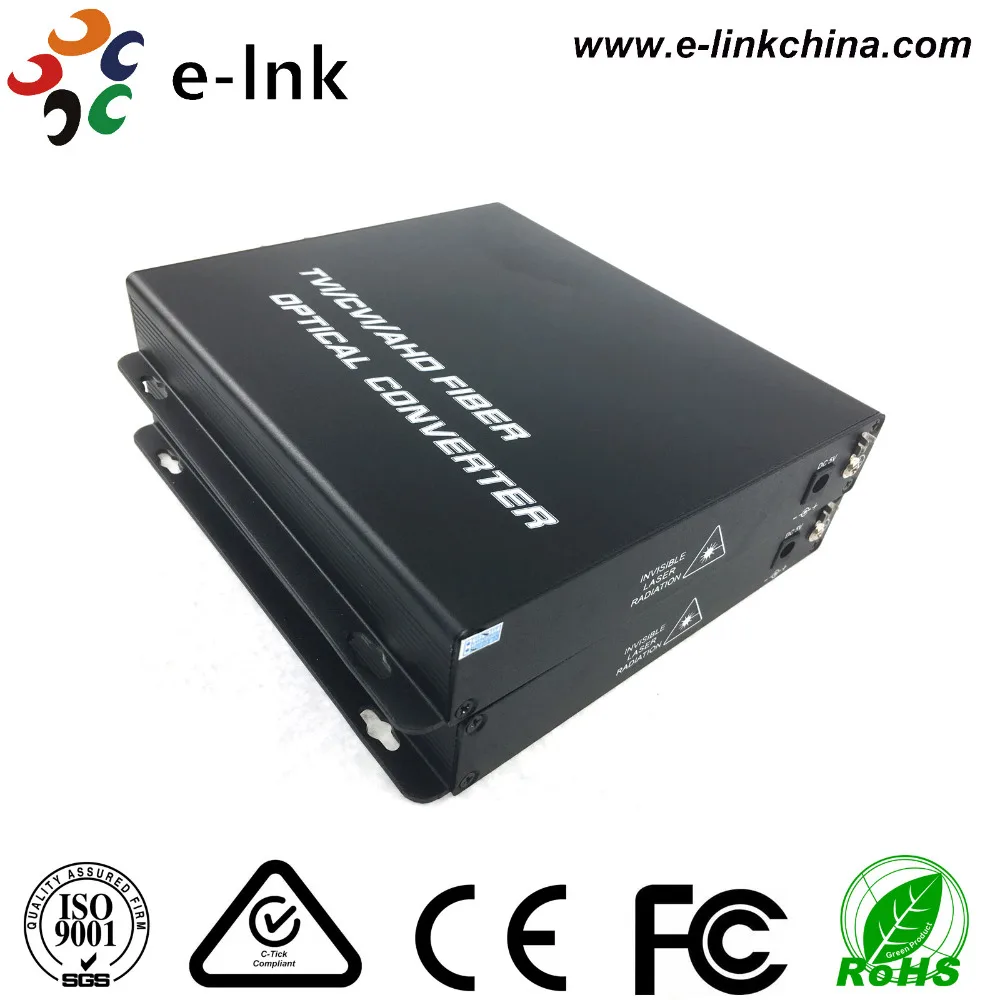

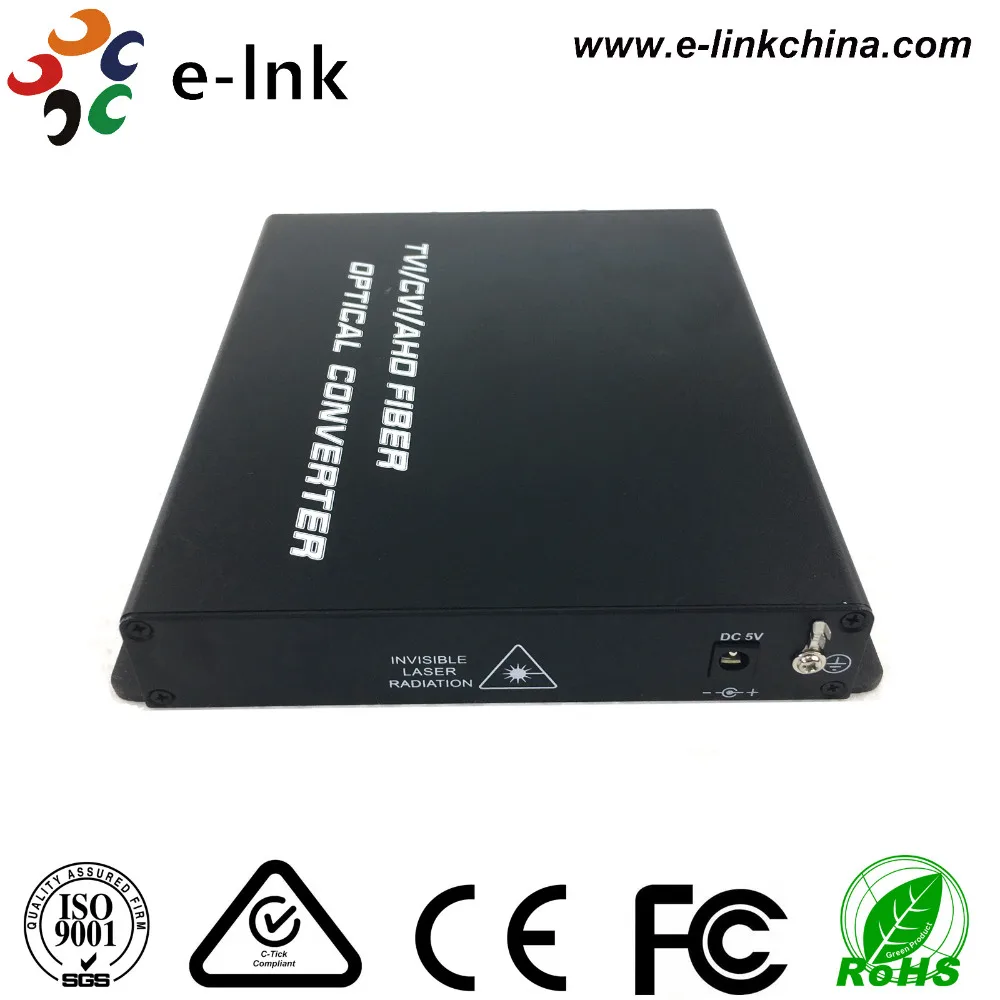

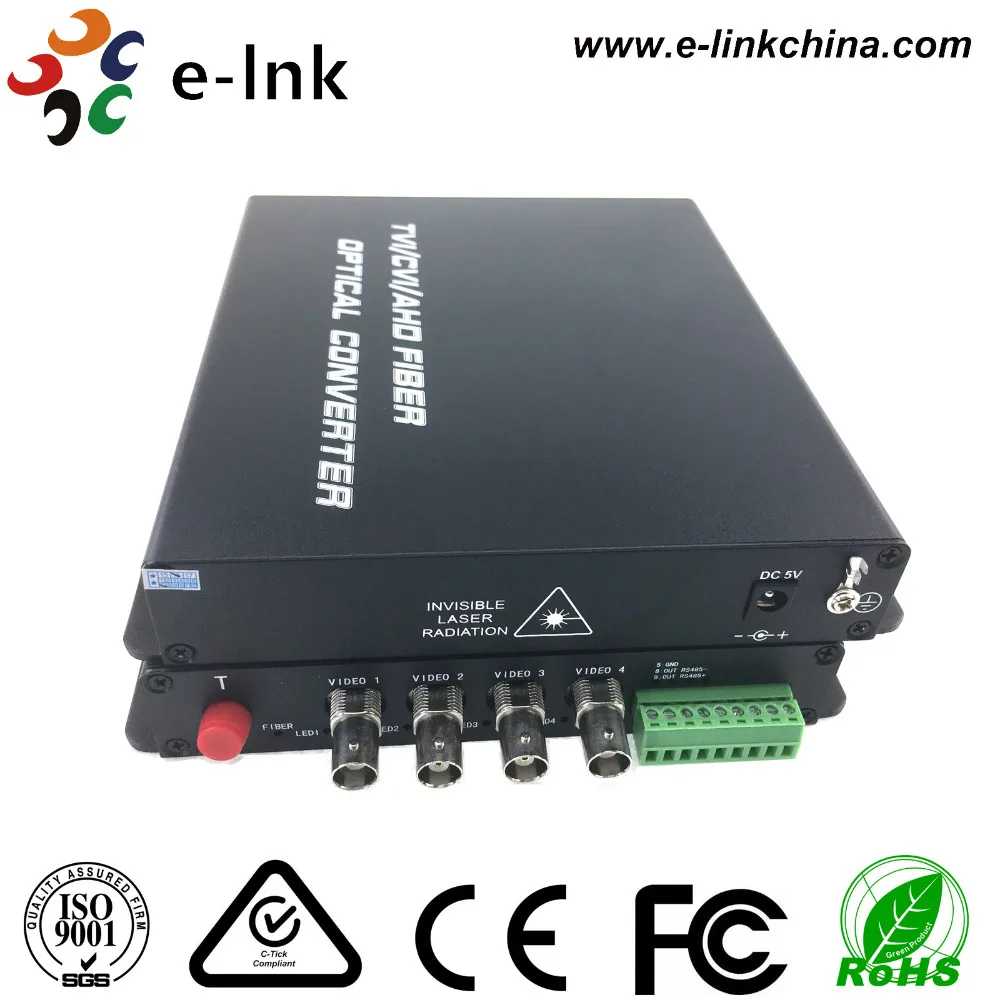

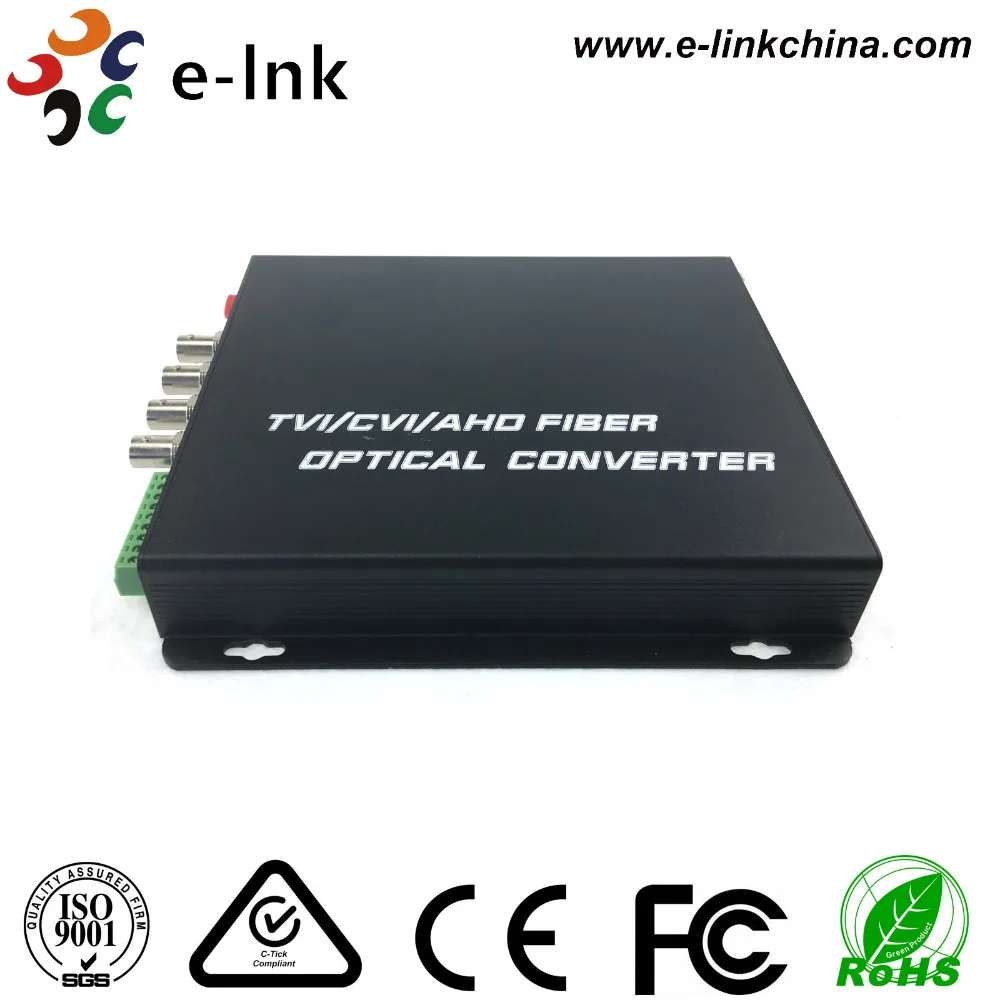

4 Ch AHD HD-CVI HD-TVI 1080P Single Mode 20KM Video Fiber Converter

Model: LNK-ACT Series

Overview

E-link HD-AHD/HD-CVI/HD-TVI Optical Transceiver adopt the advanced uncompressed HD composite video and high velocity digital optical transmission technologies which convert the AHD, HDCVI or HD-TVI composite signals to optical signals to achieve long distance(as far as 120Km) transmission through fibers. E-link AHD/CVI/TVI Fiber optic transceiver can simultaneously transmit 1-16 channels AHD, HD-CVI or HD-TVI over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. It supports input video format as 25/30/50/60fps@720P & 25/30fps@1080P.



Features

• Non-compression coding technology
• Automatically identify formats of input videos.
• Support transmission of combined AHD, HDCVI or HD-TVI signal and controlling PTZ data RS485 simultaneously though fiber optical cable
• Support 720p/50, 720p/60, 1080p/25, 1080p/30 videos etc.
• Through LED indicators to inform its functional mode
• Industrial wide range of operational temperature
• Plug and play, simple installation.
• Wide-range temperature application: -40ºC ~75ºC





Technical Indexes

Feature		Description
Optical	Fiber Type		Multi-mode fiber or Single mode fiber
	Fiber Connector		FC or ST or SC
	Distance		Multimode Fiber: 500m Single Mode Fiber: 0km~20km
	Wavelength		Transmitter: 1310nm(Tx)/1550nm(Rx) Receiver: 1550nm(Tx)/1310nm(Rx)
Transmitting	Input level		>500mVp-p
	self-adaptionly cable equilibrium		1080p: 75-5coaxial cable, 300m 720p: 75-5 coaxial cable, 500m
	Input/Output Impedance		75 Ω
	Physical Interface		1/2/4/8/16 channel BNC connector
Receiving	Output level		1Vp-p
	Input/Output Impedance		75Ω
	Physical Interface		1/2/4/8/16 channel BNC connector
Data	Transmission Media		Coaxial cable
	Baud Rate		1200~9600bit/s
	Bit Error Rate		<10
	Operation Mode		Half-Duplex
	Indicators		OPT, PWR, DATA, VIDEO
	Mean time between failures(MTBF)		>100 000 hours
General	Power		DC5V or AC220V
	Power Consumption		<7W
	Operation Temperature		-40℃~75℃
	Operation Humidity		10%~90%
	Atmospheric Pressure		86kpa~106kpa
	Mounting Method		Wall mounted or Rack mounted
