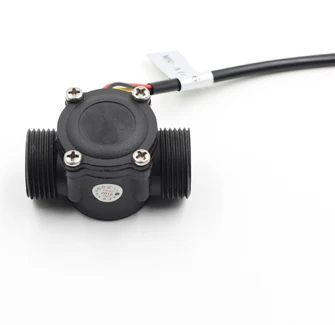

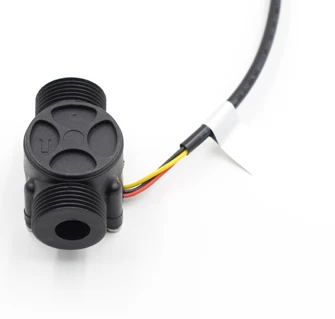

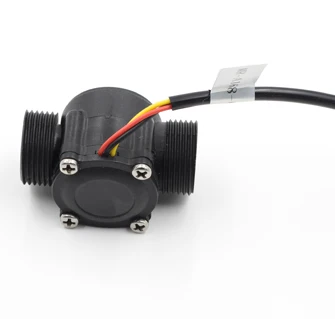

G3/4 MR-A168-6 Plastic Liquid Water Flow Sensor For Irrigation System

1.Low cost      2.Long life      3.Simple installation       4.Wide application









Operating principle

 As liquid passes through the flow sensor body, the magnetic rotor spins at a rate proportional to flow. This Causes a series of magnetic fields (the rotor vanes) to excite the Hall Effect sensor, producing a series of voltage pulses



Withstand hydraulic pressure	≤0.35Mpa
Voltage rating	DC5V-24V
Insulation resistance	>100MΩ
Precision	0.2-6L/M  2-30L/M  1-60L/M
Flow pulse	F=(18Q)+5% Q=L/min
Output pulse duty cycle	50%±10%
Max output pulse voltage	>DC4.7V
Min output pulse voltage	<DC0.5V
Body material	Nylon





Features



* Imported components of the magnetic switch

* Simple working principle

* Highly reliable

* Easy to install

* No standby power requirements

* Cheap costs



Applications

It is used in the control of water circulation, water charging and discharging, water heating, water pump switch on and off of solenoid valve, or powering on and off of water discharging for electric water heater, solar energy water heater, air condition and other water systems.



Package

Polybag and standard export cartons, also we can provide customized design for all kinds of packages.
