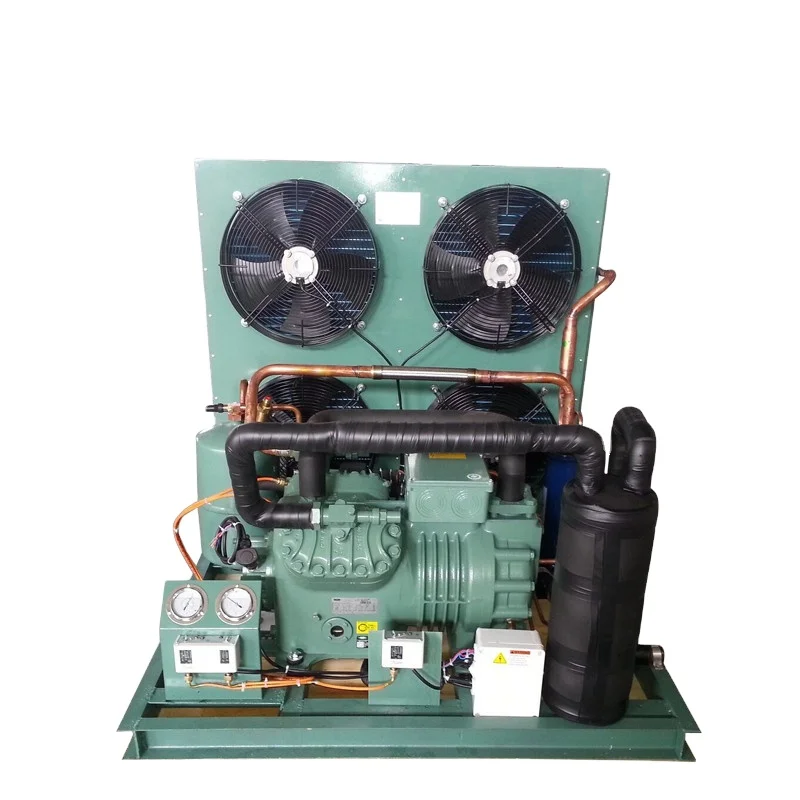

R449a Bitzer туннель для быстрого замораживания мяса конденсатор холодной

Описание и отзывы

Трекер стоимости

Характеристики

Features

* Compact and sophisticated outlook

* Fully assembled and ready to be installed to save on assembly and applied cost

* With Bitzer semi-hermetic two stage compressor,R404a,R407F.

* With Mid stage design to greatly improve EER valve

*  Suit for R404a and R407F refrigerant.

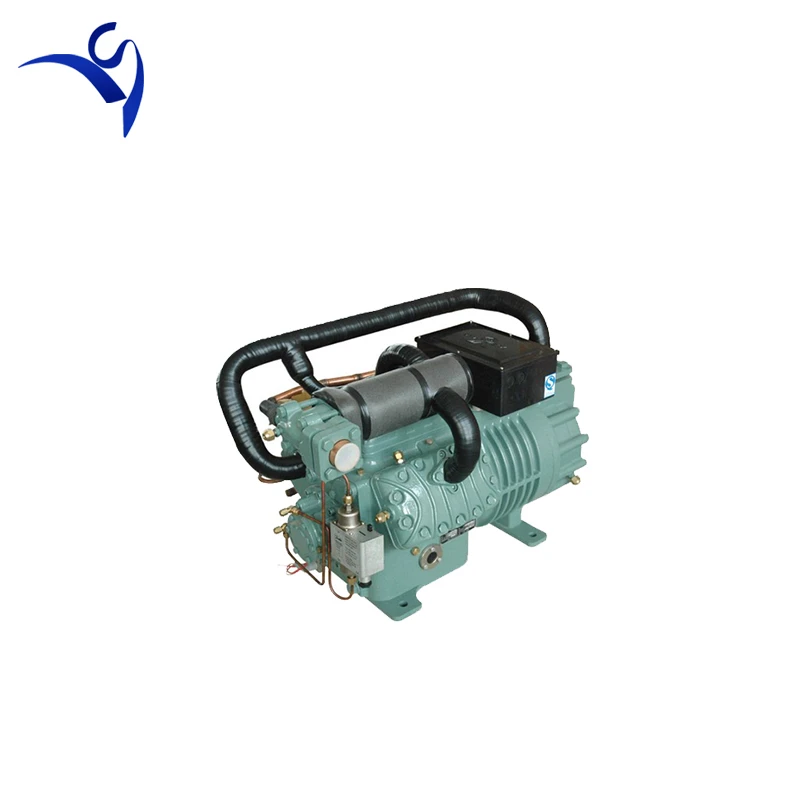

Bitzer semi-hermetic two stage reciprocating compressor for low temperature    R404a,R407F

Nominal data

Model	Compressor	HP	Voltage	Cooling capacity(W) at R404a					Axial Fans	Dimensions(mm)			Connection
				Evaporating temperature(°C)
			(V-Ph-Hz)	-25	-30	-35	-40	-45	N°x Diameter	L	W	H	Inlet	Outlet
LKPG500S	S4T-5.2Y	5	380-3-50	8227	6868	5671	4626	3714	2 x 400	1085	930	660	28	16
LKPG800S	S4N-8.2Y	8	380-3-50	11637	9737	8056	6583	5291	2 x 400	1270	930	810	28	16
LKPG1200S	S4G-12.2Y	12	380-3-50	17594	15067	12701	10526	8578	4 x 400	1270	1050	1210	35	22
LKPG1600S	S6J-16.2Y	16	380-3-50	24700	21232	17974	14981	12274	4 x 400	1270	1050	1460	42	22
LKPG2000S	S6H-20.2Y	20	380-3-50	28405	24462	20757	17290	14174	4 x 400	1340	1110	1410	42	22
LKPG2500S	S6G-25.2Y	25	380-3-50	32395	27930	23702	19760	16207	4 x 400	1340	1130	1410	42	22
LKPG3000S	S6F-30.2Y	30	380-3-50	38427	33060	28072	23465	19285	2 x 600	1250	730	927	42	22
TEST CONDITION: Ambient Temperature: 32°C, Condensing Temperature: 45°C
