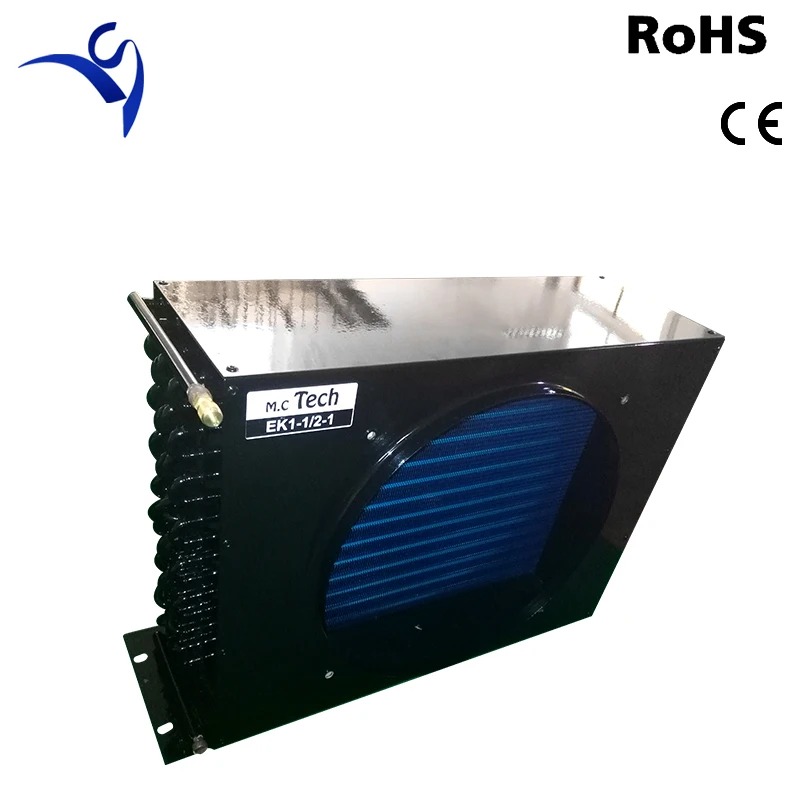

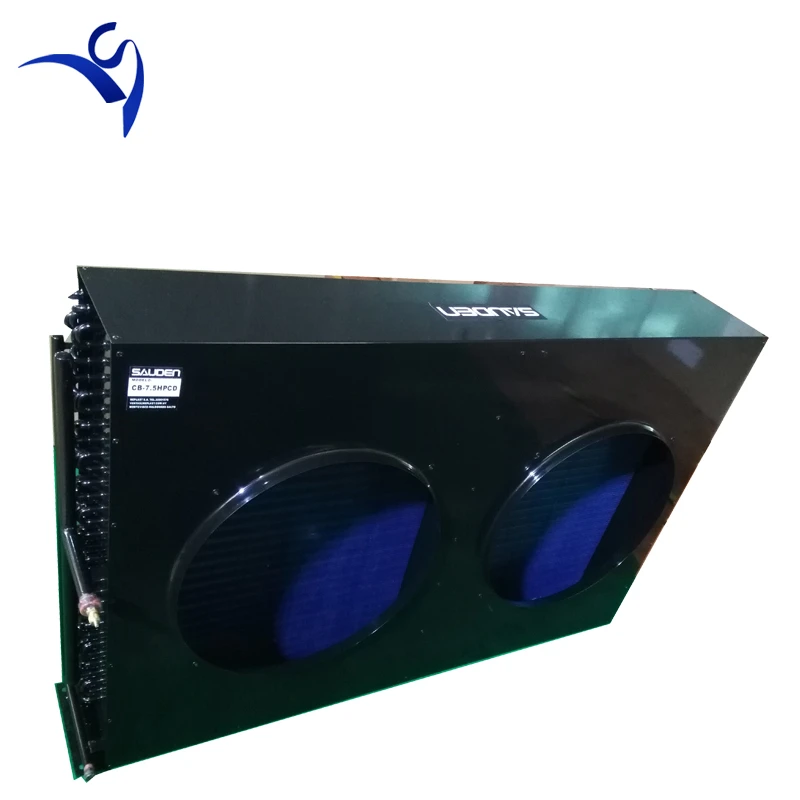

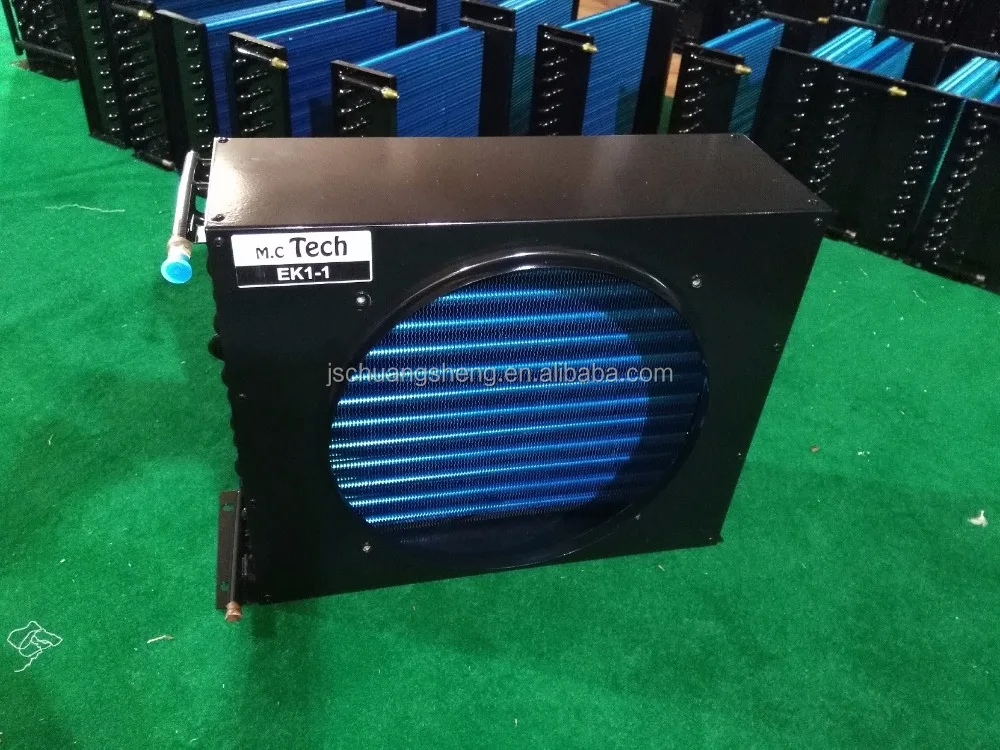

CSFN series fin type cold room refrigeration copper condenser

Nominal data



Model	Capacity	Surface	Tubes No	Fan					Inlet	outlet	Weight
				Qty.	Power	Air flow	Diameter	Voltage
	KW	M2			W	m3/h	mm	V	mm	mm	kg
CSFN-005	1.5	5.2	3 X 6	1	75	1250	300	220	10	10	8
CSFN-007	2	7	4 X 6	1	75	1250	300	220	10	10	10.2
CSFN-012	3.5	12	4 X 8	1	90	1800	350	220/380	19	16	13.8
CSFN-015	4.4	15	4 X 9	1	90	1800	350	220/380	19	16	16.5
CSFN-018	5.2	18	4 X 10	1	120	3000	400	220/380	19	16	22
CSFN-022	6.4	22	5 X 10	1	120	3000	400	220/380	19	16	24
CSFN-022/A	6.4	22	4 X 8	2	2 X 90	2 X 1800	350	380	19	16	26
CSFN-028	8.1	28	4 X 9	2	2 X 90	2 X 1800	350	380	19	16	29
CSFN-033	9.6	33	4 X 10	2	2 X 120	2 X 3000	400	380	19	16	36
CSFN-041	13	41	5 X 10	2	2 X 120	2 X 3000	400	380	19	16	40
CSFN-049	15	49	5 X 12	2	2 X 120	2 X 3000	400	380	19	16	50
CSFN-060	18	60	5 X 12	2	2 X 120	2 X 3000	400	380	22	19	58
CSFN-062	18.5	62	4 X 18	4	4 X 120	4 X 1800	350	380	25	22	65
CSFN-070	20	70	4 X 18	4	4 X 120	4 X 1800	350	380	25	22	72
CSFN-080	22.3	80	4 X 20	4	4 X 120	4 X 3000	400	380	25	22	81
CSFN-100	28.6	100	5 X 20	4	4 X 120	4 X 3000	400	380	25	22	90
CSFN-120	34.8	120	5 X 24	4	4 X 120	4 X 3000	400	380	32	25	105
CSFN-140	40.6	140	6 X 24	4	4 X 250	4 X 4500	450	380	32	25	128
CSFN-150	43.5	150	5 X 24	4	4 X 250	4 X 4500	450	380	32	25	135
CSFN-180	52.2	180	6 X 24	4	4 X 250	4 X 6000	500	380	32	25	170
CSFN-220	64.9	220	6 X 24	6	6 X 250	6 X 4500	450	380	32	32	210
CSFN-270	80	270	6 X 24	6	6 X 400	6 X 6000	500	380	35	35	255
