Высокочастотный гибочный пресс для дерева от

Высокочастотный гибочный пресс для дерева от

Категория: Press >>>
Поставщик: Shijiazhuang,Duotian,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.65 $*	0.55 $*
Aug-16-2025	0.66 $*	0.10 $*
Jul-16-2025	0.51 $*	0.7 $*
Jun-16-2025	0.71 $*	0.7 $*
May-16-2025	0.17 $*	0.39 $*
Apr-16-2025	0.53 $*	0.56 $*
Mar-16-2025	0.93 $*	0.47 $*
Feb-16-2025	0.3 $*	0.59 $*
Jan-16-2025	0.17 $*	0.88 $*

Характеристики

Product Description

Product Application

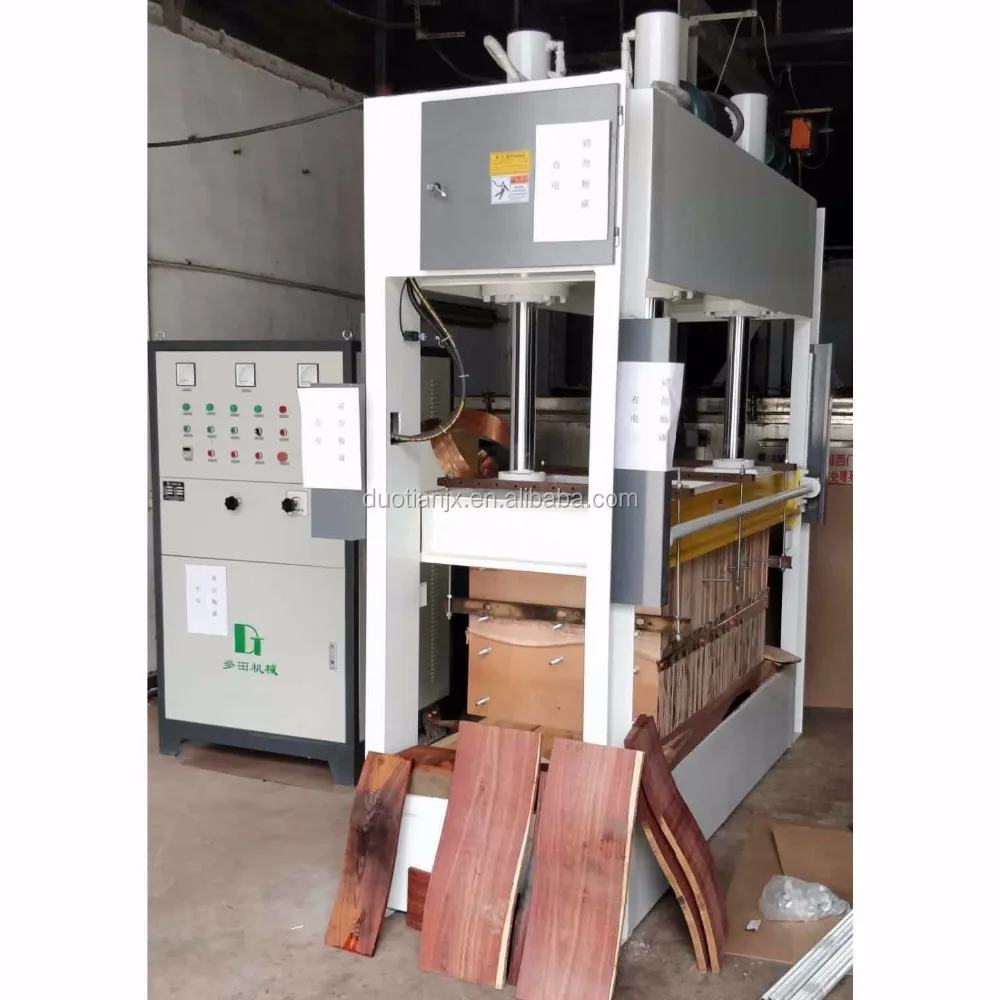

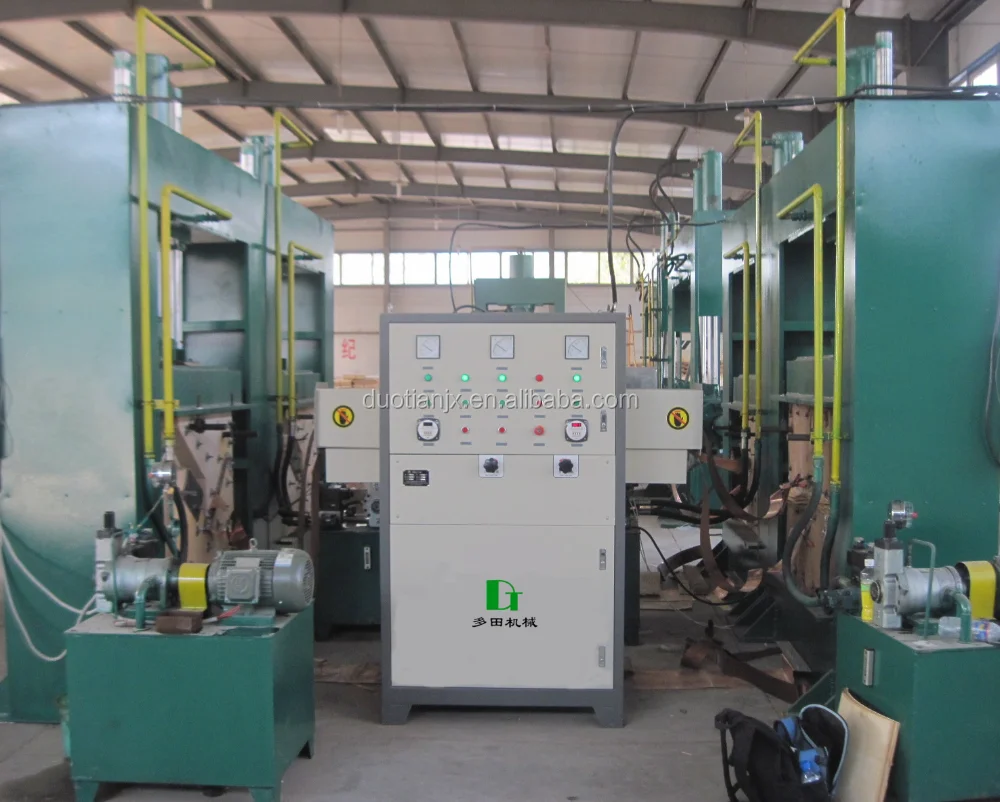

HF wood bending press machine adopts “one high frequency generator with one compressor or more than two compressors”forms.
The oil hydraulic system of compressor has one-way and three-way forms, which could meet the conditions of different workpieces.
Compared with conventional steam heating,High frequency heating only needs 1-3 minutes to complete the work,which is better at finalizing shape,has higher bonding strength and highr rate , especially suitable for thick workpieces.

Model	GSWQ-80-DT	GSWQ-160-DT
Power	380V 50Hz 3phase 4wire
HF Output Power (KW)	20 or customized	30
HF Input Power (KW)	30	45
Oscillation (MHz)	6.78
Curing Size (mm)	800*1500	1200*2500
Vertical Pressure (Ton)	80	150
Daylight of Press (MM)	1100

Main Features

Heating quickly and uniformly
Bonding easily and strongly
Shaping variously and solidly
Customizing suitable machine for the clients

Packing & Delivery

About us

Duotian Machinery Co.,Ltd.is a professional manufacture specialized in developing ,designing and producing High frequency dielectric heating and hydraulic pneumatic equipment.The main products are:HF generator,HF vacuum dryer,HF wood bending press machine,HF precise frame assembly machine,HF wood corner joint machine,HF frame joining machine,HF board and frame assembly machine,HF musical instrument gluing equipment and other special HF heating equipments.
