Лучшее решение FTTB 3 в 1 EOC и ONU оптический

BD-2EOC-OR-ONU is an all-in-one EOC Master with EOC master module, ONU module and OR module.

We can use one BD-2EOC-OR-ONU to instead of three type products, HFC optical node, EPON ONU and EOC mater.  It can reduce the number of active node in the system, decreasing failure rate and saving a space. It is the best choice of CATV, Internet and VOD for the operator.

The EOC Master Module in the BD-2EOC-OR-ONU is based the Qualcomm AR7410 chipset solution,with high anti jamming capability OFDM technology. The 7.5-65MHz low frequency band is used for EOC signals. Built in high isolation filter as CATV RF and EOC signal mixer, the EOC signal and CATV signal in 87~862MHz can run on one cable without interference. The EOC Master can provide high speed data service. The PHY Layer speed is 600Mbps, the MAC Layer throughput is up to 320Mpbs.

The OR module in the BD-2EOC-OR-ONU can provide an HFC optical input and one RF output. The CATV signal will convert from optical to RF signal here.  The OR module is a high quality optical receiver product. It received the optical signal from the TX of HFC network, and the signal processed by the PIN, Amplifier, EQ and AGC to a stable RF output. The output level will be up to 108dBuv.

The ONU module in the BD-2EOC-OR-ONU designed with one EPON port, two standard 10/100/1000 Base-TX Ethernet ports. It provides the key functionality of 802.3ah EPON ONU. By using the EPON technology, the ONU module provides a high-speed data channel through a single optical fiber with a rate of 1.25 Gbit/s on bi-direction. In addition, it offers the QOS, flexible bandwidth allocated to provide quality high-speed data service, voice service, and video service.

Application

• CATV


• Internet Access


• VOD


• IPTV


• Camera monitor system

Application Illustration

Features

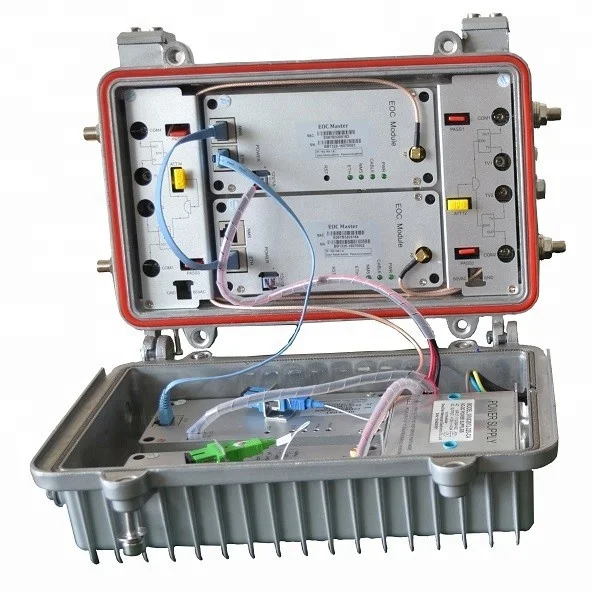

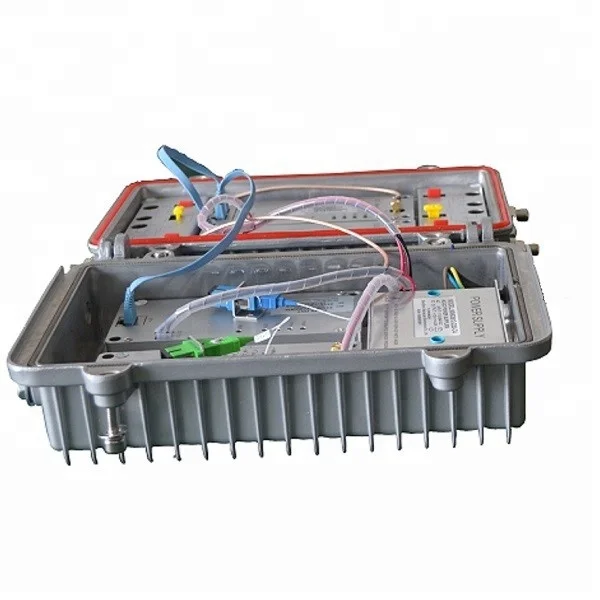

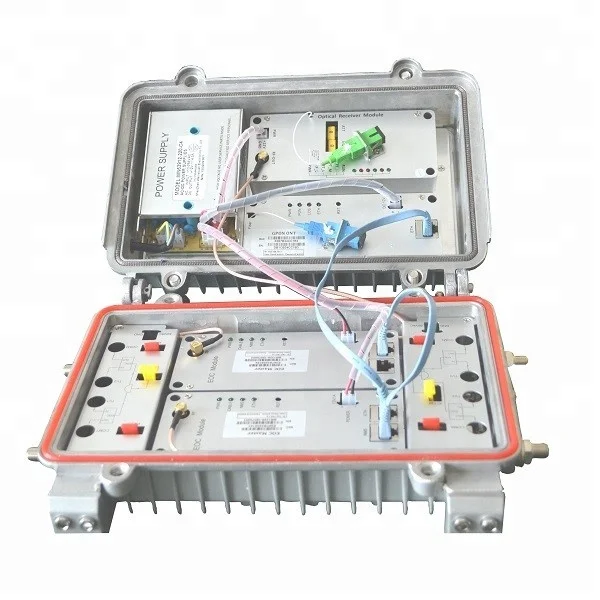

High integration with two EOC Master modules, one ONU module and one OR module

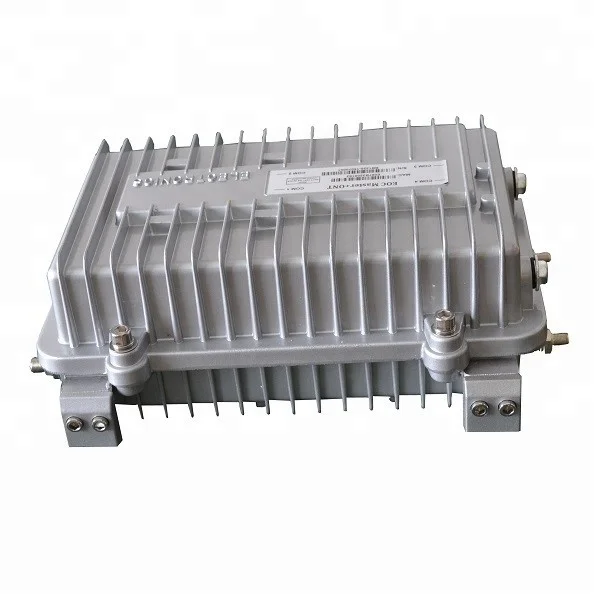

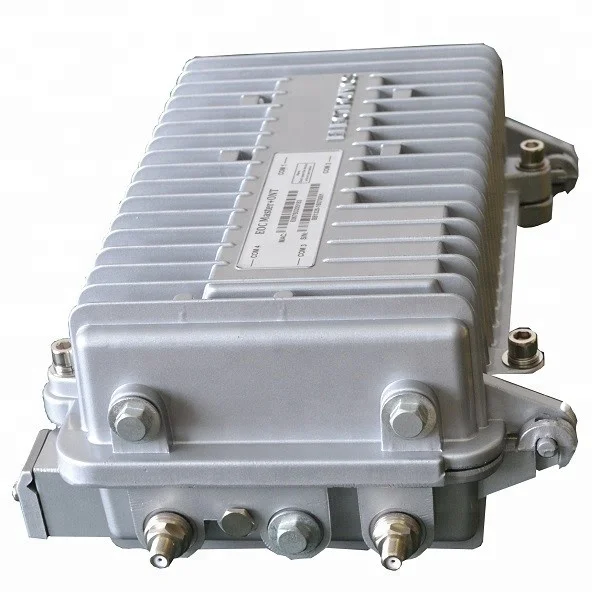

Aluminum alloy die casting shaping, good heat dissipation

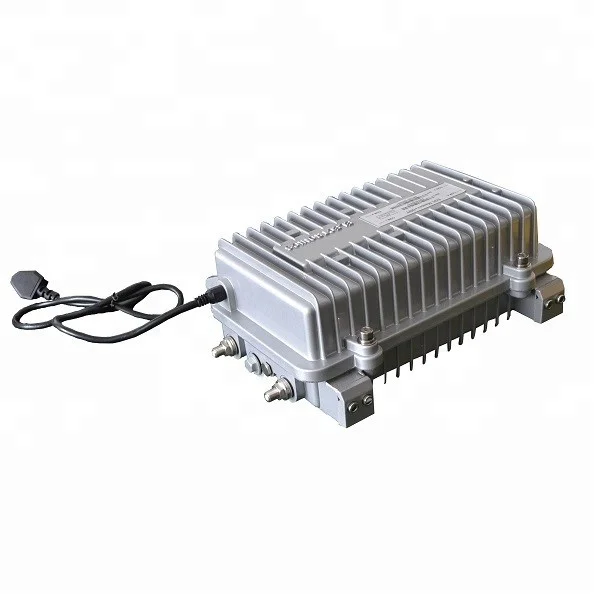

Outdoor waterproof designed, 60V/220V power supply optional
7.5-65Mhz frequency for EOC signals., no influence on CATV Service
Support data encryption
Support broadcast storm limitation
Support data packet statistics
Support auto-update and auto-configuration
Support the optical power monitor
Flexible bandwidth allocation function
Support various QOS service level
EMS network management based on SNMP
Provide a rich fault alarm function, easy to fault diagnosis
Support software online upgrade
OR support AGC
CATV RF output up to 108dBuv
ONU module compliant with IEEE802.3ah and CTC2.1standards.
ONU module provides tow auto-negotiation GE ports
ONU module support interconnection with the third-party OLT
Support the EMS network based on SNMP

Specification

FAQ

Q:How can i get a gepon onu sample ?

A:You need place sample order to us.We will arrange the sample production for you.

Q:Could you do design for us?

A:Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.

Q:How can we place order?

A:After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.

If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.

Q:How about the shipping for gepon onu ?

A:For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.

Q:what's your products' advantages ?

A:1.good quality and competetive prices.

    2.Strictly quality control when producing.

    3.Professional team work, from design, development, producing,assemble,packing and shipping.

    4.Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
