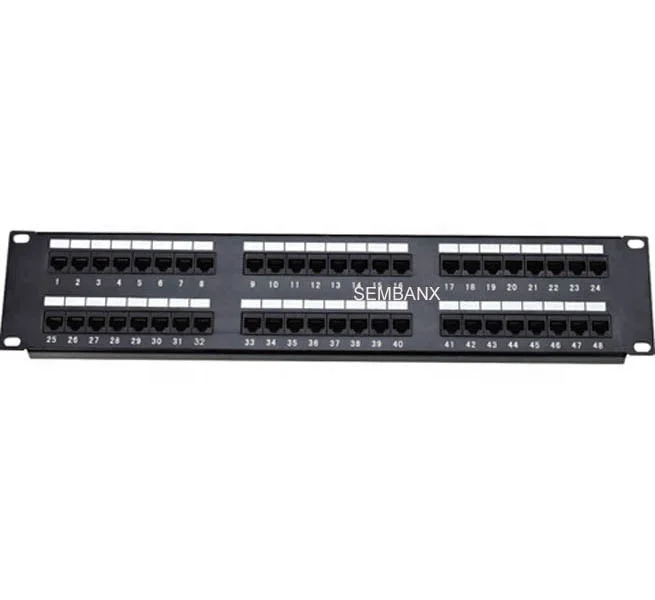

Патч-панель cat6 на 48
- Категория: Патч-панель >>>
- Поставщик: Cixi,Sembanx,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.49 $* | 0.47 $* |
| Aug-16-2025 | 0.93 $* | 0.34 $* |
| Jul-16-2025 | 0.82 $* | 0.24 $* |
| Jun-16-2025 | 0.41 $* | 0.89 $* |
| May-16-2025 | 0.11 $* | 0.21 $* |
| Apr-16-2025 | 0.39 $* | 0.31 $* |
| Mar-16-2025 | 0.41 $* | 0.35 $* |
| Feb-16-2025 | 0.93 $* | 0.19 $* |
| Jan-16-2025 | 0.63 $* | 0.85 $* |
Характеристики
| Item name | Patch Panel |
| Model Number | SMB-PP-CAT6-065 |
| IDC Type | 110, KRONE,DUAL IDC |
| Port | 48 Port |
| Height | 2u Patch Panel |
| Color | Black |
| Application | Networking |
| Category | Cat5e/6/6A |
| Packing | 1pc/box |
| MOQ | 100pcs |
| Lead Time | about 7-25 days |
| Payment Terms | T.T / L.C / PAYPAL / WESTERN UNION |
| OEM Service | Welcome |
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 6 requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173
Angle: 90 Degree
Termination: 110, KRONE,DUALTypes (3 types)
Electrical:
According to UL 1863
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Materials:
Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC Ul94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 u" to 50 u" Gold plating on contact area.
Product Description
