Product Description

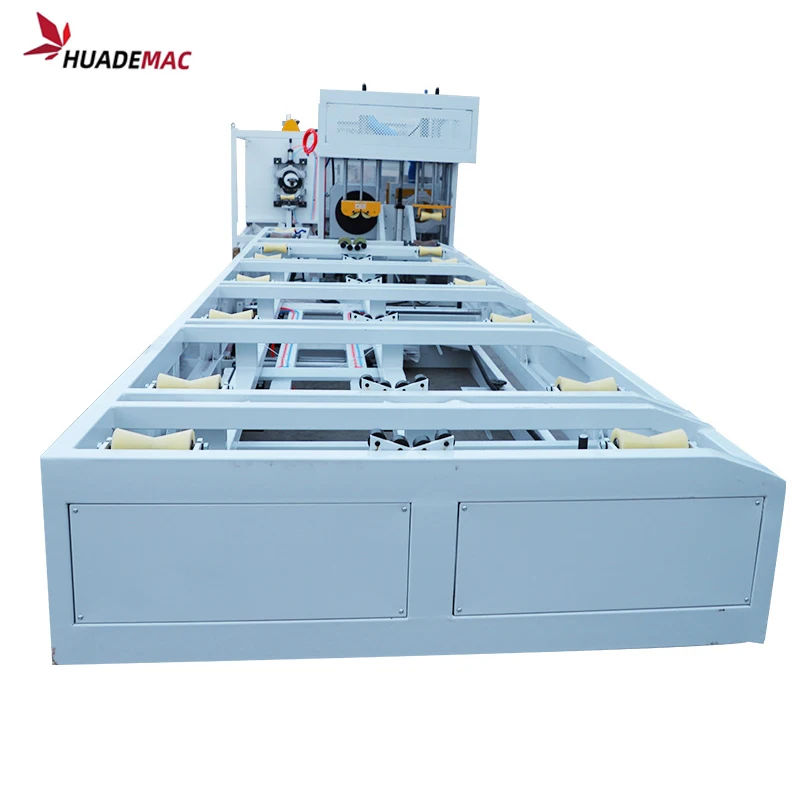

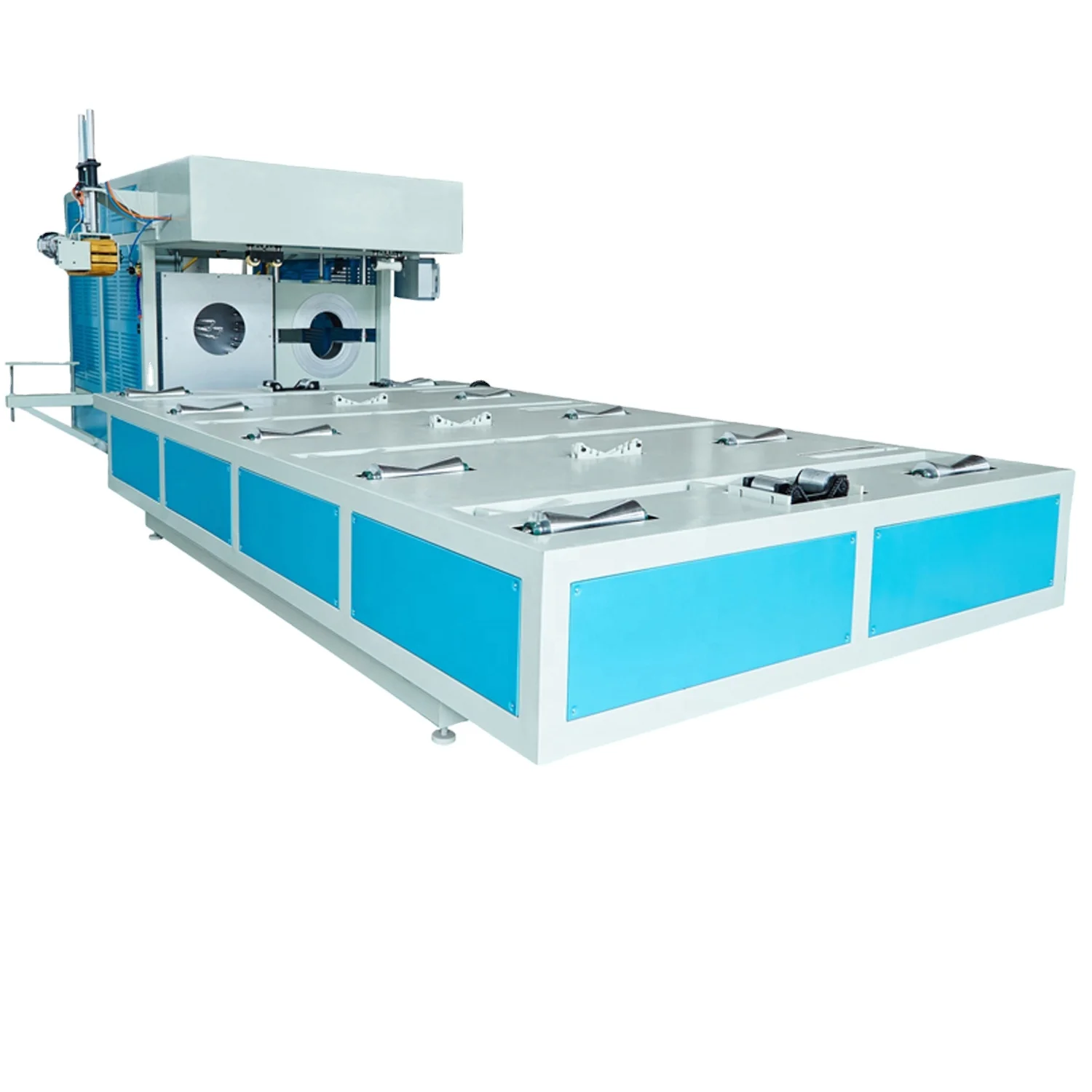

  SGK series Full-Auto Pipe Belling-machine Expander with drawing device and program interface concerned id used with extruding machine. It is also could separating operation. While expanding pipes, the machine adopts translation. The action is steady and correct. It does not damage pipe materials. The machine adopts double-infrared heating oven type. Each oven is equipped with heating core. The shaping method adopts expanding-end shaping. The size of pipe mouth is correct. On its panel, there is a transfer switch of expanding solvent type pipe socket sovent, rubber-ring expansion and rubber-ring lip type sockets. The choice of expanding pipe types is very convenient. The technological adaptability is strong. Its main electric control elements are all good quality. The system characteristics are steady and reliable.



Main Techincal data:

Model	Pipe Diameter	Heating Method	Belling Method	Heating power	Dimension
SGK110	50-110mm	Electric heating	Mould physical expansion	10.5kw	7500x1400x1750mm
SGK160	50-160mm	Electric heating	Mould physical expansion	10.5kw	7500x1400x1750mm
SGK200	50-200mm	Electric heating	Mould physical expansion	10.5kw	7855x1350x1900mm
SGK250	110-250mm	Electric heating	Mould physical expansion	10.5kw	7830x1620x1700mm
SGK315	160-315mm	Electric heating	Mould physical expansion	14kw	8050x1750x1900mm
SGK450	200-450mm	Electric heating	Mould physical expansion	18kw	8290x2090x2080mm
SGK500	315-500mm	Electric heating	Mould physical expansion	18kw	8500x3050x2100mm
SGK630	400-630mm	Electric heating	Mould physical expansion	22.5kw	8615x3125x2500mm
